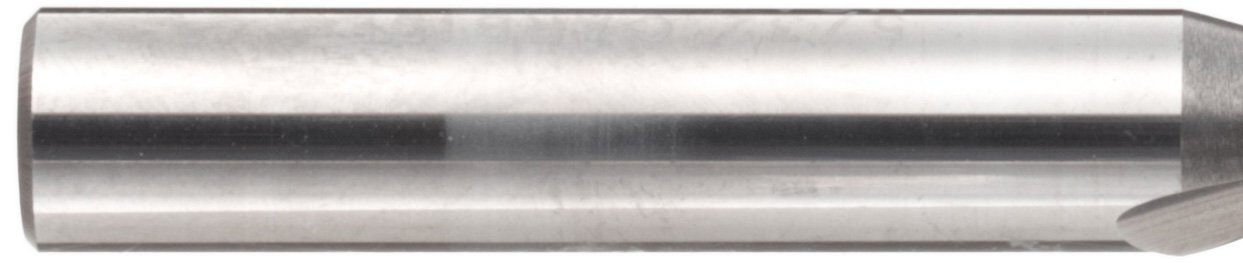

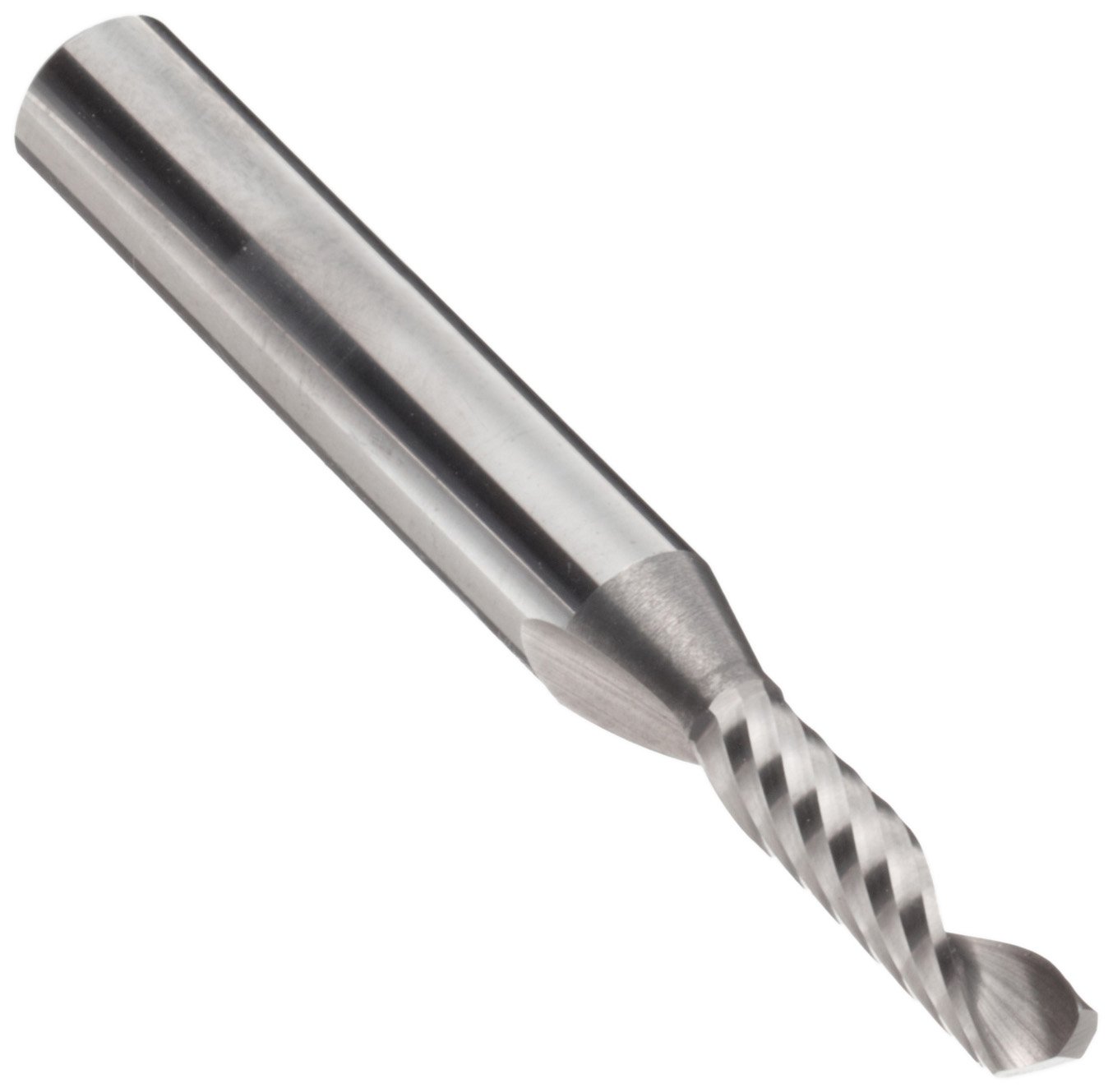

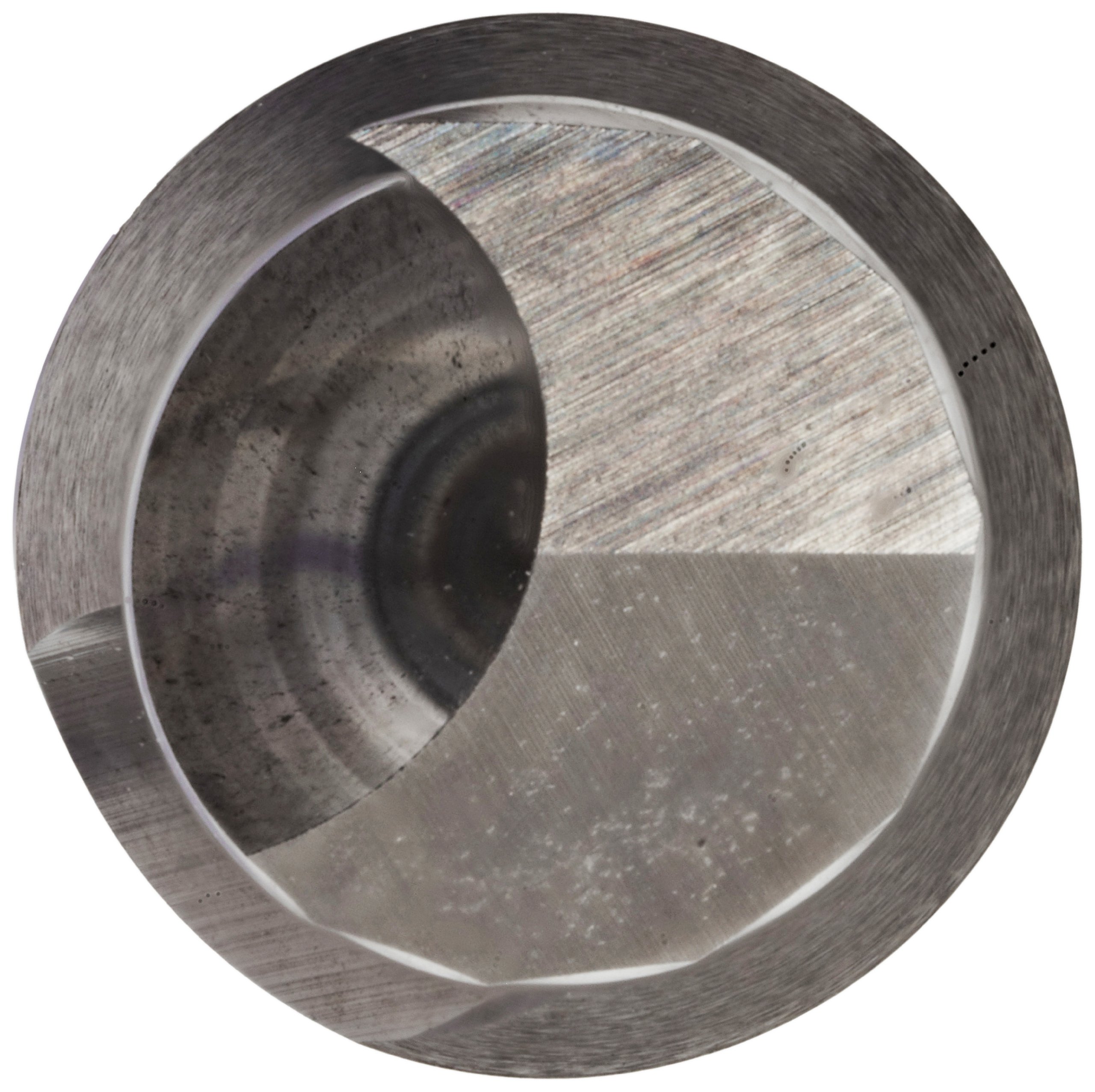

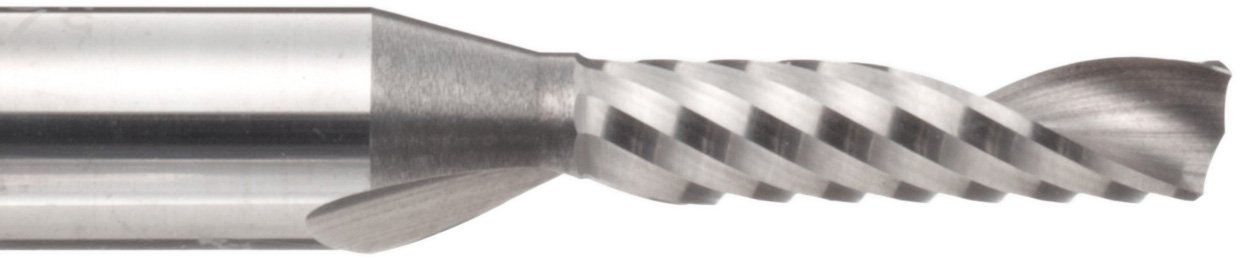

Melin Tool ARMG Carbide Square Nose End Mills, Inch, Uncoated (Bright) Finish, 25 Degree Helix, For Use With Plastics

Be the first to review this item

Product Specifications
Cutting Direction
Right Hand
Specific Uses For Product
Profile Milling , Slot Milling
Finish Types
Uncoated (Bright)
End Cut Type
Center Cutting
Material Type
Carbide
Cutting Angle
25  Degrees
Brand Name
Melin Tool
Manufacturer Series Number
ARMG
Compatible Material
Plastics
Shank Type
Round
UNSPSC Code
27112803
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 13 hrs 6 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-11 of 11
Cutting Diameter Shank Width Cutting Length Overall Length Number of Flutes Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-11 of 11
1/16" 0.0625" 0.25" 2" 1 12865 B0083K2XTK yes $26.57 Buy Options
1/16" 0.0625" 0.25" 1.5000" 1 12855 B0083K2XG8 yes $23.33 Buy Options
1/8" 0.1250" 0.5" 1.5000" 1 12859 B0083K2WZU yes $20.56 Buy Options
1/8" 0.1250" 0.5" 2" 1 12869 B0083K2X8Q yes $24.40 Buy Options
5/32" 0.1563" 0.625" 2" 1 12871 B0083K30QK yes $24.40 Buy Options
3/16" 0.1875" 0.625" 2" 1 12863 B0083K2ZLG yes $23.07 Buy Options
3/16" 0.1875" 0.625" 2" 1 12875 B0083K307Y yes $24.40 Buy Options
7/32" 0.2188" 0.75" 2.5000" 1 12877 B0083K2YYO yes $24.40 Buy Options
1/4" 0.2500" 0.75" 2.5000" 1 12881 B0083K2YGW yes $24.40 Buy Options
3/8" 0.3750" 1.125" 3" 1 12885 B0083K2Y58 yes $32.33 Buy Options
1/2" 0.5000" 1" 3" 1 12887 B0083K2WPA yes $51.18 Buy Options

Key Features

  • Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid toolholding systems
  • Uncoated tools feature just the base substrate without any additional treatment or coatings and are suitable for a wide range of applications
  • Round shanks allow use with a wide variety of toolholding systems
  • Unique rake and clearance angles for fast removal rates
  • Polished single flute design

Product Description

Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid toolholding systems. Uncoated tools feature just the base substrate without any additional treatment or coatings and are suitable for a wide range of applications. Round shanks allow use with a wide variety of toolholding systems. For aluminum and non-ferrous materials. Unique rake and clearance angles for fast removal rates. Polished single flute design. For Aluminum and Non-ferrous Materials.
