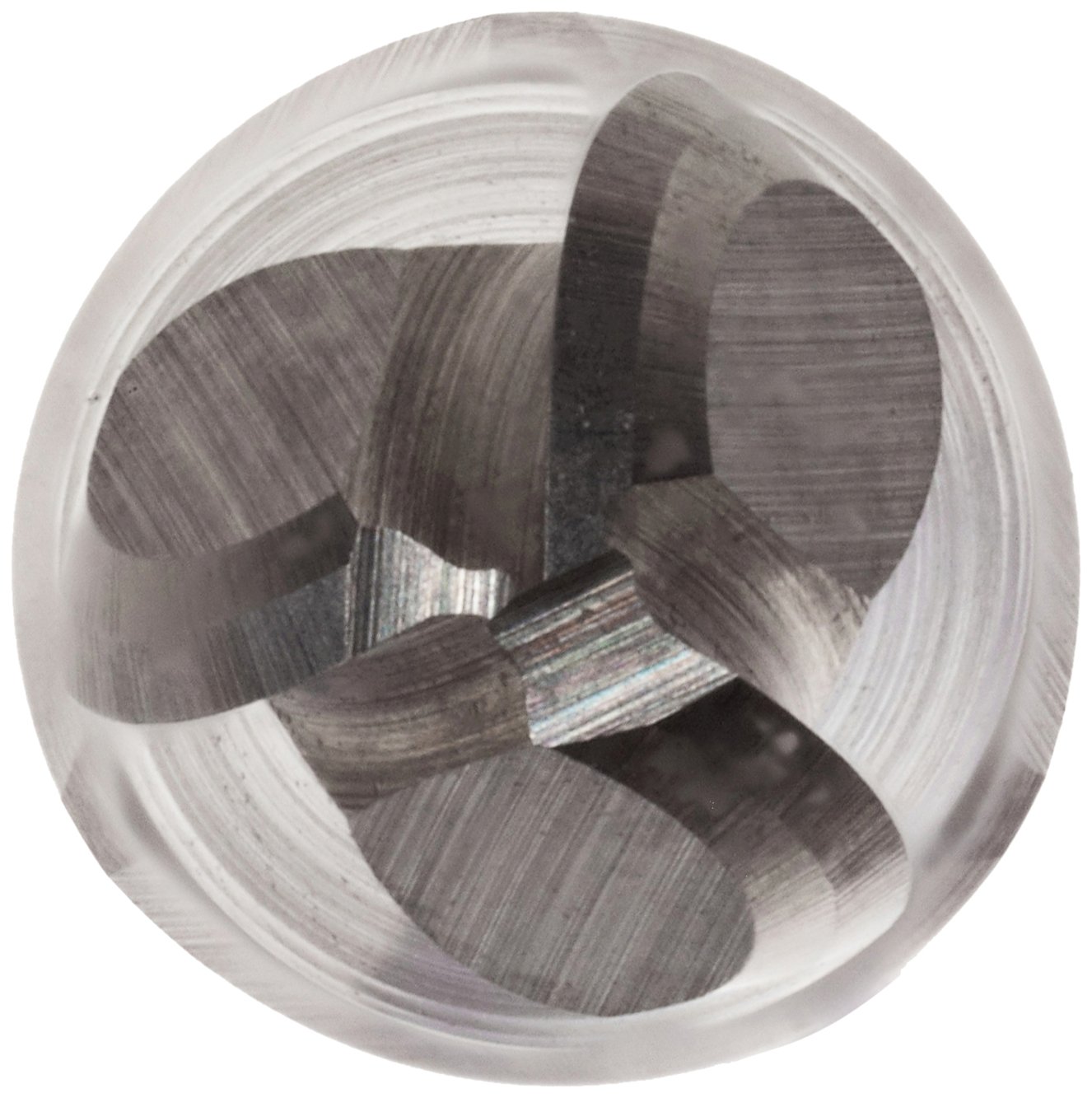

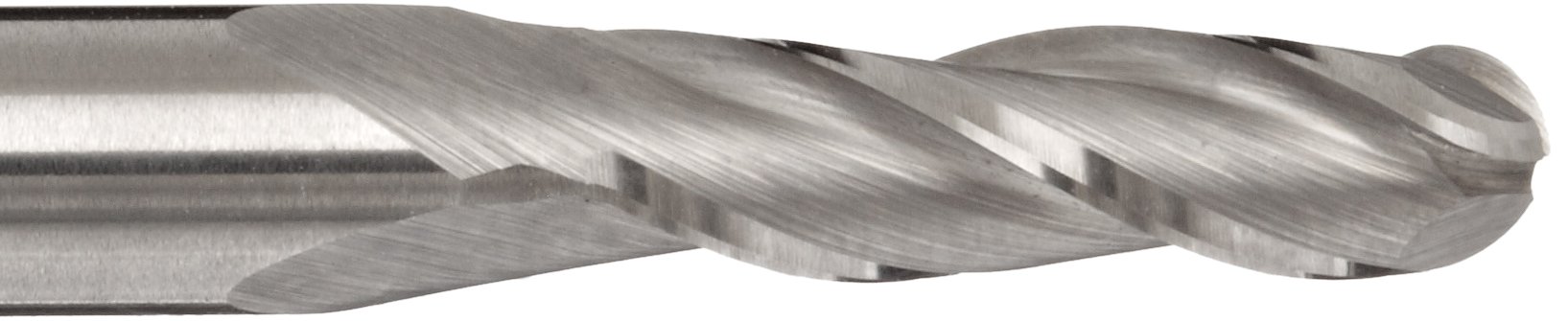

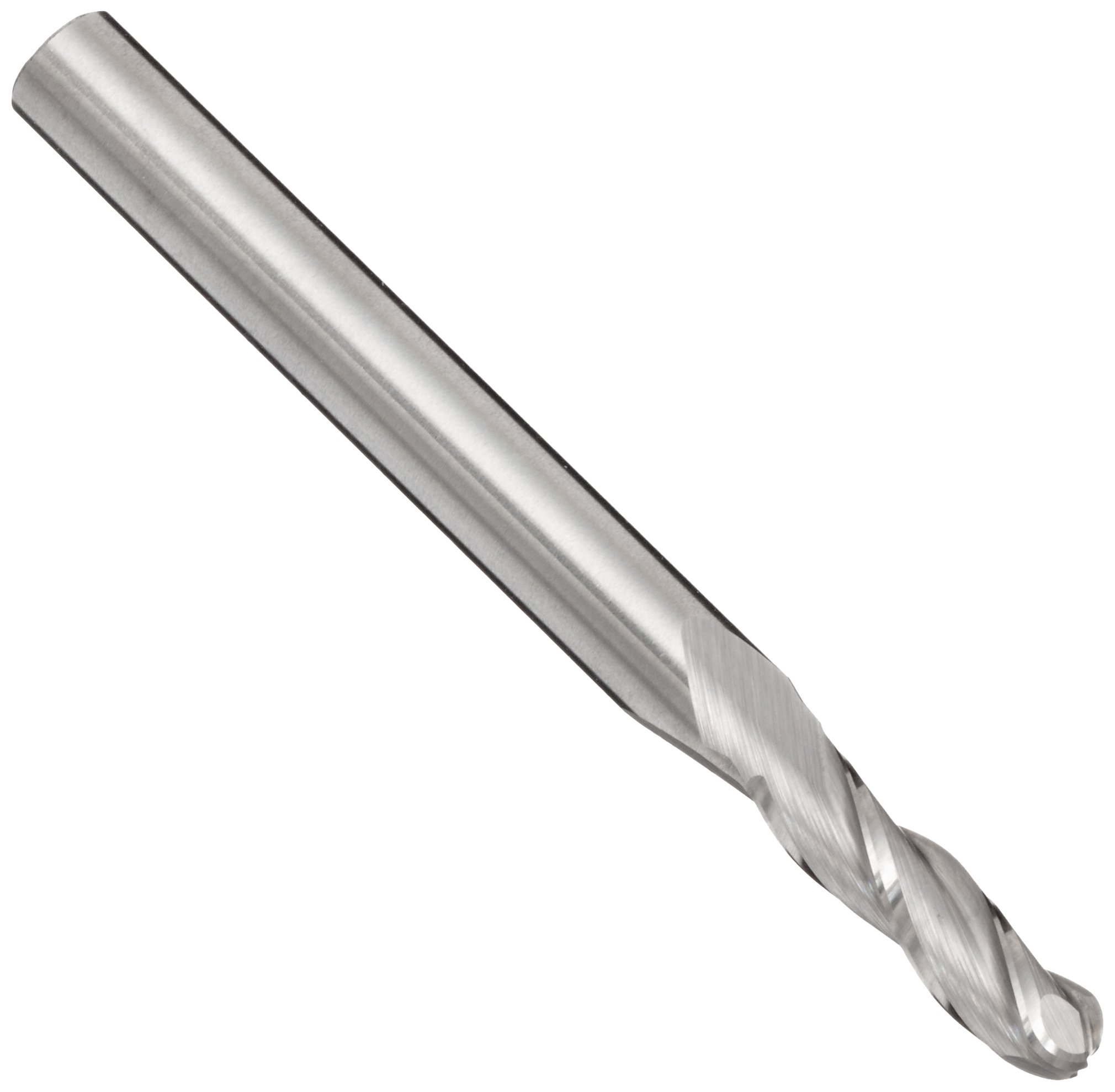

Melin Tool EMG-B Carbide Micro Ball Nose End Mill, Uncoated (Bright) Finish, 30 Deg Helix, 3 Flutes, 1.5000" Overall Length, 0.0625" Cutting Diameter, 0.125" Shank Diameter

Be the first to review this item

ASIN B0083LSXQQ

Product Specifications
Mfr Part #
17819
Number of Items
1
UPC
733438178194
Body Style
Single End
Cutting Diameter
1/16 inches
Cutting Diameter
0.0625  inches
Cutting Length
0.1875  inches
EAN
0733438178194
Flute Length
0.1875  inches
Number of Flutes
3
Outside Diameter
0.0625  inches
Overall Length
1.5000  inches
Shank Diameter
0.125  inches
Specific Uses For Product
End Milling^Face Milling^Peripheral Milling^Pocket Milling^Slot Milling
Specification Met
ANSI/ASME B94.19
Tolerance Held
+0.000/-0.002 inches
Trade Size
Micro
Specification for this product family (See all  products)
Manufacturer Series Number
EMG-B
Cutting Direction
Right Hand
Compatible Material
Aluminum/Aluminum Alloys, Cast Iron, Plastics, Steel/Steel Alloys, Titanium/Titanium Alloys
Finish Types
Uncoated (Bright)
End Cut Type
Center Cutting
Shank Type
Round
Material Type
Carbide
Cut Type
General Purpose
UNSPSC Code
27112803
Cutting Angle
30  Degrees
Brand Name
Melin Tool
System of Measurement
Inch

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid toolholding systems
  • Uncoated tools feature just the base substrate without any additional treatment or coatings and are suitable for a wide range of applications
  • Round shanks allow use with a wide variety of toolholding systems
  • 3 flute design will usually allow feed rates 50 percent faster than 2 flute tools
  • Used for general purpose milling in most materials of medium hardness such as steel, brass, iron, and nonferrous materials

Package Details

Shipping Weight: 0.05 pounds
Package Size: 2.4 x 0.5 x 0.4 inches

Product Description

Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid toolholding systems. Uncoated tools feature just the base substrate without any additional treatment or coatings and are suitable for a wide range of applications. Round shanks allow use with a wide variety of toolholding systems. 3 flute design will usually allow feed rates 50 percent faster than 2 flute tools. Used for general purpose milling in most materials of medium hardness such as steel, brass, iron, and nonferrous materials. Standard length.
