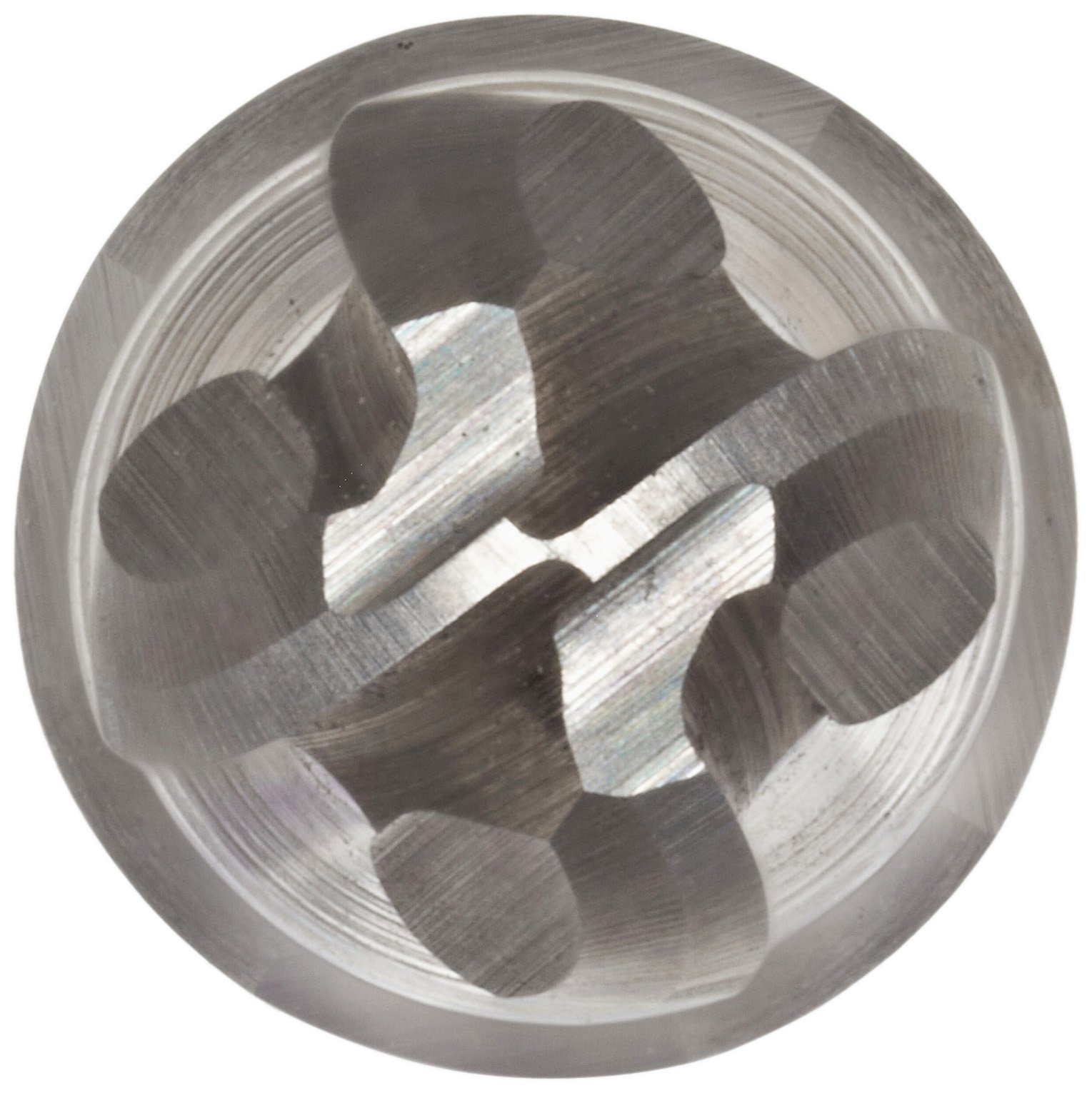

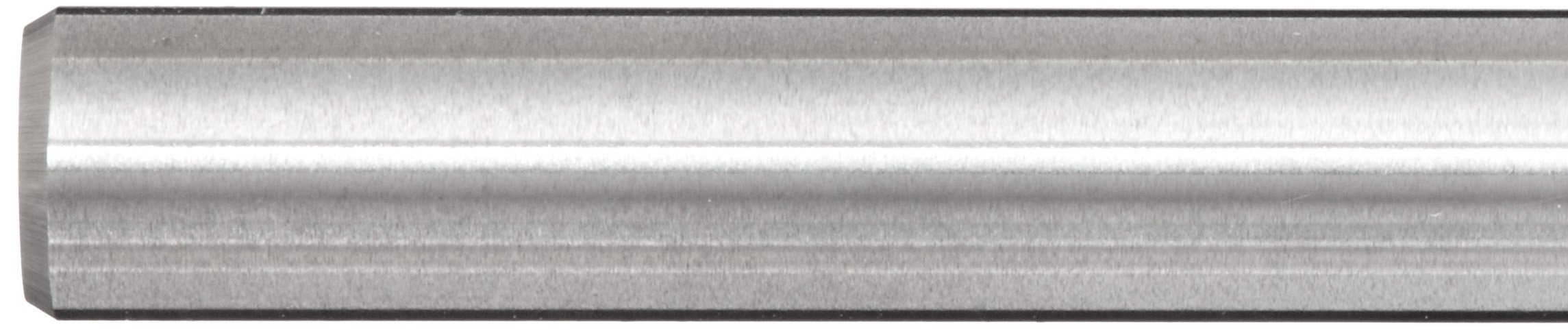

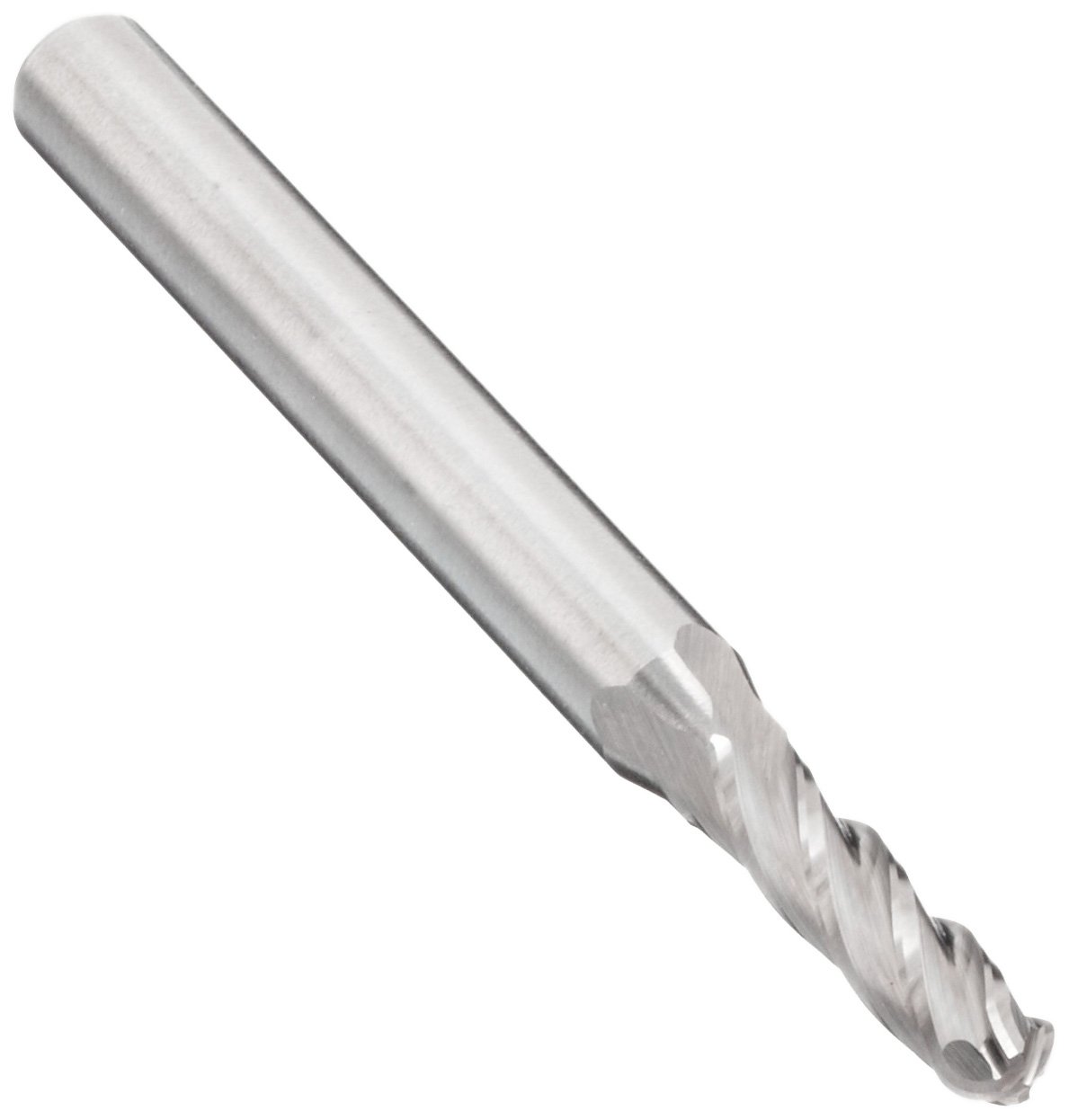

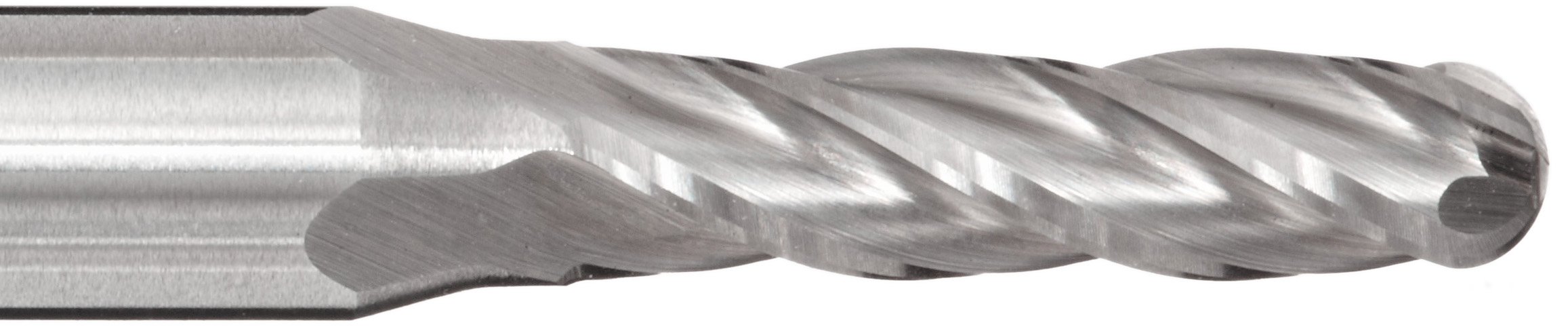

Click for larger image and other views Image is representative of the product family.

How can we improve our images or Product Specifications?

See all products in this Product Family

Melin Tool CCMG-B Carbide Ball Nose End Mill, Uncoated (Bright) Finish, 30 Deg Helix, 4 Flutes, 3.5000" Overall Length, 0.5625" Cutting Diameter, 0.5625" Shank Diameter

Be the first to review this item

ASIN B0083KQRRE

Product Specifications
Mfr Part #
16219
Number of Items
1
UPC
733438162193
Body Style
Single End
Cutting Diameter
9/16 inches
Cutting Diameter
0.5625  inches
Cutting Length
1.25  inches
EAN
0733438162193
Flute Length
1.2500  inches
Number of Flutes
4
Outside Diameter
0.5625  inches
Overall Length
3.5000  inches
Shank Diameter
0.5625  inches
Specification Met
ANSI/ASME B94.19
Tolerance Held
+0.000/-0.002 inches
Specification for this product family (See all  products)
Cutting Direction
Right Hand
Specific Uses For Product
Profile Milling , Slot Milling
Finish Types
Uncoated (Bright)
End Cut Type
Center Cutting
Material Type
Carbide
Cutting Angle
30  Degrees
Brand Name
Melin Tool
Manufacturer Series Number
CCMG-B
Compatible Material
Cast Iron, Nickel/Nickel Alloys, Plastics, Steel/Steel Alloys, Titanium/Titanium Alloys
Shank Type
Round
Cut Type
General Purpose
UNSPSC Code
27112803
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Aug 26? Order in-stock items in the next 2 days 10 hrs 26 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid toolholding systems
  • Uncoated tools feature just the base substrate without any additional treatment or coatings and are suitable for a wide range of applications
  • Round shanks allow use with a wide variety of toolholding systems
  • Use for radius and contouring part surfaces
  • Designed to cut materials ranging from nickel base alloy, stainless, tough alloys, abrasive and nonferrous

Package Details

Shipping Weight: 0.4 pounds
Package Size: 3.9 x 1 x 0.4 inches

Product Description

Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid toolholding systems. Uncoated tools feature just the base substrate without any additional treatment or coatings and are suitable for a wide range of applications. Round shanks allow use with a wide variety of toolholding systems. Use for radius and contouring part surfaces. Designed to cut materials ranging from nickel base alloy, stainless, tough alloys, abrasive and nonferrous. Standard length.
