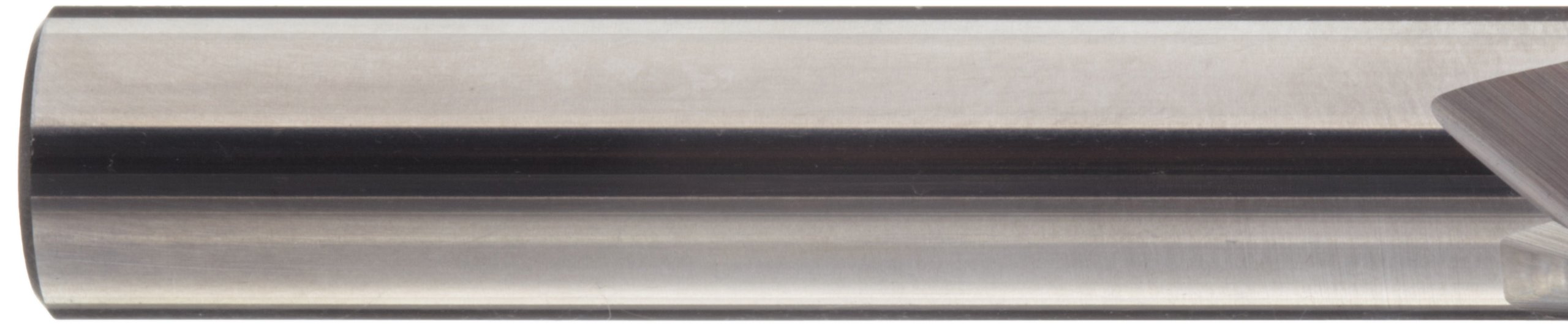

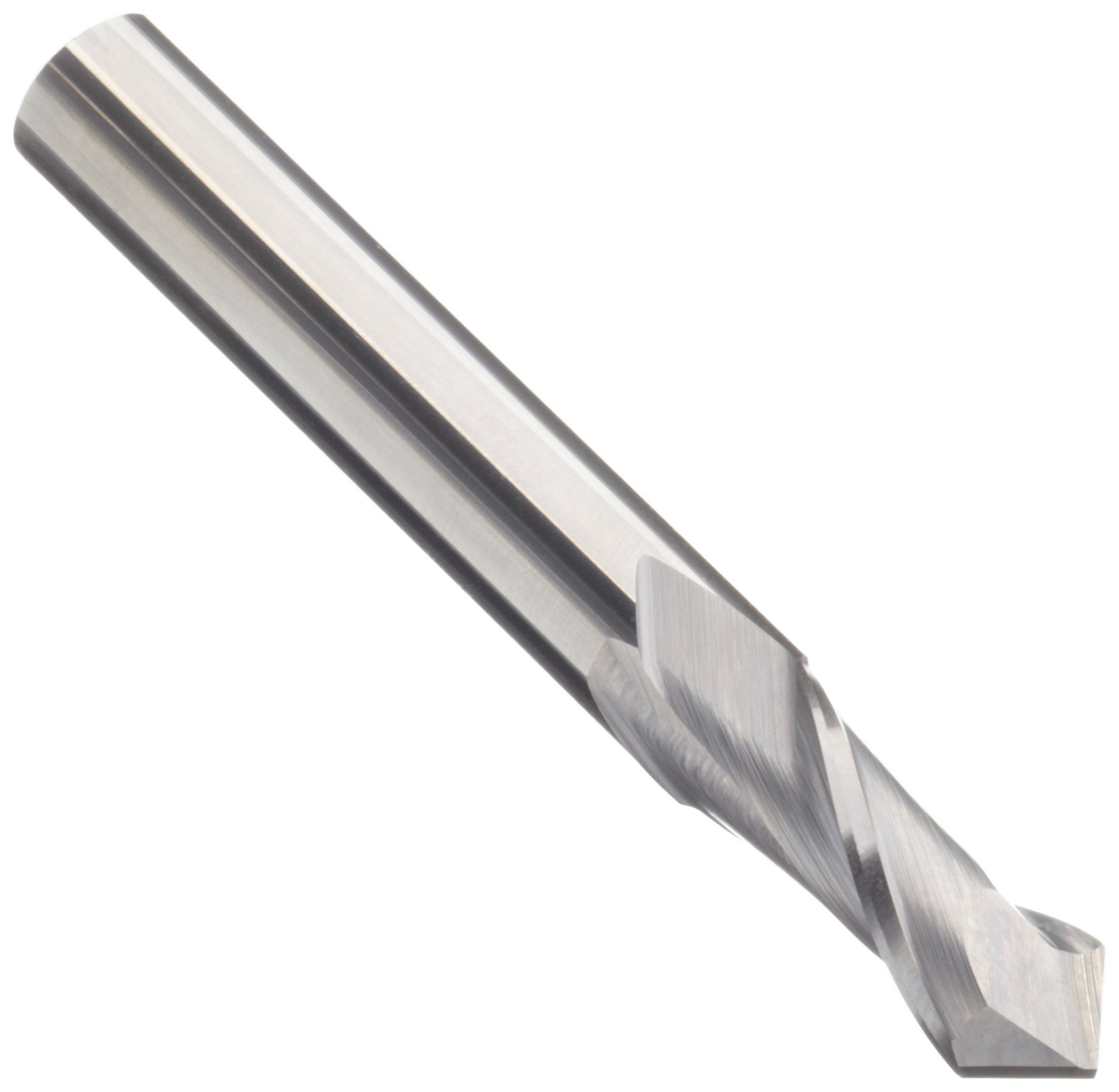

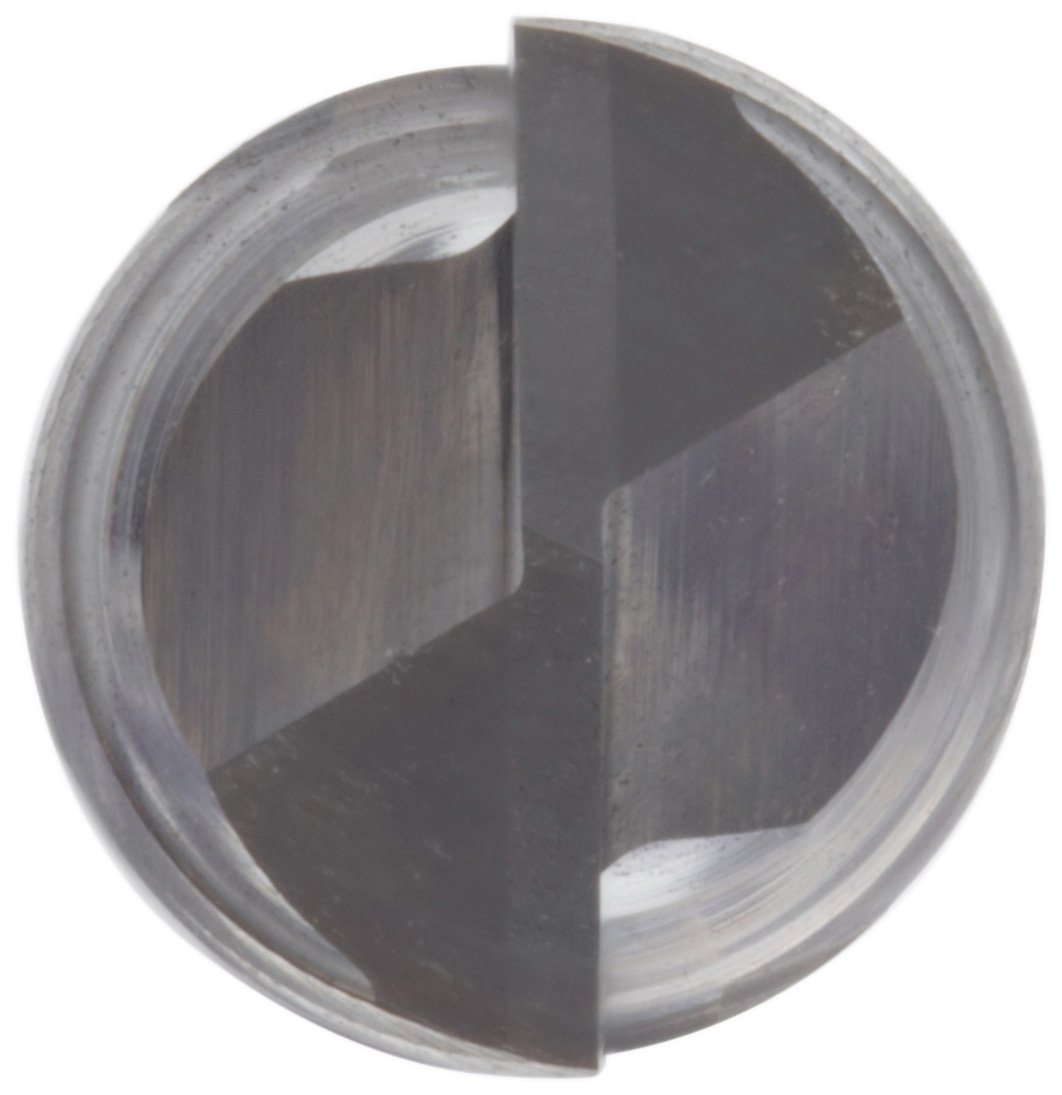

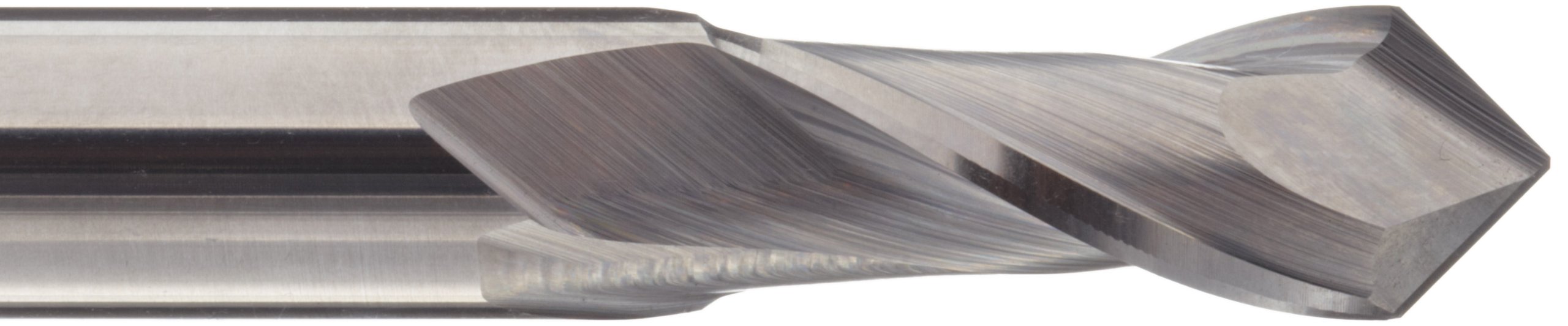

Melin Tool AMG-DP Carbide Drill Mill, Uncoated (Bright) Finish, 30 Deg Point Angle, 2 Flutes, 2.75" Overall Length, 0.4375" Cutting Diameter, 0.4375" Shank Diameter

Be the first to review this item

ASIN B0006Q13YU

Specifications for this item
Finish Types
Uncoated (Bright)
Flute Length
1  inches
Body Style
Single End
Part Number
16088
Shank Diameter
0.4375  inches
Cutting Angle
30  Degrees
Brand Name
Melin Tool
Cutting Length
1  inches
Specification Met
ANSI/ASME B94.19
Cut Type
General Purpose
Number of Flutes
2
Cutting Direction
Right Hand
Number of Items
1
Specific Uses For Product
Chamfering^Countersinking^Drilling^Side Milling^Spotting
End Cut Type
Center Cutting
Tolerance Held
+0.000/-0.0020 inches
Drill Point
90 degrees
Material Type
Carbide
UPC
733438160885
Outside Diameter
0.4375  inches
Size Name
7/16 inches
EAN
0733438160885
Manufacturer Series Number
AMG-DP
Compatible Material
Cast Iron , Non-Ferrous Metals , Special Alloys , Stainless Steel , Steel Alloys , Synthetic Materials
Shank Type
Round
UNSPSC Code
27112800
Cutting Diameter
0.4375  inches
Overall Length
2.75  inches
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Sep 25? Order in-stock items in the next 19 hrs 32 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid toolholding systems
  • Uncoated tools feature just the base substrate without any additional treatment or coatings and are suitable for a wide range of applications
  • Round shanks allow use with a wide variety of toolholding systems
  • Can be used for drilling, slotting, chamfering, and profile milling
  • Available in 90 degree points

Package Details

Shipping Weight: 0.02 pounds
Package Size: 4 x 0.5 x 0.5 inches

Product Description

Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid toolholding systems. Uncoated tools feature just the base substrate without any additional treatment or coatings and are suitable for a wide range of applications. Round shanks allow use with a wide variety of toolholding systems. Can be used for drilling, slotting, chamfering, and profile milling. Available in 90 degree points.
