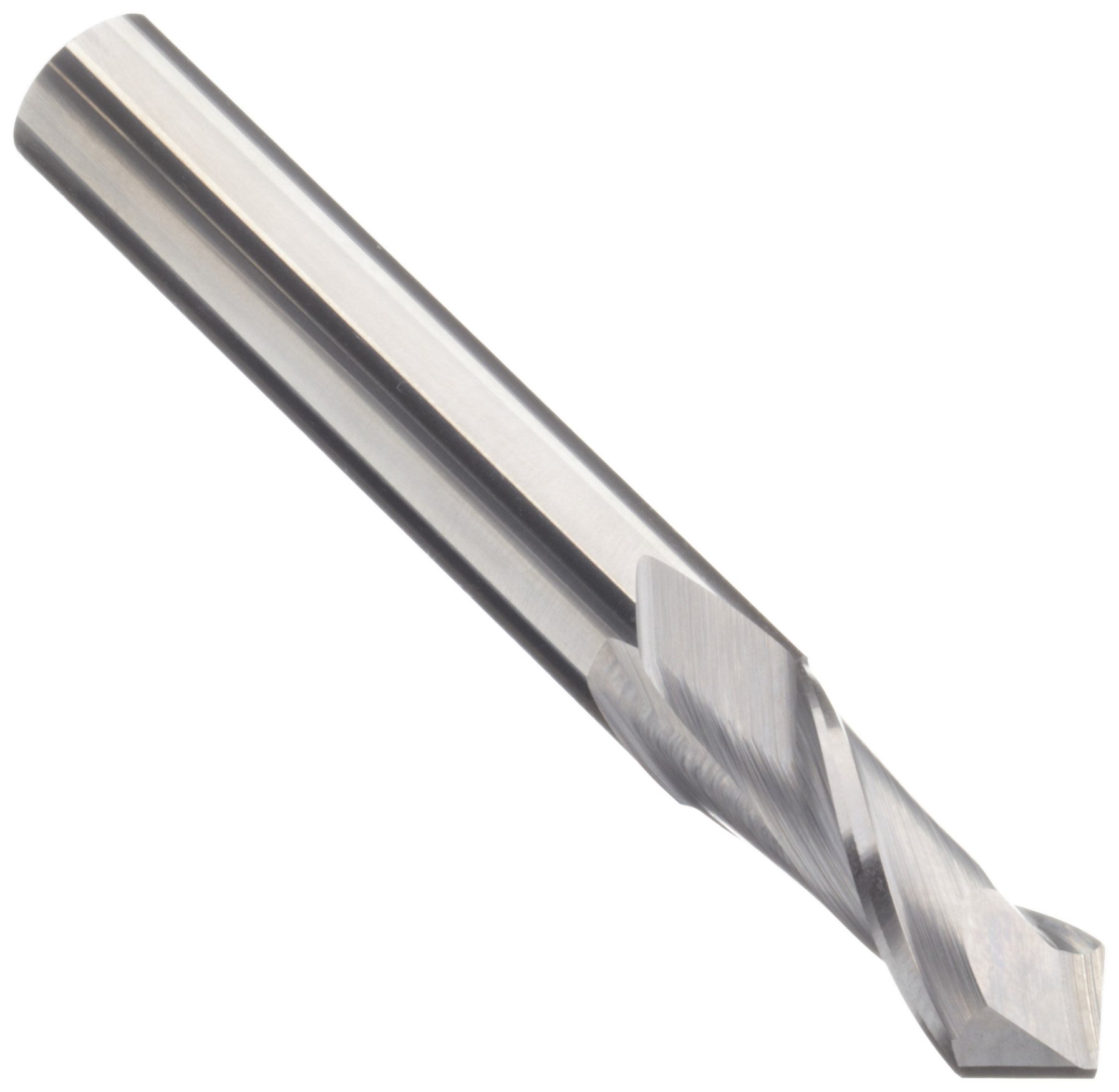

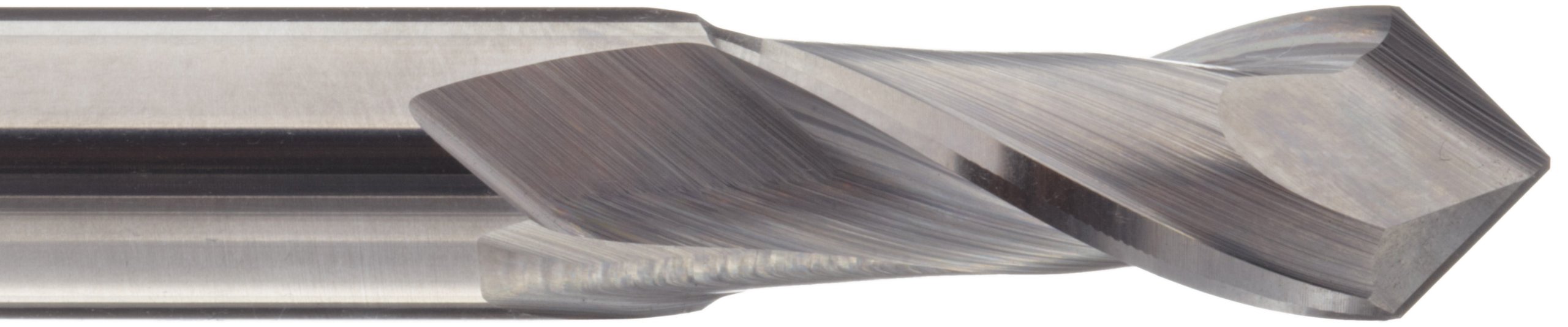

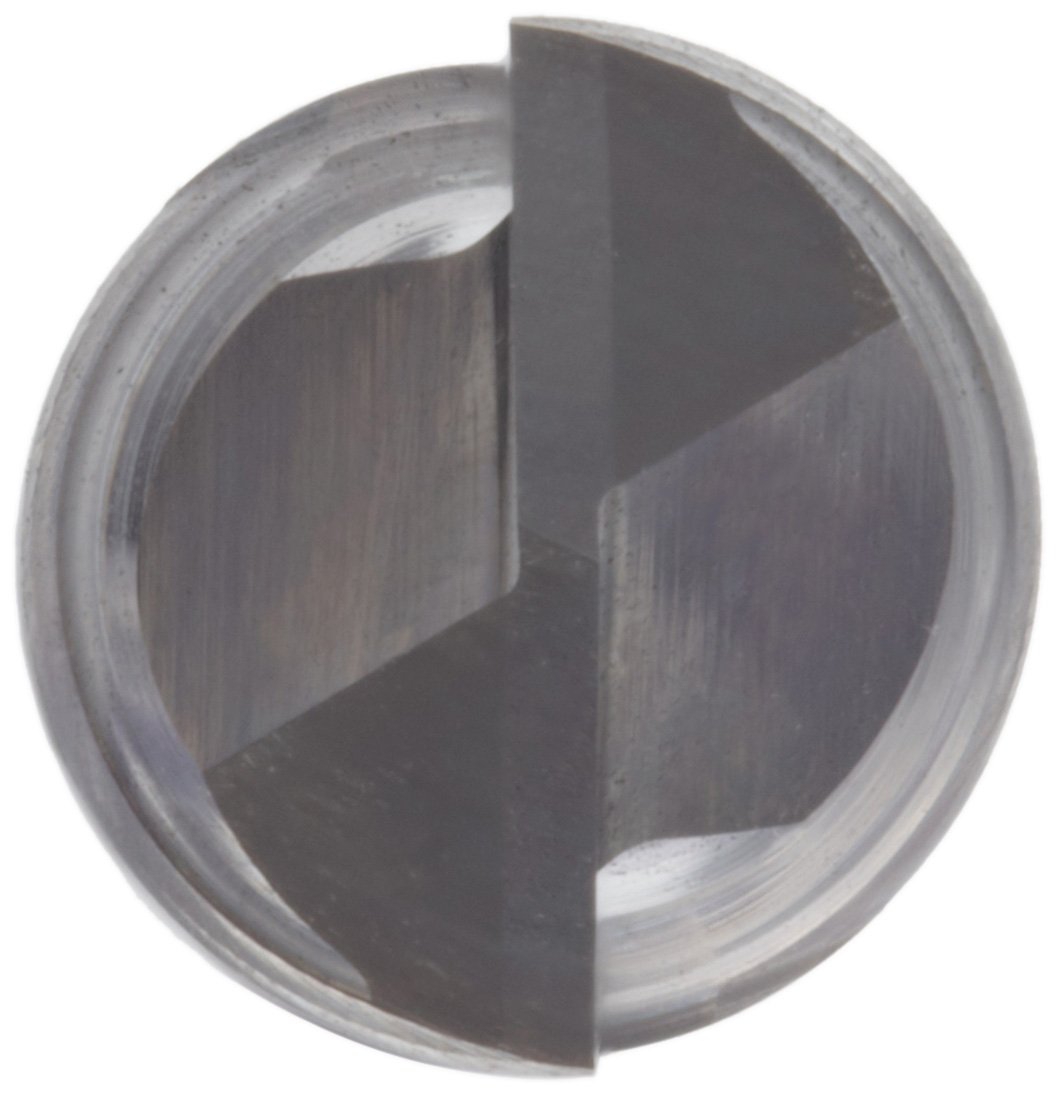

Melin Tool AMG-DP Carbide Drill Mill, Uncoated (Bright) Finish, 30 Deg Point Angle, 2 Flutes, 2.5" Overall Length, 0.3125" Cutting Diameter, 0.3125" Shank Diameter
Be the first to review this item
ASIN B0006Q13Y0
Specifications for this item
- Brand Name
- Melin Tool
- Compatible Material
- Cast Iron , Non-Ferrous Metals , Special Alloys , Stainless Steel , Steel Alloys , Synthetic Materials
- Cut Type
- General Purpose
- Cutting Angle
- 30 Degrees
- Cutting Diameter
- 5/16 inches
- Cutting Diameter
- 0.3125 inches
- Cutting Direction
- Right Hand
- Cutting Length
- 0.8125 inches
- Drill Point
- 90 degrees
- EAN
- 0733438160861
- End Cut Type
- Center Cutting
- Finish Types
- Uncoated (Bright)
- Flute Length
- 0.8125 inches
- Manufacturer Series Number
- AMG-DP
- Material Type
- Carbide
- Mfr Part #
- 16086
- Number of Flutes
- 2
- Number of Items
- 1
- Outside Diameter
- 0.3125 inches
- Overall Length
- 2.5 inches
- Shank Diameter
- 0.3125 inches
- Shank Type
- Round
- Specific Uses For Product
- Chamfering^Countersinking^Drilling^Side Milling^Spotting
- Specification Met
- ANSI/ASME B94.19
- System of Measurement
- Inch
- Tolerance Held
- +0.000/-0.0020 inches
- UPC
- 733438160861
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Thursday, June 20? Order in-stock items in the next 4 hours 34 minutes and choose One-Day Shipping at checkout.
Key Features
- Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid toolholding systems
- Uncoated tools feature just the base substrate without any additional treatment or coatings and are suitable for a wide range of applications

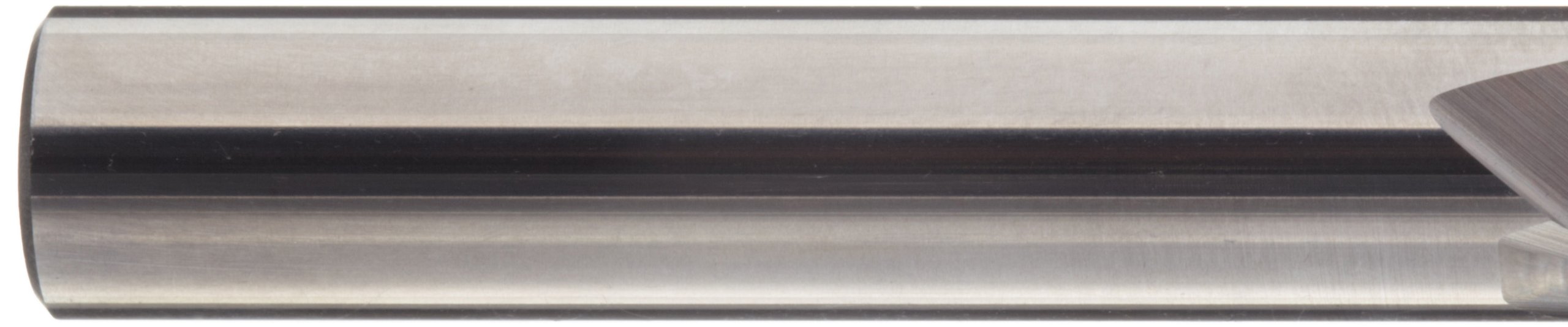

- Round shanks allow use with a wide variety of toolholding systems
- Can be used for drilling, slotting, chamfering, and profile milling
- Available in 90 degree points
Package Details
Shipping Weight:
0.1 pounds
Package Size:
3 x 0.5 x 0.5 inches
Product Description
Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid toolholding systems. Uncoated tools feature just the base substrate without any additional treatment or coatings and are suitable for a wide range of applications. Round shanks allow use with a wide variety of toolholding systems. Can be used for drilling, slotting, chamfering, and profile milling. Available in 90 degree points.
