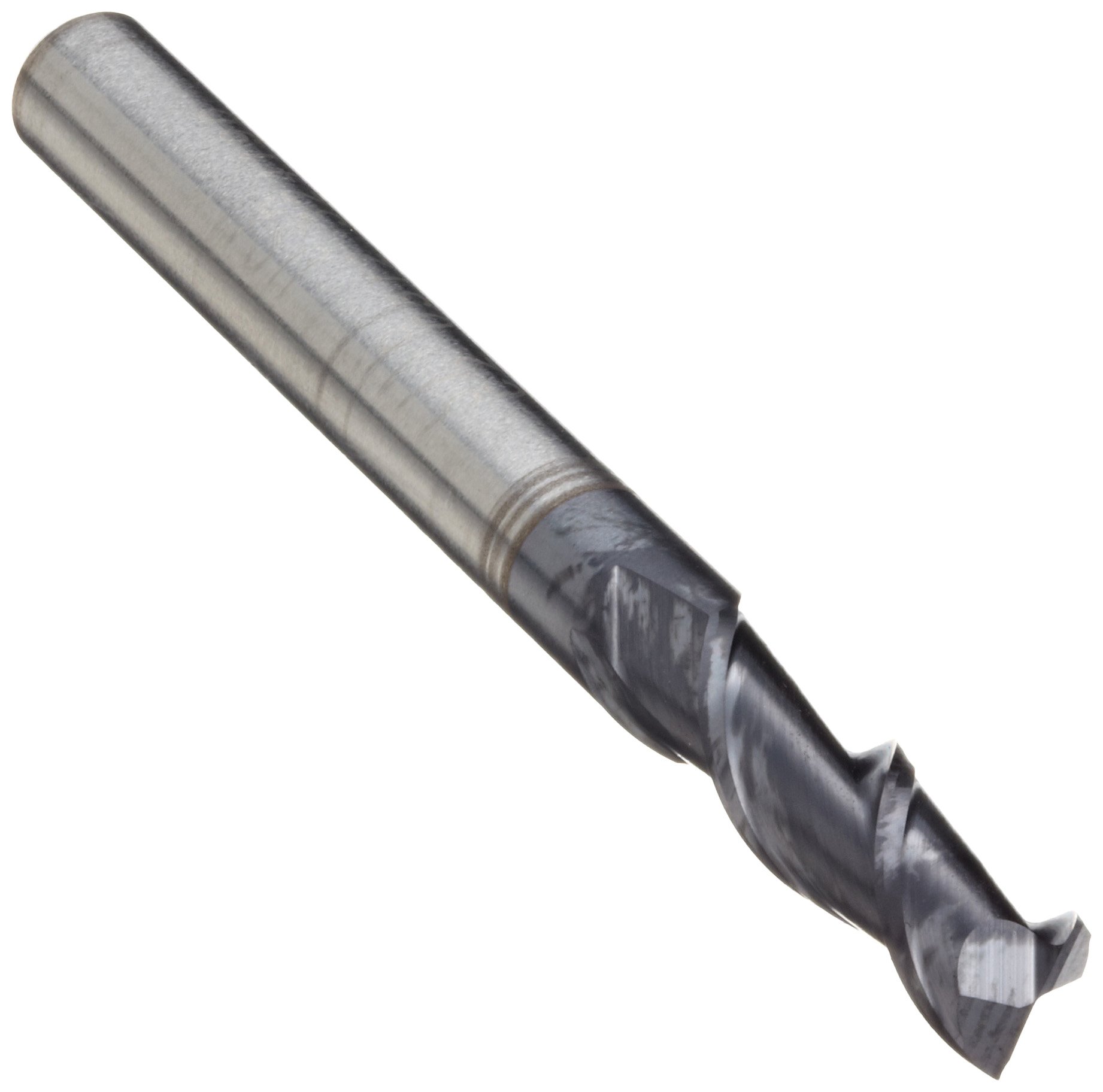

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Melin Tool AMG40 Carbide Square Nose End Mills, Inch, AlTiN Finish, 40 Degree Helix, For Use With Aluminum/Aluminum Alloys, Cast Iron, Steel/Steel Alloys

Be the first to review this item

Product Specifications
Cutting Direction
Right Hand
Specific Uses For Product
Profile Milling , Slot Milling
Finish Types
AlTiN
End Cut Type
Center Cutting
Material Type
Carbide
Cutting Angle
40  Degrees
Brand Name
Melin Tool
Manufacturer Series Number
AMG40
Compatible Material
Aluminum/Aluminum Alloys, Cast Iron, Steel/Steel Alloys
Shank Type
Round
Cut Type
General Purpose
UNSPSC Code
27112803
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Sep 22? Order in-stock items in the next 11 hrs 1 min and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-7 of 7
Cutting Diameter Shank Width Cutting Length Overall Length Number of Flutes Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-7 of 7
5/32" 0.1563" 0.5625" 2" 2 52085 B0083JAYDS Usually ships in 1 to 3 weeks $16.27 Buy Options
3/16" 0.1875" 0.625" 2" 2 51999 B0083JAW7G yes $15.63 Buy Options
7/32" 0.2188" 0.625" 2.5000" 2 52137 B0083JAXKW Usually ships in 1 to 3 weeks $21.87 Buy Options
1/4" 0.2500" 0.75" 2.5000" 2 52003 B0083JAVCC yes $20.59 Buy Options
3/8" 0.3750" 1" 2.5000" 2 52005 B0083JAT6U yes $29.32 Buy Options
7/16" 0.4375" 1" 2.7500" 2 53091 B0083JAU0U Usually ships in 1 to 3 weeks $39.24 Buy Options
1/2" 0.5000" 1" 3" 2 52075 B0083JASBG yes $44.68 Buy Options

Key Features

  • Suitable for high-performance machining on stainless steel and high-temperature alloys
  • 40-degree helix angle provides increased cutting action and chip evacuation compared to end mills with lower helix angles
  • Aluminum titanium nitride (AlTiN) coating lubricates the end mill for high-temperature stability and abrasion resistance at high cutting speeds, offering better heat resistance than TiN, TiAlN, and TiCN coatings
  • Carbide can run at higher speeds than high-speed or cobalt steel, resisting wear and high cutting temperatures
  • Square nose end mills (also called square end) create sharp, unrounded cuts

Product Description

The Melin Tool AMG40-series AlTiN-coated carbide square nose end mill has a 40-degree helix angle, two flutes, and a center-cutting design for high-performance machining on stainless steel and high-temperature alloys. The 40-degree helix angle offers increased cutting action and chip evacuation compared to end mills with lower helix angles, as it moves excess material quickly up the spiral and away from the workpiece. The two flutes have better chip-carrying capacity than end mills with more flutes while offering additional support when the tool goes deep into the material in applications with a high depth of cut. The tool’s square end creates sharp, unrounded cuts. The center-cutting design has cutting teeth at the end of the tool, so it can be fed into the workpiece like a drill bit.

The AlTiN coating resists heat better than TiN, TiAlN, and TiCN coatings, increasing tool life and performance. It also offers increased hardness compared to TiN and may reduce the need for lubricants based on the application. Carbide is harder than high-speed or cobalt steel, making it more wear resistant at high speeds and providing longer tool life. Cutting diameter tolerance is + 0.000 to - 0.002". The round shank accommodates a range of tool holders.

End mills are designed to remove material and create multi-dimensional shapes and profiles. They have cutting edges along the outside diameter and flutes that remove chips from the cutting area and allow cooling fluids to enter. If heat is not reduced effectively, the tool’s cutting edges will dull and additional material buildup can occur. The number of flutes can range from two to eight. Two-flute designs offer the most efficient chip removal, but more flutes provide a smoother finish. The shank is the end of the tool held in place by a tool holder or machine. Center-cutting end mills can create three-dimensional shapes and profiles, and make plunge cuts similar to a drill bit. Non-center-cutting end mills are for applications such as peripheral milling and finishing, but cannot make plunge cuts.

Melin Tool manufactures cutting tools such as end mills, countersinks, drills, and thread mills. The company, founded in 1940, is headquartered in Cleveland, OH.
