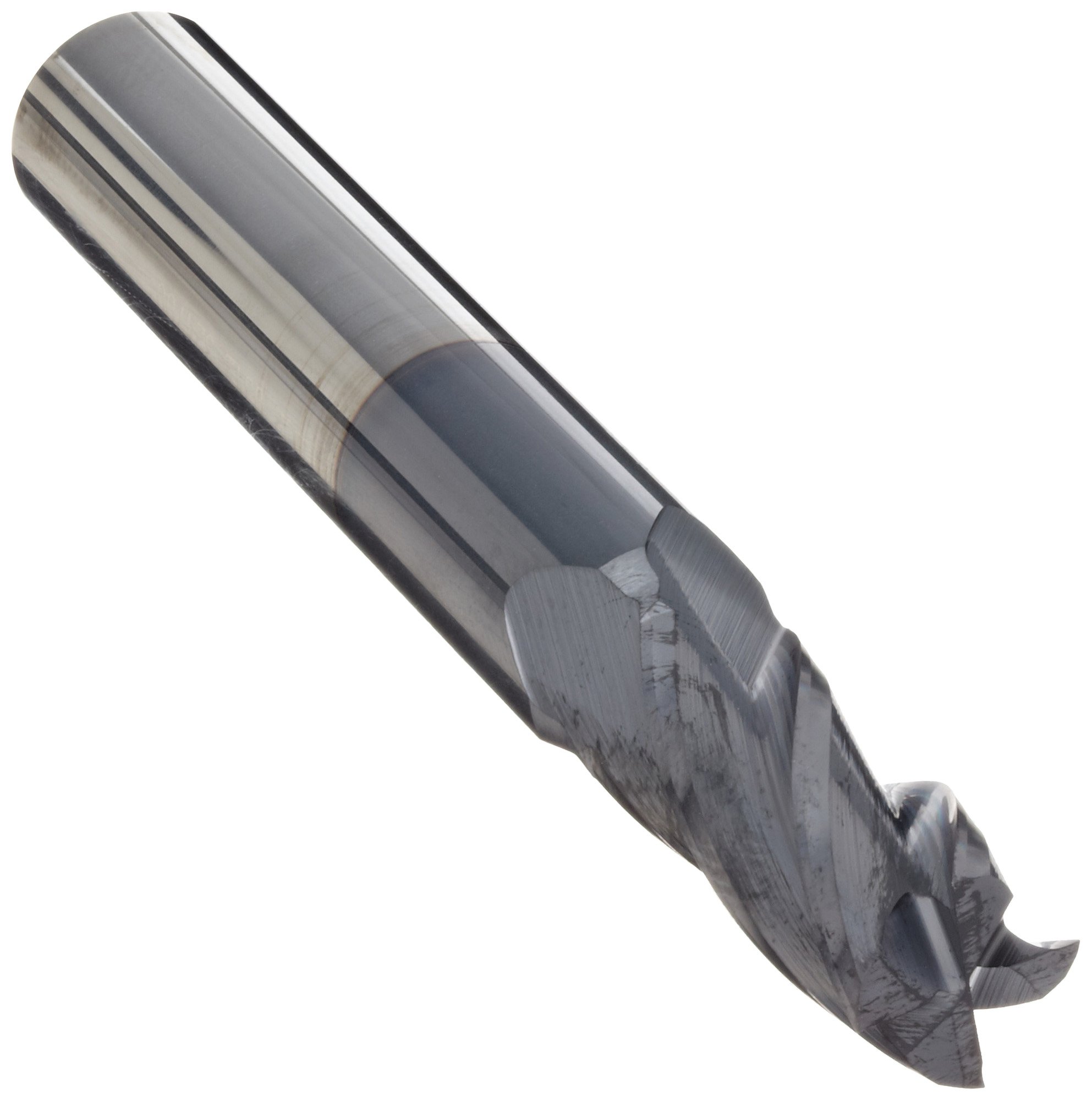

Melin Tool CCMG-M Carbide Square Nose End Mills, Metric, AlTiN Finish, 30 Degree Helix, For Use With Cast Iron, Plastics, Steel/Steel Alloys, Titanium/Titanium Alloys

Be the first to review this item

Product Specifications
Cutting Direction
Right Hand
Specific Uses For Product
Profile Milling , Slot Milling
Finish Types
AlTiN
End Cut Type
Center Cutting
Material Type
Carbide
Cutting Angle
30  Degrees
Brand Name
Melin Tool
Manufacturer Series Number
CCMG-M
Compatible Material
Cast Iron, Plastics, Steel/Steel Alloys, Titanium/Titanium Alloys
Shank Type
Round
Cut Type
General Purpose
UNSPSC Code
27112803
System of Measurement
Metric

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 1 day 5 hrs 50 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-10 of 10
Cutting Diameter Shank Width Cutting Length Overall Length Number of Flutes Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-10 of 10
3 mm 3 mm 0.375" 1.5000" 4 55977 B0083KUJGY yes $13.55 Buy Options
4 mm 4 mm 0.5" 2" 4 55978 B0083KUGLC yes $17.54 Buy Options
5 mm 5 mm 0.625" 2.5000" 4 55979 B0083KULMQ Usually ships in 2 to 5 weeks $22.95 Buy Options
6 mm 6 mm 0.625" 2.5000" 4 55980 B0083KUMI4 yes $23.05 Buy Options
7 mm 7 mm 0.75" 2.5000" 4 55981 B0083KUIJ2 yes $28.07 Buy Options
8 mm 8 mm 0.875" 2.5000" 4 55982 B0083KUNAQ Usually ships in 2 to 5 weeks $30.79 Buy Options
9 mm 9 mm 0.875" 2.5000" 4 55983 B0083KUOD2 yes $31.05 Buy Options
10 mm 10 mm 1" 2.7500" 4 55984 B0083KUDWO Usually ships in 2 to 5 weeks $39.29 Buy Options
11 mm 11 mm 1" 2.7500" 4 55985 B0083KUEYQ yes $39.62 Buy Options
12 mm 12 mm 1" 3" 4 55986 B0083KUFTU Usually ships in 2 to 5 weeks $45.40 Buy Options

Key Features

  • Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid toolholding systems
  • Aluminum titanium nitride is similar to TiAlN but with a higher aluminum content for improved hardness and smoothness
  • Round shanks allow use with a wide variety of toolholding systems
  • General purpose square end
  • Metric diameters with standard fractional shanks

Product Description

Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid toolholding systems. Aluminum titanium nitride is similar to TiAlN but with a higher aluminum content for improved hardness and smoothness. Round shanks allow use with a wide variety of toolholding systems. General purpose square end. Metric diameters with standard fractional shanks.
