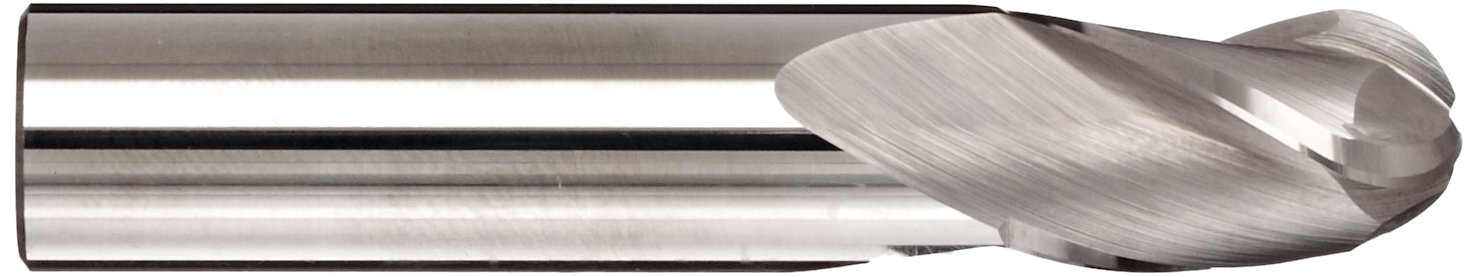

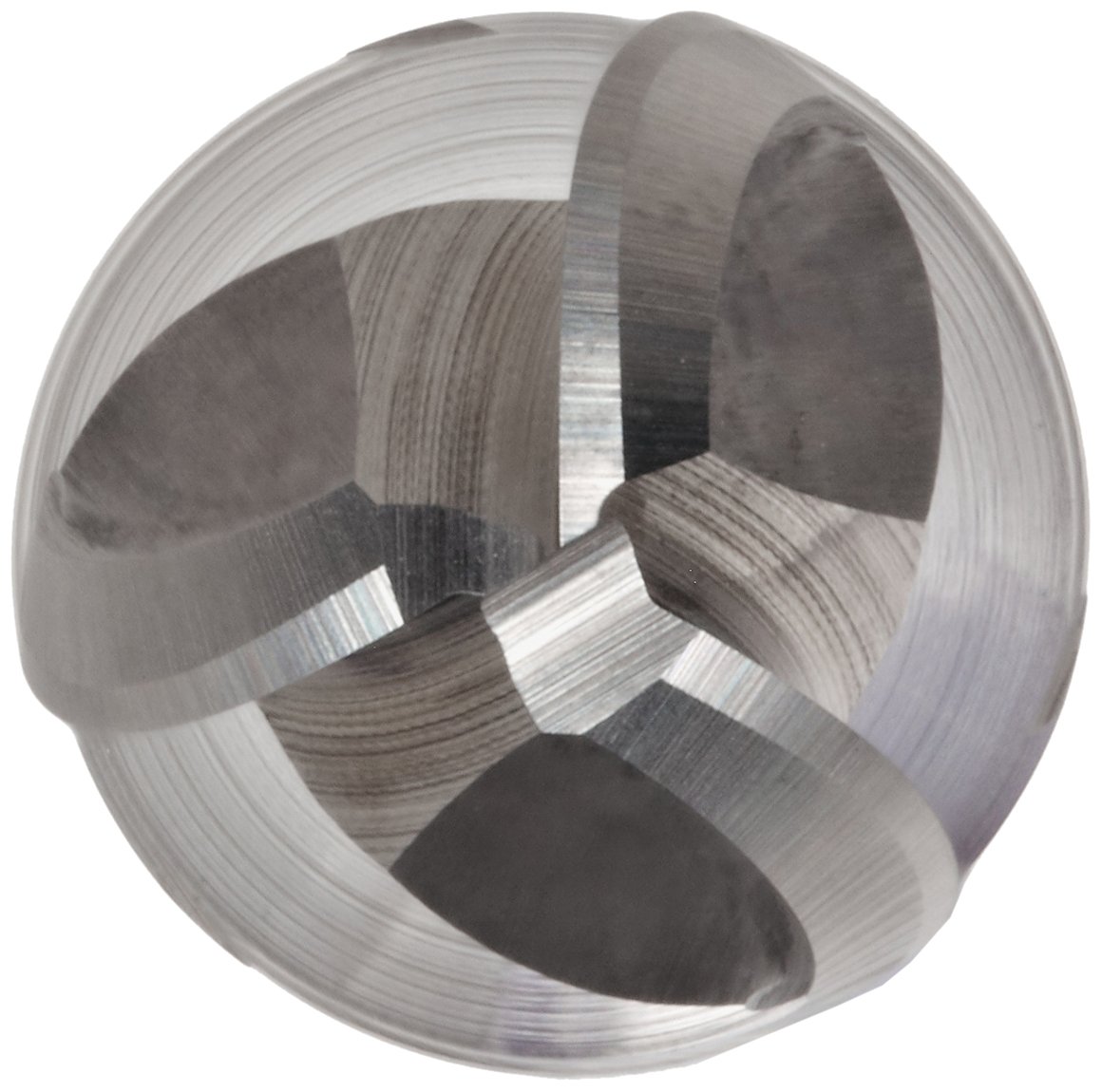

Melin Tool EMGS-B Solid Carbide Ball Nose End Mill, General Purpose, Uncoated (Bright) Finish, Single Cut, 3 Flutes

Be the first to review this item

ASIN B009150LQI

Specifications for this item
Finish Types
Uncoated (Bright)
End Cut Type
center cutting
Tolerance Held
-0.002 inches
Material Type
Carbide
Flute Length
0.0625  inches
Shank Diameter
0.125  inches
Cutting Angle
30  Degrees
Outside Diameter
0.0313  inches
Size Name
1/32"
Brand Name
Melin Tool
Manufacturer Series Number
EMGS-B
Cutting Length
0.0625  inches
Shank Type
Round
Number of Flutes
3
UNSPSC Code
27112803
Cutting Diameter
0.0313  inches
Overall Length
1.5  inches
System of Measurement
Inch

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid toolholding systems
  • Uncoated tools feature just the base substrate without any additional treatment or coatings and are suitable for a wide range of applications
  • Round shanks allow use with a wide variety of toolholding systems
  • 3 flute design will usually allow feed rates 50 percent faster than 2 flute tools
  • Used for general purpose milling in most materials of medium hardness such as steel, brass, iron, and nonferrous materials

Product Description

Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid toolholding systems. Uncoated tools feature just the base substrate without any additional treatment or coatings and are suitable for a wide range of applications. Round shanks allow use with a wide variety of toolholding systems. 3 flute design will usually allow feed rates 50 percent faster than 2 flute tools. Used for general purpose milling in most materials of medium hardness such as steel, brass, iron, and nonferrous materials. Stub length.
