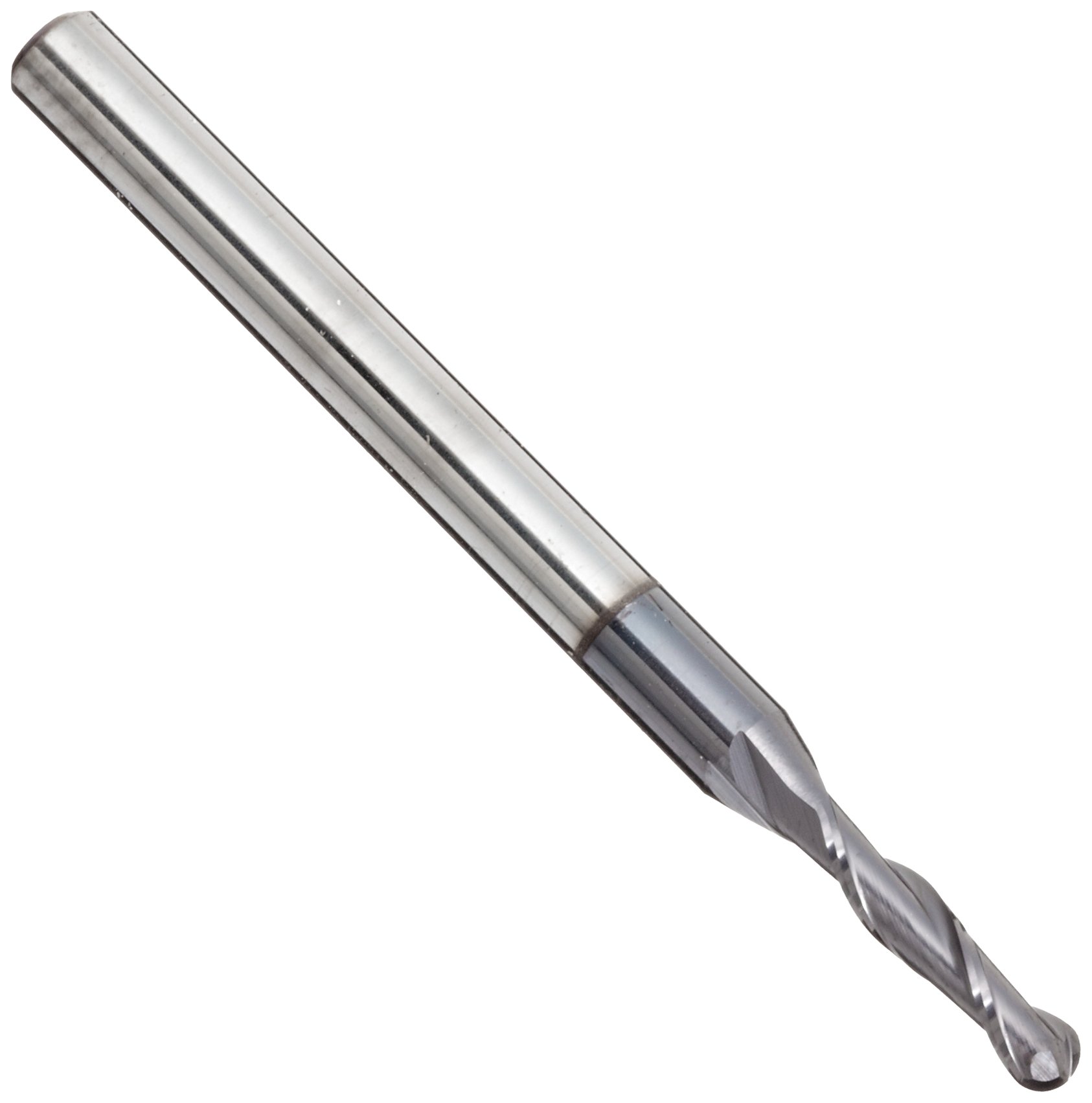

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Melin Tool AMG-M-M-B Carbide Ball Nose End Mills, Metric, AlTiN Finish, 30 Degree Helix, For Use With Cast Iron, Plastics, Steel/Steel Alloys, Titanium/Titanium Alloys

Be the first to review this item

Product Specifications
Brand Name
Melin Tool
Compatible Material
Cast Iron, Plastics, Steel/Steel Alloys, Titanium/Titanium Alloys
Cut Type
General Purpose
Cutting Angle
30  Degrees
Cutting Direction
Right Hand
End Cut Type
Center Cutting
Finish Types
AlTiN
Manufacturer Series Number
AMG-M-M-B
Material Type
Carbide
Shank Type
Round
Specific Uses For Product
Profile Milling , Slot Milling
System of Measurement
Metric

0 items added

To add items,
choose from the table below



These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thursday, June 20? Order in-stock items in the next 4 hours 57 minutes and choose One-Day Shipping at checkout.

  • Share
Currently showing 20 of 21 Show All
Cutting Diameter Cutting Length Overall Length Number of Flutes Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

 Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

 Price Quantity
All All All All
Currently showing 20 of 21 Show All
1 mm 3.0 mm 38 mm 2 56805 B0083JMXW8 In Stock (1) $15.76
1.5 mm 6 mm 38 mm 2 56806 B0083JMYVS In Stock (1) $15.76
2 mm 9 mm 38 mm 2 56555 B0083JN034 In Stock (1) $13.30
2.5 mm 12 mm 38 mm 2 56556 B0083JMCS8 In Stock (1) $13.30
3 mm 12 mm 38 mm 2 56557 B0083JMEYK In Stock (2) $13.30
3.5 mm 12 mm 51 mm 2 56558 B0083JMDW8 In Stock (1) $18.27
4 mm 14 mm 51 mm 2 56559 B0083JMHD8 In Stock (1) $18.27
4.5 mm 14 mm 51 mm 2 56560 B0083JMFYY In Stock (1) $20.45
5 mm 2 mm 51 mm 2 56561 B0083JMILO In Stock (1) $20.45
6 mm 2 mm 63 mm 2 56562 B0083JMJU4 In Stock (1) $24.47
7 mm 2 mm 63 mm 2 56563 B0083JMLFC In Stock (1) $28.11
8 mm 2 mm 63 mm 2 56564 B0083JMMEM In Stock (1) $28.11
9 mm 22 mm 70 mm 2 56565 B0083JMND2 Usually ships in 2 to 4 weeks $41.25
10 mm 25 mm 70 mm 2 56566 B0083JMOEA In Stock (1) $42.41
12 mm 25 mm 76 mm 2 56567 B0083JMPKI In Stock (1) $52.42
14 mm 32 mm 89 mm 2 56568 B0083JMQNO In Stock (1) $86.62
16 mm 32 mm 89 mm 2 56569 B0083JMS82 In Stock (1) $93.45
18 mm 38 mm 100 mm 2 56570 B0083JMT4A Usually ships in 2 to 4 weeks $140.93
20 mm 38 mm 100 mm 2 56571 B0083JMU0S Usually ships in 2 to 4 weeks $177.27
22 mm 38 mm 100 mm 2 56807 B0083JMVH0 Usually ships in 2 to 4 weeks $229.79

Key Features

  • Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid toolholding systems
  • Aluminum titanium nitride is similar to TiAlN but with a higher aluminum content for improved hardness and smoothness
  • Round shanks allow use with a wide variety of toolholding systems
  • For applications in steel and non-ferrous materials
  • 30 Degree helix angle

Product Description

Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid toolholding systems. Aluminum titanium nitride is similar to TiAlN but with a higher aluminum content for improved hardness and smoothness. Round shanks allow use with a wide variety of toolholding systems. For applications in steel and non-ferrous materials. 30 Degree helix angle.
