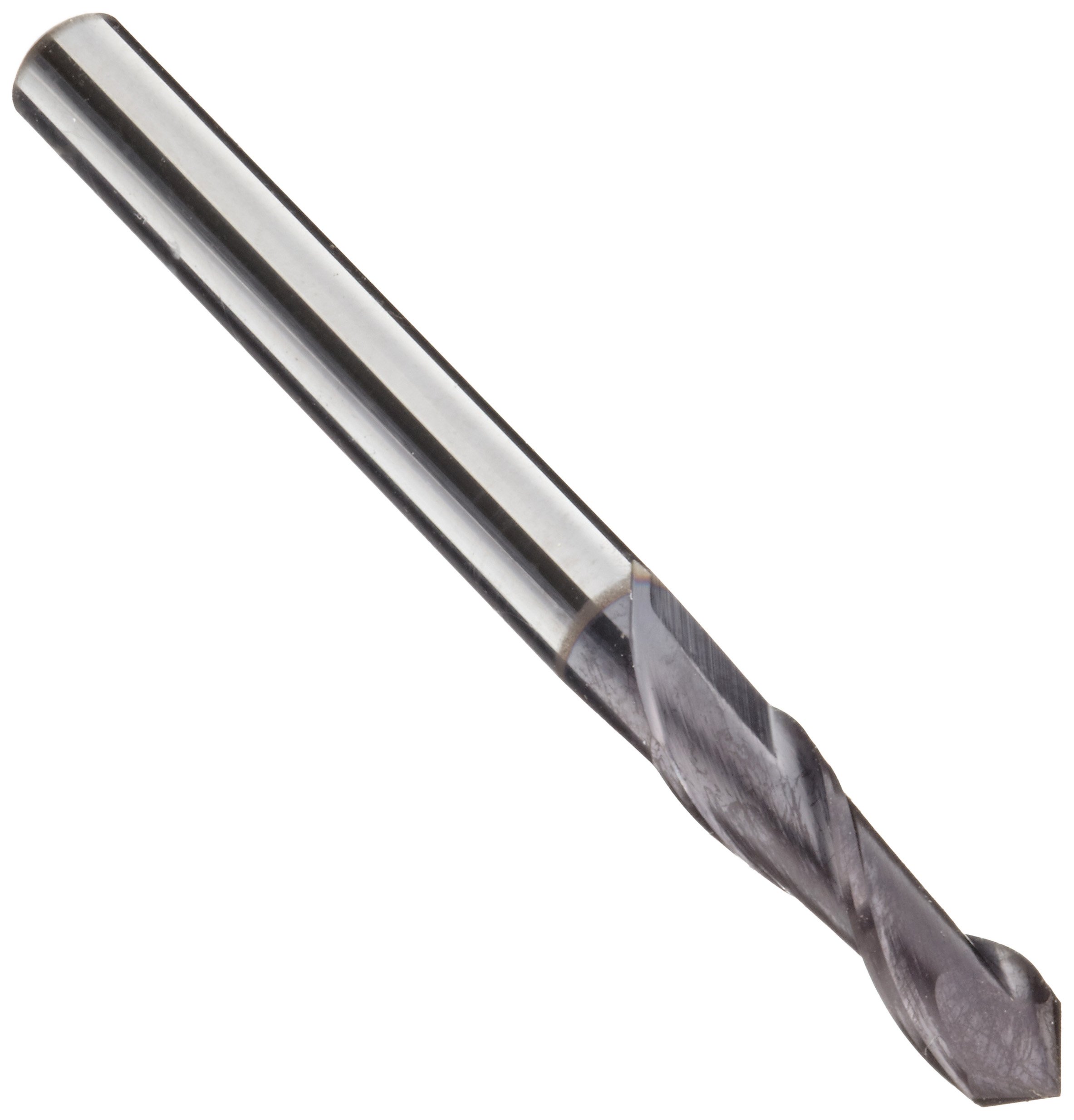

Melin Tool AMG-DP1 Solid Carbide Drill Point End Mill, AlTiN Coated, Single Cut, 2 Flutes, Center Cutting

Be the first to review this item

Product Specifications
Specific Uses For Product
Drilling
Finish Types
AlTiN
End Cut Type
center cutting
Tolerance Held
-0.0020 inches
Material Type
Carbide
Drill Point
90 degrees
Cutting Angle
30  Degrees
Brand Name
Melin Tool
Manufacturer Series Number
AMG-DP1
Shank Type
Round
Number of Flutes
2
UNSPSC Code
27112800
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 10 hrs and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-7 of 7
Cutting Diameter Shank Width Cutting Length Overall Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-7 of 7
1/8" 0.125" 0.5" 1.5" 56703 B0083JFRB2 Usually ships in 1 to 4 weeks $14.65 Buy Options
3/16" 0.1875" 0.625" 2" 56704 B0081AMWTI yes $20.62 Buy Options
1/4" 0.25" 0.75" 2.5" 56712 B0081AO5CU yes $25.94 Buy Options
5/16" 0.3125" 0.8125" 2.5" 56705 B0081AOTSK yes $29.88 Buy Options
3/8" 0.375" 1" 2.5" 56462 B0081APSZS yes $35.70 Buy Options
1/2" 0.5" 1" 3" 56707 B0083JFOKQ Usually ships in 1 to 4 weeks $54.44 Buy Options
5/8" 0.625" 1.25" 3.5" 56706 B0083JFSZ2 Usually ships in 1 to 4 weeks $98.40 Buy Options

Key Features

  • Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid toolholding systems
  • Aluminum titanium nitride is similar to TiAlN but with a higher aluminum content for improved hardness and smoothness
  • Round shanks allow use with a wide variety of toolholding systems
  • Can be used for drilling, slotting, chamfering, and profile milling
  • Available in 90 degree points

Product Description

Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid toolholding systems. Aluminum titanium nitride is similar to TiAlN but with a higher aluminum content for improved hardness and smoothness. Round shanks allow use with a wide variety of toolholding systems. Can be used for drilling, slotting, chamfering, and profile milling. Available in 90 degree points. DP-1 tools are used for "V" groove milling. The point is approximately 0.005" diameter.
