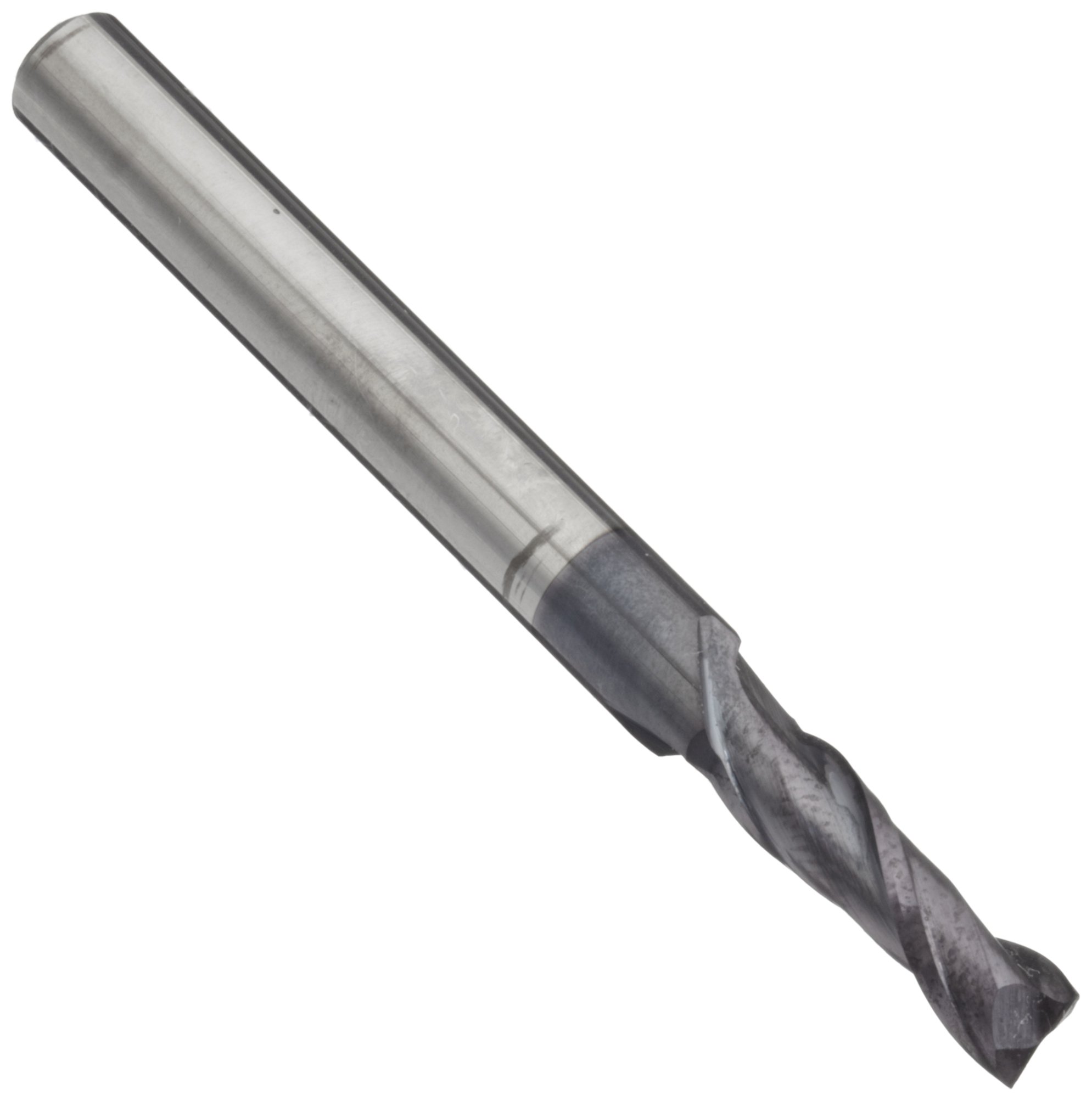

Melin Tool AMG Carbide Square Nose End Mills, Decimal, AlTiN Finish, 30 Degree Helix, For Use With Aluminum/Aluminum Alloys, Cast Iron, Plastics, Steel/Steel Alloys, Titanium/Titanium Alloys

Be the first to review this item

Product Specifications
Cutting Direction
Right Hand
Specific Uses For Product
Profile Milling , Slot Milling
Finish Types
AlTiN
End Cut Type
Center Cutting
Material Type
Carbide
Cutting Angle
30  Degrees
Brand Name
Melin Tool
Manufacturer Series Number
AMG
Compatible Material
Aluminum/Aluminum Alloys, Cast Iron, Plastics, Steel/Steel Alloys, Titanium/Titanium Alloys
Shank Type
Round
UNSPSC Code
27112803
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Dec 24? Order in-stock items in the next 2 days 5 hrs 9 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 43 Next 20 »
Cutting Diameter Shank Width Cutting Length Overall Length Number of Flutes Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-20 of 43 Next 20 »
0.005" 0.0050" 0.015" 1.5000" 2 50615 B0083J5GS6 yes $28.59 Buy Options
0.006" 0.0060" 0.018" 1.5000" 2 56636 B0083J7Z12 Temporarily out of stock. Order now and we'll deliver when available. $19.13 Buy Options
0.007" 0.0070" 0.021" 1.5000" 2 56640 B0083J7ZGW Temporarily out of stock. Order now and we'll deliver when available. $19.40 Buy Options
0.008" 0.0080" 0.024" 1.5000" 2 56651 B0083J801G yes $27.04 Buy Options
0.009" 0.0090" 0.027" 1.5000" 2 56653 B0083J81PG Temporarily out of stock. Order now and we'll deliver when available. $21.97 Buy Options
0.01" 0.0100" 0.03" 1.5000" 2 50617 B0083J5IN4 yes $23.21 Buy Options
0.011" 0.0110" 0.033" 1.5000" 2 56658 B0083J82KU Temporarily out of stock. Order now and we'll deliver when available. $15.46 Buy Options
0.012" 0.0120" 0.036" 1.5000" 2 56660 B0083J83D6 Temporarily out of stock. Order now and we'll deliver when available. $21.97 Buy Options
0.013" 0.0130" 0.039" 1.5000" 2 56671 B0083J8412 Temporarily out of stock. Order now and we'll deliver when available. $21.97 Buy Options
0.014" 0.0140" 0.042" 1.5000" 2 56673 B0083J84RG yes $6.66 Buy Options
0.015" 0.0150" 0.045" 1.5000" 2 50619 B0083J5JSS yes $22.43 Buy Options
0.016" 0.0160" 0.048" 1.5000" 2 56676 B0083J85CK Temporarily out of stock. Order now and we'll deliver when available. $21.01 Buy Options
0.017" 0.0170" 0.051" 1.5000" 2 56678 B0083J869W Temporarily out of stock. Order now and we'll deliver when available. $21.01 Buy Options
0.018" 0.0180" 0.054" 1.5000" 2 56680 B0083J86X8 Temporarily out of stock. Order now and we'll deliver when available. $22.30 Buy Options
0.019" 0.0190" 0.057" 1.5000" 2 56682 B0083J87WS Temporarily out of stock. Order now and we'll deliver when available. $21.01 Buy Options
0.02" 0.0200" 0.06" 1.5000" 2 50621 B0083J5KRS yes $20.76 Buy Options
0.021" 0.0210" 0.063" 1.5000" 2 56685 B0083J88LS Temporarily out of stock. Order now and we'll deliver when available. $19.04 Buy Options
0.022" 0.0220" 0.066" 1.5000" 2 56687 B0083J898K Temporarily out of stock. Order now and we'll deliver when available. $19.11 Buy Options
0.023" 0.0230" 0.069" 1.5000" 2 56689 B0083J89OY Temporarily out of stock. Order now and we'll deliver when available. $19.11 Buy Options
0.024" 0.0240" 0.072" 1.5000" 2 56691 B0083J8A98 Temporarily out of stock. Order now and we'll deliver when available. $19.11 Buy Options

Key Features

  • Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid toolholding systems
  • Aluminum titanium nitride is similar to TiAlN but with a higher aluminum content for improved hardness and smoothness
  • Round shanks allow use with a wide variety of toolholding systems
  • Square end
  • 30 Degree helix angle

Product Description

Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid toolholding systems. Aluminum titanium nitride is similar to TiAlN but with a higher aluminum content for improved hardness and smoothness. Round shanks allow use with a wide variety of toolholding systems. Square end. 30 Degree helix angle.
