Megger 6311-080 Shielded Lead Set for BM15 and MJ15 Analog Insulation Testers, 50' Length

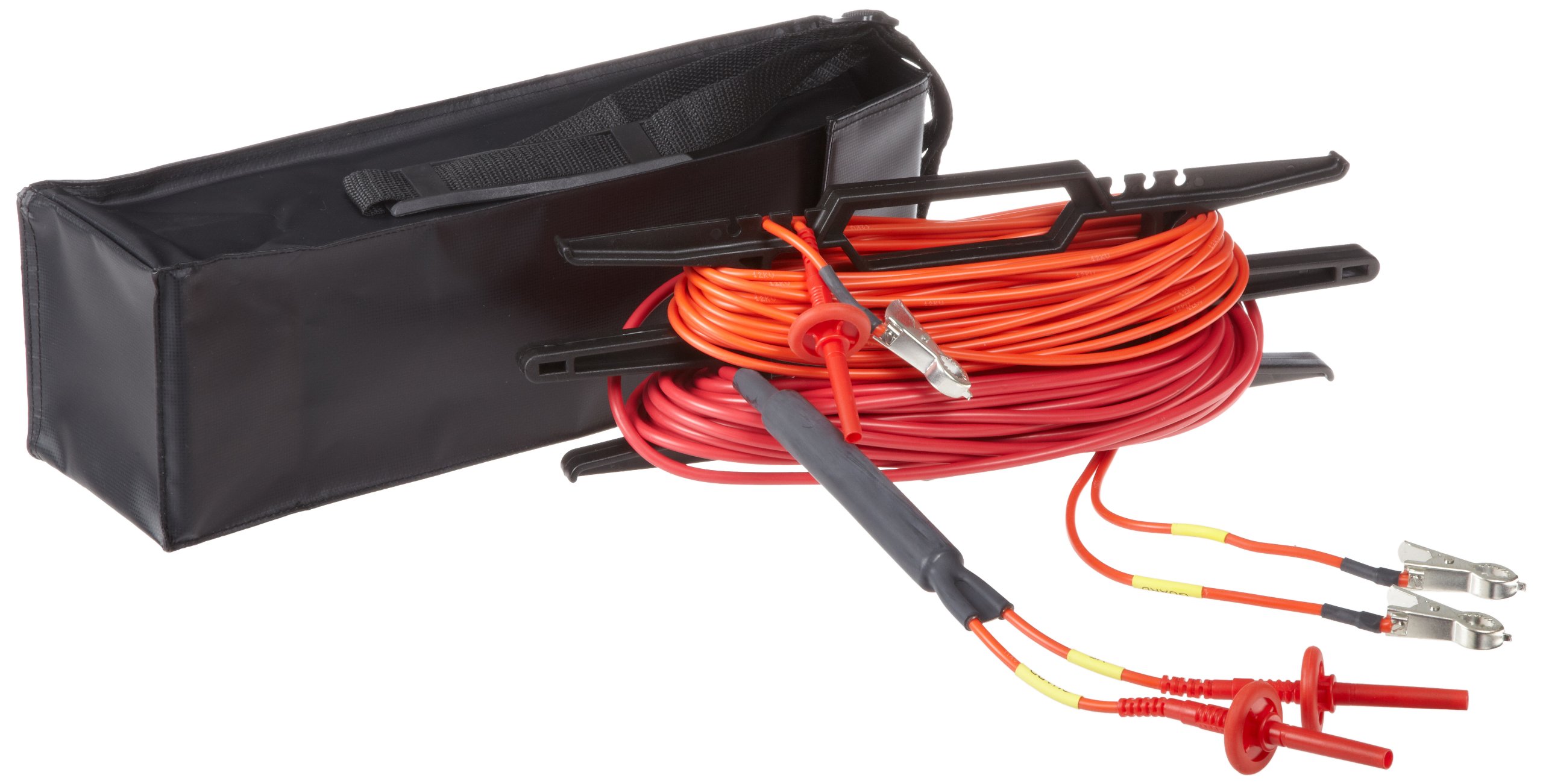

The Megger 6311-080 shielded lead set comes with one black (negative) test lead that is screened and one red (positive) test lead that is not screened and is for use with the Megger BM15 and MJ15 5-kilovolt (kV) analog insulation testers in applications where there is a risk of interference from nearby conductors and where leakage from the test lead would interfere with measurements. The test leads measures 50' (15 m) and provide measurements at a distance. The uninsulated compact test clips measure 2.2 x 1 inches (58 x 25 mm, W x D, where W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back) and have a 0.7" (18 mm) jaw opening for a hands-free connection to a conductor where there is limited access. Polyvinyl chloride (PVC) insulation on the test leads protects hands from shock and heat. The test leads lock into the input jacks on the meter to help ensure a secure connection and reduce risk of shock. The insulated test leads are rated for a maximum input of 5 kV of direct current (DC) voltage.

A test probe, test lead, test prod, or scope probe transmits an electrical signal to a testing device for display and analysis. Designs range from simple test leads with probe-style or clamp-on tips to more complex oscilloscope probes and current detectors. Some test probes, such as basic test leads, have wires with tips for connecting to test equipment. Other test probes, such as voltage detectors, are built into the meter. Depending on what is to be tested, the probe might either be passive or have active parts that require external power to operate. Some probes require contact for testing, while some are capable of taking measurements from a distance. Some also have finger barriers, insulation, or other features to help protect the operator's hand from electrical shock and burns. Test probes are rated according to the amount of voltage, current, temperature, or other input they can measure. When choosing a test probe, the maximum amount of input that the probe can measure should match or exceed both the maximum amount that can be tested by the test equipment, as well as that of the property expected to be present in the application.

Megger manufactures equipment for cable fault locating, protective relay testing, telecommunications and data integrity, and power quality testing under multiple brand names, among them Megger, Biddle, States, and AVO. The company, founded in 1889, is headquartered in Dover, England, and meets International Organization for Standardization (ISO) 9001:2008 standards.
