Megger 242011-18 Duplex Test Lead with Helical Spring Point for Digital Low Resistance Ohmmeters, 18' Length

Be the first to review this item

ASIN B005T9DGYY

Product Specifications
Mfr Part #
242011-18
System of Measurement
Inch
Item Weight
0.5 pounds
Number of Items
1
Overall Length
18  feet
Specifications
18' Length
Specification for this product family (See all  products)
UNSPSC Code
41113631
Brand Name
Megger

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 29? Order in-stock items in the next 8 hrs 10 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

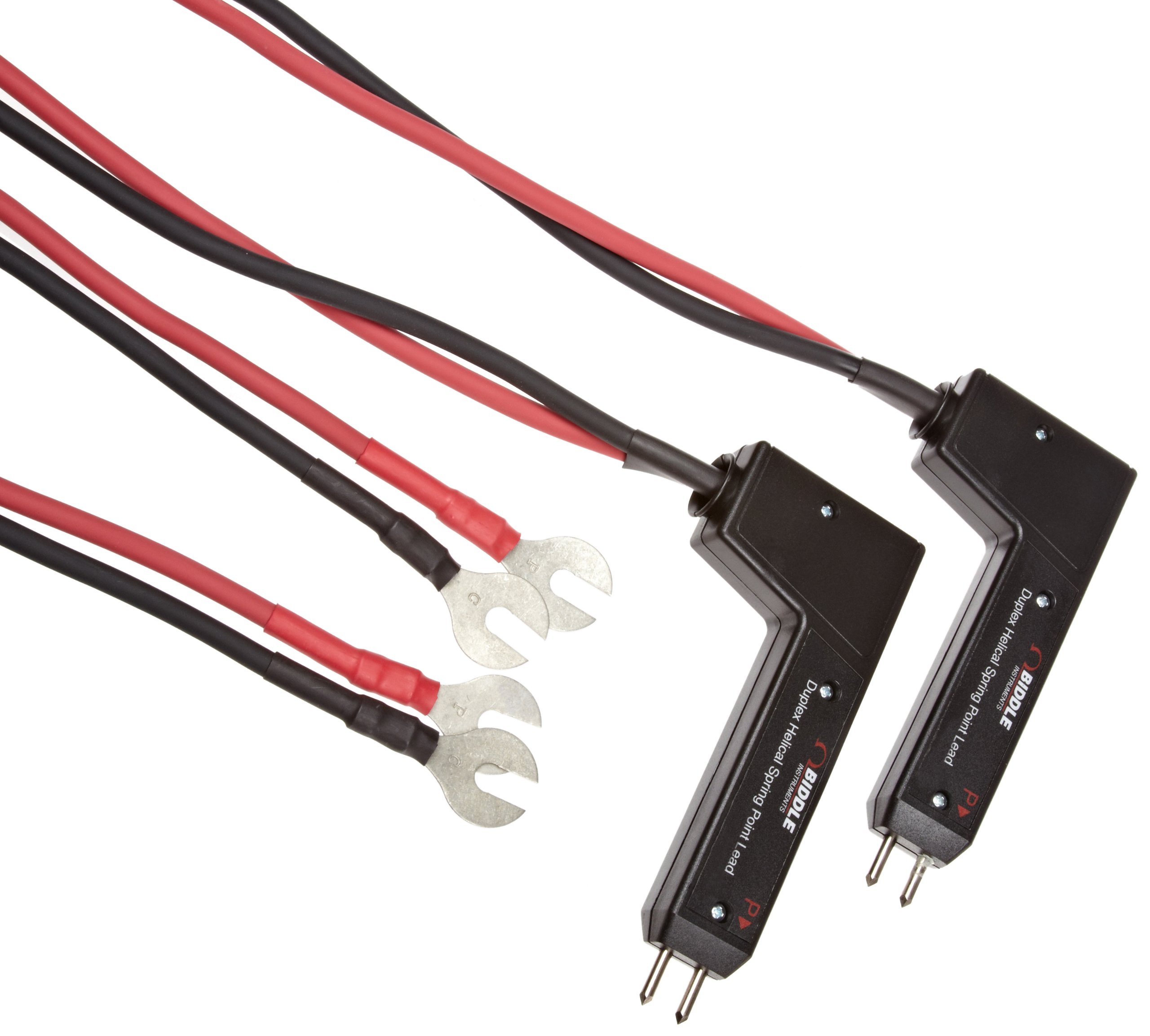

  • Includes one duplex test lead with duplex hand spikes that have helical spring-loaded tips
  • For use with Megger 247100, 247101, DLRO10HD, DLRO10, and DLRO10X digital low-resistance ohmmeters
  • Duplex test lead measures both current and resistance when taking four-wire resistance measurements
  • Maximum test current input of 10 amp
  • Helical spring-point hand spikes compress and rotate to make contact with a conductor

Package Details

Shipping Weight: 6.8 pounds
Package Size: 11.5 x 11.2 x 2 inches

Product Description

The Megger 242011 series duplex test lead with helical spring-point duplex hand spikes is for use with Megger 247100, 247101, DLRO10HD, DLRO10, and DLRO10X digital low-resistance ohmmeters. This duplex test lead measures both current and resistance when taking four-wire resistance measurements, which are more accurate than two-wire resistance measurements and allow low resistance values to be detected. The lead has a maximum test current input of 10 amp. The helical spring-point hand spikes compress and rotate to make contact with a conductor. There is 0.4" (10 mm) between the current and potential probe tips on the duplex hand spikes.

A test probe, test lead, test prod, or scope probe transmits an electrical signal to a testing device for display and analysis. Designs range from simple test leads with probe-style or clamp-on tips to more complex oscilloscope probes and current detectors. Some test probes, such as basic test leads, have wires with tips for connecting to test equipment. Other test probes, such as voltage detectors, are built into the meter. Depending on what is to be tested, the probe might either be passive or have active parts that require external power to operate. Some probes require contact for testing, while some are capable of taking measurements from a distance. Some also have finger barriers, insulation, or other features to help protect the operator's hand from electrical shock and burns. Test probes are rated according to the amount of voltage, current, temperature, or other input they can measure. When choosing a test probe, the maximum amount of input that the probe can measure should match or exceed both the maximum amount that can be tested by the test equipment, as well as that of the property expected to be present in the application.

Megger manufactures equipment for cable fault locating, protective relay testing, telecommunications and data integrity, and power quality testing under multiple brand names, among them Megger, Biddle, States, and AVO. The company, founded in 1889, is headquartered in Dover, England, and meets International Organization for Standardization (ISO) 9001:2008 standards.
