Megger 235303 Tool and Appliance Tester, 3kV

Be the first to review this item

ASIN B005T66MNE

Specifications for this item
Number of Items
1
Overall Height
10  inches
Overall Width
13-1/2  inches
Part Number
235303
Item Weight
28 pounds
Item Depth
10 inches
Brand Name
Megger
System of Measurement
Inch
List price:
$5,765.00
Price:
$5,077.19
You save:
$687.81 (12%)
Quantity:

In Stock (1)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Apr 18? Order in-stock items in the next 11 hrs 55 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Portable tool and appliance tester conducts ground continuity, leakage current, and electrical insulation tests to test conformity to UL and ANSI standards
  • Manual test choice with analog measurements
  • Front panel NEMA 5-15 (15A) receptacle for plugging in the appliance to be tested
  • Measures ground continuity with a 0.10 ohm threshold, leakage current from 0 to 10mA, and insulation breakdown with a 0 to 3,000V AC test voltage
  • Conducts complete UL and ANSI testing in under 1 minute

Package Details

Shipping Weight: 35.5 pounds
Package Size: 21.5 x 15.7 x 15.5 inches

Product Description

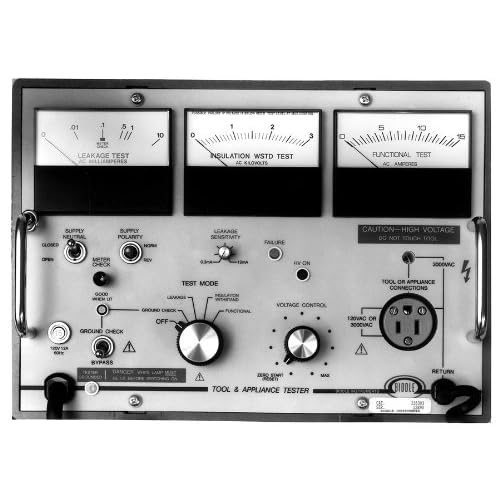

The Megger 235303 tool and appliance tester is a portable tester that evaluates the safety of electrical equipment. The unit conducts ground continuity, leakage current, and electrical insulation tests. This analog tester has manual test selection. A front-panel National Electrical Manufacturers Association (NEMA) 5-15, 15A receptacle on the front of the unit allows the appliance or tool being tested to be plugged in. The unit conducts ground checks with a 0.10 ohm threshold and measures leakage current from 0 to 10mA. The insulation breakdown test uses 0 to 3,000V alternating current (AC) test current. The unit conducts complete Underwriters Laboratories (UL) and American National Standards Institute (ANSI) testing of appliances and electrical tools in under a minute. The 235303 is commonly used by electricians and electrical contractors.

Specifications

Power supply 120V AC electrical outlet
Ground continuity threshold 0.1 ohm
Leakage current range 0 to 10mA
Test voltage 0 to 3,000V AC
Weight (including batteries) 12.7kg/28 lb.
Dimensions 254 x 343 x 254mm/10 x 13.5 x 10 inches (H x W x D)

H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Component testers evaluate the safety and performance of electrical tools and appliances. The testers evaluate the grounding, current leakage, insulation resistance, and other electrical features. These testers work by providing a test current at a specific level, which is used to ensure that the appliance can be operated safely. Some testers may be pre-set to test the appliance or tool to a certain standard, such as Underwriters Laboratories (UL) or American National Standards Institute (ANSI) specifications and may include automatic or manual selection of test currents or voltages.

Megger manufactures equipment for cable fault locating, protective relay testing, telecommunications and data integrity, and power quality testing under multiple brand names, among them Megger, Biddle, States, and AVO. The company, founded in 1889, is headquartered in Dover, England, and meets International Organization for Standardization (ISO) 9001:2008 standards.

What’s in the Box?

  • 235303 Tool and Appliance Tester
  • High voltage lead
  • Ground cable
  • Instructions
