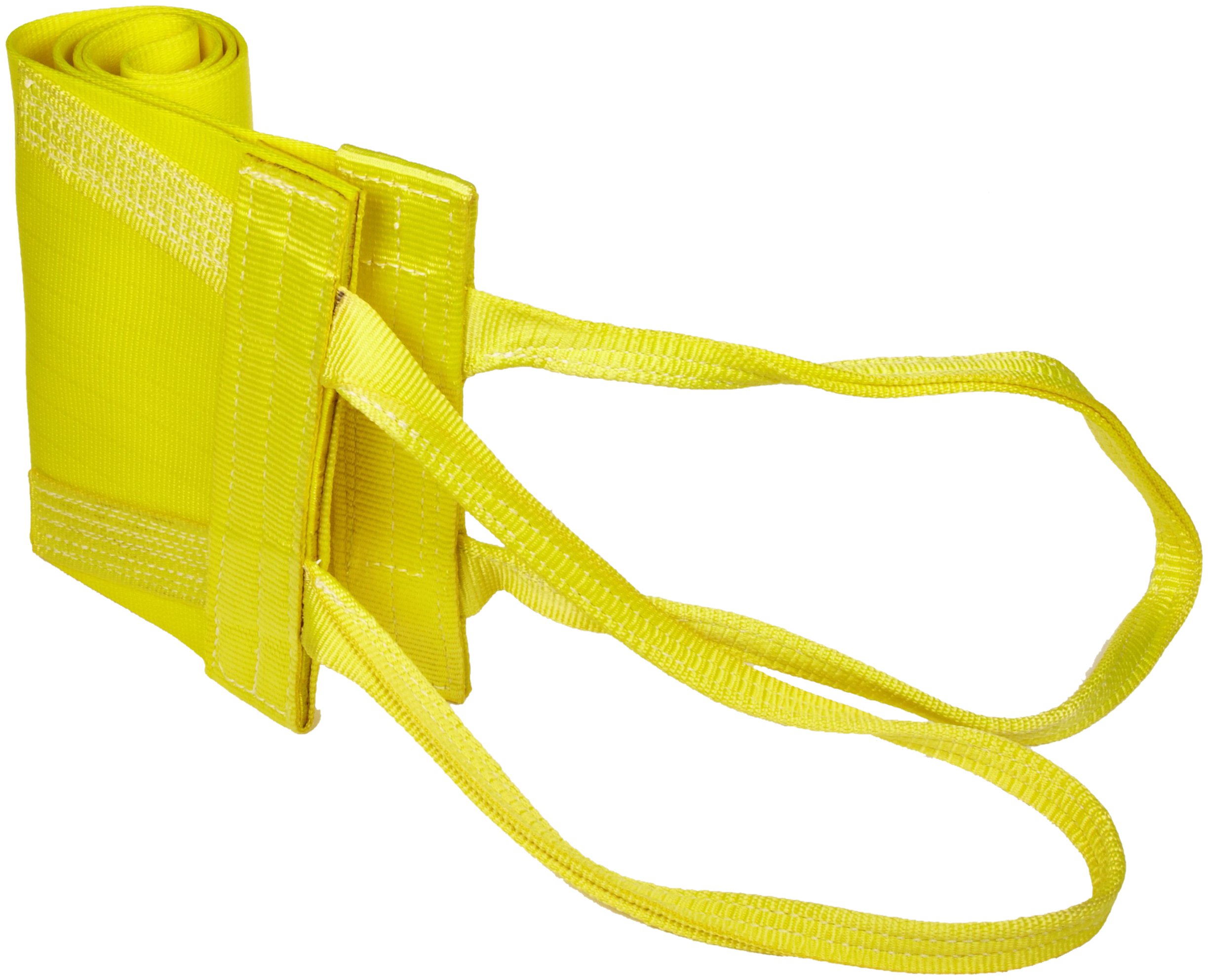

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Mazzella WLA1-812 Nylon Attached Eye Web Sling, Wide-Lift, Yellow, 1 Ply, Flat Eyes, Basket Load Capacity

Be the first to review this item

Product Specifications
Material Type
Nylon
Brand Name
Mazzella Lifting Technologies
Size Name
1 Ply
Manufacturer Series Number
WLA1-812
Upper Temperature Range
194  Degrees Fahrenheit
Specification Met
OSHA, ASME B30.9
UNSPSC Code
24101611
Style Name
Wide-Lift
Special Features
Vertical, Choker, Basket

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 2 hrs 20 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-15 of 15
Color Length Width Eye Dimension Load Capacity ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-15 of 15
Yellow 20 ft 12" 18" 5000 lbs B004PGNARA yes $341.31 Buy Options
Yellow 19 ft 12" 18" 5000 lbs B004PGNAR0 Usually ships in 3 to 4 weeks $305.75 Buy Options
Yellow 18 ft 12" 18" 5000 lbs B004PGNAQQ Usually ships in 3 to 4 weeks $293.54 Buy Options
Yellow 17 ft 12" 18" 5000 lbs B004PGNAQG Usually ships in 3 to 4 weeks $271.25 Buy Options
Yellow 16 ft 12" 18" 5000 lbs B004PGNAQ6 Usually ships in 3 to 4 weeks $253.47 Buy Options
Yellow 15 ft 12" 18" 5000 lbs B004PGNAPW Usually ships in 3 to 4 weeks $235.06 Buy Options
Yellow 14 ft 12" 18" 5000 lbs B004PGNAPM yes $226.61 Buy Options
Yellow 13 ft 12" 18" 5000 lbs B004PGNAPC Usually ships in 3 to 4 weeks $207.20 Buy Options
Yellow 12 ft 12" 18" 5000 lbs B004PGNAP2 yes $200.81 Buy Options
Yellow 11 ft 12" 18" 5000 lbs B004PGNAOS Usually ships in 3 to 4 weeks $183.42 Buy Options
Yellow 10 ft 12" 18" 5000 lbs B004PGNAOI Usually ships in 3 to 4 weeks $164.73 Buy Options
Yellow 9 ft 12" 18" 5000 lbs B004PGNAO8 yes $142.62 Buy Options
Yellow 8 ft 12" 18" 5000 lbs B004PGNANY yes $133.96 Buy Options
Yellow 7 ft 12" 18" 5000 lbs B004PGNANO Usually ships in 3 to 4 weeks $124.23 Buy Options
Yellow 6 ft 12" 18" 5000 lbs B004PGNANE yes $116.51 Buy Options

Key Features

  • Attached-eye wide-lift nylon web sling for lifting fragile or irregularly shaped loads
  • Extra-wide sling body provides more balance when lifting than standard-width slings
  • Flat eye-and-eye (also called type 3) endings for basket lifting configurations
  • Heavy-duty one-ply construction for greater load capacity than light-duty one-ply web slings
  • Meets ASME specification B30.9 and OSHA specification 1910.184

Product Description

The Mazzella WLA1 nylon single-leg web sling has flat attached eye-and-eye endings, heavy-duty one-ply webbing, and an extra-wide sling body for lifting bulky loads with basket configurations in construction, industrial, and other low-heat applications. The nylon webbing is soft to avoid scratching fragile or delicate loads. This web sling is flexible and conforms to irregularly shaped loads, and has a better strength-to-weight ratio than a wire rope or chain sling. This nylon web sling resists several chemicals, including alcohols, aldehydes, strong alkalis, ethers, hydrocarbons, ketones, oils, detergents, and sea water. However, it does not resist acids or bleach agents. The stretch of a nylon sling at its maximum load capacity is approximately 8-10%.

The extra-wide sling body of this web sling is suitable for lifting bulky loads that require wider load-bearing areas than standard-width web slings. This flat eye-and-eye (also called type 3) sling has an eye, or loop, sewn onto both ends, and can be used with basket lifting configurations. The attached eyes are suitable for lifting loads that require less strength than a continuous eye wide-lift sling. The sling's heavy-duty webbing is denser and has a higher capacity than light-duty one-ply webbing, but it has a lower capacity than a two- or four-ply web sling. This sling meets American Society of Mechanical Engineers (ASME) specification B30.9 and Occupational Safety and Health Administration (OSHA) specification 1910.184.

Slings are used to lift heavy objects for industrial applications. Types of slings include web slings, wire rope slings, chain slings, and mesh slings. The appropriate type of sling for an application depends on the strength-to-weight ratio, flexibility and resistance to bending, resistance to abrasion and cutting, resistance to crushing, resistance to stretching, and resistance to high temperatures and other environmental stressors. Slings have one, two, three, or four legs; or a continuous loop of webbing or wire rope. Legs are support branches that extend from a single point at the top of the sling to the item being lifted so the weight of the load is distributed evenly among the branches. Slings have eyes (loops) or alloy steel fittings on the ends.

A vertical lifting configuration connects a crane hook directly to a load with a single, vertical sling, usually by means of a hook. In a choker configuration, the sling wraps entirely around the load, and one loop passes through the other to form a slip noose, or choker. In a basket configuration, the sling passes under the load and both ends of the sling connect to the crane hook. The load capacity of a web sling is the maximum weight to be lifted in a vertical configuration. The capacity in a choker configuration is approximately equal to the vertical capacity times 0.8. The capacity of a web sling in a basket configuration, with sling ends at a 90-degree angle, is approximately equal to twice the vertical capacity. Load capacity of a web sling in a basket configuration decreases if the angle of the sling is less than 90 degrees. For example, a web sling with a capacity of 2,000 lb. in a vertical configuration will have an approximate capacity of (2,000)(0.8)=1,600 lb. in a choker configuration and an approximate capacity of (2,000)(2)=4,000 lb. in a basket configuration, if the sling ends are at a 90-degree angle to the load.

Mazzella Lifting Technologies manufactures lifting solutions including slings, cranes, and hoists. Founded in 1954, the company is headquartered in Cleveland, OH.
