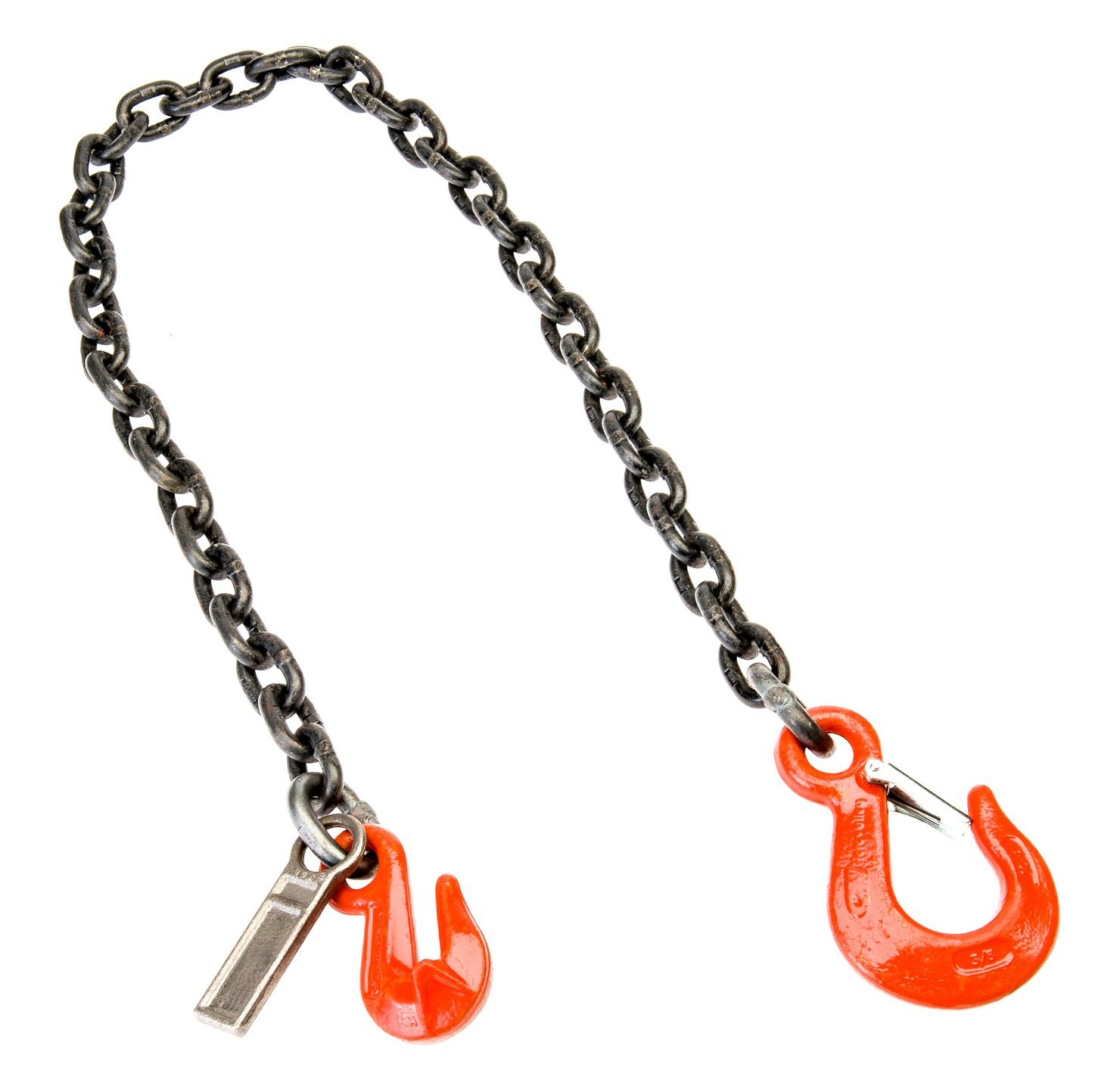

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Mazzella SGS Welded Alloy Chain Sling, Fixed-Leg, Grade 80, Vertical Load Capacity

Be the first to review this item

Product Specifications
End Cut Type
Grab Hook Top Fitting, Sling Hook Bottom Fitting
Material Type
Alloy Steel
Brand Name
Mazzella Lifting Technologies
Manufacturer Series Number
SGS
Upper Temperature Range
400  Degrees Fahrenheit
Specification Met
OSHA, ASME B30.9
Grade
Grade 80
Style Name
Fixed-Leg
UNSPSC Code
24101611
Special Features
Single-Point-Vertical

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share
Currently showing 1-20 of 80 Next 20 »
Item length string Chain description Load capacity ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-20 of 80 Next 20 »
10 feet 1/2 inches 12000 pounds B004R9Q3II Usually ships in 3 to 4 weeks $364.53 Buy Options
10 feet 3/8 inches 7100 pounds B004R9Q3E2 Usually ships in 3 to 4 weeks $233.20 Buy Options
10 feet 5/8 inches 18100 pounds B004R9Q3MY Usually ships in 3 to 4 weeks $506.75 Buy Options
10 feet 7/32 inches 2100 pounds B004R9Q34W Usually ships in 3 to 4 weeks $159.92 Buy Options
10 feet 9/32 inches 3500 pounds B004R9Q39M Usually ships in 3 to 4 weeks $182.07 Buy Options
11 feet 1/2 inches 12000 pounds B004R9Q3IS Usually ships in 3 to 4 weeks $394.39 Buy Options
11 feet 3/8 inches 7100 pounds B004R9Q3EC Usually ships in 3 to 4 weeks $240.83 Buy Options
11 feet 5/8 inches 18100 pounds B004R9Q3N8 Usually ships in 3 to 4 weeks $523.10 Buy Options
11 feet 7/32 inches 2100 pounds B004R9Q356 Usually ships in 3 to 4 weeks $165.55 Buy Options
11 feet 9/32 inches 3500 pounds B004R9Q39W Usually ships in 3 to 4 weeks $188.15 Buy Options
12 feet 1/2 inches 12000 pounds B004R9Q3J2 Usually ships in 3 to 4 weeks $405.77 Buy Options
12 feet 3/8 inches 7100 pounds B004R9Q3EM Usually ships in 3 to 4 weeks $248.42 Buy Options
12 feet 5/8 inches 18100 pounds B004R9Q3NI Usually ships in 3 to 4 weeks $539.72 Buy Options
12 feet 7/32 inches 2100 pounds B004R9Q35G Usually ships in 3 to 4 weeks $175.98 Buy Options
12 feet 9/32 inches 3500 pounds B004R9Q3A6 Usually ships in 3 to 4 weeks $186.85 Buy Options
13 feet 1/2 inches 12000 pounds B004R9Q3JC Usually ships in 3 to 4 weeks $417.44 Buy Options
13 feet 3/8 inches 7100 pounds B004R9Q3EW Usually ships in 3 to 4 weeks $237.97 Buy Options
13 feet 5/8 inches 18100 pounds B004R9Q3NS Usually ships in 3 to 4 weeks $564.55 Buy Options
13 feet 7/32 inches 2100 pounds B004R9Q35Q Usually ships in 3 to 4 weeks $177.34 Buy Options
13 feet 9/32 inches 3500 pounds B004R9Q3AG Usually ships in 3 to 4 weeks $186.05 Buy Options

Key Features

  • Grade 80 alloy steel chain sling for lifting in abrasive and high-temperature environments

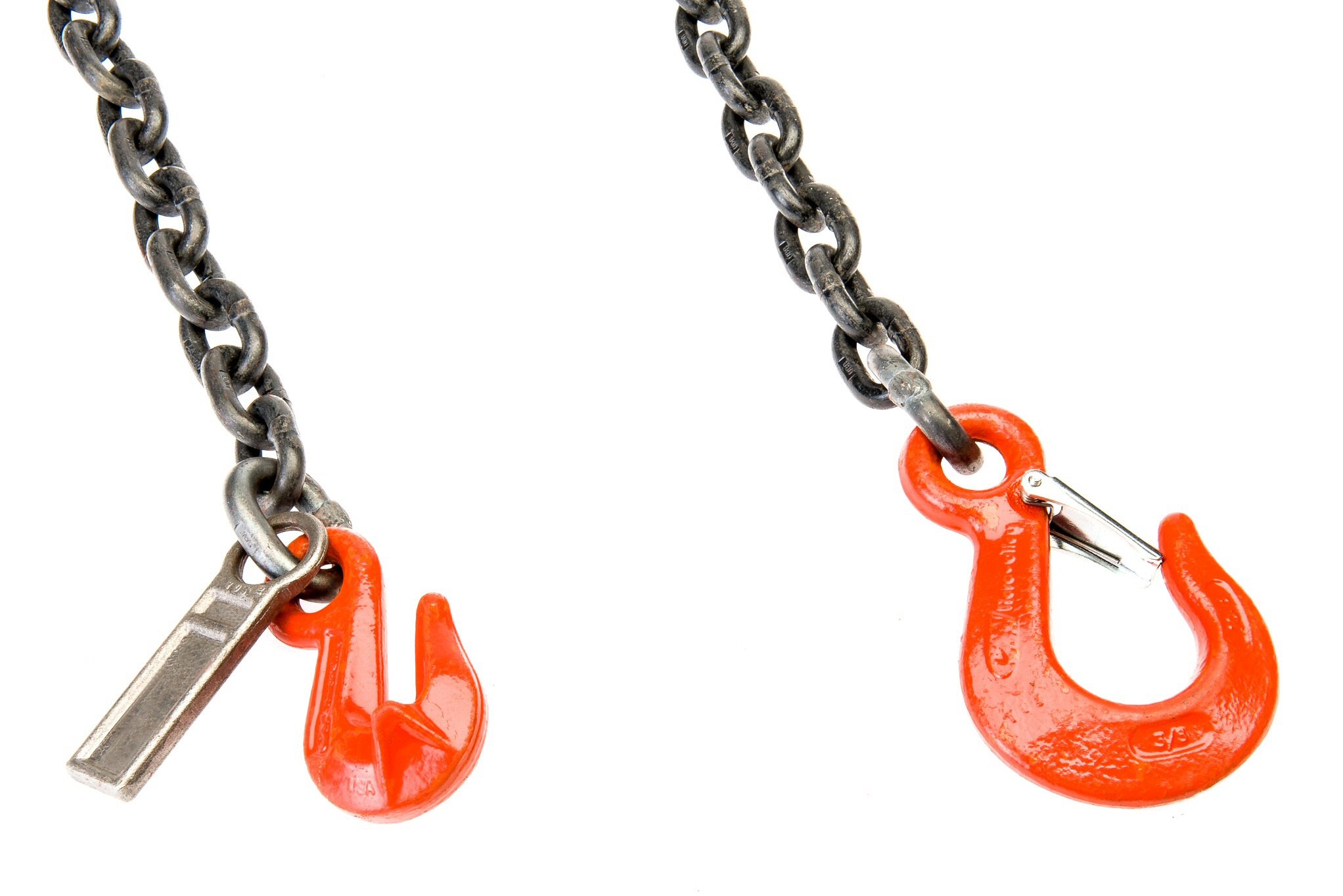

  • Grab hook on one end and sling hook on the other end for applications that require narrower hook openings than slings with foundry hooks
  • Welded construction is more durable than mechanical construction
  • Single, fixed-leg chain sling for single-point vertical lifting configurations
  • Meets ASME specification B30.9 and OSHA specification 1910.184

Product Description

The Mazzella SGS grade 80 alloy steel single, fixed-leg welded chain sling has a grab hook on one end and a sling hook on the other end for lifting loads with a single-point vertical configuration in abrasive and high-temperature environments such as foundries and steel mills. This chain sling is made of grade 80 alloy steel, which is suitable for applications that require a lower load capacity than that of a grade 100 alloy steel chain sling. It has greater temperature and abrasion resistance than a web or wire rope sling. The sling has a grab hook on one end and a sling hook on the other end for single-point vertical lifting assemblies. This single, fixed-leg chain sling has one branch of chain whose length cannot be adjusted. The grab hook has a narrower opening than a foundry or sling hook for connecting to a chain link. The sling hook has a wider opening than the grab hook but a narrower opening than a foundry hook. The welded construction of this chain sling is more durable than mechanical construction. A chain sling does not stretch at its maximum load capacity, but it can stretch up to 20% before its breaking point, to provide shock resistance. This sling meets American Society of Mechanical Engineers (ASME) specification B30.9 and Occupational Safety and Health Administration (OSHA) specification 1910.184.

Slings are used to lift heavy objects for industrial applications. Types of slings include web slings, wire rope slings, chain slings, and mesh slings. The appropriate type of sling for an application depends on the strength-to-weight ratio, flexibility and resistance to bending, resistance to abrasion and cutting, resistance to crushing, resistance to stretching, and resistance to high temperatures and other environmental stressors. Slings have one, two, three, or four legs. Legs are support branches that extend from a single point at the top of the sling to the item being lifted so the weight of the load is distributed evenly among the branches. Slings have eyes (loops) or alloy steel fittings on the ends.

A vertical lifting configuration connects a crane hook directly to a load with a single, vertical sling, usually by means of a hook. In two-point, three-point, and four-point bridle configurations, the sling attaches to the load at two, three, and four locations, respectively, in such a way that each leg is at the same angle to the load. Load capacity is the maximum weight to be lifted in either a vertical configuration (single-leg slings) or at a 60-degree angle (two-, three-, and four-leg slings). A chain sling's capacity at a 45-degree angle is approximately equal to the 60-degree capacity times 0.8, and its capacity at a 30-degree angle is approximately equal to the 60-degree capacity times 0.57. For example, a chain sling with a capacity of 2,000 lb. at a 60-degree angle will have an approximate capacity of (2,000)(0.8)=1,600 lb. at a 45-degree angle and an approximate capacity of (2,000)(0.57)=1,140 lb. at a 30-degree angle.

Mazzella Lifting Technologies manufactures lifting solutions including slings, cranes, and hoists. Founded in 1954, the company is headquartered in Cleveland, OH.
