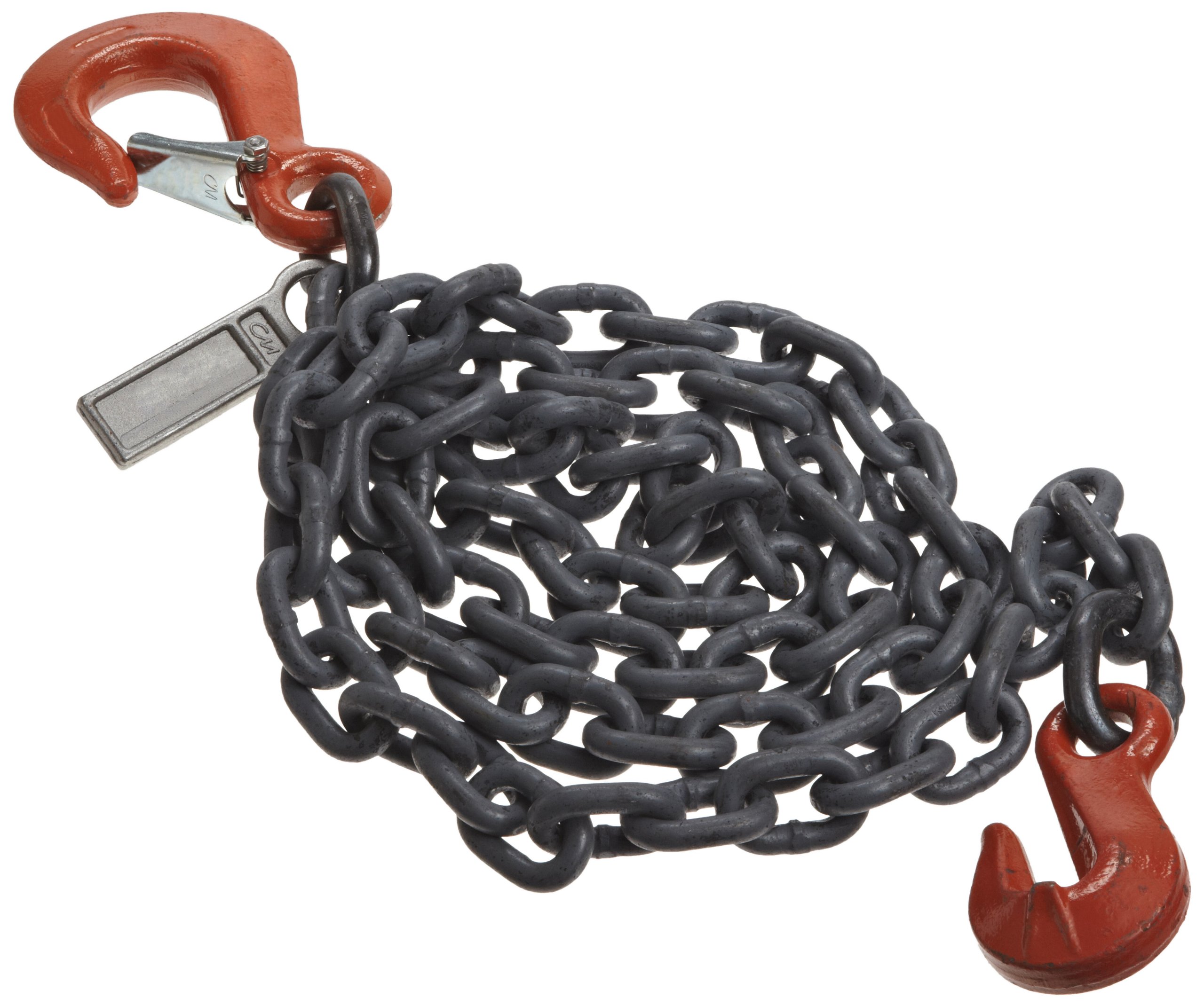

Mazzella SGS Welded Alloy Chain Sling, Fixed-Leg, Grade 100, Vertical Load Capacity

Be the first to review this item

Product Specifications
End Cut Type
Grab Hook Top Fitting, Sling Hook Bottom Fitting
Material Type
Alloy Steel
Brand Name
Mazzella Lifting Technologies
Manufacturer Series Number
SGS
Upper Temperature Range
400  Degrees Fahrenheit
Specification Met
OSHA, ASME B30.9
Grade
Grade 100
Style Name
Fixed-Leg
UNSPSC Code
24101611
Special Features
Single-Point-Vertical

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share
Currently showing 1-20 of 64 Next 20 »
Item length string Chain description Load capacity ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-20 of 64 Next 20 »
10 feet 1/2 inches 15000 pounds B004R9QK4U Usually ships in 3 to 5 weeks $416.95 Buy Options
10 feet 3/8 inches 8800 pounds B004R9QJXW Usually ships in 3 to 5 weeks $264.43 Buy Options
10 feet 5/8 inches 22600 pounds B004R9QKB8 Usually ships in 3 to 5 weeks $557.06 Buy Options
10 feet 9/32 inches 4300 pounds B004R9QJT6 Usually ships in 3 to 5 weeks $194.70 Buy Options
11 feet 1/2 inches 15000 pounds B004R9QK54 Usually ships in 3 to 5 weeks $436.87 Buy Options
11 feet 3/8 inches 8800 pounds B004R9QJY6 Usually ships in 3 to 5 weeks $273.05 Buy Options
11 feet 5/8 inches 22600 pounds B004R9QKBI Usually ships in 3 to 5 weeks $564.89 Buy Options
11 feet 9/32 inches 4300 pounds B004R9QJTG Usually ships in 3 to 5 weeks $219.60 Buy Options
12 feet 1/2 inches 15000 pounds B004R9QK5O Usually ships in 3 to 5 weeks $448.55 Buy Options
12 feet 3/8 inches 8800 pounds B004R9QJYG Usually ships in 3 to 5 weeks $296.63 Buy Options
12 feet 5/8 inches 22600 pounds B004R9QKBS Usually ships in 3 to 5 weeks $580.35 Buy Options
12 feet 9/32 inches 4300 pounds B004R9QJTQ 2 $212.71 Buy Options
13 feet 1/2 inches 15000 pounds B004R9QK5Y Usually ships in 3 to 5 weeks $459.24 Buy Options
13 feet 3/8 inches 8800 pounds B004R9QJYQ Usually ships in 3 to 5 weeks $290.79 Buy Options
13 feet 5/8 inches 22600 pounds B004R9QKCW Usually ships in 3 to 5 weeks $598.08 Buy Options
13 feet 9/32 inches 4300 pounds B004R9QJU0 Usually ships in 3 to 5 weeks $212.94 Buy Options
14 feet 1/2 inches 15000 pounds B004R9QK68 Usually ships in 3 to 5 weeks $471.93 Buy Options
14 feet 3/8 inches 8800 pounds B004R9QJZ0 Usually ships in 3 to 5 weeks $298.71 Buy Options
14 feet 5/8 inches 22600 pounds B004R9QKDG Usually ships in 3 to 5 weeks $605.86 Buy Options
14 feet 9/32 inches 4300 pounds B004R9QJUA Usually ships in 3 to 5 weeks $223.00 Buy Options

Key Features

  • Grade 100 alloy steel chain sling for lifting in abrasive and high-temperature environments
  • Grab hook on one end and sling hook on the other end for applications that require narrower hook openings than slings with foundry hooks
  • Welded construction is more durable than mechanical construction
  • Single, fixed-leg chain sling for single-point vertical lifting configurations
  • Meets ASME specification B30.9 and OSHA specification 1910.184

Product Description

The Mazzella SGS grade 100 alloy steel single, fixed-leg welded chain sling has a grab hook on one end and a sling hook on the other end for lifting loads with a single-point vertical configuration in abrasive and high-temperature environments such as foundries and steel mills. This chain sling is made of grade 100 alloy steel, which is stronger than grade 80 alloy steel. It has greater temperature and abrasion resistance than a web or wire rope sling. The sling has a grab hook on one end and a sling hook on the other end for single-point vertical lifting assemblies. This single, fixed-leg chain sling has one branch of chain whose length cannot be adjusted. The grab hook has a narrower opening than a foundry or sling hook for connecting to a chain link. The sling hook has a wider opening than the grab hook but a narrower opening than a foundry hook. The welded construction of this chain sling is more durable than mechanical construction. A chain sling does not stretch at its maximum load capacity, but it can stretch up to 20% before its breaking point, to provide shock resistance. This sling meets American Society of Mechanical Engineers (ASME) specification B30.9 and Occupational Safety and Health Administration (OSHA) specification 1910.184.

Slings are used to lift heavy objects for industrial applications. Types of slings include web slings, wire rope slings, chain slings, and mesh slings. The appropriate type of sling for an application depends on the strength-to-weight ratio, flexibility and resistance to bending, resistance to abrasion and cutting, resistance to crushing, resistance to stretching, and resistance to high temperatures and other environmental stressors. Slings have one, two, three, or four legs. Legs are support branches that extend from a single point at the top of the sling to the item being lifted so the weight of the load is distributed evenly among the branches. Slings have eyes (loops) or alloy steel fittings on the ends.

A vertical lifting configuration connects a crane hook directly to a load with a single, vertical sling, usually by means of a hook. In two-point, three-point, and four-point bridle configurations, the sling attaches to the load at two, three, and four locations, respectively, in such a way that each leg is at the same angle to the load. Load capacity is the maximum weight to be lifted in either a vertical configuration (single-leg slings) or at a 60-degree angle (two-, three-, and four-leg slings). A chain sling's capacity at a 45-degree angle is approximately equal to the 60-degree capacity times 0.8, and its capacity at a 30-degree angle is approximately equal to the 60-degree capacity times 0.57. For example, a chain sling with a capacity of 2,000 lb. at a 60-degree angle will have an approximate capacity of (2,000)(0.8)=1,600 lb. at a 45-degree angle and an approximate capacity of (2,000)(0.57)=1,140 lb. at a 30-degree angle.

Mazzella Lifting Technologies manufactures lifting solutions including slings, cranes, and hoists. Founded in 1954, the company is headquartered in Cleveland, OH.
