Mazzella DOL Welded Alloy Chain Sling, Fixed-Leg, Grade 100, Load Capacity at 60°

Be the first to review this item

Product Specifications
Manufacturer Series Number
DOL
Upper Temperature Range
400  Degrees Fahrenheit
Specification Met
OSHA, ASME B30.9
End Cut Type
Master Link Top Fitting, Latchlok Hook Bottom Fitting
Grade
Grade 100
Material Type
Alloy Steel
Style Name
Fixed-Leg
Brand Name
Mazzella Lifting Technologies
Special Features
Two-Point-Vertical

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share
Currently showing 1-20 of 64 Next 20 »
Length Chain Size Load Capacity ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-20 of 64 Next 20 »
5 ft 5/8" 39100 lbs B004R9QQ9O Usually ships in 1 to 2 months $744.11 Buy Options
5 ft 1/2" 26000 lbs B004R9QQ2Q Usually ships in 1 to 2 months $538.11 Buy Options
5 ft 3/8" 15200 lbs B004R9QPVI 2 $453.61 Buy Options
5 ft 9/32" 7400 lbs B004R9QPQS Usually ships in 1 to 2 months $364.29 Buy Options
6 ft 5/8" 39100 lbs B004R9QQ9Y Usually ships in 1 to 2 months $769.94 Buy Options
6 ft 1/2" 26000 lbs B004R9QQ3K Usually ships in 1 to 2 months $617.56 Buy Options
6 ft 3/8" 15200 lbs B004R9QPWW Usually ships in 3 to 5 weeks $399.42 Buy Options
6 ft 9/32" 7400 lbs B004R9QPR2 Usually ships in 1 to 2 months $352.07 Buy Options
7 ft 5/8" 39100 lbs B004R9QQAI Usually ships in 3 to 5 weeks $805.70 Buy Options
7 ft 1/2" 26000 lbs B004R9QQ3U Usually ships in 1 to 2 months $624.82 Buy Options
7 ft 3/8" 15200 lbs B004R9QPX6 Usually ships in 1 to 2 months $418.80 Buy Options
7 ft 9/32" 7400 lbs B004R9QPRC Usually ships in 1 to 2 months $368.96 Buy Options
8 ft 5/8" 39100 lbs B004R9QQAS Usually ships in 1 to 2 months $824.49 Buy Options
8 ft 9/32" 7400 lbs B004R9QPRM Usually ships in 1 to 2 months $372.06 Buy Options
8 ft 1/2" 26000 lbs B004R9QQ44 Usually ships in 1 to 2 months $656.39 Buy Options
8 ft 3/8" 15200 lbs B004R9QPXG 1 $481.64 Buy Options
9 ft 5/8" 39100 lbs B004R9QQB2 Usually ships in 1 to 2 months $853.84 Buy Options
9 ft 9/32" 7400 lbs B004R9QPRW Usually ships in 1 to 2 months $379.78 Buy Options
9 ft 1/2" 26000 lbs B004R9QQ4O Usually ships in 1 to 2 months $665.55 Buy Options
9 ft 3/8" 15200 lbs B004R9QPXQ Usually ships in 1 to 2 months $443.36 Buy Options

Key Features

  • Grade 100 alloy steel chain sling for lifting in abrasive and high-temperature environments
  • Oblong master link and a latch lock hook on each of the two legs for more secure rigging than slings foundry, grab, or sling hooks
  • Welded construction is more durable than mechanical construction
  • Double, fixed-leg chain sling for two-point bridle (also called two-point vertical) lifting configurations
  • Meets ASME specification B30.9 and OSHA specification 1910.184

Product Description

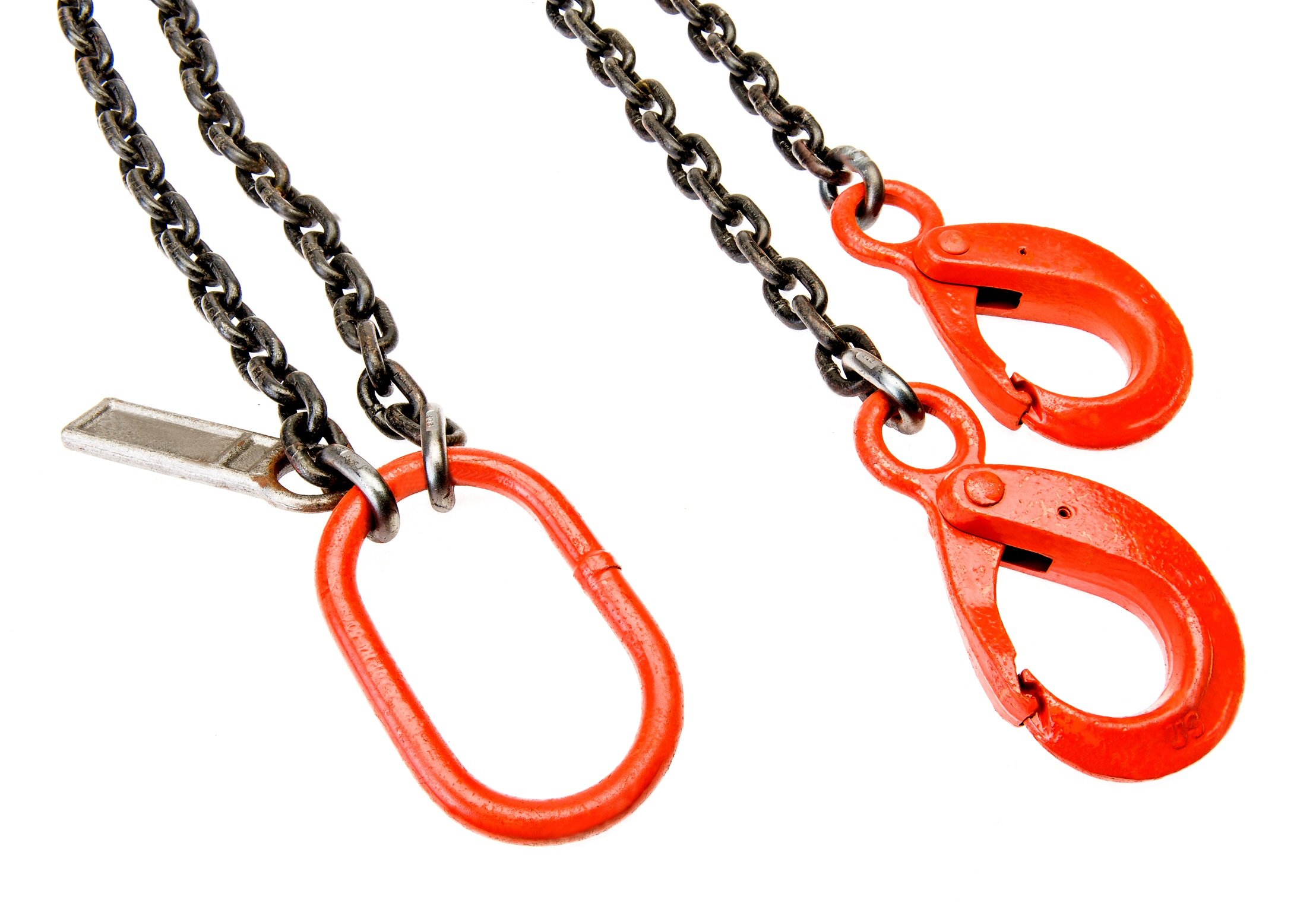

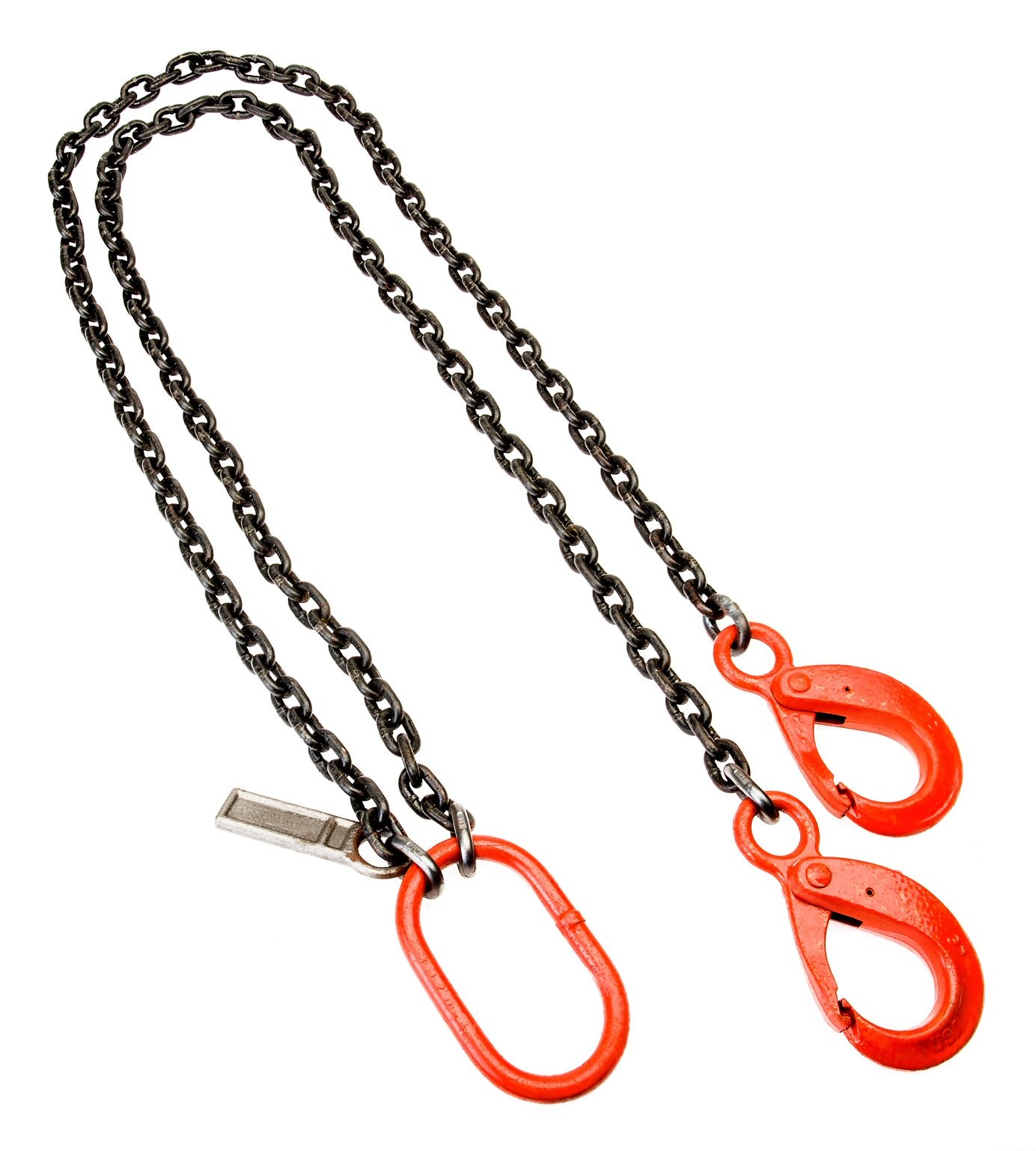

The Mazzella DOL grade 100 alloy steel double, fixed-leg welded chain sling has an oblong master link and a latch lock hook on each of the two legs for lifting loads with a two-point bridle configuration in abrasive and high-temperature environments such as foundries and steel mills. This chain sling is made of grade 100 alloy steel, which is stronger than grade 80 alloy steel. It has greater temperature and abrasion resistance than a web or wire rope sling. The sling has an oblong master link at the top of the sling and a latch lock hook, also called a Latchlok hook, on each of the two chain legs for two-point bridle lifting configurations. The length of the two legs extending from the master link cannot be adjusted. A latch lock hook has a large eye that can connect to wire rope thimbles; the latch that closes over the eye helps prevent the hook from snagging and allows for more secure rigging than a foundry, grab, or sling hook. A recessed push button helps prevent accidental opening of the latch. The welded construction of this chain sling is more durable than mechanical construction. A chain sling does not stretch at its maximum load capacity, but it can stretch up to 20% before its breaking point, to provide shock resistance. This sling meets American Society of Mechanical Engineers (ASME) specification B30.9 and Occupational Safety and Health Administration (OSHA) specification 1910.184.

Slings are used to lift heavy objects for industrial applications. Types of slings include web slings, wire rope slings, chain slings, and mesh slings. The appropriate type of sling for an application depends on the strength-to-weight ratio, flexibility and resistance to bending, resistance to abrasion and cutting, resistance to crushing, resistance to stretching, and resistance to high temperatures and other environmental stressors. Slings have one, two, three, or four legs. Legs are support branches that extend from a single point at the top of the sling to the item being lifted so the weight of the load is distributed evenly among the branches. Slings have eyes (loops) or alloy steel fittings on the ends.

A vertical lifting configuration connects a crane hook directly to a load with a single, vertical sling, usually by means of a hook. In two-point, three-point, and four-point bridle configurations, the sling attaches to the load at two, three, and four locations, respectively, in such a way that each leg is at the same angle to the load. Load capacity is the maximum weight to be lifted in either a vertical configuration (single-leg slings) or at a 60-degree angle (two-, three-, and four-leg slings). A chain sling's capacity at a 45-degree angle is approximately equal to the 60-degree capacity times 0.8, and its capacity at a 30-degree angle is approximately equal to the 60-degree capacity times 0.57. For example, a chain sling with a capacity of 2,000 lb. at a 60-degree angle will have an approximate capacity of (2,000)(0.8)=1,600 lb. at a 45-degree angle and an approximate capacity of (2,000)(0.57)=1,140 lb. at a 30-degree angle.

Mazzella Lifting Technologies manufactures lifting solutions including slings, cranes, and hoists. Founded in 1954, the company is headquartered in Cleveland, OH.
