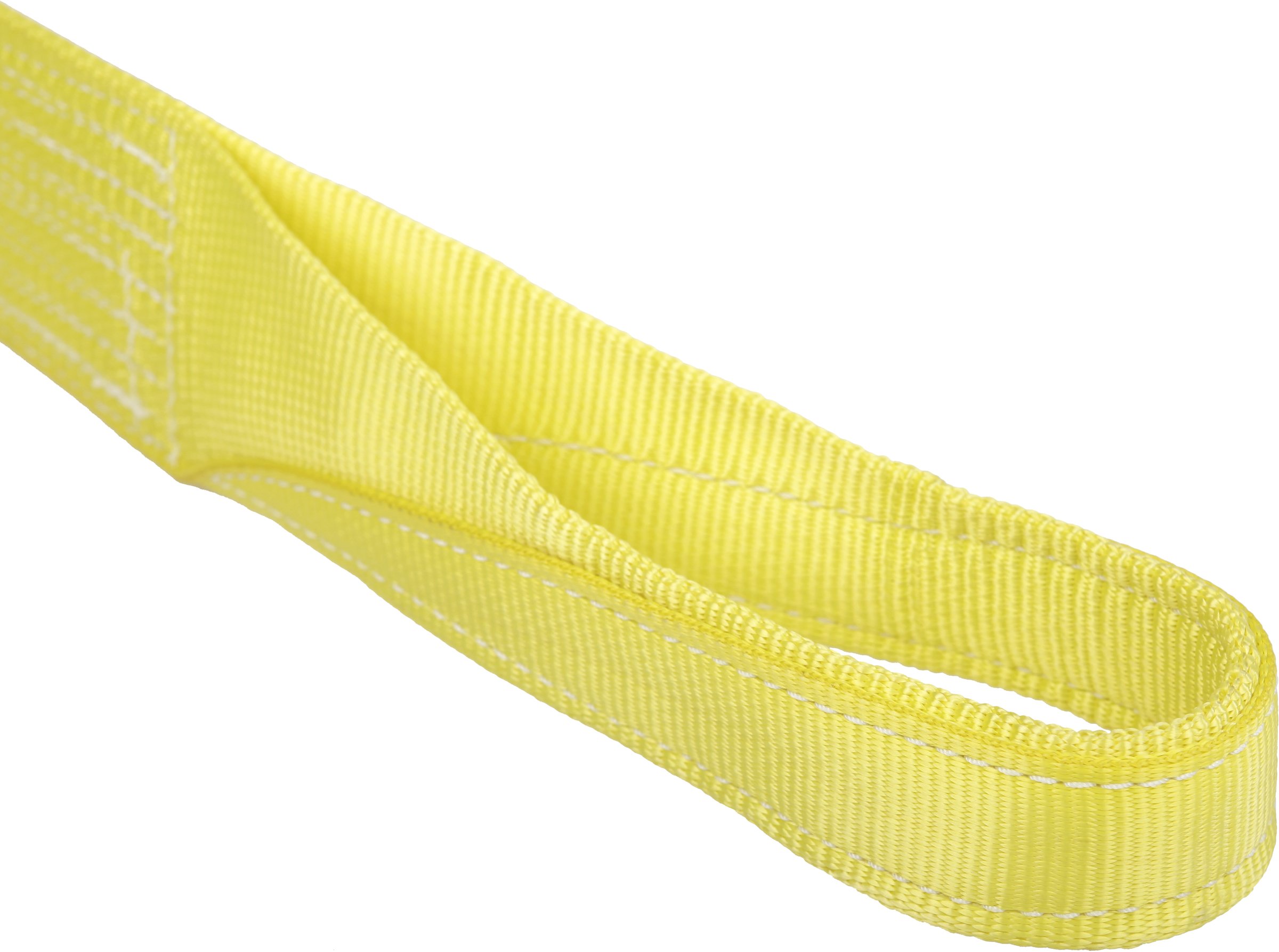

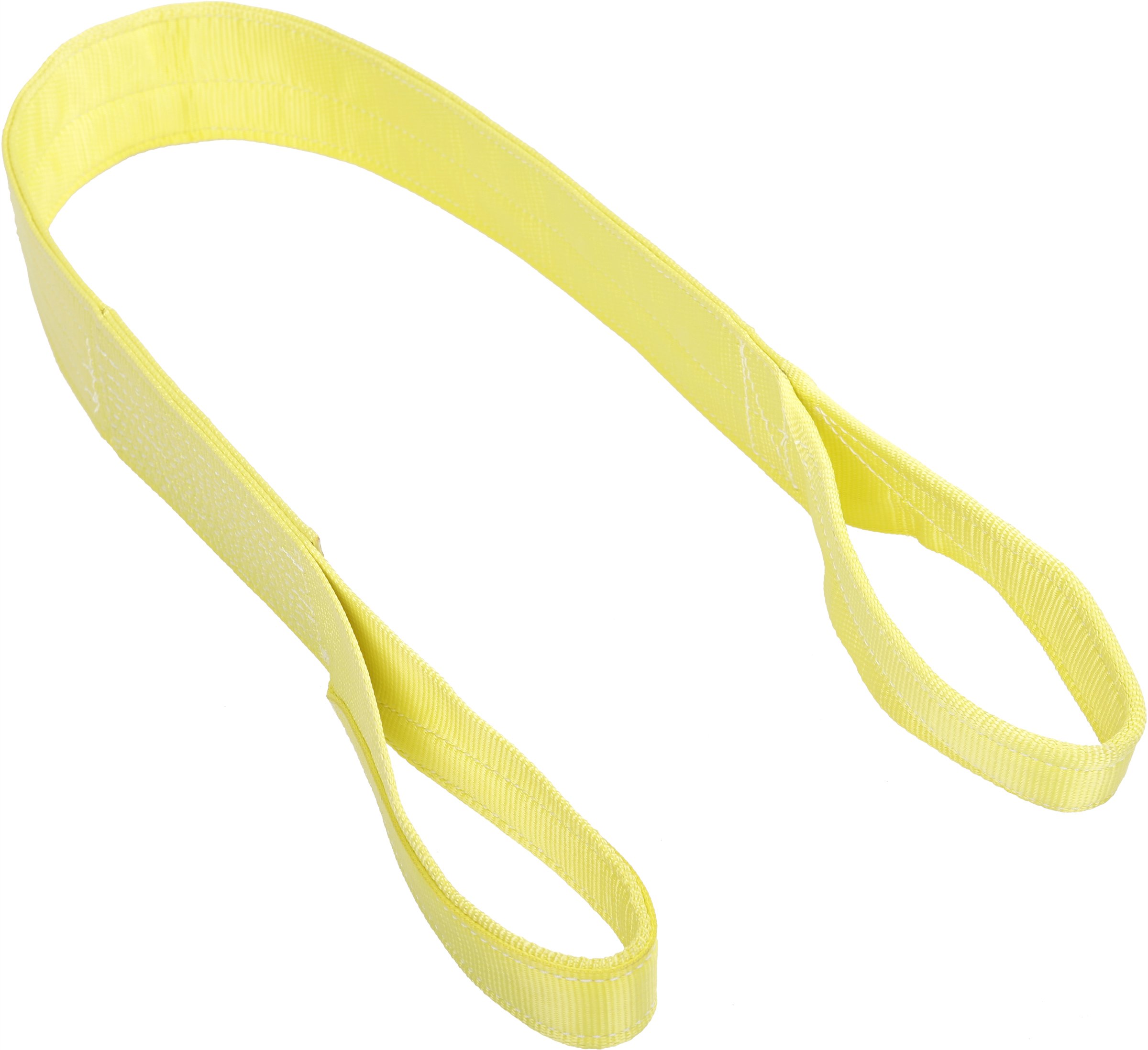

Mazzella EE2 Polyester Web Sling, Eye-and-Eye, Yellow, 2 Ply, Twist Eyes, Vertical Load Capacity

Be the first to review this item

Product Specifications
Width
0  inches
Material Type
Polyester
Color
Yellow
Brand Name
Mazzella Lifting Technologies
Upper Temperature Range
194  Degrees Fahrenheit
Specification Met
OSHA, ASME B30.9
Load Capacity
0  pounds
Style Name
Eye-and-Eye
UNSPSC Code
24101611
Special Features
Vertical, Choker, Basket
Length
0  inches

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Dec 23? Order in-stock items in the next 17 hrs 17 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 70 Next 20 »
Eye Dimension ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-20 of 70 Next 20 »
6" B004PGN0JI yes $35.73 Buy Options
10" B004PGN15G yes $45.71 Buy Options
11" B004PGN1QK yes $69.19 Buy Options
12" B004PGN2H8 yes $72.03 Buy Options
6" B004PGN0K2 yes $37.74 Buy Options
10" B004PGN16A yes $53.32 Buy Options
11" B004PGN1QU yes $74.73 Buy Options
12" B004PGN2HS yes $75.13 Buy Options
6" B004PGN0KM yes $42.31 Buy Options
10" B004PGN16K yes $56.34 Buy Options
11" B004PGN1RE yes $81.32 Buy Options
12" B004PGN2I2 yes $83.42 Buy Options
6" B004PGN0KW yes $42.53 Buy Options
10" B004PGN174 yes $58.04 Buy Options
11" B004PGN1S8 yes $84.20 Buy Options
12" B004PGN2IM yes $87.62 Buy Options
6" B004PGN0LG yes $47.73 Buy Options
10" B004PGN17E yes $63.75 Buy Options
11" B004PGN1SS yes $26.09 Buy Options
12" B004PGN2IW yes $91.54 Buy Options

Key Features

  • Polyester web sling for heavy-duty lifting of fragile or irregularly shaped loads
  • Twisted eye-and-eye (also called type 4) endings for vertical, choker, and basket lifting configurations
  • Heavy-duty two-ply construction for greater load capacity than one-ply and light-duty two-ply web slings
  • When visible, red warning yarn indicates sling is no longer fit for use
  • Meets American Society of Mechanical Engineers (ASME) specification B30.9 and Occupational Safety and Health Administration (OSHA) specification 1910.184

Product Description

The Mazzella EE2 polyester single-leg web sling has twisted eye-and-eye endings and heavy-duty two-ply webbing for lifting fragile or irregularly shaped loads with vertical, choker, or basket configurations in construction, general industry, and other low-heat applications. The polyester webbing is soft to avoid scratching fragile or delicate loads. This web sling is flexible, conforms to irregularly shaped loads, and has a better strength-to-weight ratio than a wire rope or chain sling. This polyester web sling resists several chemicals, including alcohols, some acids, bleach agents, hydrocarbons, ketones, oils, detergents, sea water, and weak alkalis. However, it does not resist concentrated sulfuric acid, aldehydes, strong alkalis at elevated temperatures, or ethers. The stretch of a polyester sling at its maximum load capacity is approximately 3%.

This twisted eye-and-eye (also called type 4) sling has an eye, or loop, on both ends, and can be used with vertical, choker, and basket lifting configurations. It forms a better choker hitch and single-hook basket hitch than a flat eye-and-eye sling. The two-ply construction is stronger and stiffer than that of a one-ply web sling, but not as strong as a four-ply sling, and the sling's heavy-duty webbing is denser than light-duty two-ply webbing. When the sling's red warning yarn becomes visible, this indicates the sling is no longer fit for use. This sling meets American Society of Mechanical Engineers (ASME) specification B30.9 and Occupational Safety and Health Administration (OSHA) specification 1910.184.

Slings are used to lift heavy objects for industrial applications. Types of slings include web slings, wire rope slings, chain slings, and mesh slings. The appropriate type of sling for an application depends on the strength-to-weight ratio, flexibility and resistance to bending, resistance to abrasion and cutting, resistance to crushing, resistance to stretching, and resistance to high temperatures and other environmental stressors. Slings have one, two, three, or four legs. Legs are support branches that extend from a single point at the top of the sling to the item being lifted so the weight of the load is distributed evenly among the branches. Slings have eyes (loops) or alloy steel fittings on the ends.

A vertical lifting configuration connects a crane hook directly to a load with a single, vertical sling, usually by means of a hook. In a choker configuration, the sling wraps entirely around the load, and one loop passes through the other to form a slip noose, or choker. In a basket configuration, the sling passes under the load and both ends of the sling connect to the crane hook. Load capacity is the maximum weight to be lifted in a vertical configuration. The capacity in a choker configuration is approximately equal to the vertical capacity times 0.8. The capacity in a basket configuration, with sling ends at a 90-degree angle, is approximately equal to twice the vertical capacity. Load capacity in a basket configuration decreases if the angle of the sling is less than 90 degrees. For example, a sling with a capacity of 2,000 lb. in a vertical configuration will have an approximate capacity of (2,000)(0.8)=1,600 lb. in a choker configuration and an approximate capacity of (2,000)(2)=4,000 lb. in a basket configuration, if the sling ends are at a 90-degree angle to the load.

Mazzella Lifting Technologies manufactures lifting solutions including slings, cranes, and hoists. Founded in 1954, the company is headquartered in Cleveland, OH.
