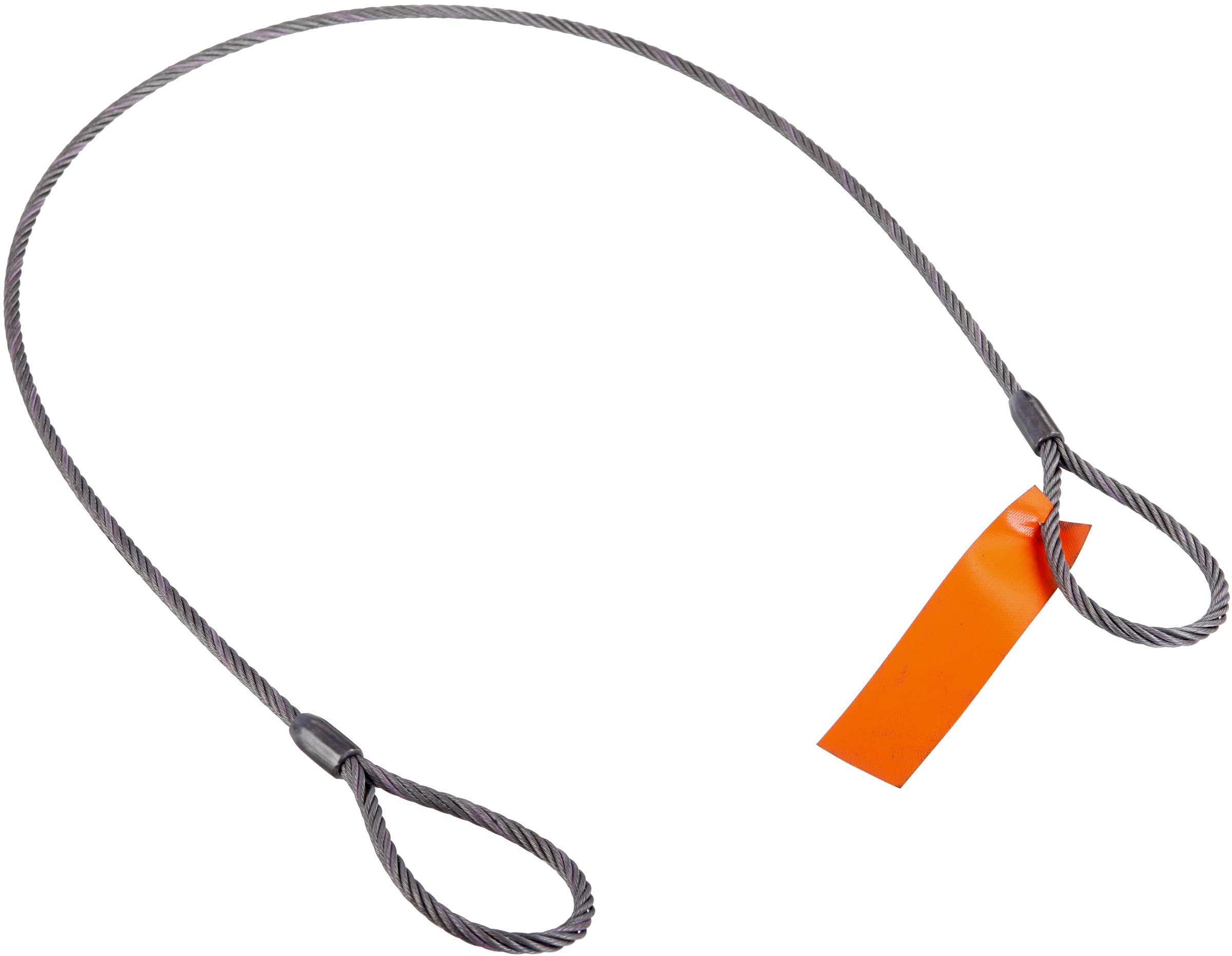

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Mazzella Mechanical Splice Wire Rope Sling, Eye-and-Eye, 6 x 37 IWRC, Vertical Load Capacity

Be the first to review this item

Product Specifications
Material Type
Steel
Brand Name
Mazzella Lifting Technologies
Manufacturer Series Number
Mechanical Splice
Upper Temperature Range
400  Degrees Fahrenheit
Specification Met
OSHA, ASME B30.9
Standard Construction
6 x 37 IWRC
UNSPSC Code
24101638
Style Name
Eye-and-Eye
Special Features
Vertical, Choker, Basket

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 31? Order in-stock items in the next 6 hrs 30 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 122 Next 20 »
Length Diameter Eye Dimension Load Capacity ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-20 of 122 Next 20 »
2 ft 3/8" 6" 2800 lbs B004PGMIRI yes $22.28 Buy Options
2 ft 1/4" 4" 1300 lbs B004PGMIG4 Usually ships in 2 to 4 weeks $20.04 Buy Options
3 ft 1/2" 8" 5000 lbs B004PGMJB8 yes $37.66 Buy Options
3 ft 3/8" 6" 2800 lbs B004PGMIS2 yes $27.69 Buy Options
3 ft 5/8" 10" 7800 lbs B004PGMJVI yes $48.45 Buy Options
3 ft 1/4" 4" 1300 lbs B004PGMIGE yes $26.61 Buy Options
4 ft 1/2" 8" 5000 lbs B004PGMJBS Usually ships in 2 to 4 weeks $33.65 Buy Options
4 ft 3/4" 12" 11200 lbs B004PGMKEE yes $73.69 Buy Options
4 ft 3/8" 6" 2800 lbs B004PGMISC yes $11.82 Buy Options
4 ft 5/8" 10" 7800 lbs B004PGMJW2 yes $48.04 Buy Options
4 ft 1/4" 4" 1300 lbs B004PGMIGO yes $26.43 Buy Options
4 ft 7/8" 14" 15200 lbs B004PGMKX0 yes $93.22 Buy Options
5 ft 3/4" 12" 11200 lbs B004PGMKEO yes $76.48 Buy Options
5 ft 1/2" 8" 5000 lbs B004PGMJCC yes $41.10 Buy Options
5 ft 3/8" 6" 2800 lbs B004PGMISW yes $16.01 Buy Options
5 ft 5/8" 10" 7800 lbs B004PGMJWC yes $51.02 Buy Options
5 ft 1/4" 4" 1300 lbs B004PGMIGY yes $24.16 Buy Options
5 ft 1" 16" 19600 lbs B004PGMLF2 yes $127.45 Buy Options
5 ft 7/8" 14" 15200 lbs B004PGMKXK yes $96.54 Buy Options
6 ft 3/4" 12" 11200 lbs B004PGMKF8 yes $78.65 Buy Options

Key Features

  • Wire rope sling for lifting loads in industrial environments
  • 6 x 37 IWRC (independent wire rope core) construction for greater flexibility than a 6 x 7 or 6 x 19 wire rope sling
  • Eye-and-eye endings for vertical, choker, and basket lifting configurations
  • Mechanical (also called Flemish) splice is stronger than a hand splice
  • Meets ASME specification B30.9 and OSHA specification 1910.184

Product Description

The Mazzella 6 x 37 IWRC (independent wire rope core) single-leg wire rope sling has eye-and-eye endings and a mechanical splice for lifting loads with vertical, choker, or basket configurations in general industry applications. The 6 x 37 IWRC construction contains six strands of wire rope with approximately 37 wires per strand wrapped around a separate 7 X 7 wire rope, which has seven strands with seven wires per strand, in the center of the sling. This construction provides more flexibility than a 6 x 7 or 6 x 19 wire rope sling. The wire rope construction has more abrasion and heat resistance than a web sling. This eye-and-eye sling has an eye, or loop, on both ends, and can be used with vertical, choker, and basket lifting configurations. The eyes are secured with a mechanical (also called Flemish) splice that is stronger than a hand splice. This sling has a minimum D/d ratio of 25 and meets American Society of Mechanical Engineers (ASME) specification B30.9 and Occupational Safety and Health Administration (OSHA) specification 1910.184.

Slings are used to lift heavy objects for industrial applications. Types of slings include web slings, wire rope slings, chain slings, and mesh slings. The appropriate type of sling for an application depends on the strength-to-weight ratio, flexibility and resistance to bending, resistance to abrasion and cutting, resistance to crushing, resistance to stretching, and resistance to high temperatures and other environmental stressors. Slings have one, two, three, or four legs; or a continuous loop of webbing or wire rope. Legs are support branches that extend from a single point at the top of the sling to the item being lifted so the weight of the load is distributed evenly among the branches. Slings have eyes (loops) or alloy steel fittings on the ends.

A vertical lifting configuration connects a crane hook directly to a load with a single, vertical sling, usually by means of a hook. In a choker configuration, the sling wraps entirely around the load, and one loop passes through the other to form a slip noose, or choker. In a basket configuration, the sling passes under the load and both ends of the sling connect to the crane hook. Load capacity is the maximum weight to be lifted in a vertical configuration. The capacity in a choker configuration is approximately equal to the vertical capacity times 0.8. The capacity in a basket configuration, with sling ends at a 90-degree angle, is approximately equal to twice the vertical capacity. Load capacity in a basket configuration decreases if the angle of the sling is less than 90 degrees. For example, a sling with a capacity of 2,000 lb. in a vertical configuration will have an approximate capacity of (2,000)(0.8)=1,600 lb. in a choker configuration and an approximate capacity of (2,000)(2)=4,000 lb. in a basket configuration, if the sling ends are at a 90-degree angle to the load. A wire rope sling's capacity in a basket configuration applies only when the configuration meets the sling's minimum D/d ratio, which is the ratio of the diameter of the rope's curve around the load (D) to the diameter of the sling (d). If the minimum D/d ratio is not met, the capacity of the sling is decreased.

Mazzella Lifting Technologies manufactures lifting solutions including slings, cranes, and hoists. Founded in 1954, the company is headquartered in Cleveland, OH.
