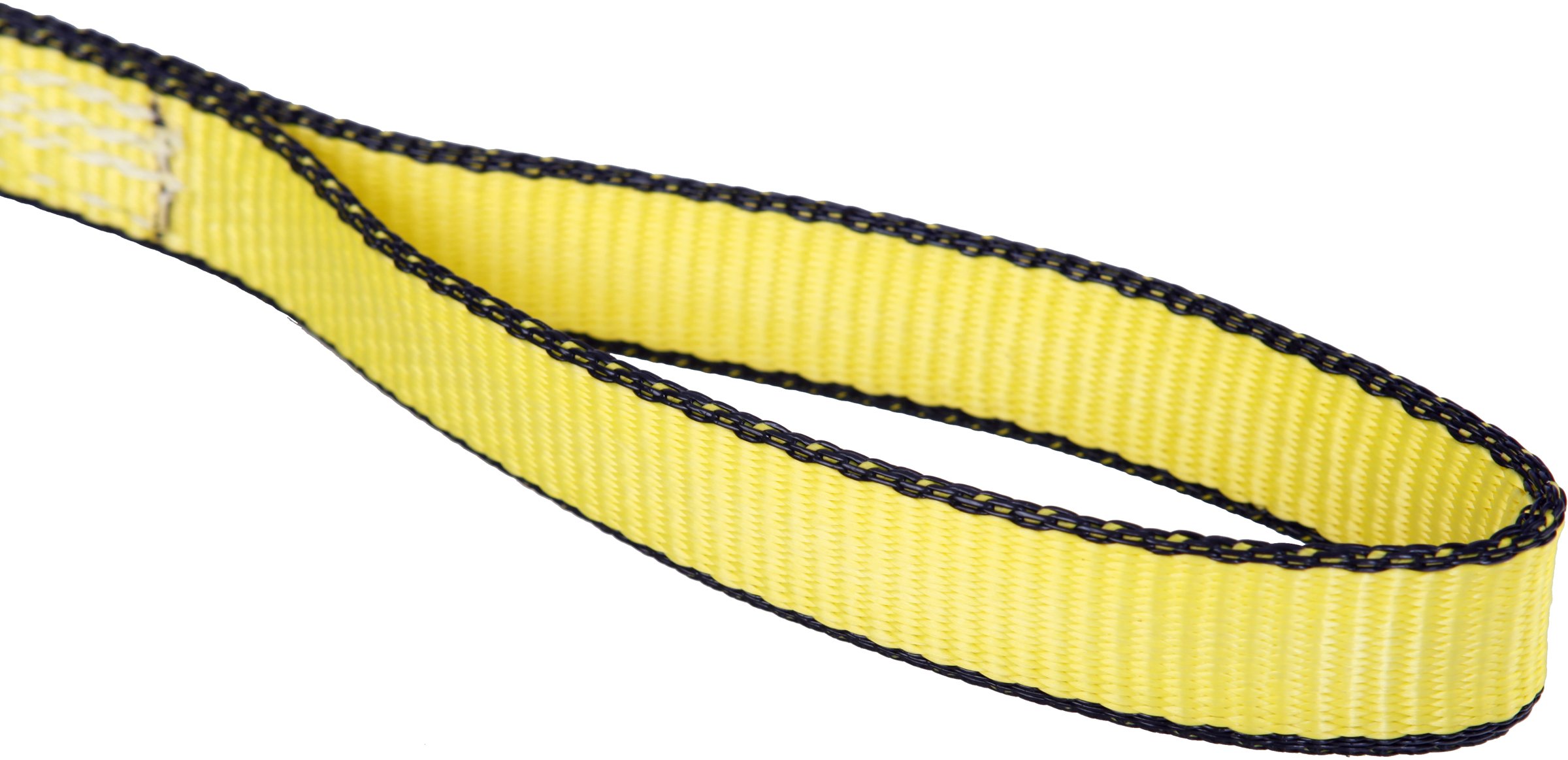

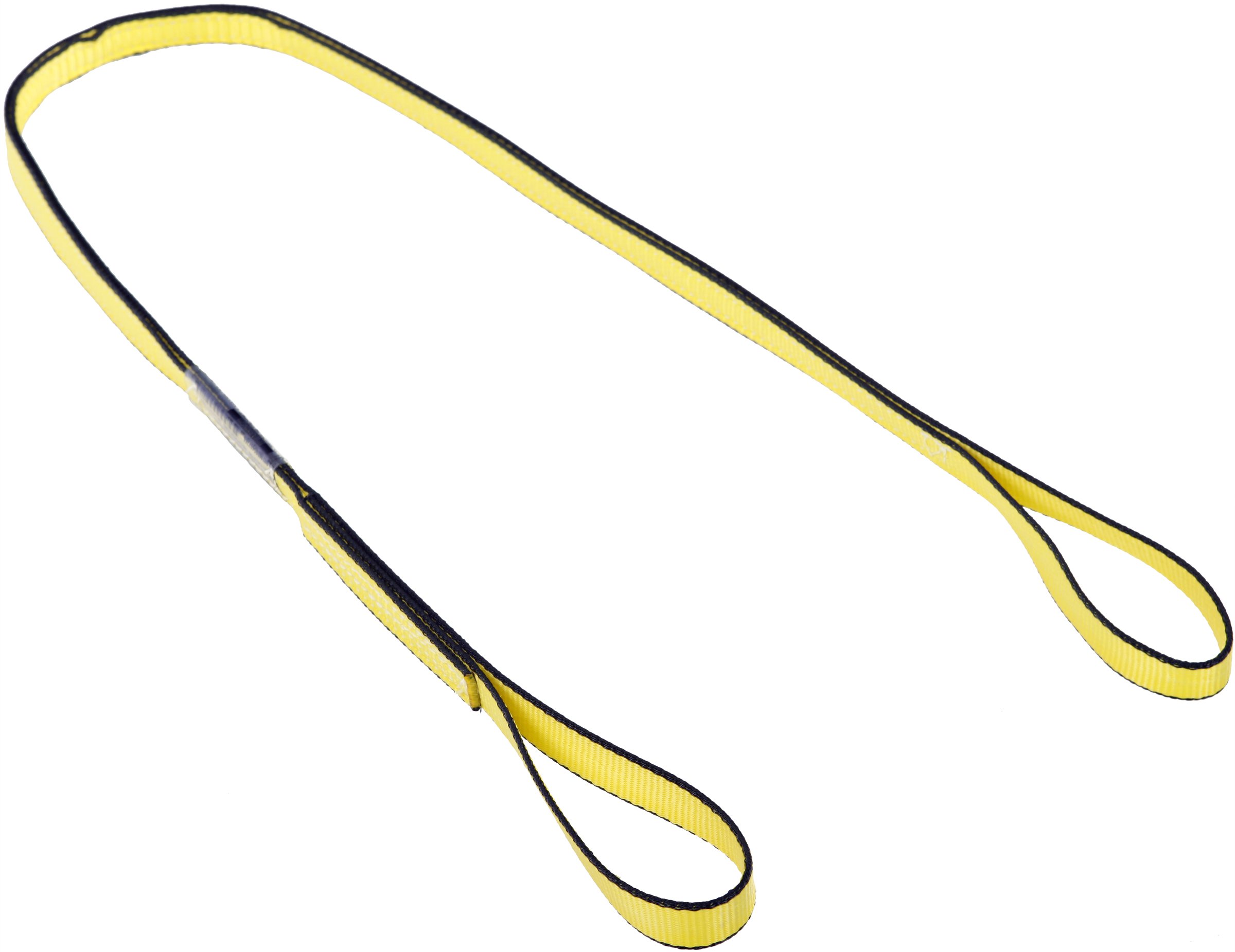

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Mazzella EE2 Edgeguard Polyester Web Sling, Eye-and-Eye, Yellow, 2 Ply, Flat Eyes, Vertical Load Capacity

Be the first to review this item

Product Specifications
Upper Temperature Range
194  Degrees Fahrenheit
Specification Met
OSHA, ASME B30.9
Material Type
Polyester
Style Name
Eye-and-Eye
UNSPSC Code
24101611
Brand Name
Mazzella Lifting Technologies
Size Name
2 Ply
Special Features
Vertical, Choker, Basket

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share
Currently showing 1-20 of 73 Next 20 »
Color Length Width Eye Dimension Load Capacity ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-20 of 73 Next 20 »
Yellow 20 ft 4" 12" 11500 lbs B004PGMLOI Usually ships in 3 to 4 weeks $189.55 Buy Options
Yellow 19 ft 4" 12" 11500 lbs B004PGMLNY Usually ships in 3 to 4 weeks $180.38 Buy Options
Yellow 18 ft 4" 12" 11500 lbs B004PGMLNE Usually ships in 3 to 4 weeks $170.02 Buy Options
Yellow 17 ft 4" 12" 11500 lbs B004PGMLMU Usually ships in 3 to 4 weeks $159.48 Buy Options
Yellow 16 ft 4" 12" 11500 lbs B004PGMLMA yes $147.60 Buy Options
Yellow 15 ft 4" 12" 11500 lbs B004PGMLLQ yes $139.13 Buy Options
Yellow 14 ft 4" 12" 11500 lbs B004PGMLL6 yes $130.40 Buy Options
Yellow 13 ft 4" 12" 11500 lbs B004PGMLKM yes $119.89 Buy Options
Yellow 12 ft 4" 12" 11500 lbs B004PGMLK2 yes $112.97 Buy Options
Yellow 11 ft 4" 12" 11500 lbs B004PGMLJS yes $103.73 Buy Options
Yellow 10 ft 4" 12" 11500 lbs B004PGMLJ8 yes $100.07 Buy Options
Yellow 9 ft 4" 12" 11500 lbs B004PGMLIO yes $90.94 Buy Options
Yellow 8 ft 4" 12" 11500 lbs B004PGMLHU yes $84.12 Buy Options
Yellow 7 ft 4" 12" 11500 lbs B004PGMLHK yes $75.28 Buy Options
Yellow 6 ft 4" 12" 11500 lbs B004PGMLGQ yes $66.33 Buy Options
Yellow 5 ft 4" 12" 11500 lbs B004PGMLG6 yes $58.39 Buy Options
Yellow 4 ft 4" 12" 11500 lbs B004PGMLFW yes $50.49 Buy Options
Yellow 3 ft 4" 12" 11500 lbs B004PGMLFC yes $43.90 Buy Options
Yellow 20 ft 3" 11" 9300 lbs B004PGMKVM Usually ships in 3 to 4 weeks $179.07 Buy Options
Yellow 19 ft 3" 11" 9300 lbs B004PGMKV2 Usually ships in 3 to 4 weeks $170.77 Buy Options

Key Features

  • Polyester web sling for heavy-duty lifting of fragile or irregularly shaped loads
  • Flat eye-and-eye (also called type 3) endings for vertical, choker, and basket lifting configurations
  • Heavy-duty two-ply construction for greater load capacity than one-ply and light-duty two-ply web slings
  • Thermal plastic polymer edge protection for greater abrasion resistance than web slings without additional edge protection
  • When visible, red warning yarn indicates sling is no longer fit for use

Product Description

The Mazzella EE2 Edge Guard polyester single-leg web sling has flat eye-and-eye endings, reinforced edges, and heavy-duty two-ply webbing for lifting fragile or irregularly shaped loads with vertical, choker, or basket configurations in construction, general industry, and other low-heat applications. The polyester webbing is soft to avoid scratching fragile or delicate loads, and a thermal plastic polymer is woven into the edges of the sling to help resist abrasion. This web sling is flexible, conforms to irregularly shaped loads, and has a better strength-to-weight ratio than a wire rope or chain sling. This polyester web sling resists several chemicals, including alcohols, some acids, bleach agents, hydrocarbons, ketones, oils, detergents, sea water, and weak alkalis. However, it does not resist concentrated sulfuric acid, aldehydes, strong alkalis at elevated temperatures, or ethers. The stretch of a polyester sling at its maximum load capacity is approximately 3%.

This flat eye-and-eye (also called type 3) sling has an eye, or loop, on both ends, and can be used with vertical, choker, and basket lifting configurations. It is easier to remove from beneath loads than a twisted eye-and-eye sling. The two-ply construction is stronger and stiffer than that of a one-ply web sling, but not as strong as a four-ply sling, and the sling's heavy-duty webbing is denser than light-duty two-ply webbing. The sling's reinforced edges provide greater abrasion resistance than a standard heavy-duty web sling. When the sling's red warning yarn becomes visible, this indicates the sling is no longer fit for use. This sling meets American Society of Mechanical Engineers (ASME) specification B30.9 and Occupational Safety and Health Administration (OSHA) specification 1910.184.

Slings are used to lift heavy objects for industrial applications. Types of slings include web slings, wire rope slings, chain slings, and mesh slings. The appropriate type of sling for an application depends on the strength-to-weight ratio, flexibility and resistance to bending, resistance to abrasion and cutting, resistance to crushing, resistance to stretching, and resistance to high temperatures and other environmental stressors. Slings have one, two, three, or four legs. Legs are support branches that extend from a single point at the top of the sling to the item being lifted so the weight of the load is distributed evenly among the branches. Slings have eyes (loops) or alloy steel fittings on the ends.

A vertical lifting configuration connects a crane hook directly to a load with a single, vertical sling, usually by means of a hook. In a choker configuration, the sling wraps entirely around the load, and one loop passes through the other to form a slip noose, or choker. In a basket configuration, the sling passes under the load and both ends of the sling connect to the crane hook. Load capacity is the maximum weight to be lifted in a vertical configuration. The capacity in a choker configuration is approximately equal to the vertical capacity times 0.8. The capacity in a basket configuration, with sling ends at a 90-degree angle, is approximately equal to twice the vertical capacity. Load capacity in a basket configuration decreases if the angle of the sling is less than 90 degrees. For example, a sling with a capacity of 2,000 lb. in a vertical configuration will have an approximate capacity of (2,000)(0.8)=1,600 lb. in a choker configuration and an approximate capacity of (2,000)(2)=4,000 lb. in a basket configuration, if the sling ends are at a 90-degree angle to the load.

Mazzella Lifting Technologies manufactures lifting solutions including slings, cranes, and hoists. Founded in 1954, the company is headquartered in Cleveland, OH.
