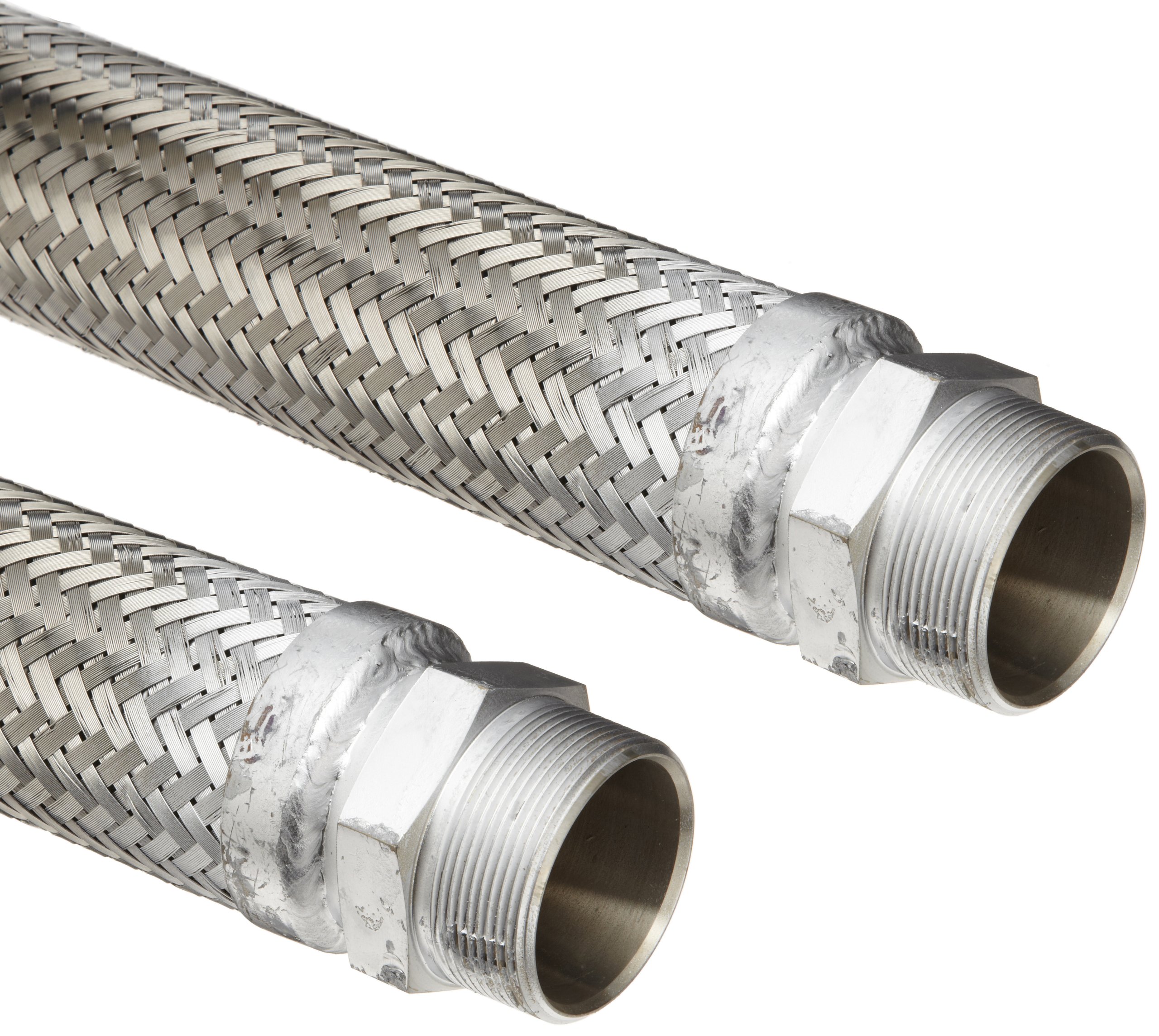

Hose Master Stainless Steel 321 Flexible Metal Hose Assembly, Stainless Steel 304 Hex NPT Male x Stainless Steel 304 Hex NPT Male

Be the first to review this item

Product Specifications
Upper Temperature Range
1200  Degrees Fahrenheit
Material Type
Stainless Steel 321
Connector Type
NPT Male x NPT Male
Brand Name
Hose Master

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 21? Order in-stock items in the next 1 day 11 hrs 26 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 32 Next 12 »
Inside Diameter Bend Radius Max Pressure Overall Length Connection Size Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-20 of 32 Next 12 »
1/4" 0.9 1800 PSI 18" 1/4" 1 B007L8OCGM 1 $46.45 Buy Options
1/4" 0.9 1800 PSI 36" 1/4" 1 B007L8OF2I 3 $48.54 Buy Options
1/4" 0.9 1800 PSI 12" 1/4" 1 B007L8OA8M 1 $49.25 Buy Options
1/4" 0.9 1800 PSI 24" 1/4" 1 B007L8ODS4 1 $60.57 Buy Options
3/8" 1 1558 PSI 18" 3/8" 1 B007L8OJ56 1 $52.53 Buy Options
3/8" 1 1558 PSI 36" 3/8" 1 B007L8OM08 1 $63.58 Buy Options
3/8" 1 1558 PSI 12" 3/8" 1 B007L8OHG2 1 $45.90 Buy Options
3/8" 1 1558 PSI 24" 3/8" 1 B007L8OKCI 2 $59.16 Buy Options
1/2" 1.2 1186 PSI 18" 1/2" 1 B007L8OOGK 1 $59.16 Buy Options
1/2" 1.2 1186 PSI 36" 1/2" 1 B007L8OQPE 1 $79.37 Buy Options
1/2" 1.2 1186 PSI 24" 1/2" 1 B007L8OPNC 1 $66.30 Buy Options
1/2" 1.2 1186 PSI 12" 1/2" 1 B007L8ON6G 1 $60.08 Buy Options
3/4" 1.7 898 PSI 18" 3/4" 1 B007L8OT2Y 2 $68.85 Buy Options
3/4" 1.7 898 PSI 12" 3/4" 1 B007L8OS0M 1 $52.52 Buy Options
3/4" 1.7 898 PSI 36" 3/4" 1 B007L8OVTK 1 $110.29 Buy Options
3/4" 1.7 898 PSI 24" 3/4" 1 B007L8OULY 1 $76.67 Buy Options
1" 2.1 718 PSI 18" 1" 1 B007L8OY1A 1 $93.44 Buy Options
1" 2.1 718 PSI 36" 1" 1 B007L8P11M 1 $113.94 Buy Options
1" 2.1 718 PSI 12" 1" 1 B007L8OX2K 1 $84.25 Buy Options
1" 2.1 718 PSI 24" 1" 1 B007L8OZEQ 1 $109.13 Buy Options

Key Features

  • Flexible hose assembly for chemical, gas, oil, or hydraulic transfer operations
  • Hydroformed, corrugated 321 stainless steel tube for uniform wall thickness, flexibility, and resistance to high temperatures
  • Single-braid 304 stainless steel reinforced cover for strength
  • Maximum working temperature of 1,200 degrees F
  • Two factory-installed 304 stainless steel male NPT hex fittings

Product Description

The Hose Master Masterflex stainless steel flexible metal hose assembly, suitable for high-pressure chemical, gas, oil, or hydraulic transfer operations, consists of a hydroformed, corrugated 321 stainless steel tube with more corrugations per foot than the Hose Master Annuflex series for a tighter bend radius, uniform wall thickness, flexibility, and resistance to high temperatures; and a cover reinforced with a single braid of 304 stainless steel for the strength necessary to reach its maximum pressure rating. This hose can withstand temperatures up to 1,200 degrees F, and comes equipped with two factory-installed 304 stainless steel male National Pipe Thread Taper (NPT) threaded hex fittings. This hose assembly is suitable for a wide variety of commercial and industrial applications, including automotive, gas conveyance, food processing, pharmaceutical, chemical transfer, or other applications where the chemical and heat requirements exceed the protections offered by rubber, metal, or plastic hose.

Industrial hoses and hose assemblies transfer or convey air or liquid in hose systems. When selecting industrial hoses or hose assemblies, use the STAMPED method to help determine the type of hose needed:

S= Size (ID, OD, and length)
T= Temperature (maximum and minimum temperatures of material being transported)
A= Application (industry or process)
M= Material (to be conveyed, type and concentration)
P= Pressure (maximum working pressure)
E= Ends (type of end connectors or couplings on hose)
D= Delivery method (volume and velocity)
The inside diameter of the hose must be adequate to keep pressure loss to a minimum and avoid damage to the hose due to heat generation or excessive turbulence. The hose must be capable of withstanding the minimum and maximum temperatures that occur within the hose system. Some applications require specialized oils or chemicals to be conveyed through the system. In this case, hose selection must ensure compatibility of the hose tube, cover, couplings and O-rings with the fluid used. Industrial hoses and hose assemblies are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation.

Hose Master manufactures metal hose, hose assemblies, and expansion joints. The company, founded in 1982 and headquartered in Cleveland, OH, meets International Organization for Standardization (ISO) standard 9001:2008.
