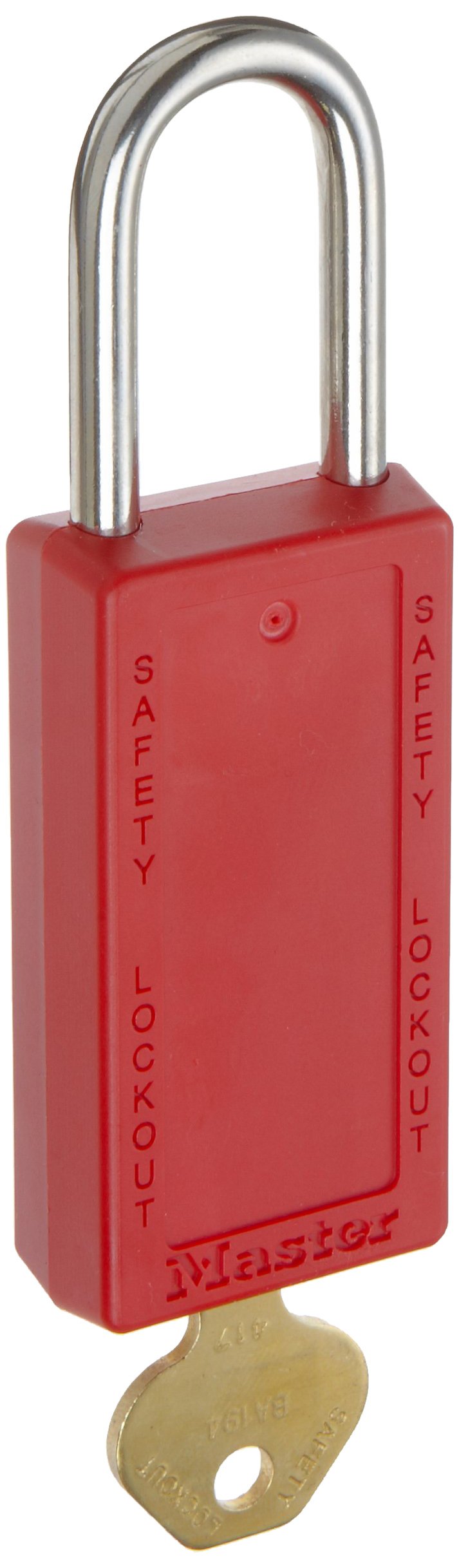

Master Lock 411 Series Zenex Lockout/Tagout Padlock, Master Keyed, 3" Body Length, 1-1/2" Shackle Clearance

Be the first to review this item

Product Specifications
UNSPSC Code
46171501
Brand Name
Master Lock

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Aug 4? Order in-stock items in the next 1 day 19 hrs 39 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-1 of 1
Color name Number of items ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-1 of 1
Red 1 B001922AW4 19 $17.60 Buy Options

Key Features

  • Zenex thermoplastic body is nonconductive and functions in temperatures from -70 to 350 degrees F
  • Retains key until locked, to ensure padlock is not left unlocked
  • Master keyed 6-pin tumbler cylinder for security and emergency access (master key sold separately)

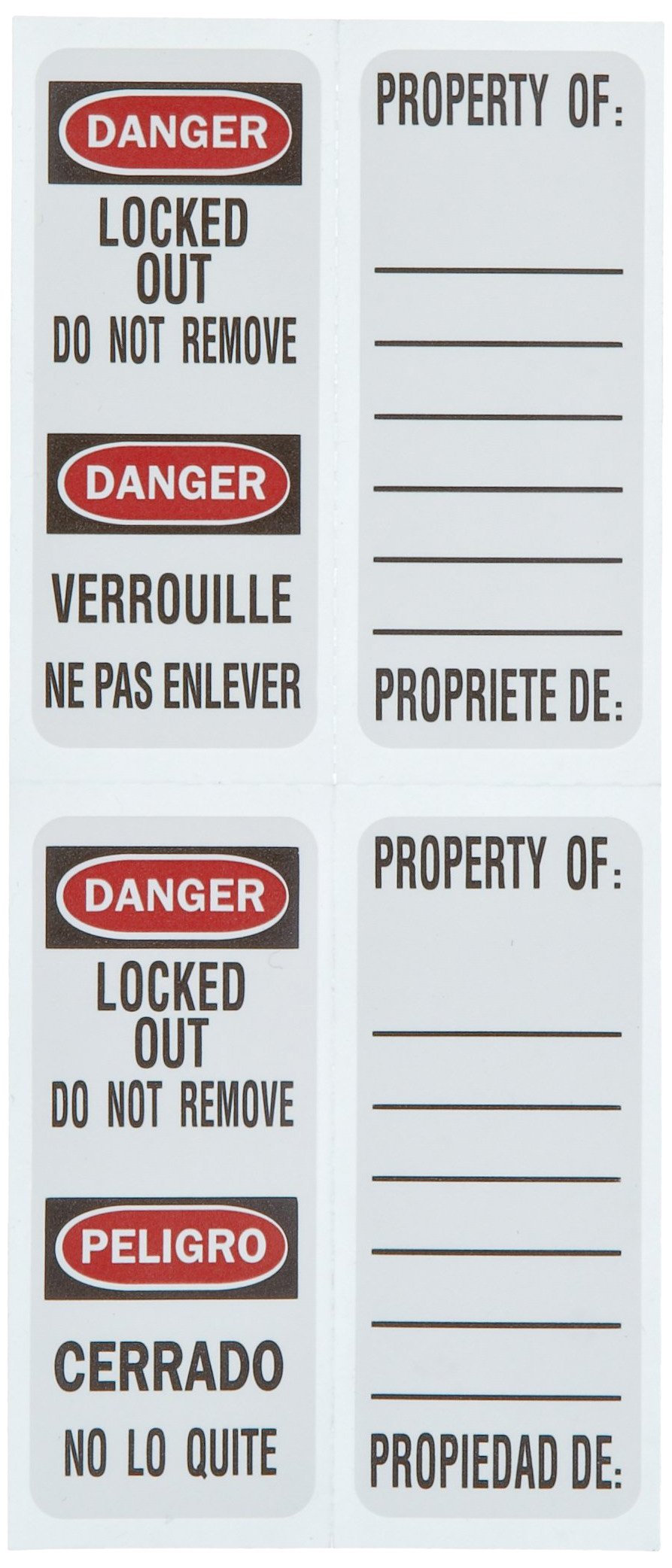

  • "Property of" labels with blank lines for customization and "Danger: Locked Out Do Not Remove" labels included
  • Limited lifetime warranty

Product Description

The Master Lock 411 Series Zenex lockout/tagout padlock has a nonconductive thermoplastic body that functions in temperatures from -70 to 350 degrees F; retains its key until locked to ensure it is not left unlocked; and has a master keyed 6-pin tumbler cylinder for security (over 40,000 key codes) and emergency access (master key sold separately). "Property of" labels with blank lines for customization and "Danger: Locked Out Do Not Remove" labels in English/French and English/Spanish are included. This padlock is part of a lockout/tagout (LOTO) safety procedure required at facilities where a device or energy source needs to be isolated during maintenance and repair. When used according to manufacturer's recommendations, this product is covered by a limited lifetime warranty against defects in workmanship or materials.

The lock body is Zenex, a UV-stabilized thermoplastic with tensile strength and resistance to corrosion. The shackle is plated to resist corrosion, but non-hardened, as some LOTO procedures require the shackle to be cut with bolt cutters. The lock mechanism is lubricated with a National Sanitation Foundation (NSF) certified lubricant that meets category code H1, designating this lock safe for use in food processing areas.

Specifications

*Overall dimensions 3 x 1-1/2 x 3/4 inches (76 x 38 x 19.05 mm) (H x W x D)
Weight 4.32 oz.
Vertical shackle clearance 1-1/2" (3.8 cm)
Horizontal shackle clearance 25/32"
Shackle diameter 1/4" (6 mm)
Shackle pull force withstood 800 lb.

*H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Vertical shackle clearance is the distance from the top of the lock body to the farthest point on the inside of the shackle. Horizontal shackle clearance measures the space between the shackle heel and shackle toe. Shackle pull force is tested to American Standard for Testing and Materials (ASTM) F883.

Lockout/tagout (LOTO) safety procedures require that lockout devices meet Occupational Safety and Health Administration (OSHA) 1910.147(c)(5) standards for quality assurance. Safety padlocks, also called lockout padlocks, use colors or warning labels to help prevent machine operation or power activation during maintenance and repair. The security level of a safety padlock is measured more by the number of key codes (also called key changes or key cuts) it can offer than by its ability to withstand physical abuse. A padlock with more pin tumblers and higher precision key cylinders has more key codes available, making it harder to pick, and less likely for a large facility to inadvertently give two employees padlocks with the same key code. Keyed alike locks allow one user to open many padlocks with one key. Keyed different means each lock is opened by its own key. Master keyed locks can be opened if the original key is lost or unavailable during an emergency.

Master Lock manufactures padlocks, combination locks, and related security products. The company, founded in 1921, is headquartered in Milwaukee, WI.

What’s in the Box?

  • 411 Series Zenex padlock
  • Key
  • "Property of" labels (English/French and English/Spanish)
  • "Danger: Locked Out Do Not Remove" labels (English/French and English/Spanish)
