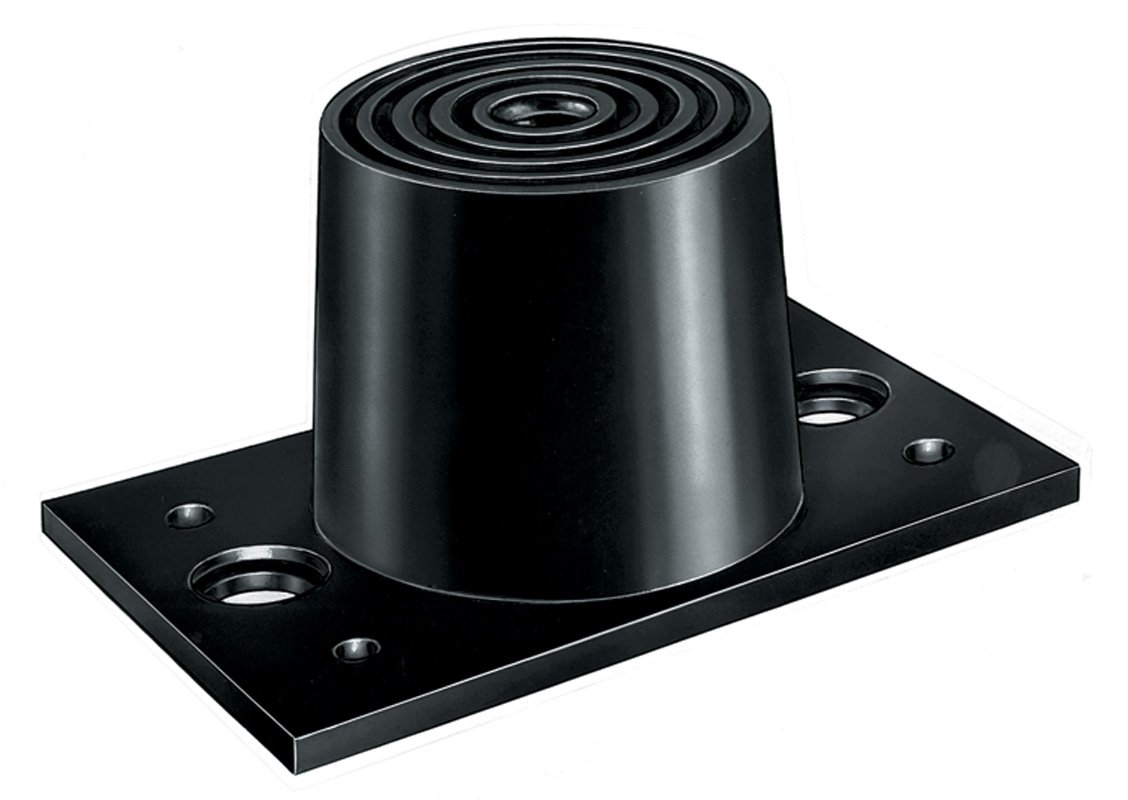

Mason ND-C-RED Neoprene Double Deflection Floor Mount Vibration Isolator, 1/2"-13 x 1" Thread, 2-9/16" Diameter, 200-400lbs Load Rating, 0.50" Deflection, Red

Be the first to review this item

ASIN B006W0QALU

Specifications for this item
Number of Items
1
Material Type
Neoprene
Part Number
ND-C-RED
UPC
811765020482
Brand Name
Mason
EAN
0811765020482
Load Capacity
600  pounds
UNSPSC Code
26101765

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Aug 1? Order in-stock items in the next 19 hrs 24 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Mounts are double deflection; offer more than three times the deflection of pads
  • Prevent noise and high frequency vibration
  • Isolate a wide range of equipment
  • Supplied with cap screw and washer
  • Measures 5-1/2" length by 3-5/16" width by 2-3/4" height

Package Details

Shipping Weight: 1.4 pounds
Package Size: 5.3 x 3 x 2.8 inches

Product Description

Neoprene mountings shall have a minimum static deflection of 0.50". All metal surfaces shall be Neoprene covered to prevent corrosion and have friction pads, both top and bottom. Bolt holes shall be provided on the bottom and a tapped hole with cap screw and washer on top. Mountings shall be Type ND. Bottom friction surface makes bolting unnecessary in most installations. Neoprene covering prevents corrosion of steel parts. Molded in commercial Neoprene. Bridge bearing Neoprene, natural rubber or other elastomers available. 1/2"-13 x 1" Thread, 2-9/16" Diameter, 200-400 pounds Load Rating, 50 Durometer, 0.50" Deflection, Red color. 1/2" Maximum bolt diameter. Measures 5-1/2" length by 3-5/16" width by 2-3/4" height.
