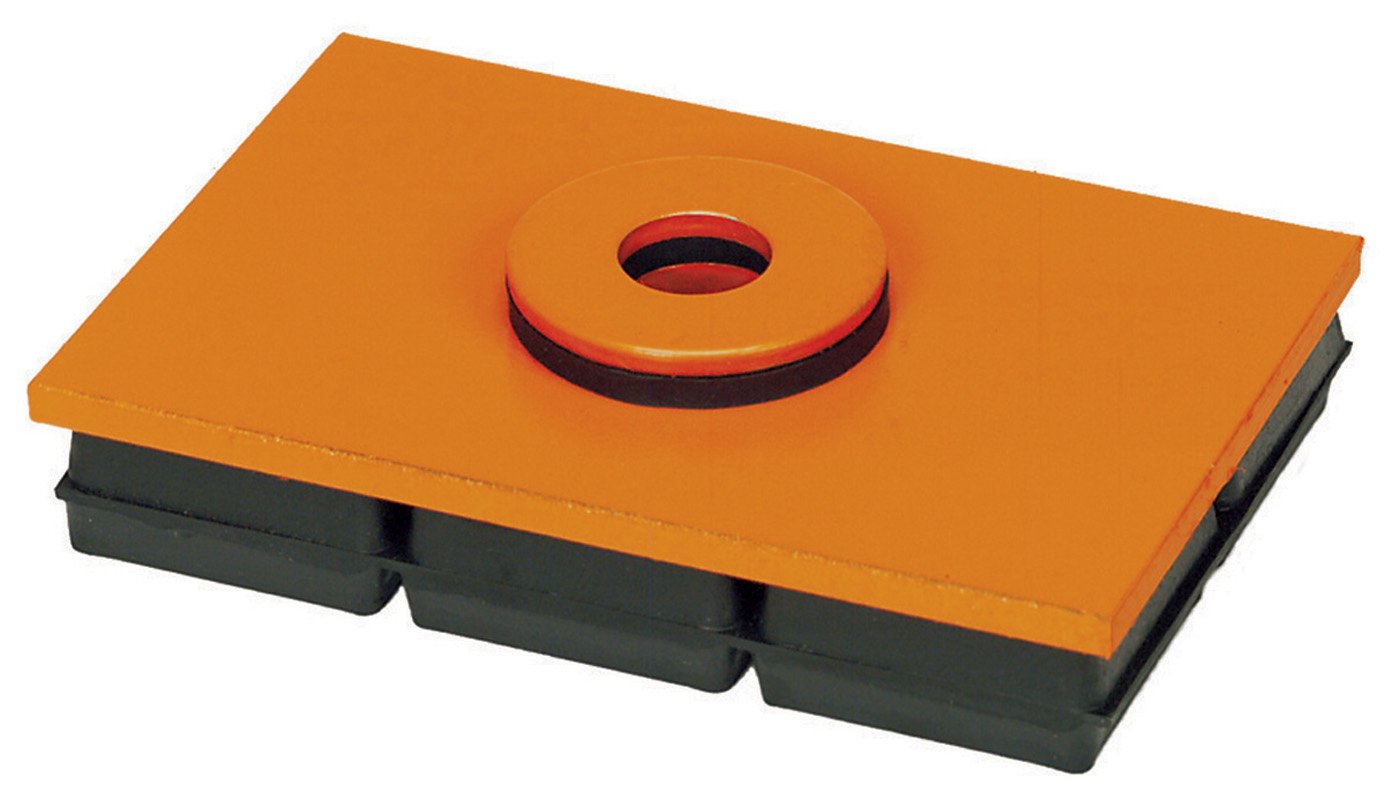

Mason MBSW8X8 Neoprene/Steel Vibration Isolation Pad, Through Hole, 8" Length x 8" Width x 1" Thick
Be the first to review this item
ASIN B006W0PMVE
Specifications for this item
- Brand Name
- Mason
- Load Capacity
- 3200 pounds
- Material Type
- Neoprene/Steel
- Number of Items
- 1
- Part Number
- MBSW8X8
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Wednesday, May 29? Order in-stock items in the next 2 days 16 hours 9 minutes and choose One-Day Shipping at checkout.
Key Features
- Friction pad on top
- No bolting required
- MBSW replaces the friction pad on top with a 3/4" diameter center hole for bolting through
- 3200 pounds Capacity
- Measures 8" length by 8" width by 1" thick
Package Details
Shipping Weight:
6.1 pounds
Package Size:
8.4 x 8.1 x 1.6 inches
Product Description
Vibration Pads are used to reduce noise and vibration and to eliminate the need for bolting down. The flat configuration minimizes machine elevation. This low cost method conveniently solves or prevents problems that do not warrant the use of either rubber or spring mountings. As a general rule, pads are recommended to eliminate high frequency noise, bolting, minor vibration problems in upper stories or for ground floor and non critical applications. When there is a concentrated load because of a small leg on a heavy machine or a formed sheet metal leg without a bottom surface, it can always cut a pad to size and cement your own steel plate on top. No bolting required. The MBSW replaces the friction pad on top with a 3/4" diameter center hole for bolting through. We provide a 3/4" neoprene isolation washer cemented to a steel washer as well. Pads can be used to reduce noise, high frequency vibration and impact. Super W Pads should be used in full squares. Measures 8" length by 8" width by 1" thick. Maximum load: 3200lbs.
