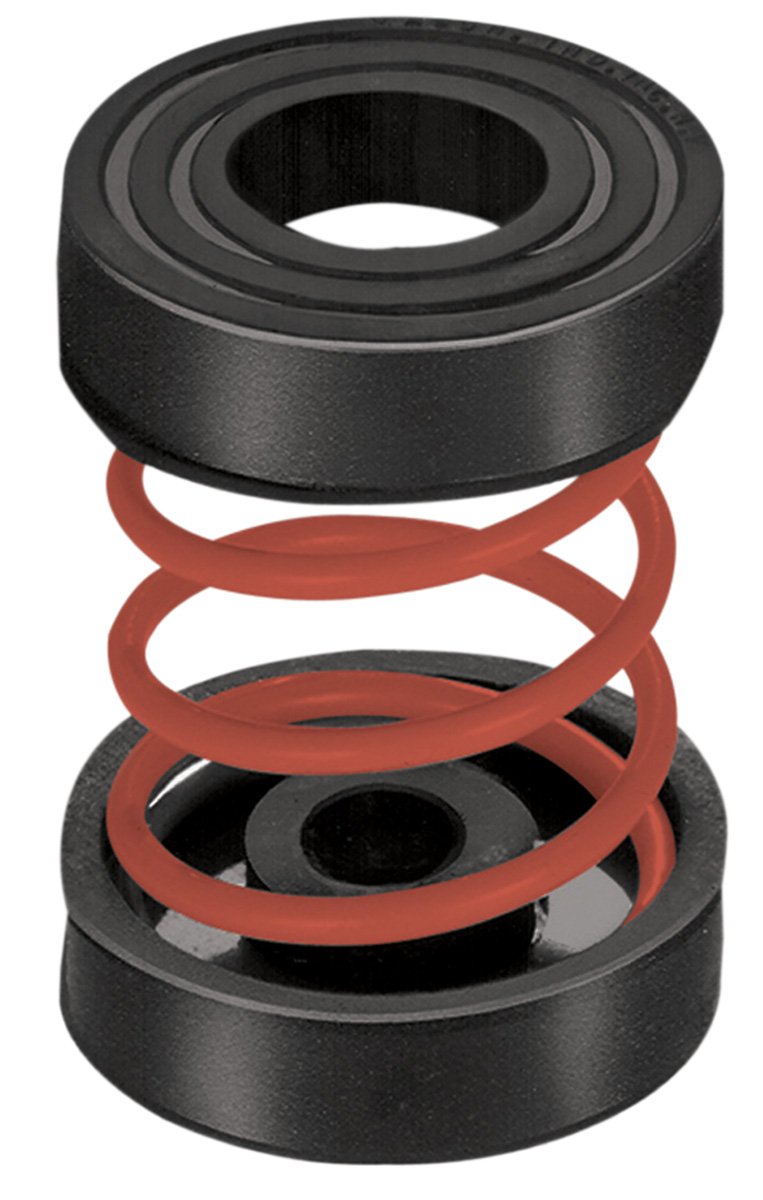

Mason IMF-X-33 Steel Non Adjustable Spring Mount Vibration Isolator, 33lbs Capacity, 1.1" Deflection, 30lbs/in Spring Constant, Red

Be the first to review this item

ASIN B006W0QJAM

Specifications for this item
Number of Items
1
Material Type
Steel
Part Number
IMF-X-33
Brand Name
Mason
Load Capacity
33  pounds
UNSPSC Code
26101765

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Sep 2? Order in-stock items in the next 1 day 5 hrs 8 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Mount for supporting lightweight indoor machinery to reduce structurally transmitted noise and vibration
  • EPDM or Neoprene spring cups for non-skid surface and minimizing noise and vibration
  • Heavy-duty steel spring for absorbing shock and supporting loads
  • Free-standing device for bolt-free application

Package Details

Shipping Weight: 0.15 pounds
Package Size: 2.7 x 1.7 x 0.6 inches

Product Description

This Mason IMF-X-33 spring mount vibration isolator supports lightweight indoor machinery to reduce structurally transmitted noise and vibration. The acoustical spring cups are made of EPDM or Neoprene for a non-skid surface and for minimizing noise and vibration. The cups secure a heavy-duty steel spring for absorbing shock and supporting loads. This mount is a free-standing device for bolt-free application. It works best for indoor applications on lightweight equipment that does not have to be level and does not require bolting. This spring mount vibration isolator is suitable for use on upper building levels on equipment with rotational speeds below 1200 rpm.

Specifications
Maximum load capacity33 lb./15 kg
Deflection1.1 inch/28 mm
Additional travel to solid50% of deflection
Spring constant30 lb./in / .54 kg/mm
Spring outside diameter1-1/2 inches/38 mm
Spring free height2-3/8 inches/60 mm
Dimensions*2-3/4 x 2 x 2 inches/70 x 51 x 51 mm (H x W x D)

*H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back

Shock and vibration control products (absorbers, mounts, and pads) reduce air and structure-borne dissonance by either blocking or absorbing sound waves, or damping or isolating vibrations that cause them.  Shock absorbers, vibration damping mounts, and vibration damping pads can extend equipment life and help protect work environments, and they are most commonly used in heating, ventilation, and air conditioning (HVAC) systems or in other large machinery operations. Weight distribution determines the number of mounts or pads needed. If evenly distributed, the maximum load capacity per mount or pad should equal the total weight of the machine divided by the number of mounting points available.

Mason Industries manufactures noise reduction, vibration isolation, and seismic restraint control products such as mountings, hangers, and flexible connectors for mechanical equipment. The company, founded in 1958, is headquartered in Hauppauge, NY.
