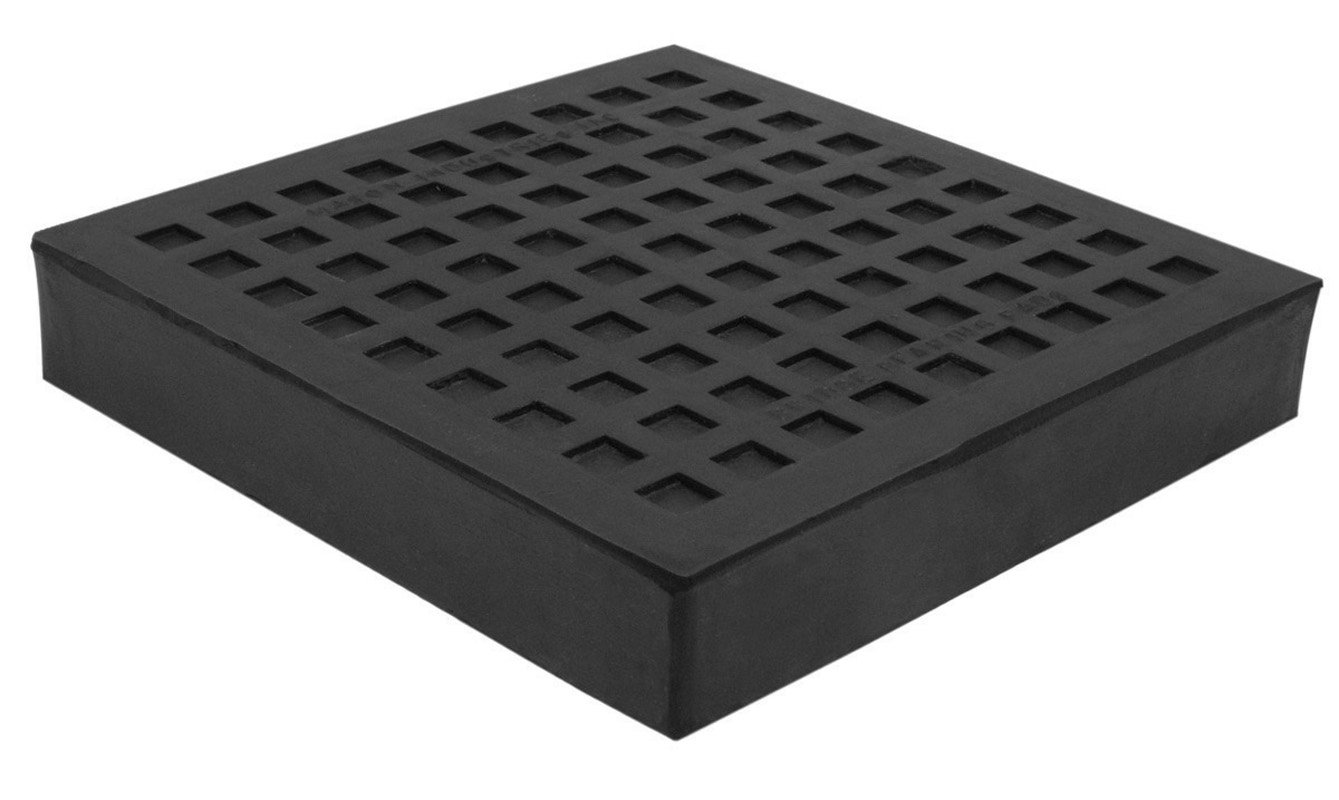

Mason BBNR6X6 Natural Rubber Bridge Bearing Vibration Isolation Pad, 6" Length x 6" Width x 1" Thick

Be the first to review this item

ASIN B006W0PXE0

Specifications for this item
Number of Items
1
Material Type
Rubber
Part Number
BBNR6X6
Brand Name
Mason
Load Capacity
7900  pounds
UNSPSC Code
26101765

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Pad for reducing noise, vibration, and impact where loadings per square inch are high
  • Natural rubber for durability and maximum vibration isolation
  • Solid material for high tensile strength and elongation for added deflection
  • Material contains antioxidants and anti-ozonants for longer life
  • Stack with 1/8" steel plates between pads for higher deflections and greater efficiency

Package Details

Shipping Weight: 2 pounds
Package Size: 6.5 x 6.1 x 1.4 inches

Product Description

This Mason Industries BBNR6X6 bridge bearing 6x6" vibration isolation pad reduces noise, high frequency vibration, and impact where loadings per square inch are high. These vibration isolation pads are made of natural rubber for durability and maximum vibration isolation. They are solid for high tensile strength and elongation for added deflection, and the material contains antioxidants and anti-ozonants for longer life. They can be stacked with 1/8" steel plates between them for higher deflections and greater efficiency. These vibration isolation pads are suitable for supporting bridges, highway overpasses, buildings or components such as structural floors or secondary floating floors.

Specifications
Dimensions*6 x 6 x 1 inches/150 x 150 x 25 mm (W x L x T)
MaterialNatural rubber
Maximum load capacity (per square)7,900 lb./3583 kg
Hardness50 Durometer
Deflection1/8 inch/3.175 mm / 12.5%

*W is the horizontal distance from left to right, L is the horizontal distance from front to back, T is the thickness from top to bottom

Shock and vibration control products (absorbers, mounts, and pads) reduce air and structure-borne dissonance by either blocking or absorbing sound waves, or damping or isolating vibrations that cause them.  Shock absorbers, vibration damping mounts, and vibration damping pads can extend equipment life and help protect work environments, and they are most commonly used in heating, ventilation, and air conditioning (HVAC) systems or in other large machinery operations. Weight distribution determines the number of mounts or pads needed. If evenly distributed, the maximum load capacity per mount or pad should equal the total weight of the machine divided by the number of mounting points available.

Mason Industries manufactures noise reduction, vibration isolation, and seismic restraint control products such as mountings, hangers, and flexible connectors for mechanical equipment. The company, founded in 1958, is headquartered in Hauppauge, NY.
