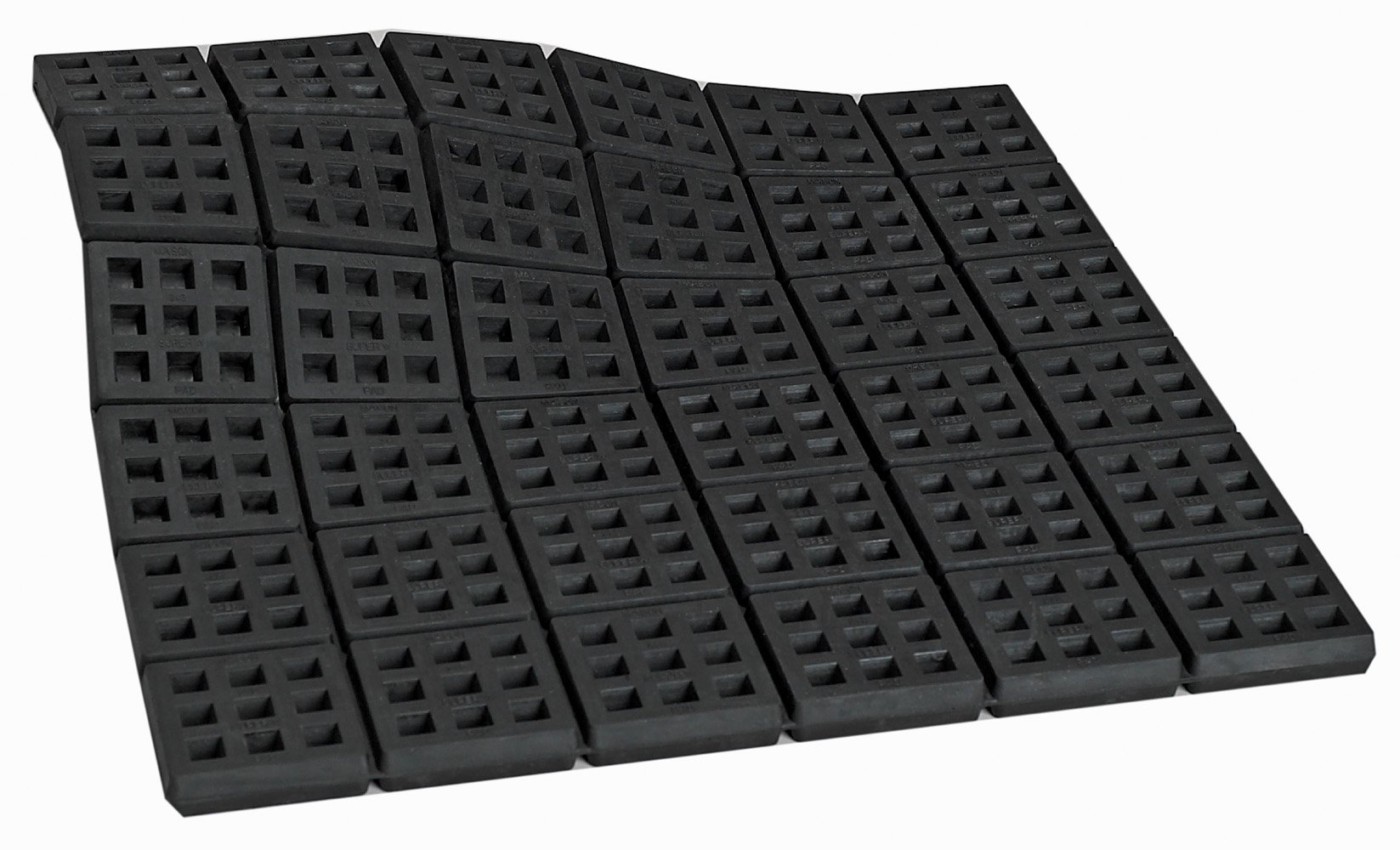

Mason 3SW18X18R Super W Natural Rubber Vibration Isolation Waffle Pad, 18" Length x 18" Width x 3/4" Thick

Be the first to review this item

ASIN B006W0P9U8

Specifications for this item
Number of Items
1
Material Type
Rubber
Part Number
3SW18X18R
Brand Name
Mason
List price:
$95.50
Price:
$63.26
You save:
$32.24 (34%)
Quantity:

In Stock (3)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Apr 24? Order in-stock items in the next 17 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Pads for reducing noise, high frequency vibration, and impact from machines
  • Natural rubber for durability and maximum vibration isolation
  • Waffle pattern forms self-sealing perimeter for oil and fluid resistance
  • Thin web separation on pads for evenly dimensioned sections
  • Matching pattern on both sides of pad improves its structural strength for increased load capacity

Package Details

Shipping Weight: 8.6 pounds
Package Size: 17.8 x 17.7 x 1 inches

Product Description

This Mason Industries 3SW18X18R sheet consists of 81 2x2" Super W vibration isolation pad modules that reduce noise, high frequency vibration, and impact from machines. These vibration isolation pads are made of natural rubber for durability and maximum vibration isolation, and the waffle pattern forms a self-sealing perimeter to keep oil and fluids from contaminating the pad. A thin web separates the pads to provide evenly dimensioned sections that can be placed side-by-side to accommodate a machine's load or stacked with 16 gauge shims between layers for increased deflection. The matching pattern on both sides of the pad improves its structural strength for increased load capacity. These Mason Super W pads are suitable for use with compressors, HVAC units, pumps, generators, transformers, and presses.

Specifications
Dimensions*18 x 18 x 3/4 inches/450 x 450 x 20 mm (W x L x T)
MaterialNeoprene
Maximum load capacity (per square)180 lb./86 kg
Hardness50 Durometer
Deflection15%
Additional travel to solid50% of deflection
Pad module size2 x 2 x 3/4 inches/50 x 50 x 20 mm (W x L x T)
Sheet size81 pad modules

*W is the horizontal distance from left to right, L is the horizontal distance from front to back, T is the thickness from top to bottom

Shock and vibration control products (absorbers, mounts, and pads) reduce air and structure-borne dissonance by either blocking or absorbing sound waves, or damping or isolating vibrations that cause them.  Shock absorbers, vibration damping mounts, and vibration damping pads can extend equipment life and help protect work environments, and they are most commonly used in heating, ventilation, and air conditioning (HVAC) systems or in other large machinery operations. Weight distribution determines the number of mounts or pads needed. If evenly distributed, the maximum load capacity per mount or pad should equal the total weight of the machine divided by the number of mounting points available.

Mason Industries manufactures noise reduction, vibration isolation, and seismic restraint control products such as mountings, hangers, and flexible connectors for mechanical equipment. The company, founded in 1958, is headquartered in Hauppauge, NY.
