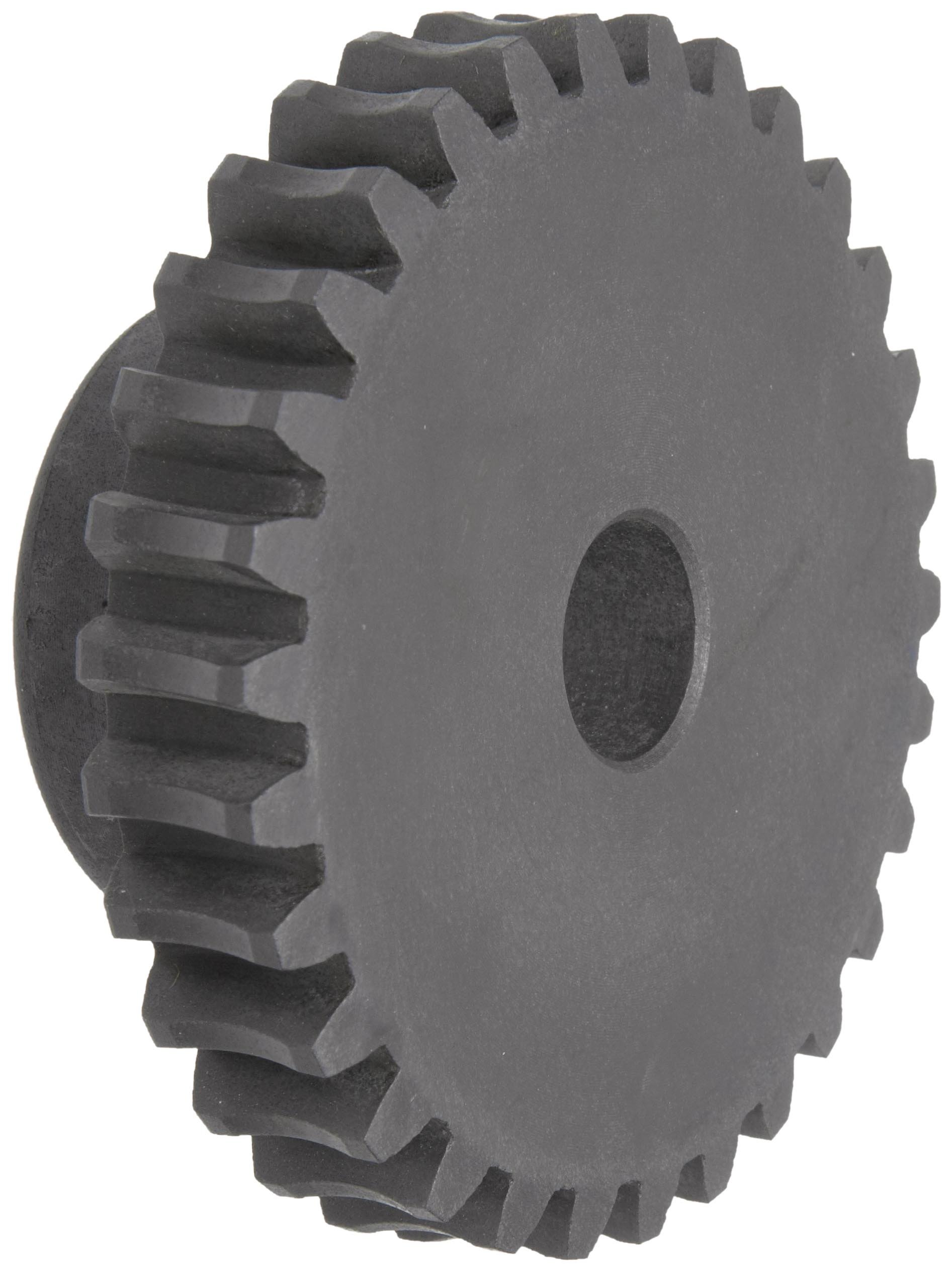

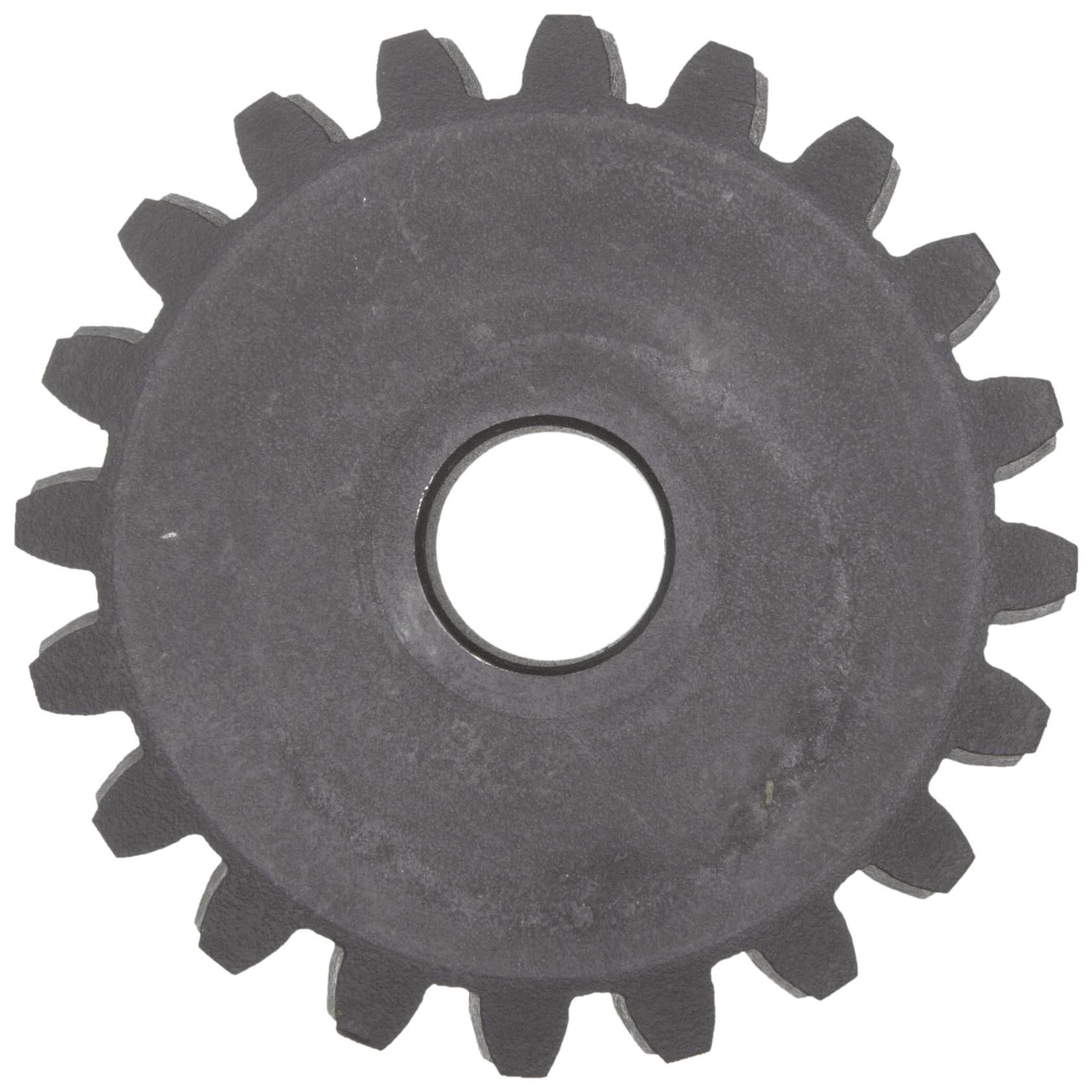

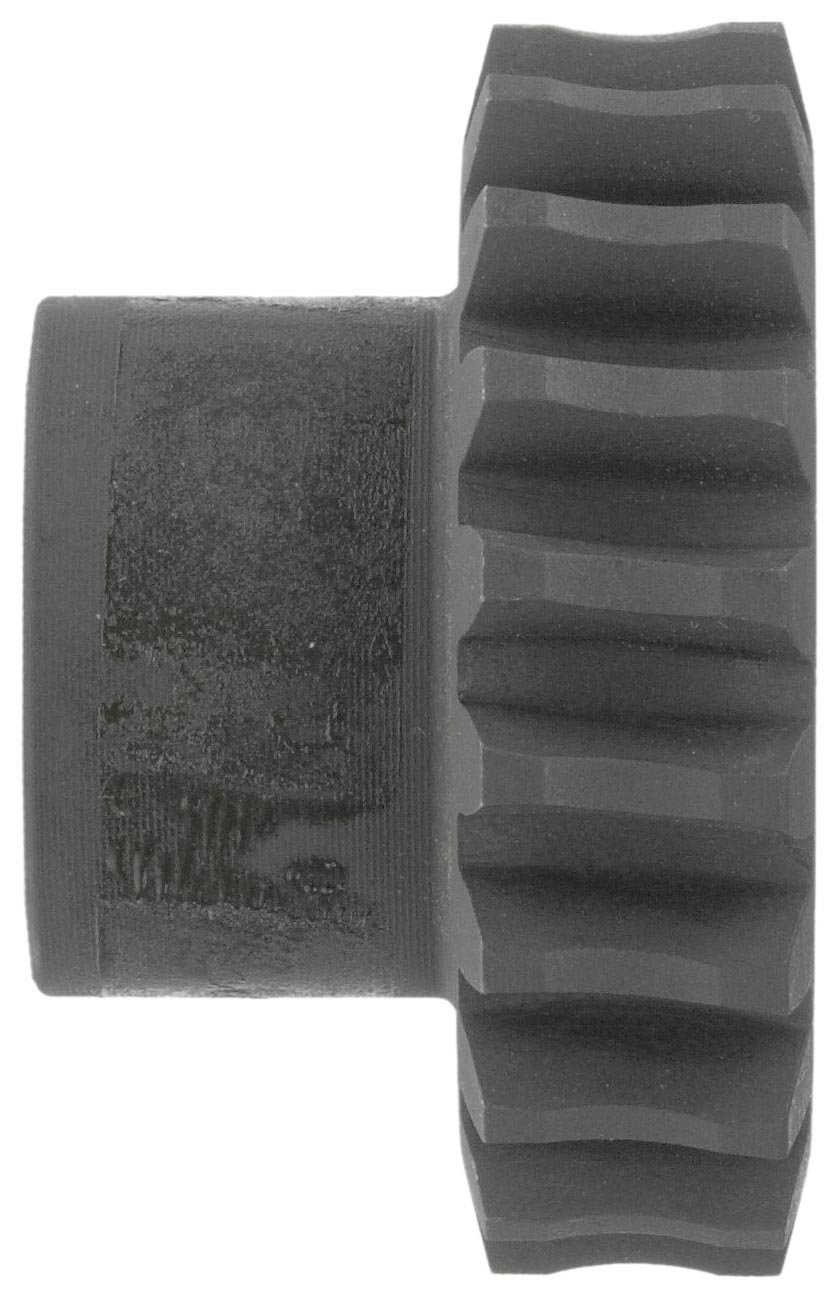

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Martin Worm Gear, 14.5 Degree Pressure Angle, Cast Iron, Inch

Be the first to review this item

Product Specifications
Number of Items
Bore Diameter Tolerance
+ .001 - .000  inches
Material Type
Cast Iron
Part Number
Number of Teeth
Brand Name
System of Measurement
Face Width
Unk  inches

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Apr 22? Order in-stock items in the next 6 hrs and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-8 of 8
Pitch diameter string Item diameter string Bore diameter string ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

All All All
Currently showing 1-8 of 8
1.5 inches 1.687 inches 1/2 inches B004BDOEF4 yes $56.94 Buy Options
1.667 inches 1.853 inches 1/2 inches B004BDOEFE yes $58.34 Buy Options
2.5 inches 2.687 inches 1/2 inches B004BDOEFO yes $64.73 Buy Options
3.333 inches 3.52 inches 5/8 inches B004BDOEG8 yes $74.13 Buy Options
4.166 inches 4.353 inches 5/8 inches B004BDOEHM yes $91.10 Buy Options
5 inches 5.187 inches 5/8 inches B004BDOEI6 yes $99.29 Buy Options
6.666 inches 6.853 inches 5/8 inches B004BDOEIQ yes $116.07 Buy Options
8.333 inches 8.52 inches 3/4 inches B004BDOEJ0 yes $70.13 Buy Options

Key Features

  • Right-hand, single-thread gear for a worm drive
  • ASTM A48 Class 30 gray cast iron for resistance to wear, galling, and corrosion
  • Pressure angle of 14.5 degrees for smoother, quieter movement and lower frictional forces
  • Meets AGMA commercial class standards

Product Description

This Martin worm gear is a right-hand, single-thread gear for a worm drive to increase the torque of a driven shaft. It is made of American Society for Testing and Materials (ASTM) A48 Class 30 gray cast iron for resistance to wear, galling, and corrosion on. It has a pressure angle of 14.5 degrees for smoother, quieter movement and lower frictional forces. This gear meets American Gear Manufacturing Association (AGMA) standards 6-8 for commercial class gears.

Worm gears, also called worm drives, use a long, threaded cylinder called a worm that meshes with the teeth of a worm wheel (similar to a spur gear) to transmit motion. They can be used in a right-angle configuration. The worm wheel is unable to turn the worm, providing a built-in lock or a braking system. They are quieter than spur gears, low maintenance, and suitable in applications that require increased torque and reduced speed, or when changing the rotation direction.

Martin Sprocket & Gear manufactures power transmission products, material handling components, and industrial hand tools. The company, founded in 1951 and headquartered in Arlington, TX, meets International Organization for Standardization (ISO) standard 9001:2008.
