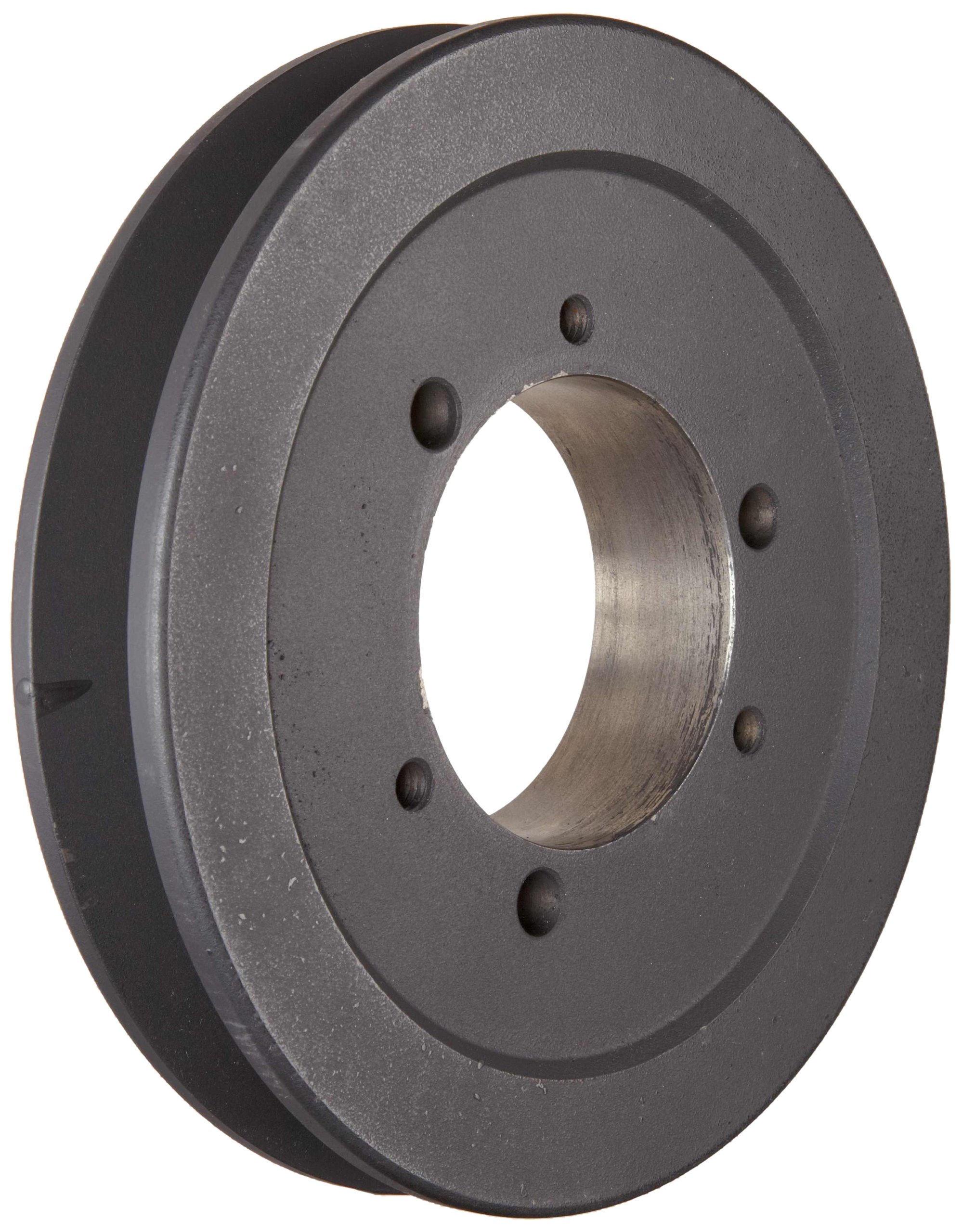

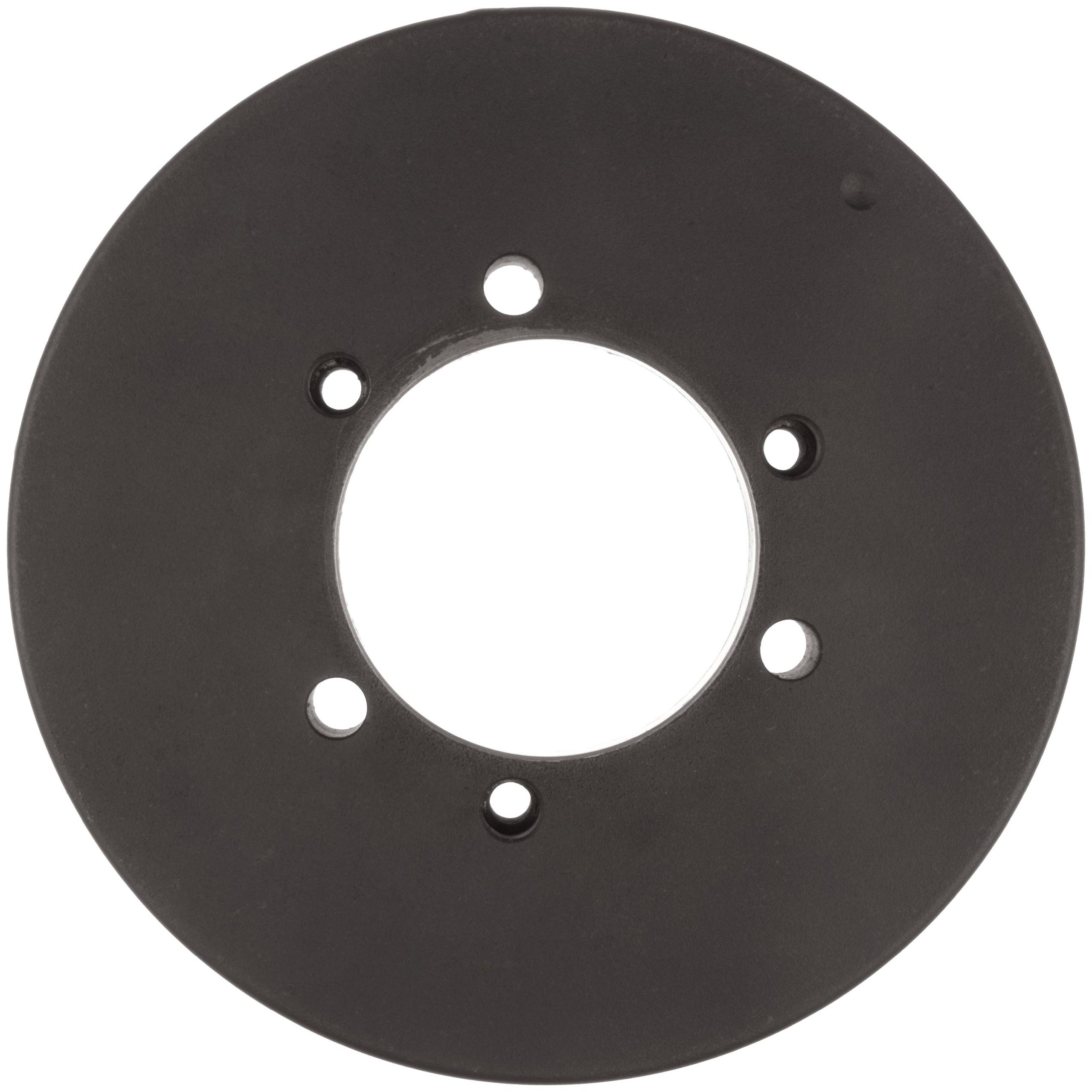

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Martin V-Belt Drive Sheave, C Belt Section, 1 Groove, Class 30 Gray Cast Iron

Be the first to review this item

Product Specifications
Overall Width
1.13  inches
Brand Name

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Oct 22? Order in-stock items in the next 22 hrs 11 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-18 of 18
Outside Diameter Bore Diameter Max Rotational Speed

Datum ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

All All All All
Currently showing 1-18 of 18
6.4" 2.63" 3876 max rpm 6" Pitch Diameter B004BKI4BM yes $49.83 Buy Options
7.4" 2.94" 3353 max rpm 7" Pitch Diameter B004BKI4CG yes $104.23 Buy Options
7.9" 2.94" 3140 max rpm 7.5" Pitch Diameter B004BKI4D0 yes $110.57 Buy Options
8.4" 2.94" 2953 max rpm 8" Pitch Diameter B004BKI4DK Usually ships in 2 to 4 weeks $131.02 Buy Options
8.9" 2.94" 2788 max rpm 8.5" Pitch Diameter B004BKI4EE Usually ships in 2 to 4 weeks $135.04 Buy Options
9.4" 2.94" 2639 max rpm 9" Pitch Diameter B004BKI4EY yes $123.77 Buy Options
9.9" 2.94" 2506 max rpm 9.5" Pitch Diameter B004BKI4G2 yes $57.39 Buy Options
10.4" 2.94" 2385 max rpm 10" Pitch Diameter B004BKI4GM yes $151.95 Buy Options
10.9" 2.94" 2276 max rpm 10.5" Pitch Diameter B004BKI4H6 yes $138.03 Buy Options
11.4" 2.94" 2176 max rpm 11" Pitch Diameter B004BKI4HQ yes $154.66 Buy Options
12.4" 2.94" 2001 max rpm 12" Pitch Diameter B004BKI4IK yes $84.14 Buy Options
13.4" 2.94" 1851 max rpm 13" Pitch Diameter B004BKI4K8 Usually ships in 2 to 4 weeks $251.56 Buy Options
14.4" 2.94" 1723 max rpm 14" Pitch Diameter B004BKI4L2 yes $115.29 Buy Options
15.4" 2.94" 1611 max rpm 15" Pitch Diameter B004BKI4LM Usually ships in 2 to 4 weeks $276.34 Buy Options
16.4" 2.94" 1513 max rpm 16" Pitch Diameter B004BKI4M6 Usually ships in 2 to 4 weeks $286.40 Buy Options
18.4" 2.94" 1348 max rpm 18" Pitch Diameter B004BKI4N0 Usually ships in 2 to 4 weeks $306.51 Buy Options
20.4" 2.94" 1216 max rpm 20" Pitch Diameter B004BKI4NK yes $255.94 Buy Options
24.4" 2.94" 1017 max rpm 24" Pitch Diameter B004BKI4O4 Usually ships in 2 to 4 weeks $371.54 Buy Options

Key Features

  • Classical V-belt sheave fits widely available, classical profile V-belts suitable for use in many existing drive designs
  • Class 30 gray cast iron for resistance to wear and galling
  • C belt or cross section
  • One groove for single belt use

Product Description

This Martin V-belt drive sheave with a C belt section is made of 30 gray cast iron and comes with one groove. It is a classical V-belt sheave that fits a variety of widely available, classical profile V-belts suitable for use in many existing power transmission drives. This pulley is made of class 30 gray cast iron for resistance to wear, corrosion, and galling. It has a C cross section and one groove for use with single belts. V-belt pulleys (sheaves) are used in a wide range of mechanical and electronic drives, including HVAC units, farm machinery, food processing equipment, and home appliances, among others.

V-belt pulleys (sheaves) are the component in a power transmission drive that transmits power to the belt. Typically made of cast iron, the pulleys and the V-belts that loop around them match in form – wide (classical) or narrow, single or multi-grooved. V-belt pulleys are found in drive designs in the agriculture, textile, printing, mining, and office equipment industries.

Martin Sprocket & Gear manufactures power transmission and conveying products. The company, founded in 1951 and headquartered in Arlington, TX, provides tools that meet American National Standards Institute (ANSI), National Aerospace Standard (NAS), and Deutsches Institut für Normung (DIN) standards.
