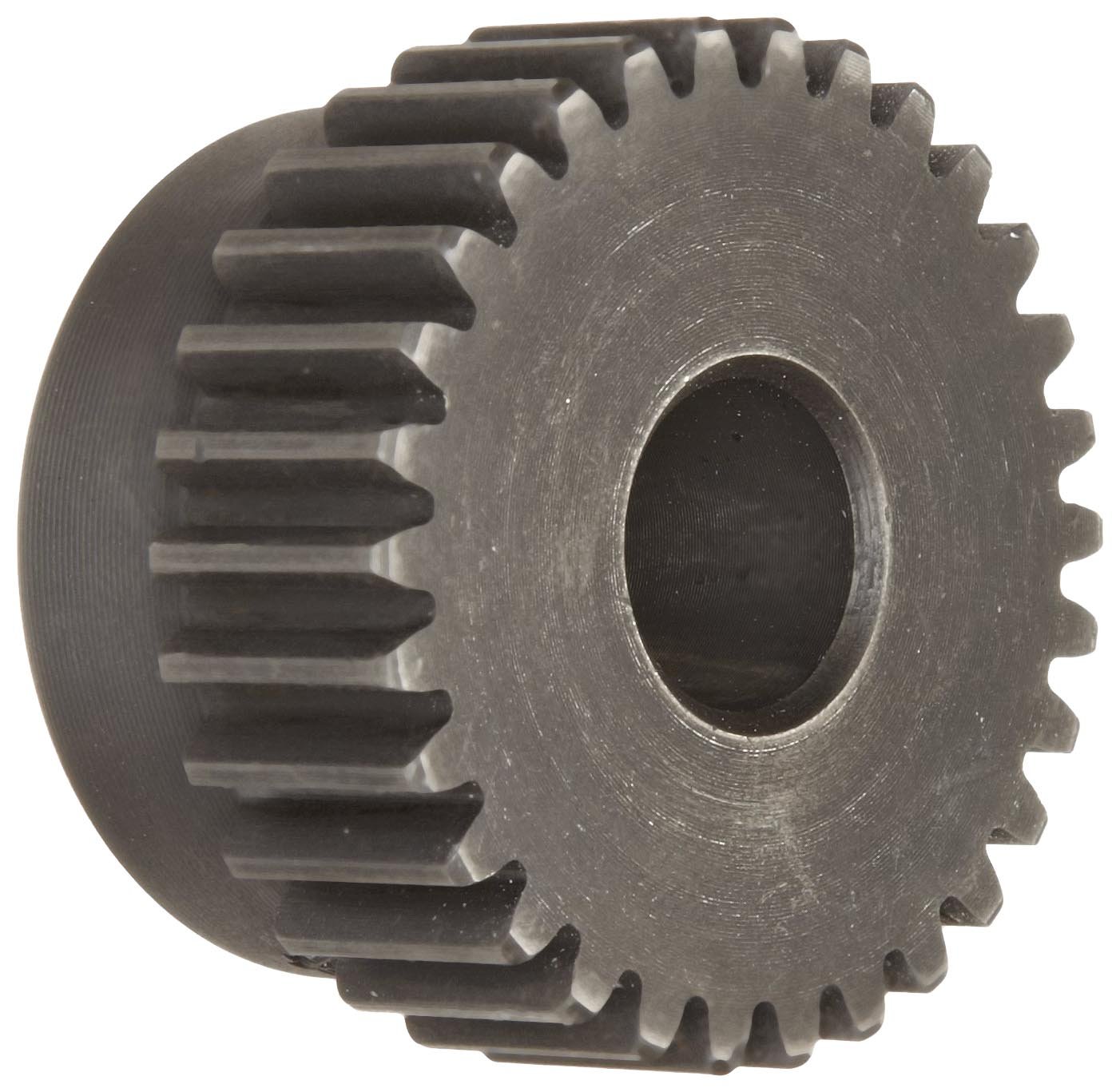

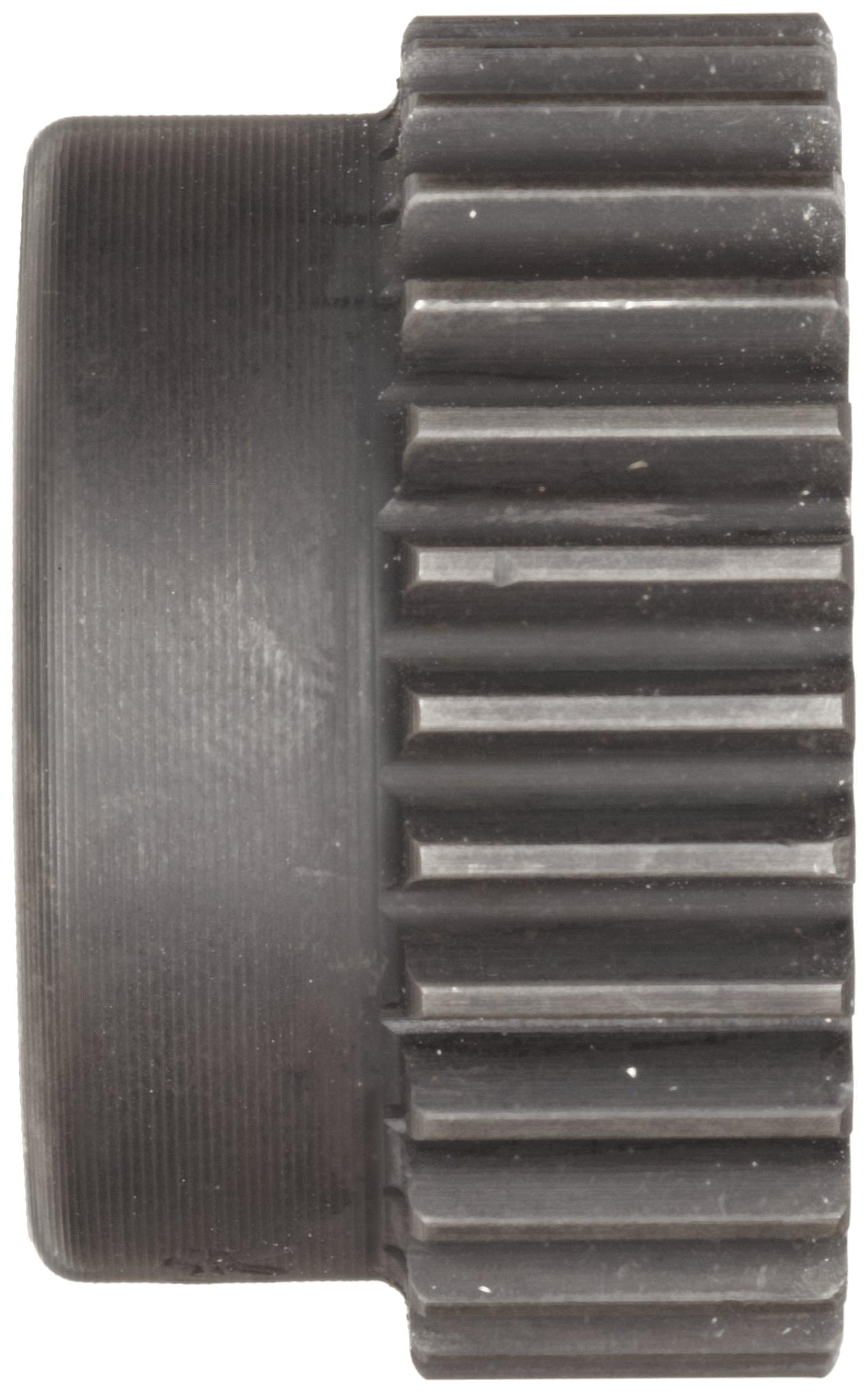

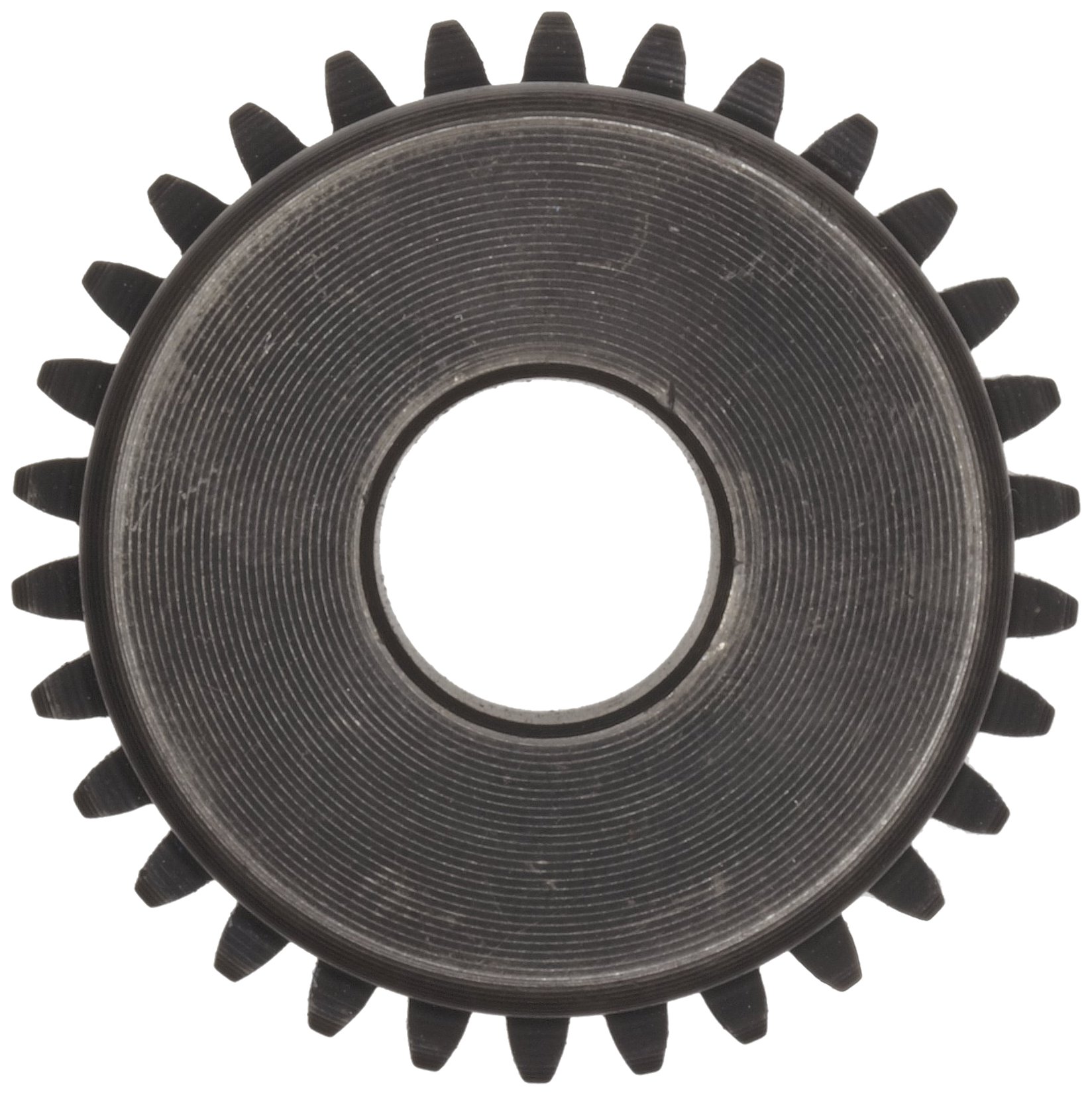

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Martin Spur Gear, 20° Pressure Angle, High Carbon Steel, Inch, 4 Pitch

Be the first to review this item

Product Specifications
Bore Diameter Tolerance
+ 0.001 - 0.000  inches
Material Type
High Carbon Steel
Brand Name
Face Width
3.500  inches

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share
Currently showing 1-20 of 20
Diameter Bore Diameter Number of Teeth ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

All All All
Currently showing 1-20 of 20
20.5" 1-1/4" 80 B004BDO4T0 Currently unavailable $1,715.09 Buy Options
18.5" 1-1/4" 72 B004BDO4SQ Currently unavailable $1,475.74 Buy Options
16.5" 1-1/4" 64 B004BDO4SG Currently unavailable $1,271.36 Buy Options
15.5" 1-1/4" 60 B004BDO4S6 Currently unavailable $1,186.45 Buy Options
7.5" 1-1/8" 28 B004BDO4PY yes $93.86 Buy Options
14.5" 1-1/4" 56 B004BDO4RW Currently unavailable $1,071.77 Buy Options
12.5" 1-1/4" 48 B004BDO4RM yes $812.64 Buy Options
6.5" 1-1/8" 24 B004BDO4PO yes $74.41 Buy Options
11.5" 1-1/4" 44 B004BDO4RC Currently unavailable $737.73 Buy Options
10.5" 1-1/4" 40 B004BDO4R2 Currently unavailable $663.00 Buy Options
6" 1-1/8" 22 B004BDO4PE yes $69.92 Buy Options
9.5" 1-1/4" 36 B004BDO4QS yes $148.53 Buy Options
5.5" 1-1/8" 20 B004BDO4P4 yes $49.26 Buy Options
8.5" 1-1/4" 32 B004BDO4QI Currently unavailable $538.43 Buy Options
5" 1-1/8" 18 B004BDO4OU yes $185.01 Buy Options
4.5" 1-1/8" 16 B004BDO4OK yes $178.81 Buy Options
8" 1-1/4" 30 B004BDO4Q8 yes $483.69 Buy Options
4.25" 1-1/8" 15 B004BDO4OA yes $167.82 Buy Options
4" 1-1/8" 14 B004BDO4O0 yes $137.85 Buy Options
35" 1-1/8" 12 B004BDO4NQ yes $127.87 Buy Options

Key Features

  • Transmits torque between parallel shafts to provide rotational power to another part of a motorized system
  • Pressure angle of 20 degrees for a lower contact ratio between gears, resulting in higher load capacity than smaller pressure angles
  • Diametral pitch of 4 for applications where transferring torque is more important than controlling changes in speed and direction of rotation with precision
  • High carbon steel for tensile strength and hardness

Product Description

The Martin high carbon steel gear with 20-degree pressure angle (PA) and a diametral pitch (DP) of 4 transmits torque between parallel shafts to provide rotational power to another part of a motorized system. It has a 20-degree pressure angle for a lower contact ratio between gears than larger pressure angles, resulting in higher load capacity than smaller pressure angles, and a 4-diametral pitch for applications where transferring torque is more important than having precise control over motion, such as starting, stopping, and changing speed or rotational direction. This spur gear, which can mesh only with spur gears that have the same pressure angle and diametral pitch, is made of high carbon steel for tensile strength and hardness. This Martin spur gear is suitable for use in a variety of commercial and industrial applications, such as construction equipment, aeronautics, conveyors, and manufacturing equipment, among others.

Spur gears, the most common gear type, have a circular or cylindrical shape with teeth bordering the outer perimeter and are used for transmitting rotational torque and motion between parallel rotating shafts. A spur gear's pressure angle (PA), diametral pitch (also called DP or pitch), and its material are important factors to consider when purchasing. Gears come in several types for use in different power transmission configurations and for different applications, including bevel and miter gears (for rotating shafts perpendicular to each other), change gears (to increase or decrease torque and speed), helical gears (for high rates of rotational speed), internal gears (where one gear is nested inside the other), rack and pinion gears (for turning rotational motion into linear motion), and worm gears (for perpendicular shafts in tight spaces and quiet operation). Gears are suitable for use in the agriculture, automotive, construction, mining, and packaging industries, and can be found in a variety of machines, including bicycles, automobiles, and elevators, among others.

Martin Sprocket & Gear manufactures power transmission and conveying products. The company was founded in 1951 and is headquartered in Arlington, TX. Martin provides tools that meet American National Standards Institute (ANSI), National Aerospace Standard (NAS), and Deutsches Institut für Normung (DIN) standards.
