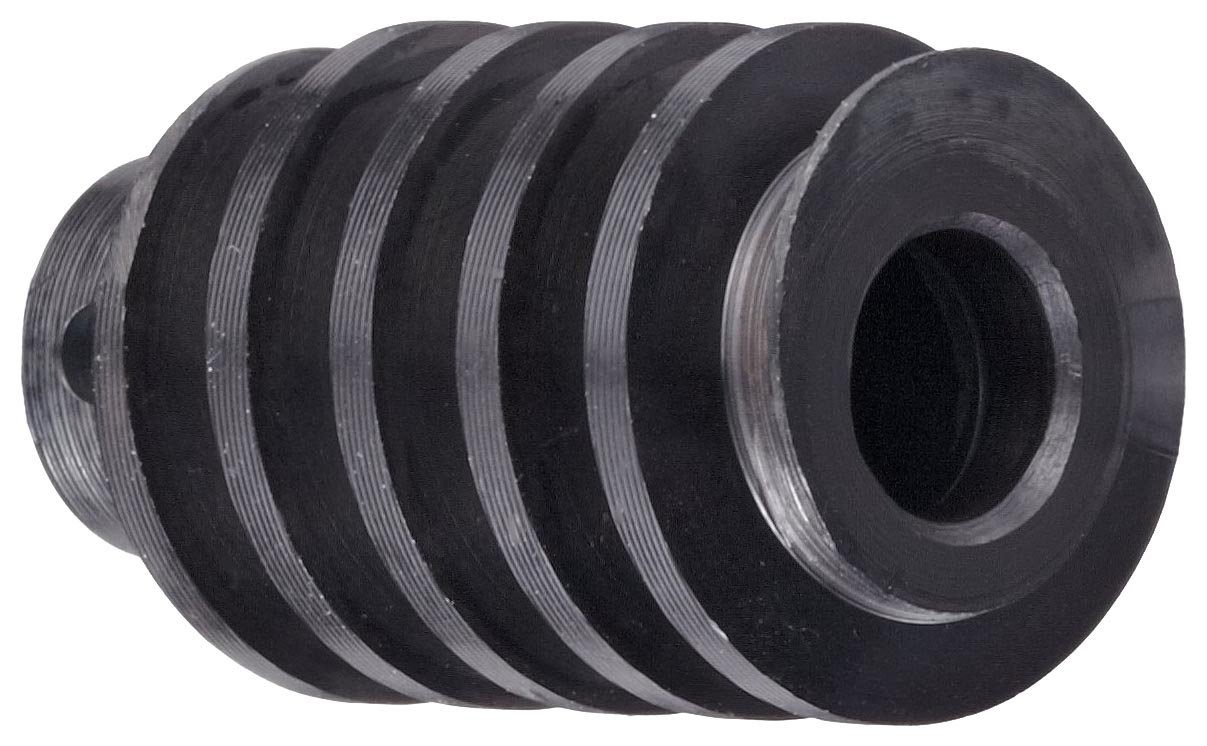

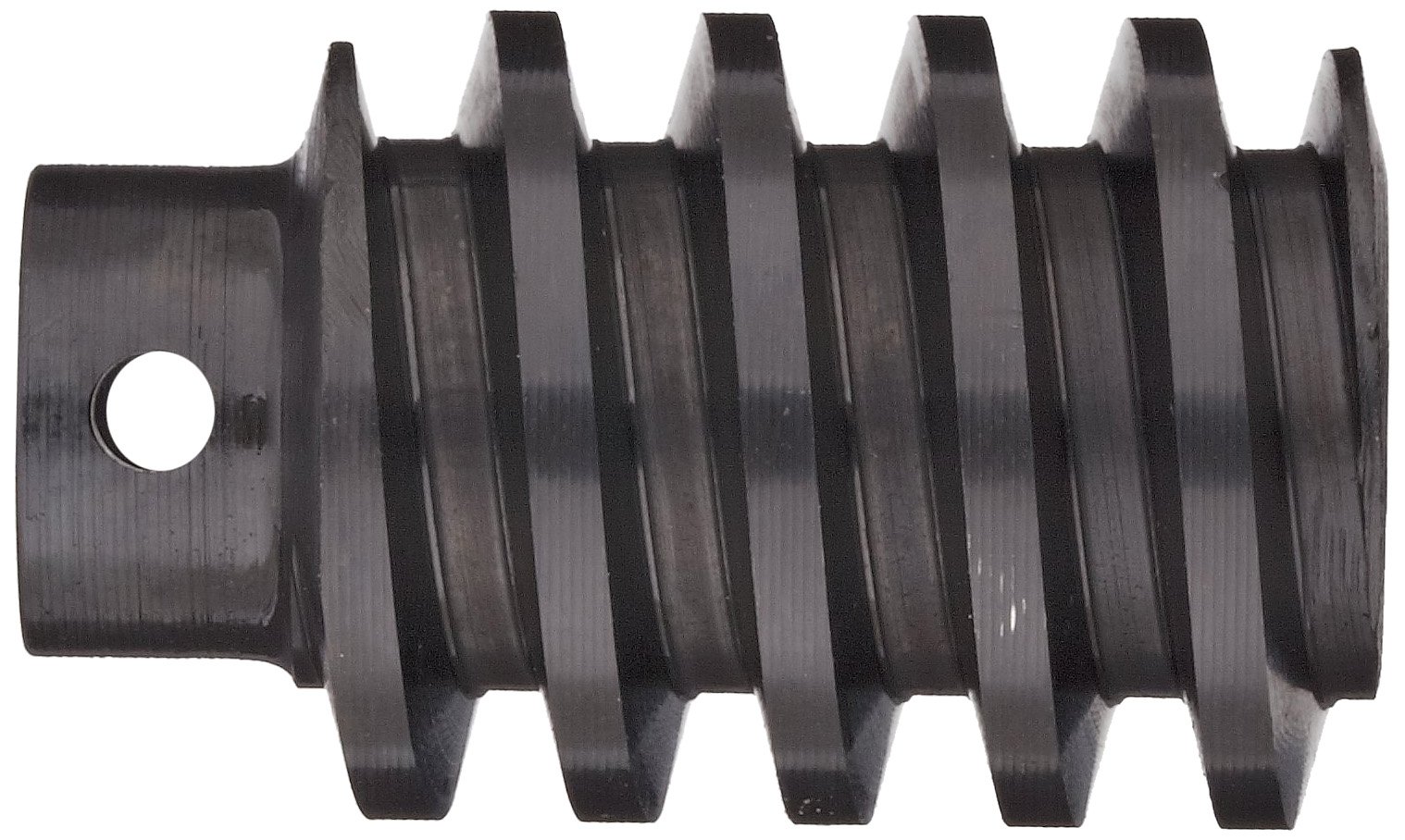

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Martin Worm, Single Lead, 14.5 Degree Pressure Angle, High Alloy Steel, Inch

Be the first to review this item

Product Specifications
Number of Items
1
Bore Diameter Tolerance
+ .001 - .000  inches
Material Type
Alloy Steel
Part Number
Martin-Gear-Parent-10
UNSPSC Code
31171712
Brand Name
Martin
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Sep 22? Order in-stock items in the next 20 hrs 34 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-7 of 7
Pitch Diameter Face Width Bore Diameter ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-7 of 7
0.625" 1.000" 5/16" B004BDOEVS yes $37.45 Buy Options
1" 1.125" 1/2" B004BDOELI yes $53.10 Buy Options
1.25" 1.375" 5/8" B004BDOE6S yes $53.78 Buy Options
1.5" 1.750" 3/4" B004BDODSW yes $71.17 Buy Options
2" 2.500" 7/8" B004BDODHS Usually ships in 2 to 4 weeks $123.26 Buy Options
3" 3.500" 1 1/4" B004BDODBY Usually ships in 2 to 4 weeks $311.34 Buy Options
4" 4.000" 1 1/2" B004BDOD8M yes $850.33 Buy Options

Key Features

  • Right-handed, single-lead worm for a worm drive
  • High allow steel for strength and durability
  • Pressure angle of 14.5 degrees for smoother, quieter movement and lower frictional forces
  • Meets AGMA commercial class standards

Product Description

This Martin worm gear is a right-handed, single-lead worm or "screw" for a worm drive used to increase the torque of a driven shaft. It is made of high allow steel for strength and durability. It has a pressure angle of 14.5 degrees for smoother, quieter movement and lower frictional forces. This worm meets American Gear Manufacturing Association (AGMA) standards 6-8 for commercial class gears.

Worm gears, also called worm drives, use a long, threaded cylinder called a worm that meshes with the teeth of a worm wheel (similar to a spur gear) to transmit motion. They can be used in a right-angle configuration. The worm wheel is unable to turn the worm, providing a built-in lock or a braking system. They are quieter than spur gears, low maintenance, and suitable in applications that require increased torque and reduced speed, or when changing the rotation direction.

Martin Sprocket & Gear manufactures power transmission products, material handling components, and industrial hand tools. The company, founded in 1951 and headquartered in Arlington, TX, meets International Organization for Standardization (ISO) standard 9001:2008.
