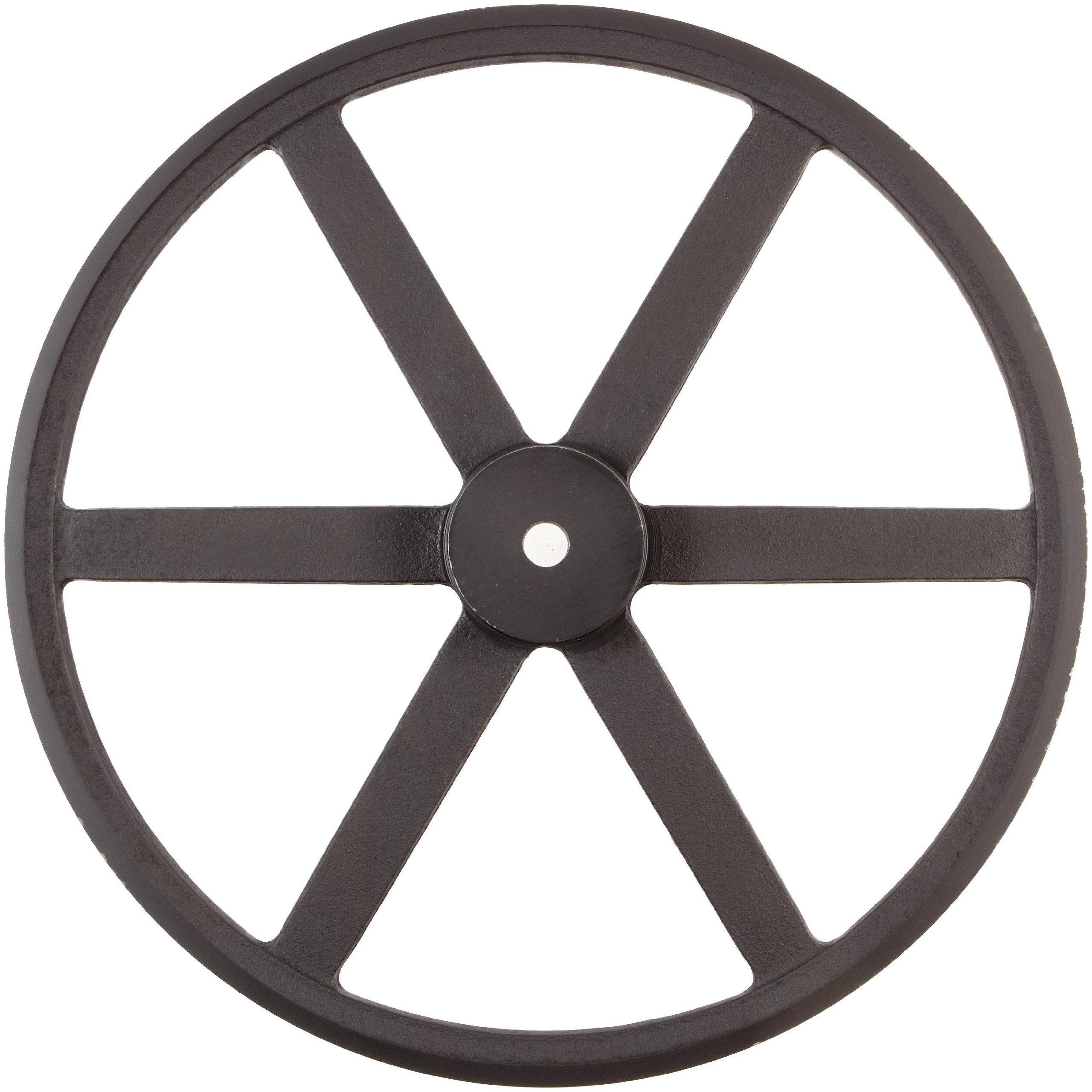

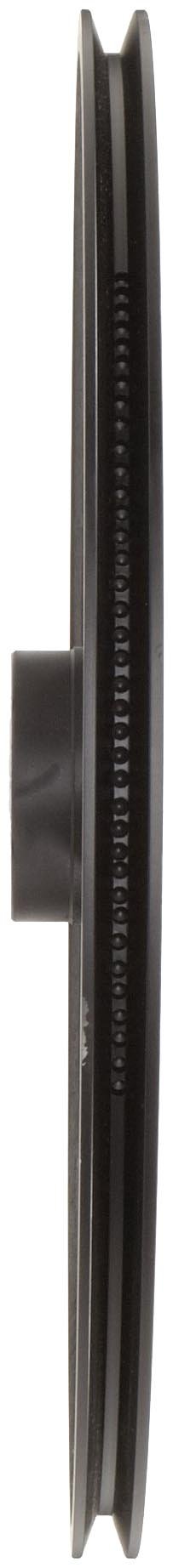

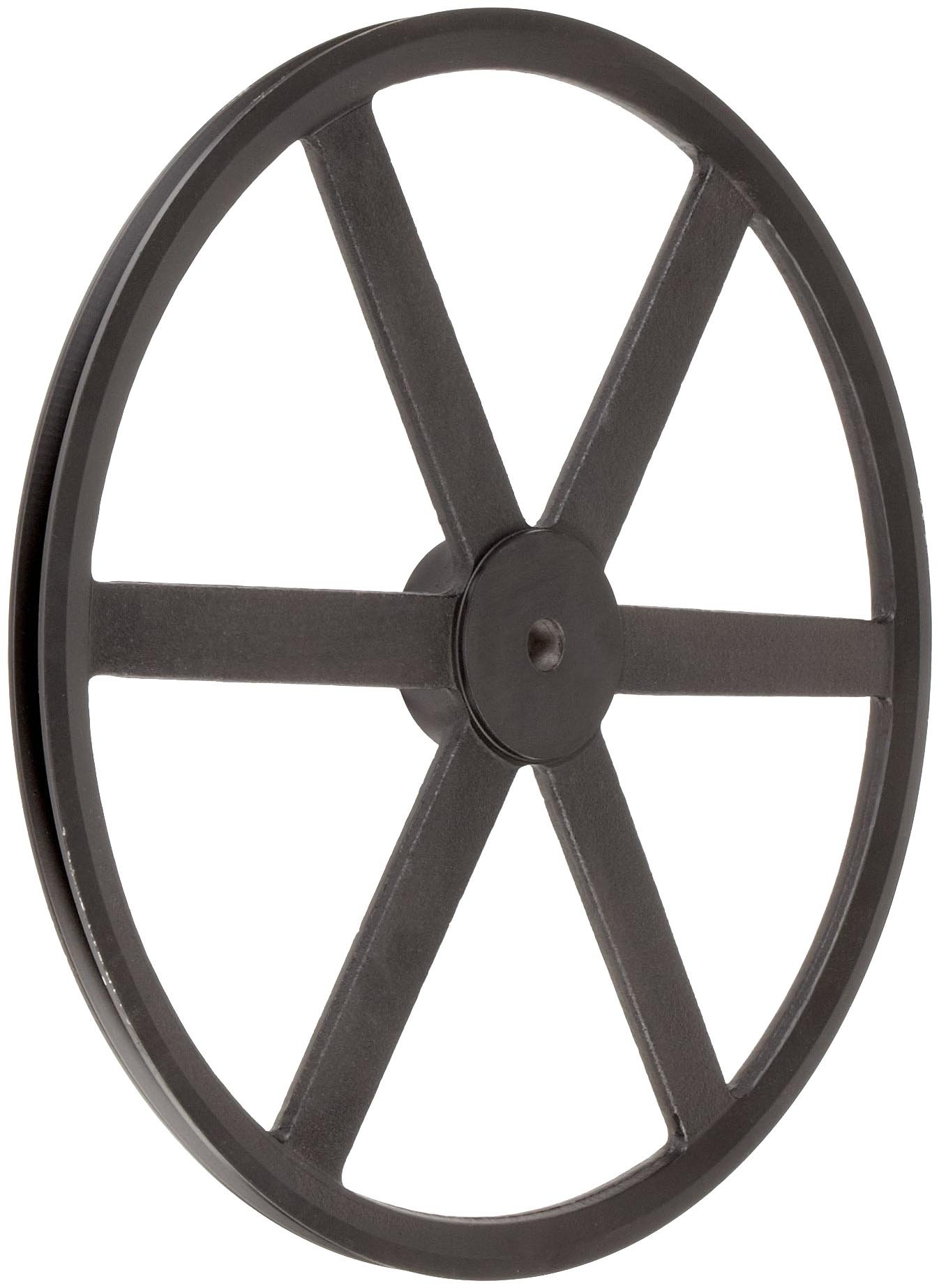

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Martin P/B Plain Bore FHP Sheave, 3L/4L Belt Section, 1 Groove, Class 30 Gray Cast Iron

Be the first to review this item

Product Specifications
UNSPSC Code
24101613
Brand Name
Martin

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 4 hrs 9 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 46 Next 20 »
Outside Diameter Bore Diameter Max Rotational Speed

Datum ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-20 of 46 Next 20 »
1.55" 0.50" 16006 max rpm 1.3 Datum B004BKIUQQ yes $9.78 Buy Options
1.75" 0.50" 14177 max rpm 1.16" Pitch Diameter/1.5 Datum B004BKIUUW yes $11.04 Buy Options
1.95" 0.50" 12723 max rpm 1.36" Pitch Diameter/1.7 Datum B004BKIV1U yes $11.04 Buy Options
2" 0.50" 12405 max rpm 1.46" Pitch Diameter/1.8 Datum B004BKIV74 yes $6.49 Buy Options
2.1" 0.50" 11814 max rpm 1.56" Pitch Diameter/1.9 Datum B004BKIV9W yes $11.50 Buy Options
2.2" 0.50" 11277 max rpm 1.66" Pitch Diameter/2 Datum B004BKIVFG yes $11.50 Buy Options
2.3" 0.50" 10787 max rpm 1.76" Pitch Diameter/2.1 Datum B004BKIVIS yes $8.22 Buy Options
2.5" 0.50" 9924 max rpm 1.96" Pitch Diameter/2.3 Datum B004BKIVVA yes $6.96 Buy Options
2.5" 0.50" 9924 max rpm 1.86" Pitch Diameter/2.2 Datum B004BKIVOW yes $8.40 Buy Options
2.6" 0.50" 9542 max rpm 2.06" Pitch Diameter/2.4 Datum B004BKIVYW yes $12.96 Buy Options
2.7" 0.50" 9189 max rpm 2.16" Pitch Diameter/2.5 Datum B004BKIW32 yes $13.29 Buy Options
2.8" 0.50" 8860 max rpm 2.26" Pitch Diameter/2.6 Datum B004BKIW5U yes $14.54 Buy Options
3.05" 0.50" 8134 max rpm 2.46" Pitch Diameter/2.8 Datum B004BKIWBY yes $15.27 Buy Options
3.25" 0.50" 7634 max rpm 2.66" Pitch Diameter/3 Datum B004BKIWG4 yes $15.77 Buy Options
3.45" 0.50" 7191 max rpm 2.86" Pitch Diameter/3.2 Datum B004BKIWKU yes $18.05 Buy Options
3.55" 0.50" 6988 max rpm 2.96" Pitch Diameter/3.3 Datum B004BKIWOG yes $22.01 Buy Options
3.75" 0.50" 6616 max rpm 3.16" Pitch Diameter/3.5 Datum B004BKIWUK yes $21.01 Buy Options
3.95" 0.50" 6281 max rpm 3.36" Pitch Diameter/3.7 Datum B004BKIX0Y yes $25.24 Buy Options
4.25" 0.50" 5837 max rpm 3.66" Pitch Diameter/4 Datum B004BKIX72 yes $15.04 Buy Options
4.45" 0.50" 5575 max rpm 3.86" Pitch Diameter/4.2 Datum B004BKIXE0 yes $27.97 Buy Options

Key Features

  • Classical V-belt sheave fits widely available, classical profile V-belts suitable for use in many existing drive designs
  • Class 30 gray cast iron for resistance to wear and galling
  • 3L/4L or A belt or cross section
  • One groove for single belt use

Product Description

This Martin P/B plain bore FHP sheave with a 3L/4L or A belt section is made of 30 gray cast iron and comes with one groove. It is a classical V-belt sheave that fits a variety of widely available, classical profile V-belts suitable for use in many existing power transmission drives. This pulley is made of class 30 gray cast iron for resistance to wear, corrosion, and galling. It has a 3L/4L or A cross section and one groove for use with multiple or banded belts. V-belt pulleys (sheaves) are used in a wide range of mechanical and electronic drives, including HVAC units, farm machinery, food processing equipment, and home appliances, among others.

V-belt pulleys (sheaves) are the component in a power transmission drive that transmits power to the belt. Typically made of cast iron, the pulleys and the V-belts that loop around them match in form – wide (classical) or narrow, single or multi-grooved. V-belt pulleys are found in drive designs in the agriculture, textile, printing, mining, and office equipment industries.

Martin Sprocket & Gear manufactures power transmission and conveying products. The company, founded in 1951 and headquartered in Arlington, TX, provides tools that meet American National Standards Institute (ANSI), National Aerospace Standard (NAS), and Deutsches Institut für Normung (DIN) standards.
