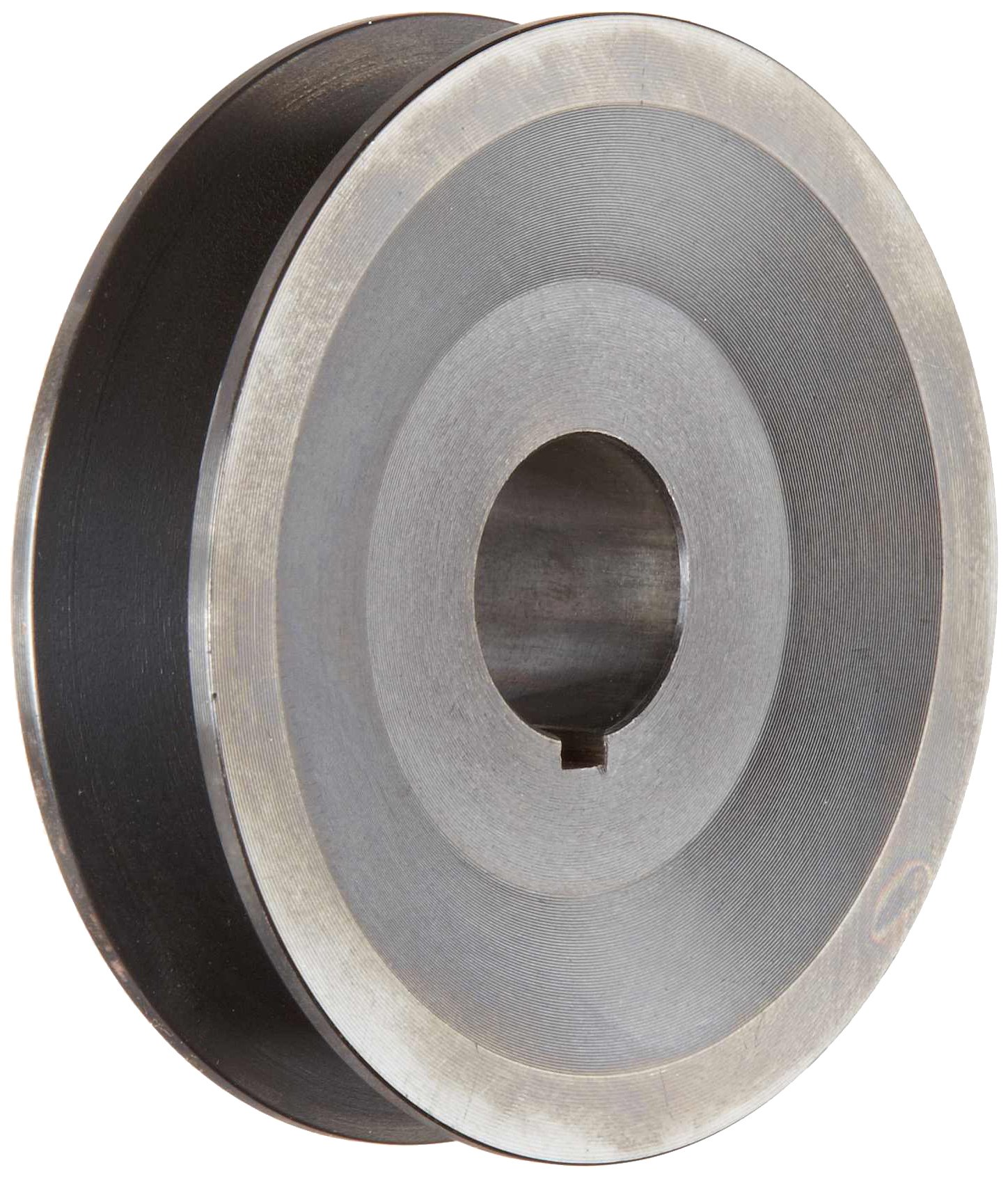

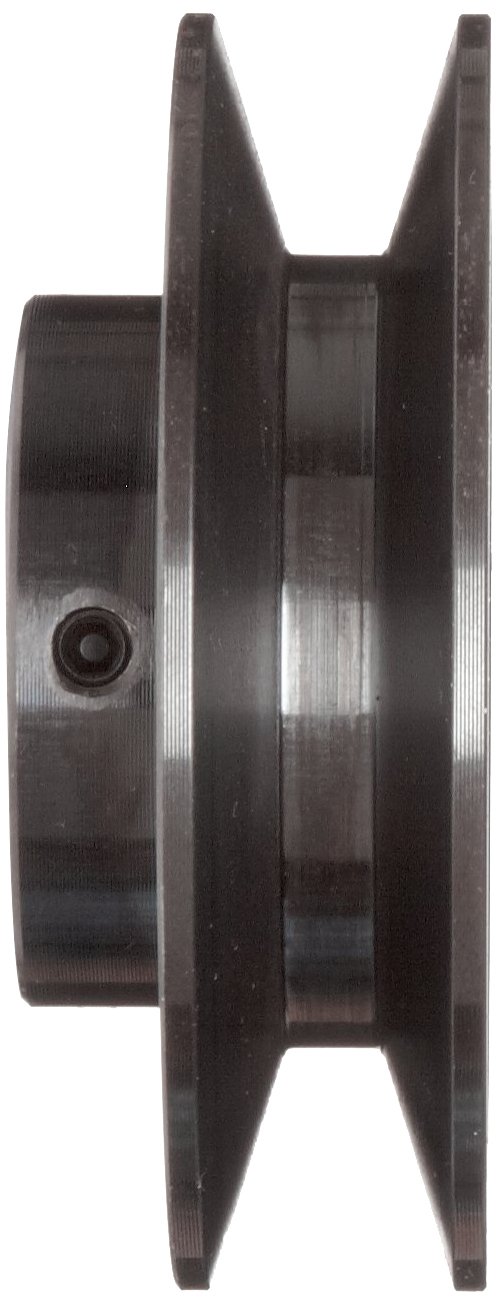

Martin BK47 1 1/8 FHP Sheave BS, 4L/5L or B Belt Section, 1 Groove, 1-1/8" Bore, Class 30 Gray Cast Iron, 4.45" OD, 5575 max rpm, 3.7 Datum/4.1 Datum

Be the first to review this item

ASIN B004BKJ9PC

Specifications for this item
Bore Diameter
1.125  inches
Part Number
BK47 1 1/8
Brand Name
Martin
Max Rotational Speed
5575  RPM
Grade
Class 30
Style Name
3.7 Datum/4.1 Datum
Number of Items
1
Bore Diameter Tolerance
+ .002 - .000  inches
Material Type
Cast Iron
UPC
697950121802
Outside Diameter
4.45  inches
Size Name
5575 max rpm
EAN
0697950121802
Outside Diameter Tolerance
+/- .020  inches
UNSPSC Code
24101613
Overall Length
1 5/32  inches

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 1 day 8 hrs 59 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • For light duty applications such as HVAC
  • Tolerances adhere to industry guidelines
  • Precise machining and processes ensure consistent finish and high quality

Package Details

Shipping Weight: 2.25 pounds
Package Size: 5.2 x 4.8 x 1.6 inches

Product Description

FHP Sheave BS.
