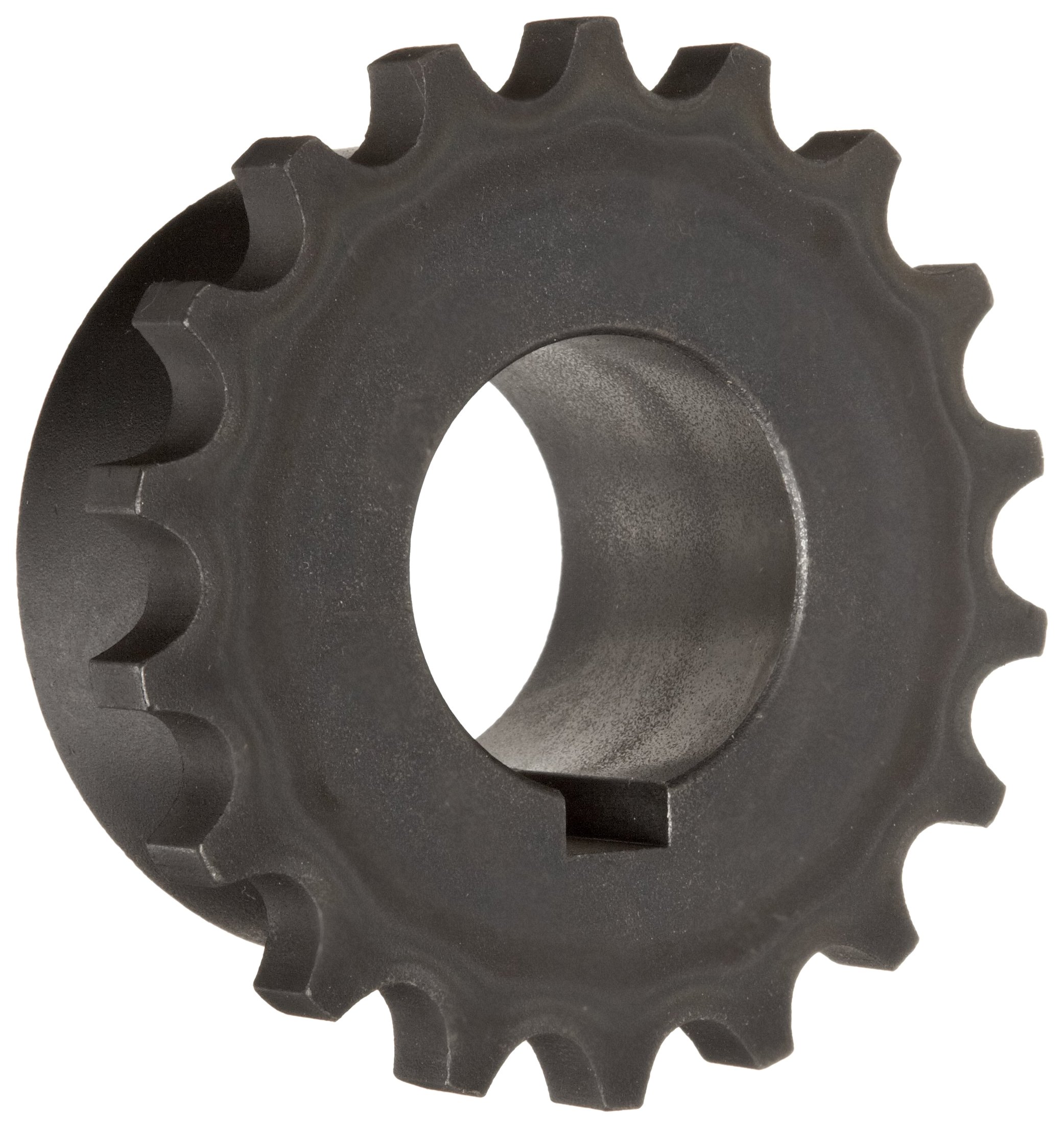

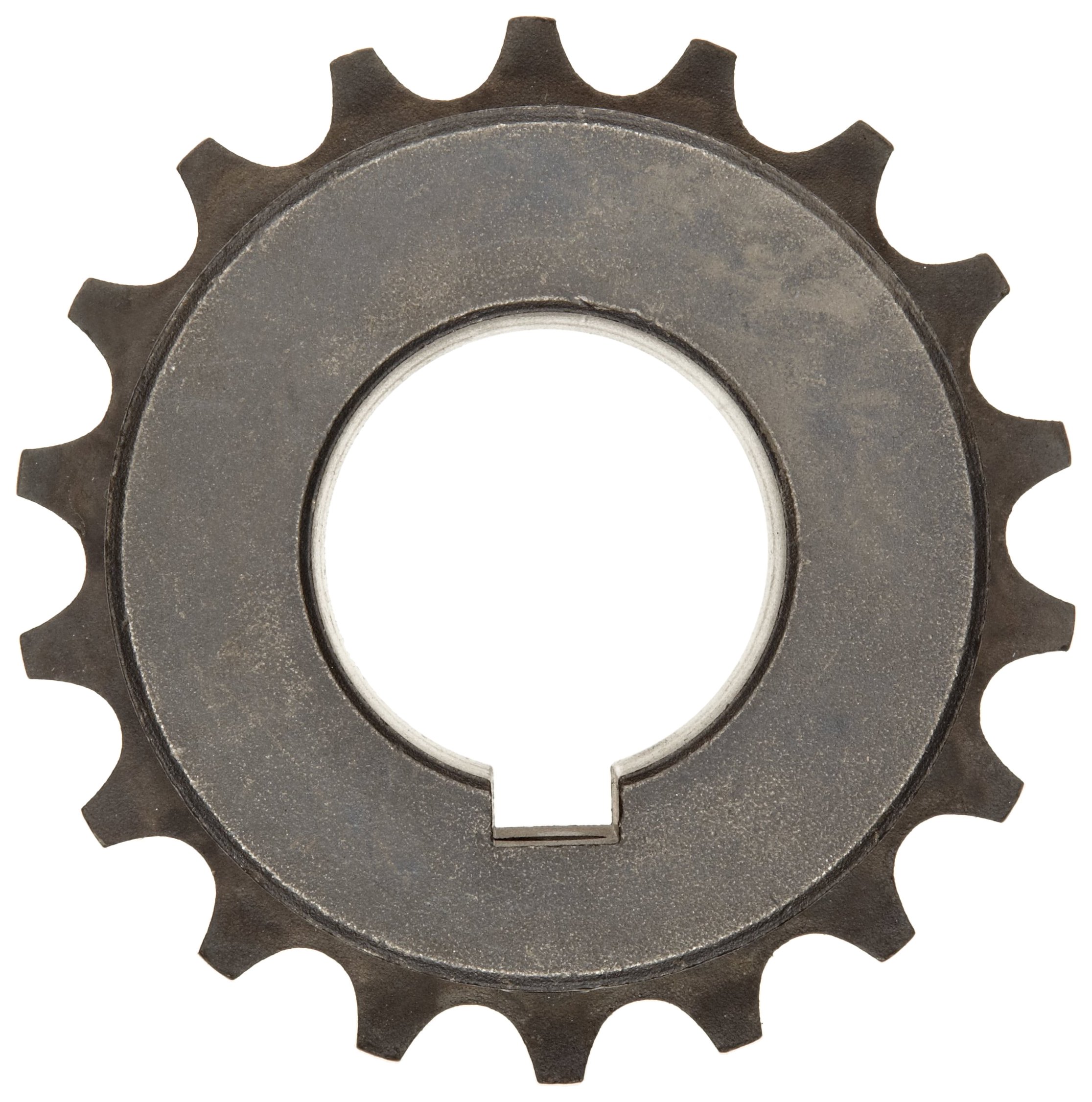

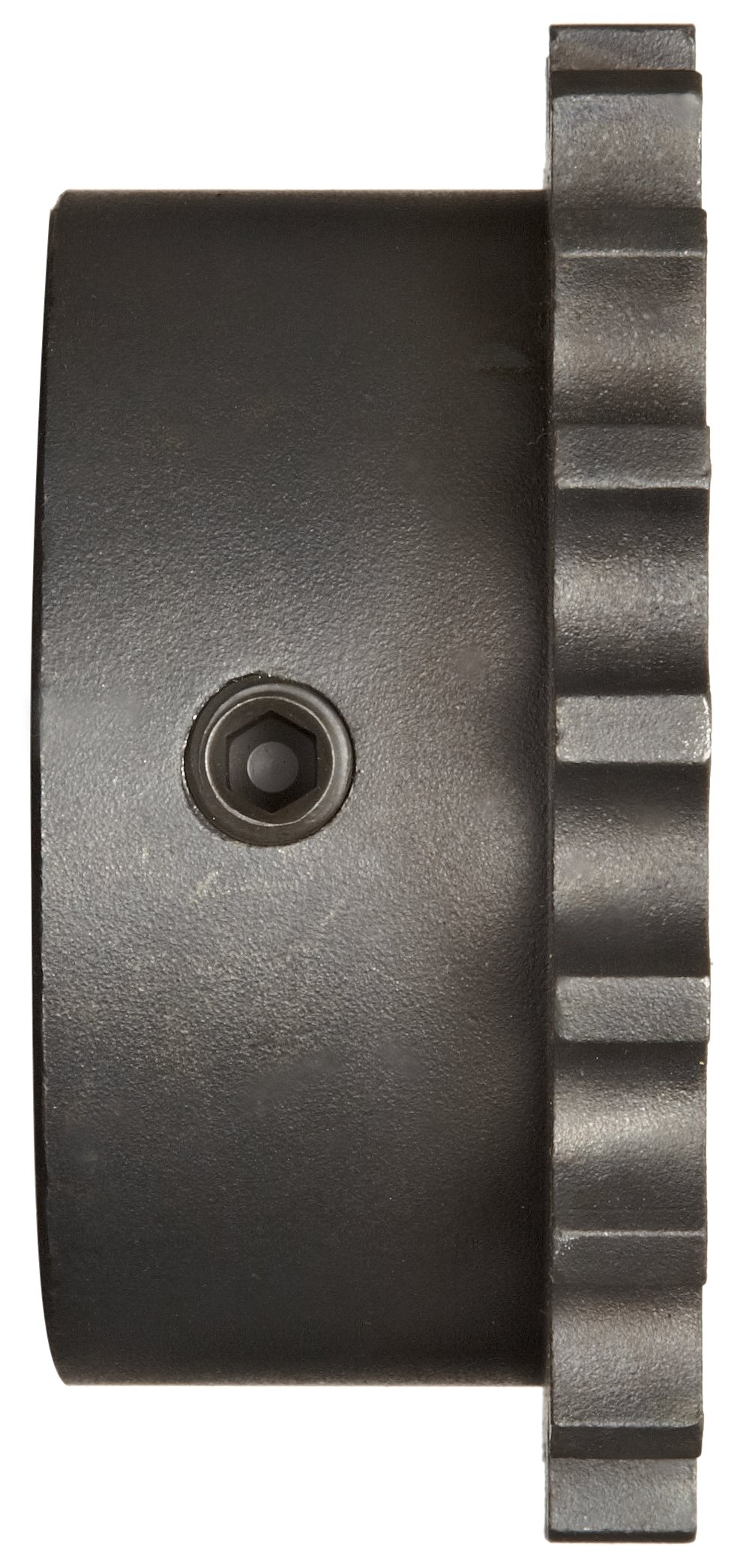

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Martin Roller Chain Coupling, Sintered Steel, Inch

Be the first to review this item

Product Specifications
Material Type
Steel
UNSPSC Code
31163027
Brand Name
Martin
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Jul 31? Order in-stock items in the next 11 hrs 26 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 38 Next 18 »
Mfr Part # Coupling Size Bore A Diameter Length ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-20 of 38 Next 18 »
4012 1/2 4012 1/2" 1 1/8" B004BJ16AO 1 $24.86 Buy Options
4012 3/4 4012 3/4" 1 1/8" B004BJ16B8 1 $19.86 Buy Options
4012 5/8 4012 5/8" 1 1/8" B004BJ16AY 2 $22.18 Buy Options
4016 1 4016 1" 1 1/8" B004BJ16G8 1 $22.95 Buy Options
4016 1 1/4 4016 1 1/4" 1 1/8" B004BJ16GI 1 $19.05 Buy Options
4016 1 1/8 4016 1 1/8" 1 1/8" B004BJ16HW 1 $23.81 Buy Options
4016 1 3/16 4016 1 3/16" 1 1/8" B004BJ16I6 4 $8.47 Buy Options
4016 15/16 4016 15/16" 1 1/8" B004BJ16FY 2 $26.21 Buy Options
4016 3/4 4016 3/4" 1 1/8" B004BJ16FE 2 $26.18 Buy Options
4016 5/8 4016 5/8" 1 1/8" B004BJ16F4 2 $26.18 Buy Options
4016 7/8 4016 7/8" 1 1/8" B004BJ16FO 2 $28.76 Buy Options
5016 1 5016 1" 1 7/16" B004BJ16M2 2 $34.49 Buy Options
5016 1 1/2 5016 1 1/2" 1 7/16" B004BJ16NG 2 $34.49 Buy Options
5016 1 1/4 5016 1 1/4" 1 7/16" B004BJ16NQ 1 $34.49 Buy Options
5016 1 1/8 5016 1 1/8" 1 7/16" B004BJ16OK 4 $34.49 Buy Options
5016 1 3/16 5016 1 3/16" 1 7/16" B004BJ16OU 1 $36.41 Buy Options
5016 1 3/8 5016 1 3/8" 1 7/16" B004BJ16P4 3 $34.49 Buy Options
5016 1 7/16 5016 1 7/16" 1 7/16" B004BJ16PO 3 $36.92 Buy Options
5016 3/4 5016 3/4" 1 7/16" B004BJ16LI 1 $34.49 Buy Options
5016 7/8 5016 7/8" 1 7/16" B004BJ16LS Usually ships in 2 to 4 weeks $34.49 Buy Options

Key Features

  • Simplex sprocket coupling half for joining two perpendicular shafts
  • Sintered steel for strength and hardness
  • Hardened teeth for resistance to wear and fatigue
  • Accommodates up to 2 degrees of angular misalignment between shafts
  • Keyway for preventing rotation between the two elements

Product Description

This Martin hub is one of two simplex sprockets used in a roller chain coupler for joining and transmitting power to two perpendicular shafts. It is made of sintered steel for strength and hardness and has hardened teeth for resistance to wear and fatigue. When connected, the coupler accommodates for up to 2 degrees of angular misalignment between shafts, and is used in low-speed, high-torque applications. It has a keyway for preventing rotation between the two elements. This sprocket meets American National Standard Institute (ANSI) standards, and is suitable for use in farming, mining, metal manufacturing, among other applications.

Roller chain sprockets are circular gear elements with deep, uniformly spaced teeth ringing the circumference of the gear. The distance from the peak of one tooth to the next is called the pitch, and is commonly measured in 1/8" increments. In the center of the sprocket is the bore (hole) which, depending on the sprocket's design and application, might be augmented by a bushing or a bearing through which it is fixed to a shaft. The sprocket transfers power and motion by a roller chain that is threaded over the teeth of the sprocket. The chain links align with the sprocket's pitch and at a length that prevents the chain from skipping, slipping, or binding. Mounting space varies in application and generally determines the type of hub—a protruding, raised lip encircling the bore—a sprocket has. A hub on either side of the sprocket is a Type C hub, a hub on one side of the sprocket is a Type B hub, and a no hub on either side is a Type A hub. Some applications may require a sprocket to be swapped onto a shaft of a different diameter. To make this swapping easier, designs have evolved where a sprocket might have a bore of a particular uniform size, and then bushings that have an outside diameter matching the bore of the sprocket but have varying inside bore diameters to accommodate different sized shafts can be swapped in as needed. Roller chain sprockets are used in a broad range of applications where the drive power of an engine needs to be transferred into motion, such as in motor vehicles, conveyors, escalators, agricultural, forestry and mining equipment, aeronautics, robotics and space exploration, among others.

Martin Sprocket & Gear manufactures power transmission products, material handling components, and industrial hand tools. The company, founded in 1951 and headquartered in Arlington, TX, meets International Organization for Standardization (ISO) standard 9001:2008.
