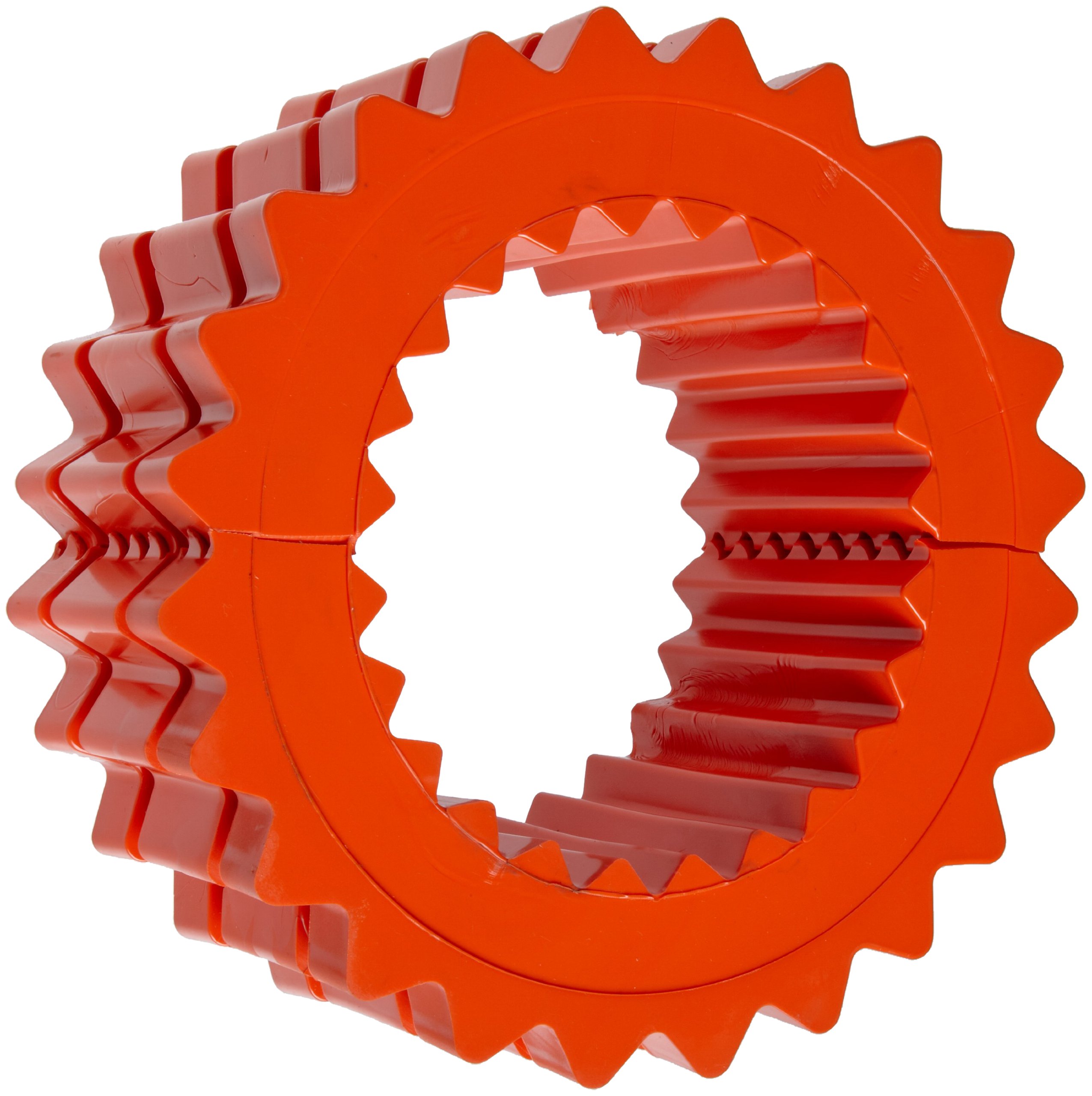

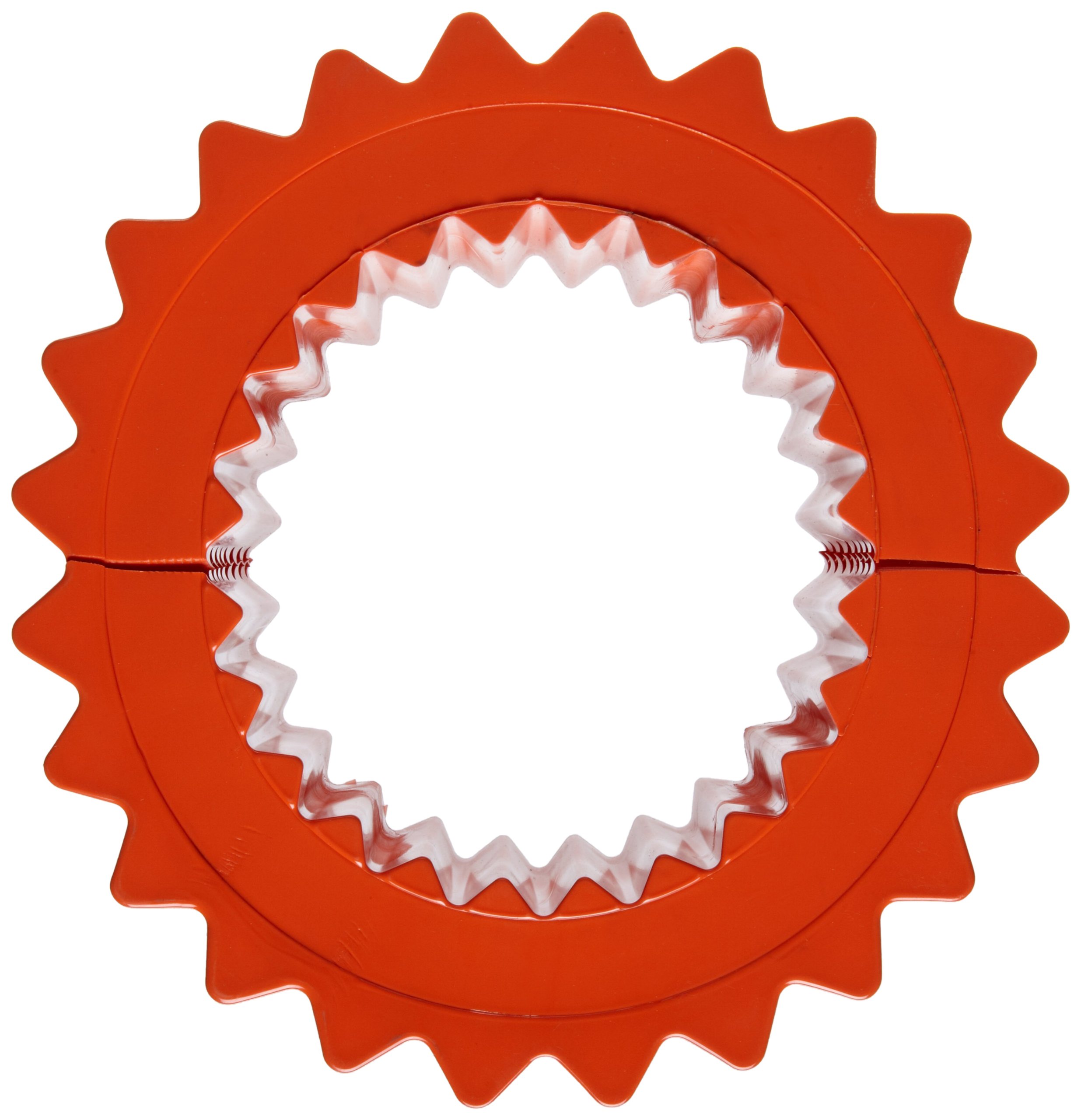

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Martin Quadra-Flex Sleeve, Hytrel, Inch

Be the first to review this item

Product Specifications
Material Type
Rubber
UNSPSC Code
31163021
Brand Name
Martin
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 3 days 2 hrs 19 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-15 of 15
Mfr Part # Coupling Size Outside Diameter Length ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-15 of 15
10H 10H 7.0625" 3.438" B004BJ1AF0 yes $177.19 Buy Options
10HS 10HS 7.0625" 3.438" B004BJ1AFU yes $182.38 Buy Options
11H 11H 8.188" 4" B004BJ1AIM yes $270.53 Buy Options
11HS 11HS 8.188" 4" B004BJ1ALY yes $273.67 Buy Options
12H 12H 9.563" 4.688" B004BJ1AO6 yes $402.20 Buy Options
12HS 12HS 9.563" 4.688" B004BJ1AOQ yes $410.09 Buy Options
13HS 13HS 11.188" 5.5" B004BJ1ARI yes $675.71 Buy Options
6H 6H 3.75" 1.875" B004BJ1A1O yes $65.67 Buy Options
6HS 6HS 3.75" 1.875" B004BJ1A28 Usually ships in 2 to 4 weeks $63.32 Buy Options
7H 7H 4.344" 2.188" B004BJ1A50 yes $95.32 Buy Options
7HS 7HS 4.344" 2.188" B004BJ1A5U yes $98.10 Buy Options
8H 8H 5.063" 2.5" B004BJ1A8C yes $102.80 Buy Options
8HS 8HS 5.063" 2.5" B004BJ1A8W yes $101.41 Buy Options
9H 9H 6" 3" B004BJ1ABO yes $135.37 Buy Options
9HS 9HS 6" 3" B004BJ1AC8 yes $145.35 Buy Options

Key Features

  • For use with Martin S and SC type flanges in the Quadra-Flex series flexible coupling assemblies (sold separately)
  • Thermoplastic polyester elastomer for high torque and high temperature applications
  • Two types: one piece (Type H) and two-piece held together with a metal retaining ring (Type HS) for applications where space limitations prevent the installation of a one piece sleeve
  • Teeth help to distribute torsional load across the sleeve and flanges, reducing wear and extending service life

Product Description

This Martin Quadra-Flex coupling sleeve is for use with Martin S and SC style flanges in the Quadra-Flex series flexible couplings. It is made of thermoplastic polyester elastomer for high torque and high temperature applications and its teeth help to distribute torsional load across it and the flanges, reducing wear and extending service life. This Quadra-Flex coupling sleeve comes in two types: one piece (Type H), and two-piece that is held together with a metal retaining ring (Type HS) for applications where space limitations prevent the installation of a one piece sleeve. Martin Quadra-Flex couplings are suitable for use in applications that require torsional flexibility and the capacity to withstand shock loads and vibration, including blowers, compressors, conveyors, dredges, feeders, generators, mills, and presses, among others.

Flexible couplings are used to link two rotating shafts that are not aligned in order to transmit the rotational power, known as torque, from one shaft to the other. Most flexible couplings consist of two hubs and a middle assembly; each hub attaches to a shaft while the middle assembly flexes between the hubs to accommodate the misalignment of the two shafts. Shaft misalignments are generally either parallel or angular and cause complications to transmitting rotational power from one shaft to another in the form of stresses, loads, vibrations, and other forces, which vary from one type of misalignment to another. Flexible couplings are used in a broad range of applications, such as in motor vehicles, conveyors, escalators, agricultural, forestry and mining equipment, aeronautics, robotics and space exploration, among others.

Martin Sprocket & Gear manufactures power transmission and conveying products. Martin provides tools that meet American National Standards Institute (ANSI), National Aerospace Standard (NAS), and Deutsches Institut für Normung (DIN) standards. The company, founded in 1951, is headquartered in Arlington, TX.
