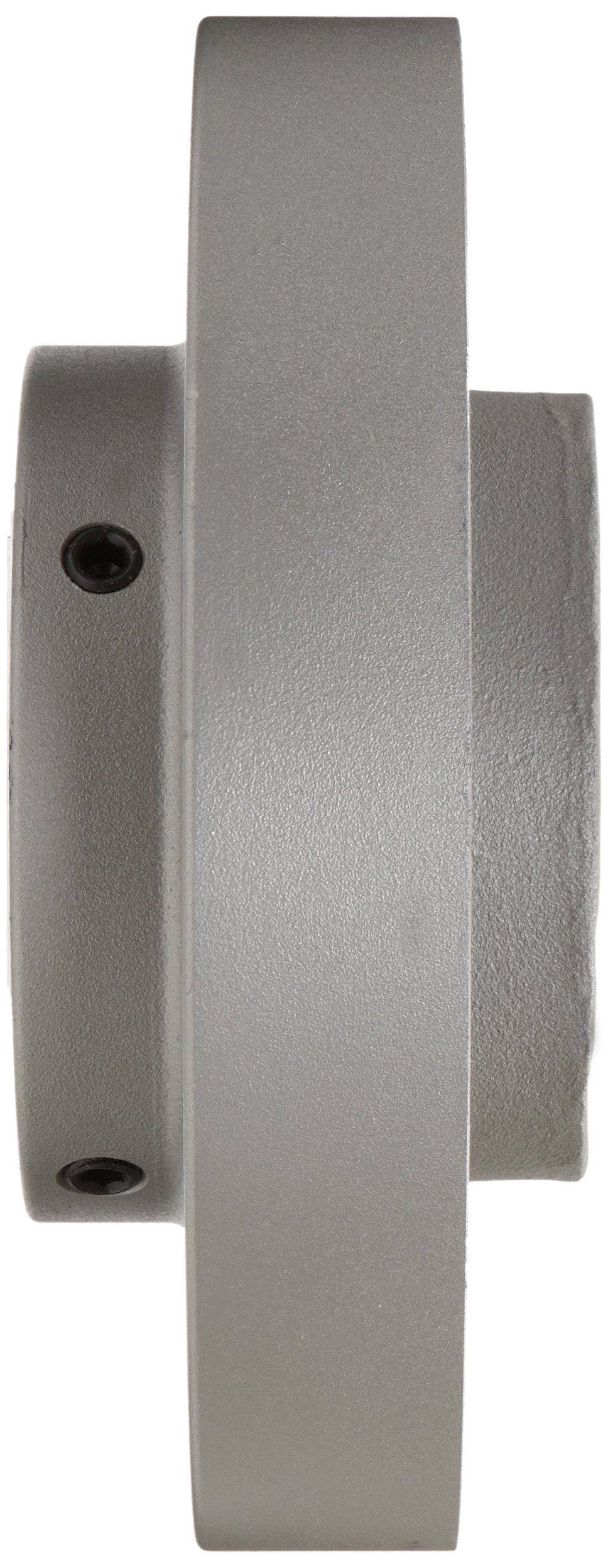

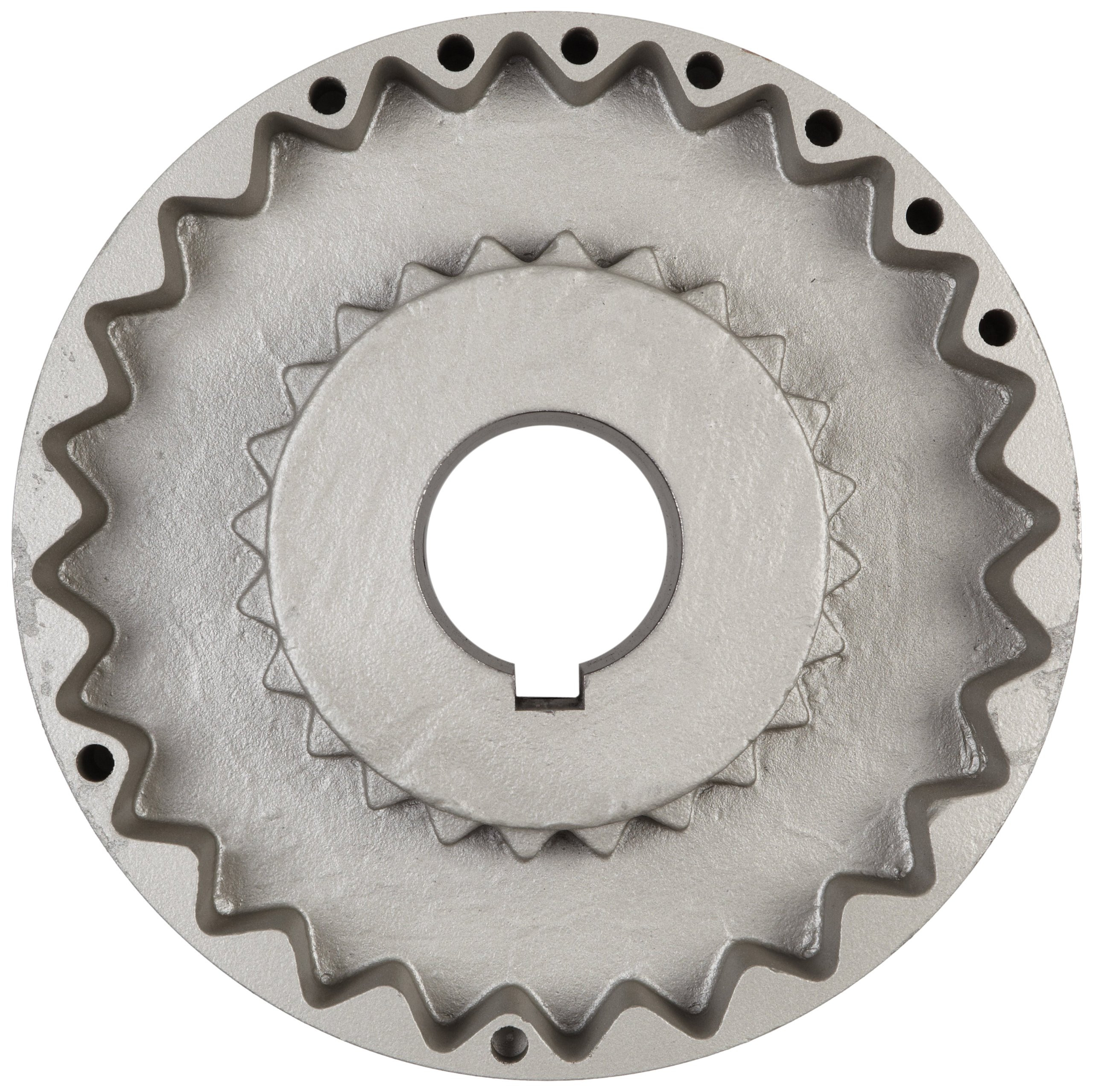

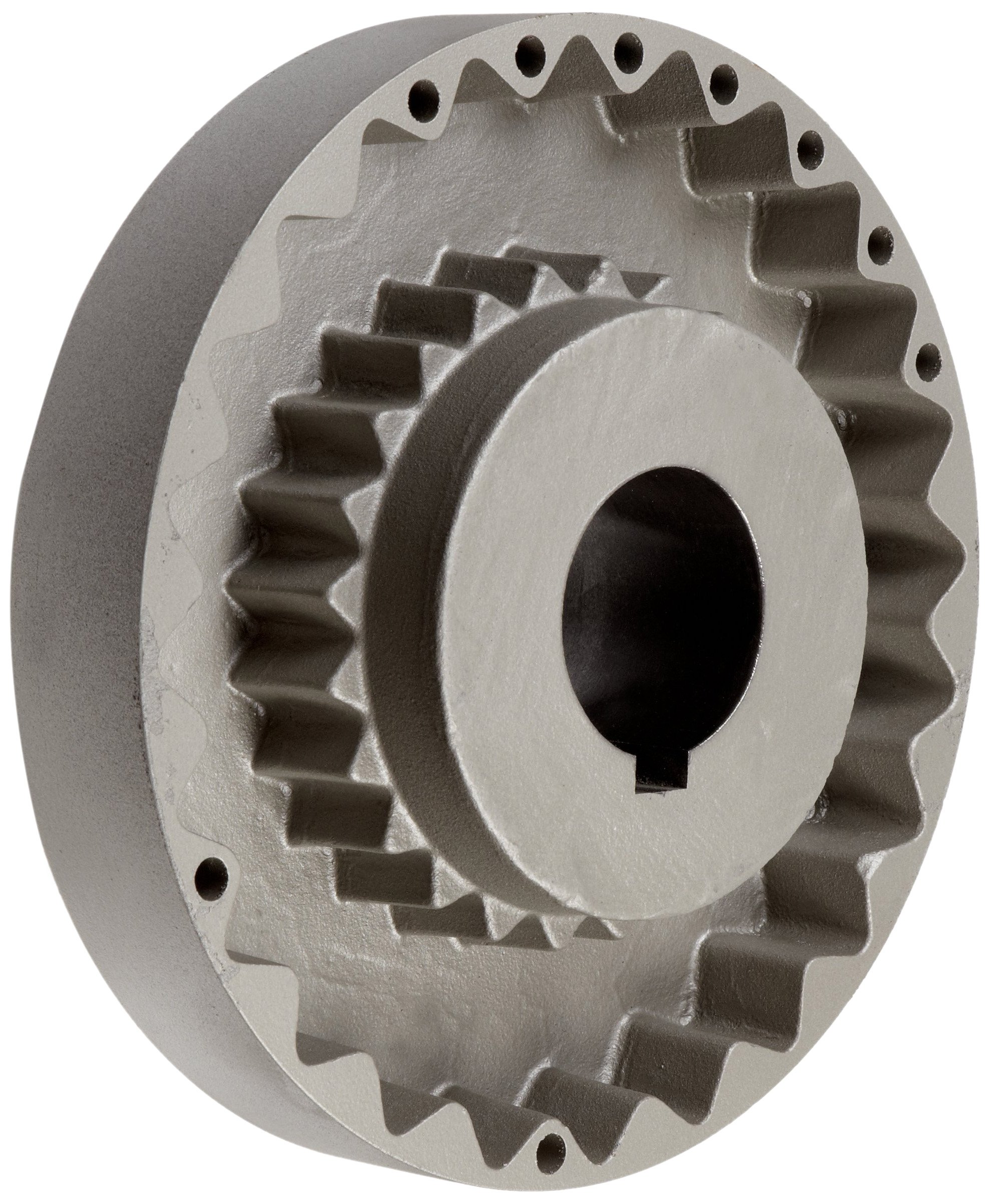

Martin Quadra-Flex Coupling Flange, Cast Iron, Inch

Be the first to review this item

Product Specifications
Material Type
Cast Iron
UNSPSC Code
31163021
Brand Name
Martin
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Dec 23? Order in-stock items in the next 1 day 3 hrs 50 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 81 Next 20 »
Mfr Part # Coupling Size Bore A Diameter Bore B Diameter Outside Diameter Length Torque ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-20 of 81 Next 20 »
10S 1 1/2 10S 1.5" 1.5" 7.5" 2.656"   B004BJ1CLC yes $77.76 Buy Options
10S 1 1/4 10S 1.25" 1.25" 7.5" 2.656"   B004BJ1CLM yes $77.76 Buy Options
10S 1 1/8 10S 1.125" 1.125" 7.5" 2.656"   B004BJ1CLW yes $77.76 Buy Options
10S 1 11/16 10S 1.688" 1.688" 7.5" 2.656"   B004BJ1CM6 yes $77.76 Buy Options
10S 1 15/16 10S 1.938" 1.938" 7.5" 2.656"   B004BJ1CMG yes $77.76 Buy Options
10S 1 3/4 10S 1.75" 1.75" 7.5" 2.656"   B004BJ1CMQ yes $24.78 Buy Options
10S 1 3/8 10S 1.375" 1.375" 7.5" 2.656"   B004BJ1CN0 yes $77.76 Buy Options
10S 1 5/8 10S 1.625" 1.625" 7.5" 2.656"   B004BJ1CNA yes $80.00 Buy Options
10S 1 7/16 10S 1.438" 1.438" 7.5" 2.656"   B004BJ1CNK yes $77.76 Buy Options
10S 1 7/8 10S 1.875" 1.875" 7.5" 2.656"   B004BJ1CNU yes $77.76 Buy Options
10S 1 9/16 10S 1.563" 1.563" 7.5" 2.719"   B004BJ1CO4 yes $77.76 Buy Options
10S 2 10S 2" 2" 7.5" 2.656"   B004BJ1COE yes $77.76 Buy Options
10S 2 1/16 10S 2.063" 2.063" 7.5" 2.719"   B004BJ1CP8 yes $77.76 Buy Options
10S 2 1/2 10S 2.5" 2.5" 7.5" 2.656"   B004BJ1CPI yes $22.45 Buy Options
10S 2 1/4 10S 2.25" 2.25" 7.5" 2.656"   B004BJ1CPS yes $77.76 Buy Options
10S 2 1/8 10S 2.125" 2.125" 7.5" 2.656"   B004BJ1CQ2 yes $77.76 Buy Options
10S 2 3/16 10S 2.188" 2.188" 7.5" 2.656"   B004BJ1CQC yes $77.76 Buy Options
10S 2 3/4 10S 2.75" 2.75" 7.5" 2.719"   B004BJ1CQM yes $77.76 Buy Options
10S 2 3/8 10S 2.375" 2.375" 7.5" 2.656"   B004BJ1CR6 yes $77.76 Buy Options
10S 2 7/16 10S 2.438" 2.438" 7.5" 2.656"   B004BJ1CRG yes $64.97 Buy Options

Key Features

  • For use with Martin Quadra-Flex series flexible couplings (sold separately)
  • Cast iron for non-corrosive applications where strength and heat dissipation are factors and weight is not
  • Meshes with S style spacers
  • Transfers shock and misalignment to the center element of the coupling assembly for reduced wear on the shaft assembly
  • Teeth help to distribute torsional load across the flange and sleeve, reducing wear and extending service life

Product Description

This Martin Quadra-Flex spacer coupling S style flange replaces flanges on Martin Quadra-Flex series flexible couplings, meshes with S style spacers, and is made of cast iron for non-corrosive applications where strength and heat dissipation are factors and weight is not. It transfers shock and misalignment to the center element of the coupling assembly for reduced wear on the shaft assembly, and its teeth help to distribute torsional load across the sleeve to reduce wear and extend service life. Martin Quadra-Flex couplings are suitable for use in applications requiring torsional flexibility and the capacity to withstand shock loads and vibration, including blowers, compressors, conveyors, dredges, feeders, generators, mills, and presses, among others.

Flexible couplings are used to link two rotating shafts that are not aligned in order to transmit the rotational power, known as torque, from one shaft to the other. Most flexible couplings consist of two hubs and a middle assembly; each hub attaches to a shaft while the middle assembly flexes between the hubs to accommodate the misalignment of the two shafts. Shaft misalignments are generally either parallel or angular and cause complications to transmitting rotational power from one shaft to another in the form of stresses, loads, vibrations, and other forces, which vary from one type of misalignment to another. Flexible couplings are used in a broad range of applications, such as in motor vehicles, conveyors, escalators, agricultural, forestry and mining equipment, aeronautics, robotics and space exploration, among others.

Martin Sprocket & Gear manufactures power transmission and conveying products. Martin provides tools that meet American National Standards Institute (ANSI), National Aerospace Standard (NAS), and Deutsches Institut für Normung (DIN) standards. The company, founded in 1951, is headquartered in Arlington, TX.
