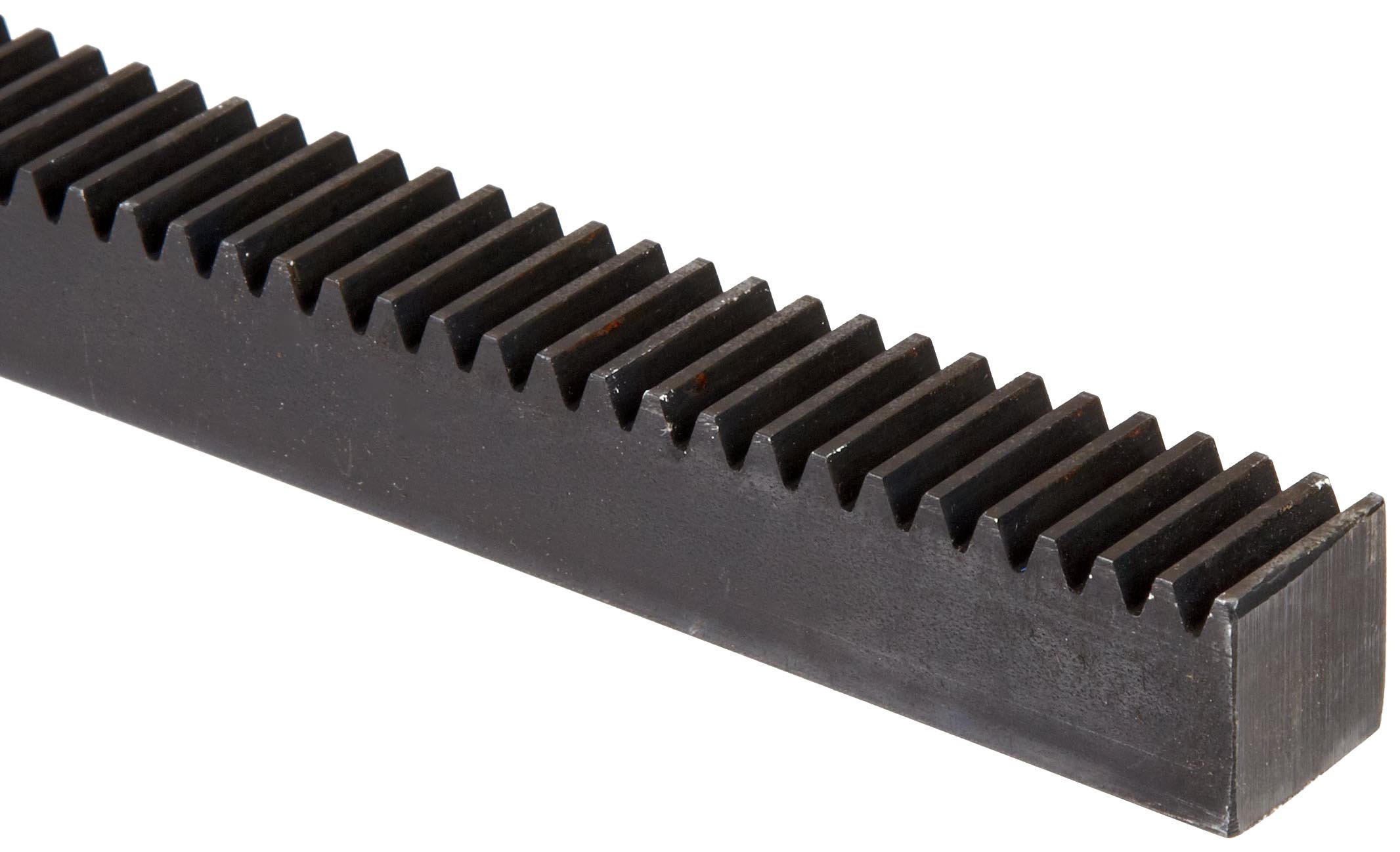

Martin Gear Rack, 20 Degree Pressure Angle, 2 feet Long, High Alloy Steel, Inch

Be the first to review this item

Product Specifications
Number of Items
1
Material Type
Alloy Steel
Part Number
Martin-Rack-Parent-4
UNSPSC Code
31171700
Brand Name
Martin
Overall Length
2  feet
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Oct 2? Order in-stock items in the next 3 hrs 47 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-17 of 17
Item pitch string Face width string Item thickness string Pitch line to base string ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-17 of 17
10 1 inches 1 inches 0.9 inches B004BDOA1M yes $49.03 Buy Options
10 1.25 inches 1.25 inches 1.15 inches B004BDOALW yes $62.41 Buy Options
12 0.75 inches 0.75 inches 0.667 inches B004BDOA4Y yes $43.80 Buy Options
12 1 inches 1 inches 0.917 inches B004BDOAMQ yes $52.40 Buy Options
16 0.5 inches 0.5 inches 0.438 inches B004BDOA76 yes $40.33 Buy Options
16 0.75 inches 0.75 inches 0.688 inches B004BDOAOO yes $46.78 Buy Options
20 0.375 inches 0.375 inches 0.325 inches B004BDOAAI yes $38.89 Buy Options
20 0.5 inches 0.5 inches 0.45 inches B004BDOAPI yes $39.68 Buy Options
3 3 inches 1.5 inches 1.167 inches B004BDO9NQ yes $235.49 Buy Options
4 2 inches 1.5 inches 1.25 inches B004BDO9Q8 yes $152.09 Buy Options
4 3.5 inches 2 inches 1.75 inches B004BDOACG yes $285.87 Buy Options
5 1.75 inches 1.25 inches 1.05 inches B004BDO9TU yes $104.04 Buy Options
5 2.5 inches 1.5 inches 1.3 inches B004BDOAF8 yes $175.66 Buy Options
6 1.5 inches 1.5 inches 1.333 inches B004BDO9W2 yes $79.73 Buy Options
6 2 inches 1.5 inches 1.333 inches B004BDOAHG yes $199.41 Buy Options
8 1.25 inches 1.25 inches 1.125 inches B004BDO9ZO yes $75.66 Buy Options
8 1.5 inches 1.5 inches 1.375 inches B004BDOAJE yes $99.48 Buy Options

Key Features

  • Gear rack for use with spur gear pinion to convert rotary motion into linear motion
  • High alloy steel for strength and durability
  • Pressure angle of 20 degrees for a lower contact ratio between gears
  • Rack length sized for up to 2' of linear movement from rotary motion
  • Meets AGMA commercial class standards

Product Description

This Martin gear rack is 2' in length and is used with a spur gear pinion to convert rotary motion into linear motion. It is made of high alloy steel for strength and durability. The 20-degree pressure angle (PA) provides a lower contact ratio between gears than a 14.5-degree pressure angle. The rack length is sized for up to 2' of linear movement and meets American Gear Manufacturing Association (AGMA) standards 6-8 for commercial class gears. This gear rack is intended for use with matching pinion gears with the same pressure angle, number of teeth, and diametral pitch (number of teeth per inch). It is suitable for use in a variety of commercial and industrial applications, such as machine tool tables, lift mechanisms, guide mechanisms, and shakers, among others.

Rack and pinion gears are made of a small round spur gear (the pinion) and a flat bar with evenly spaced teeth (the rack). Rack and pinion gears convert rotational motion into linear motion. As the pinion turns, its teeth mesh with the rack’s teeth to move it in a straight line. Gears are available in a variety of materials, including stainless steel, cast iron, brass, and plastic, depending on application. There are several other factors to consider when selecting the appropriate gear for an application. The gear’s outside diameter is the longest linear distance across a gear. The bore diameter is the distance across the hole located in the center of a gear, where the mounting shaft will be inserted. The hub diameter is the distance from one tip of the shoulder (the hub) to the other. The thickness is the distance measured from the tip of a gear tooth to the gear’s bore or base (for a gear rack). The number of the teeth refers to the number of teeth around a gear. The pitch, also called the diametral pitch, is the number of teeth divided by the pitch diameter, and it can also serve as a guide for tooth size. Rack and pinion gears are commonly used in automotive steering, meat processing, and rack railways, among other applications.

Martin Sprocket & Gear manufactures power transmission products, material handling components, and industrial hand tools. The company, founded in 1951 and headquartered in Arlington, TX, meets International Organization for Standardization (ISO) standard 9001:2008.
