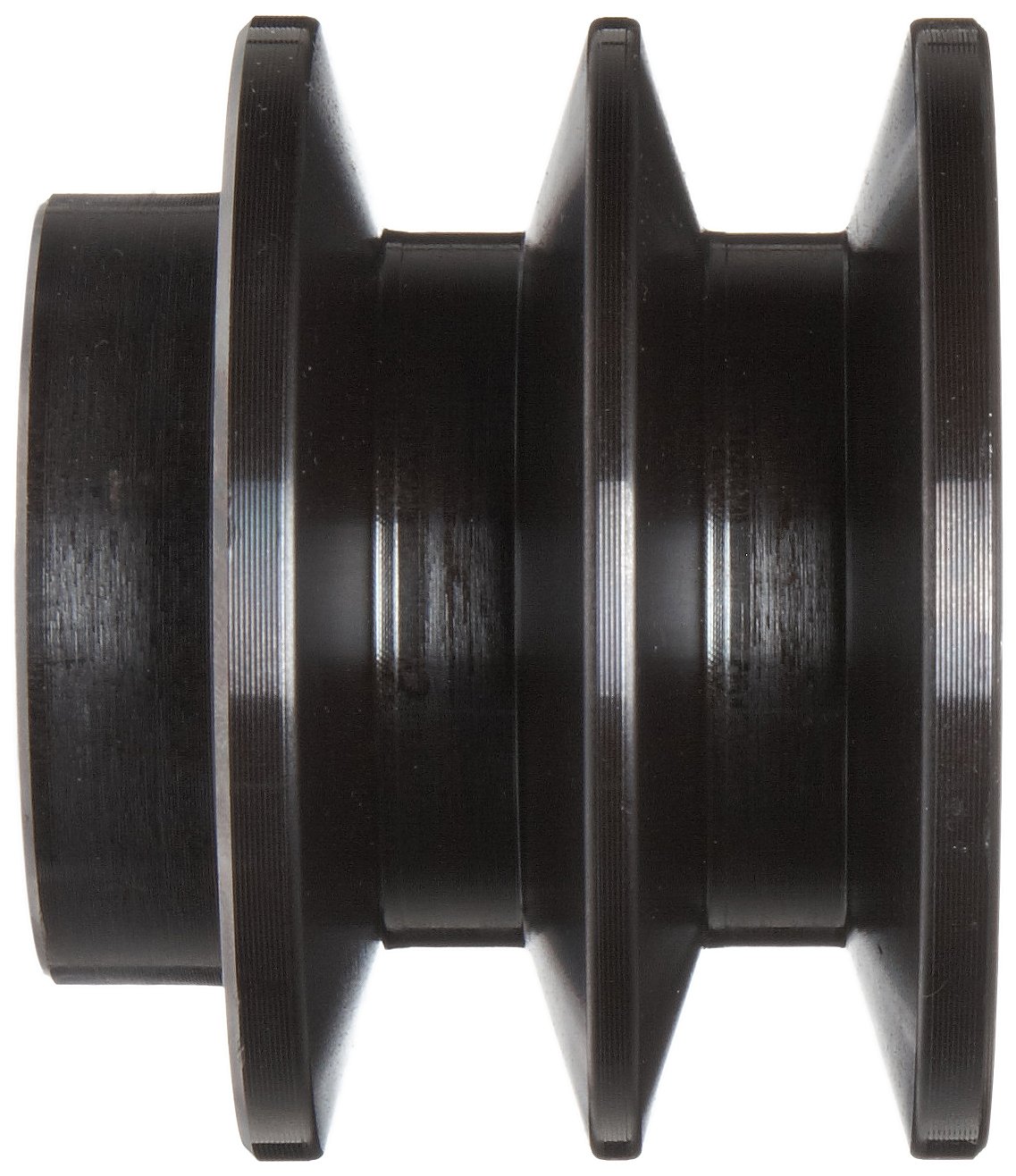

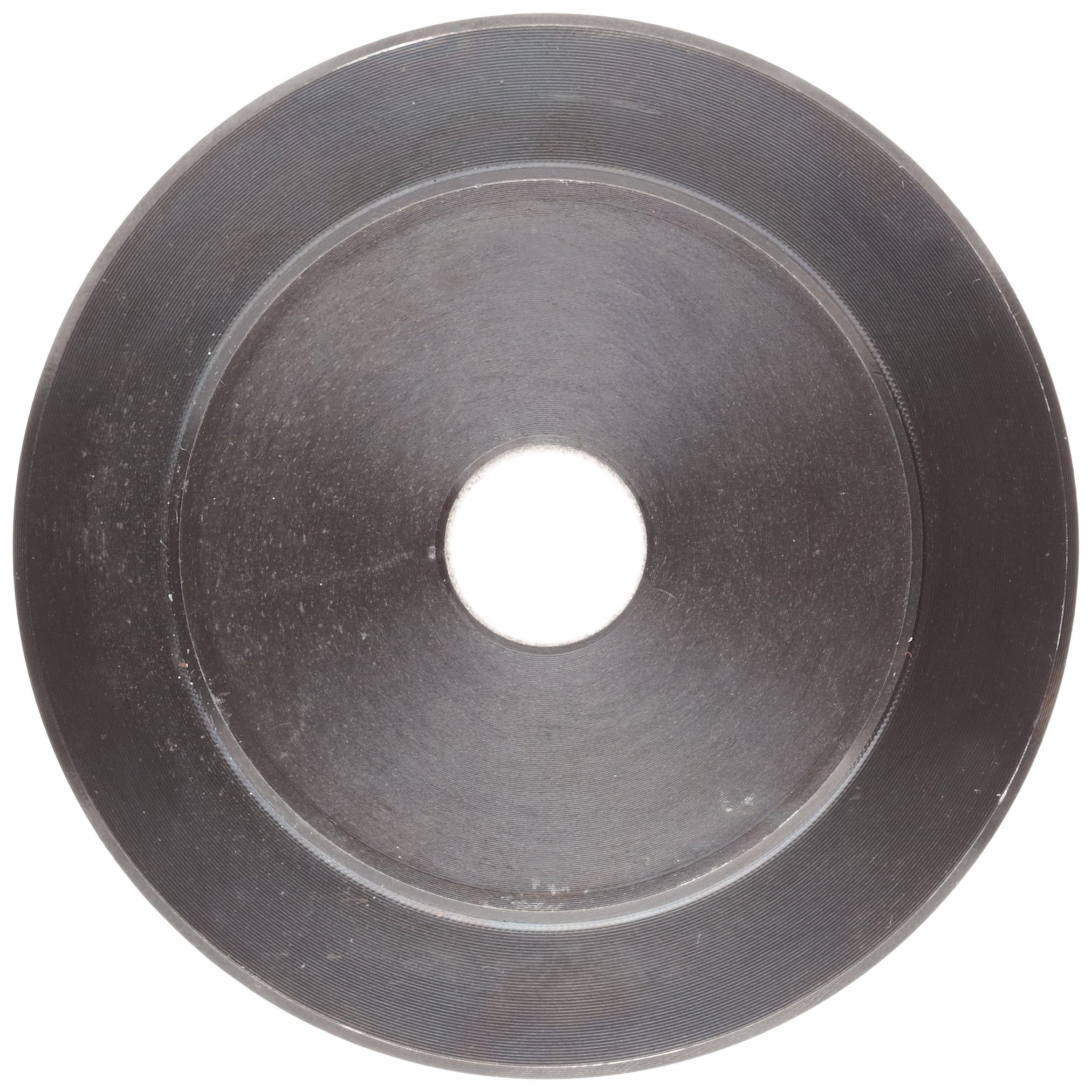

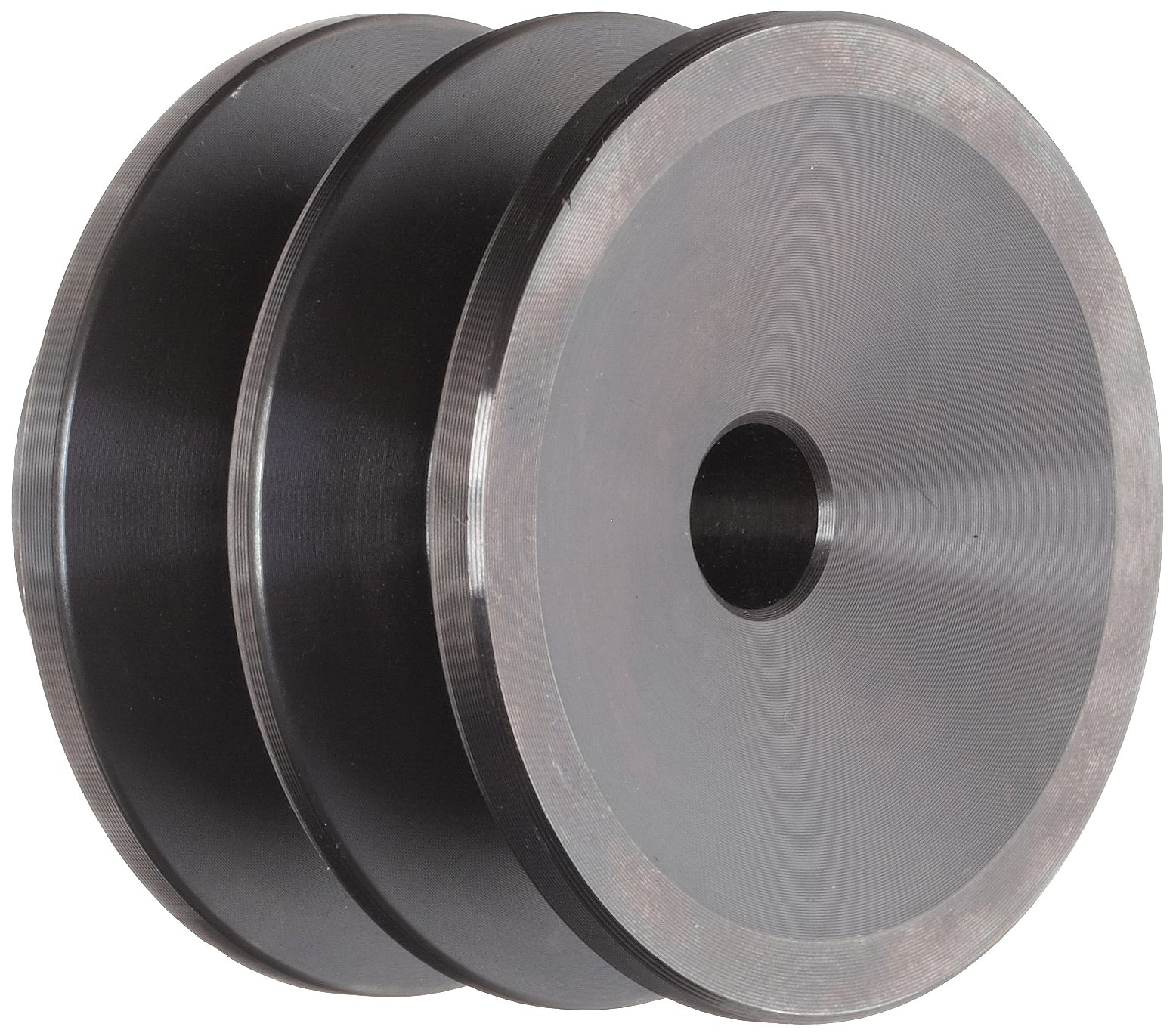

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Martin Plain Bore FHP Sheave, 4L/5L or B Belt Section, 2 Grooves, 1/2" Bore, Class 30 Gray Cast Iron

Be the first to review this item

Product Specifications
UNSPSC Code
24101613
Brand Name
Martin

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share
Currently showing 1-1 of 1
Outside Diameter Bore Diameter Max Rotational Speed

Datum ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-1 of 1
2.7" 0.5" 9189 max rpm 2.1 Datum/2.5 Datum B004BKJG4Q yes $39.86 Buy Options

Key Features

  • V-belt sheave for fractional horsepower motors
  • ASTM A48 Class 30 gray cast iron for resistance to wear, galling, and corrosion
  • For use with 4L/5L or B belt or cross section
  • Two grooves for multiple or banded belt use

Product Description

This Martin 2BK sheave is a V-belt pulley for fractional horsepower motors. It is a minimum plain bore (MPB) sheave that doesn't require a keyway or set screw. It is made of American Society for Testing and Materials (ASTM) A48 Class 30 gray cast iron for resistance to wear, galling, and corrosion. It fits 4L/5L or B belt sections and has two grooves for multiple or banded belt use. This double-groove sheave is suitable for light duty applications such as HVAC.

Pulley drive systems consist of two or more pulleys that connect with a belt to transmit mechanical power across greater distances than systems that use gears. Pulleys (sheaves) are available in different types: V-belt, timing, round, or flat. Pulleys must match the belts that connect them (timing pulleys with trapezoidal grooves require a belt with trapezoidal teeth) and engage either on the sides of the pulley flange (classical V-belts, narrow V-belts, or round belts), on the flat outer diameter of the pulley (flat belts), or in pulley grooves that match belt teeth (timing belts, synchronous belts, or curvilinear belts). Pulleys are made of various materials, including cast iron, steel, aluminum, polycarbonate resin thermoplastic, and nylon, and they can meet a broad range of requirements, including increased torque, resistance to wear, and light weight. Pulleys are used in drive designs in the automotive, appliance, agriculture, textile, printing, mining, and office equipment industries.

Martin Sprocket & Gear manufactures power transmission products, material handling components, and industrial hand tools. The company, founded in 1951 and headquartered in Arlington, TX, meets International Organization for Standardization (ISO) standard 9001:2008.
