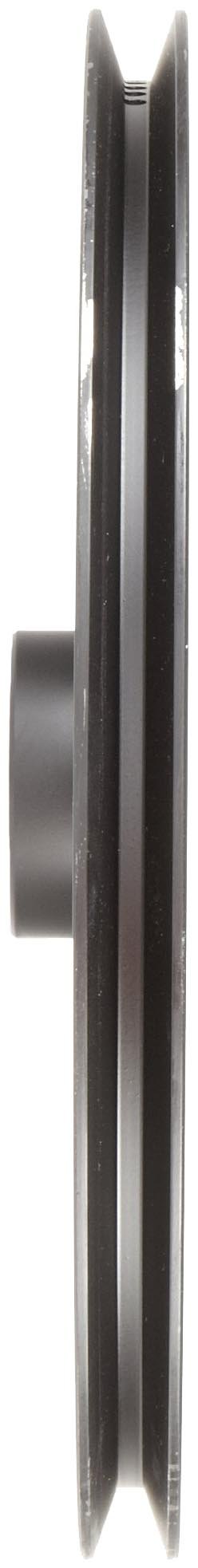

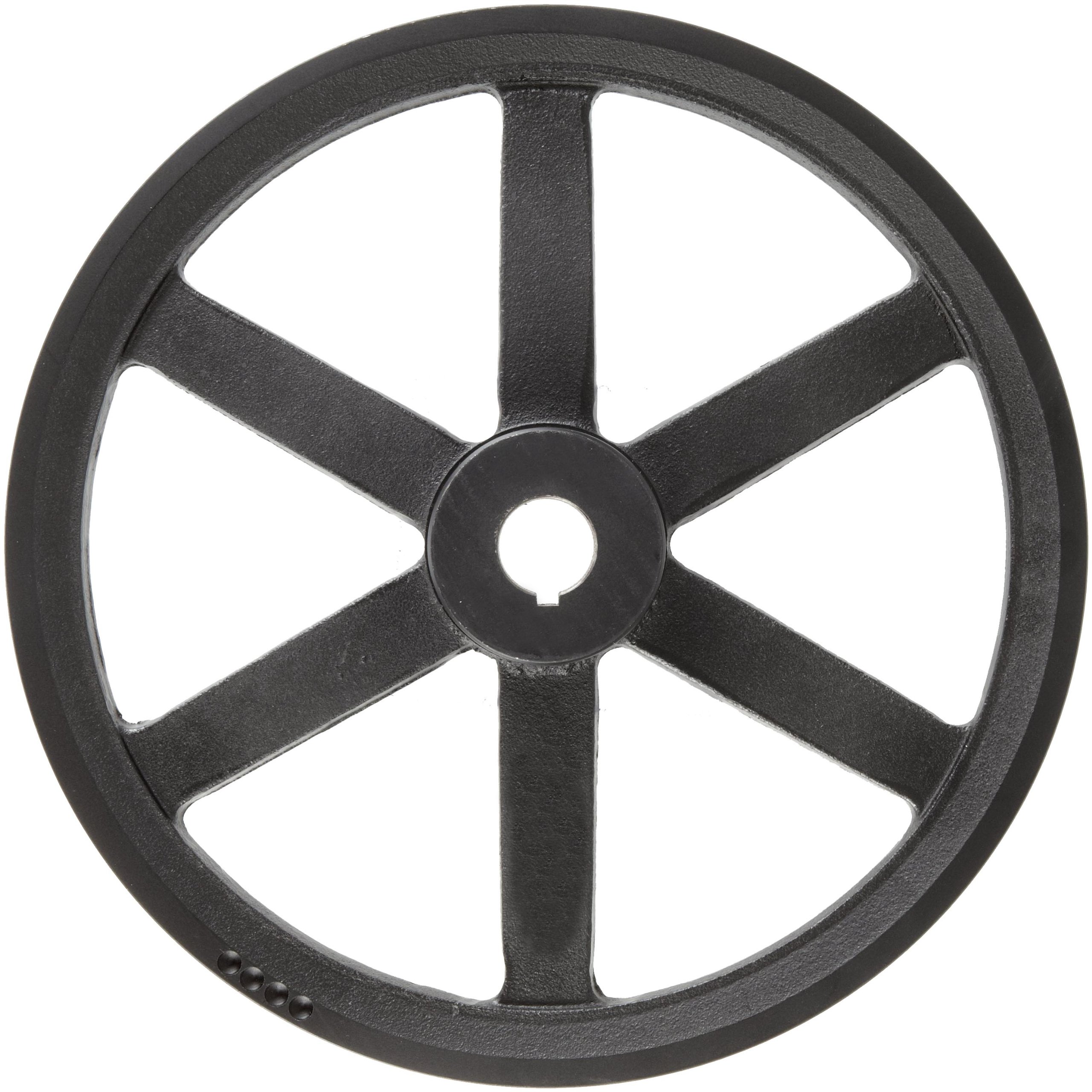

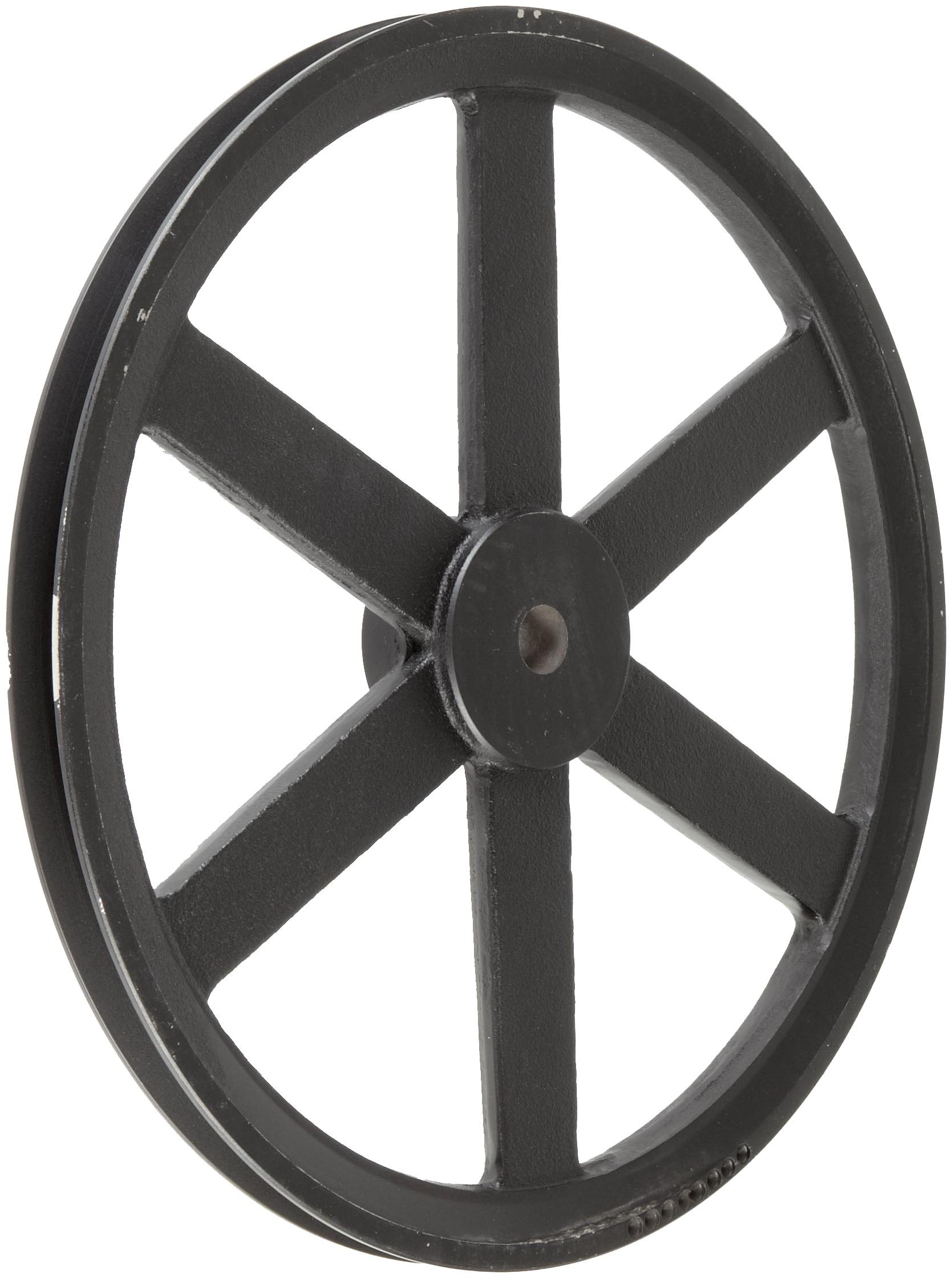

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Martin P/B Plain Bore FHP Sheave, 4L/5L or B Belt Section, 1 Groove, Class 30 Gray Cast Iron

Be the first to review this item

Product Specifications
Brand Name

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Nov 28? Order in-stock items in the next 16 hrs 33 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 31 Next 11 »
Outside Diameter Bore Diameter Max Rotational Speed

Datum ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

All All All All
Currently showing 1-20 of 31 Next 11 »
2.3" 0.50" 10787 max rpm 2.1 Datum B004BKJ7HM yes $5.25 Buy Options
2.4" 0.50" 10337 max rpm 1.8 Datum/2.2 Datum B004BKJ7OK yes $15.40 Buy Options
2.5" 0.50" 9924 max rpm 1.9 Datum/2.3 Datum B004BKJ7S6 yes $15.86 Buy Options
2.6" 0.50" 9542 max rpm 2 Datum/2.4 Datum B004BKJ7W2 yes $16.79 Buy Options
2.7" 0.50" 9189 max rpm 2.1 Datum/2.5 Datum B004BKJ82Q yes $5.50 Buy Options
2.95" 0.50" 8410 max rpm 2.2 Datum/2.6 Datum B004BKJ88U yes $17.45 Buy Options
3.55" 0.50" 6988 max rpm 2.8 Datum/3.2 Datum B004BKJ8VW yes $23.50 Buy Options
3.75" 0.50" 6616 max rpm 3 Datum/3.4 Datum B004BKJ93O yes $8.21 Buy Options
3.95" 0.50" 6281 max rpm 3.2 Datum/3.6 Datum B004BKJ9CK yes $25.99 Buy Options
4.25" 0.50" 5837 max rpm 3.5 Datum/3.9 Datum B004BKJ9KM yes $27.78 Buy Options
4.35" 0.50" 5703 max rpm 3.6 Datum/4 Datum B004BKJ9MU yes $30.08 Buy Options
4.45" 0.50" 5575 max rpm 3.7 Datum/4.1 Datum B004BKJ9U2 yes $29.43 Buy Options
4.55" 0.50" 5453 max rpm 3.8 Datum/4.2 Datum B004BKJA2Y yes $30.08 Buy Options
4.75" 0.50" 5223 max rpm 4 Datum/4.4 Datum B004BKJABU yes $30.54 Buy Options
4.95" 0.50" 5012 max rpm 4.2 Datum/4.6 Datum B004BKJAI8 yes $28.88 Buy Options
5.25" 0.50" 4726 max rpm 4.5 Datum/4.9 Datum B004BKJAPQ yes $32.39 Buy Options
5.45" 0.50" 4552 max rpm 4.7 Datum/5.1 Datum B004BKJAVK yes $31.18 Buy Options
5.75" 0.50" 4315 max rpm 5 Datum/5.4 Datum B004BKJB32 yes $31.77 Buy Options
5.95" 0.50" 4170 max rpm 5.2 Datum/5.6 Datum B004BKJBE6 yes $32.07 Buy Options
6.25" 0.63" 3969 max rpm 5.5 Datum/5.9 Datum B004BKJBMS yes $35.83 Buy Options

Key Features

  • Classical V-belt sheave fits widely available, classical profile V-belts suitable for use in many existing drive designs
  • Class 30 gray cast iron for resistance to wear and galling
  • 4L/5L or B belt or cross section
  • One groove for single belt use

Product Description

This Martin P/B plain bore FHP sheave with a 4L/5L or B belt section is made of 30 gray cast iron and comes with one groove. It is a classical V-belt sheave that fits a variety of widely available, classical profile V-belts suitable for use in many existing power transmission drives. This pulley is made of class 30 gray cast iron for resistance to wear, corrosion, and galling. It has a 4L/5L or B cross section and one groove for use with single belts. V-belt pulleys (sheaves) are used in a wide range of mechanical and electronic drives, including HVAC units, farm machinery, food processing equipment, and home appliances, among others.

V-belt pulleys (sheaves) are the component in a power transmission drive that transmits power to the belt. Typically made of cast iron, the pulleys and the V-belts that loop around them match in form – wide (classical) or narrow, single or multi-grooved. V-belt pulleys are found in drive designs in the agriculture, textile, printing, mining, and office equipment industries.

Martin Sprocket & Gear manufactures power transmission and conveying products. The company, founded in 1951 and headquartered in Arlington, TX, provides tools that meet American National Standards Institute (ANSI), National Aerospace Standard (NAS), and Deutsches Institut für Normung (DIN) standards.
