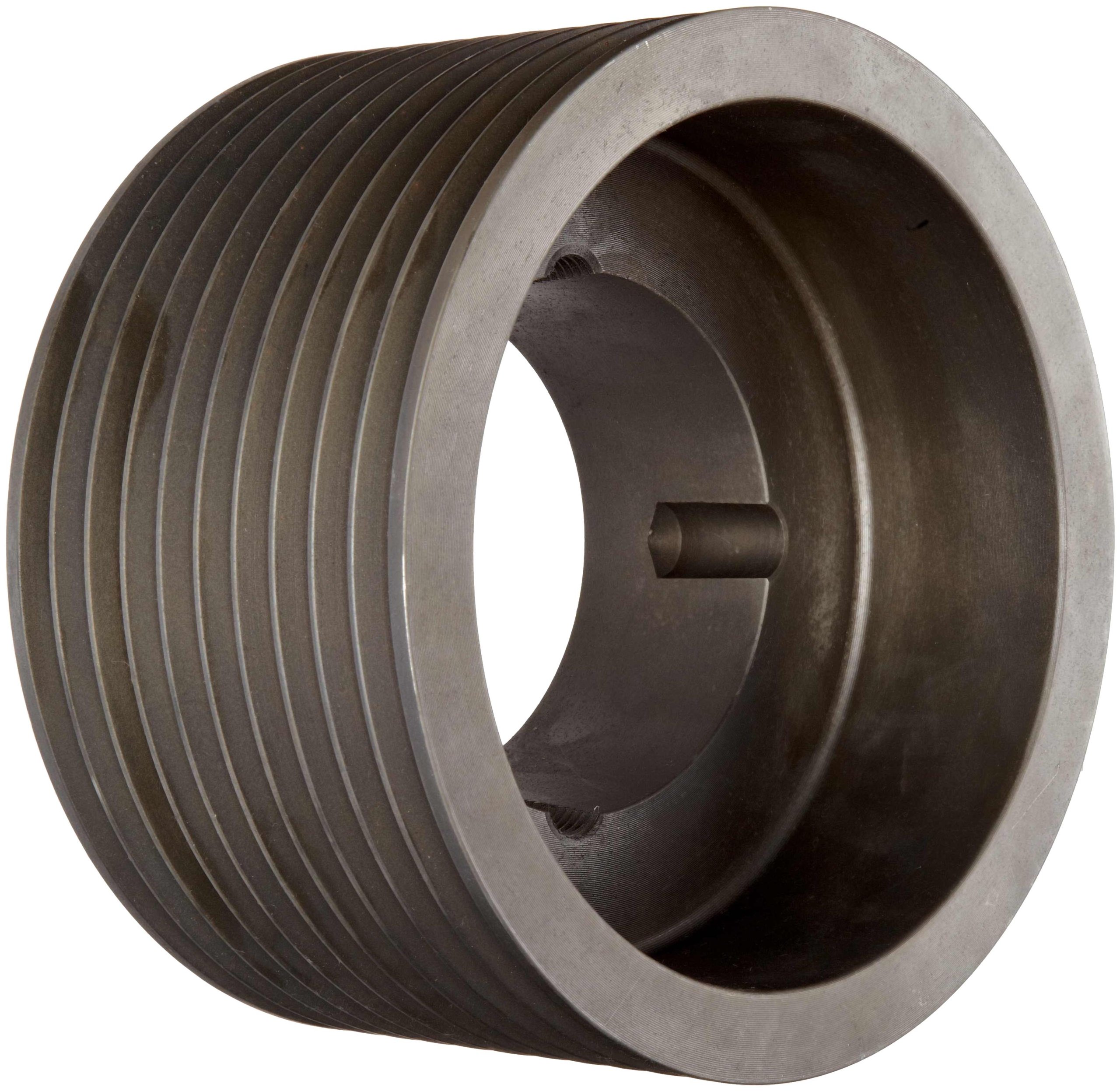

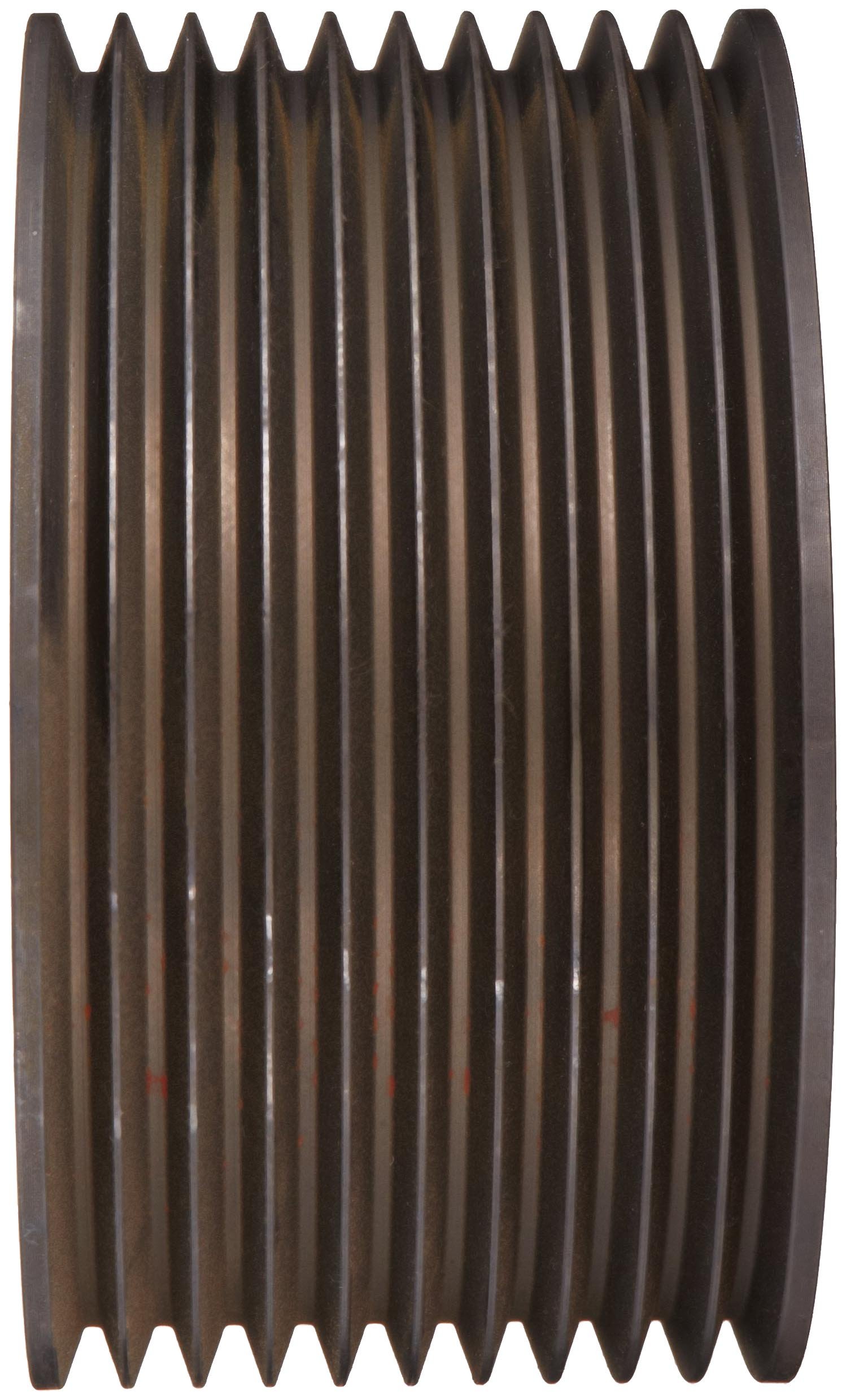

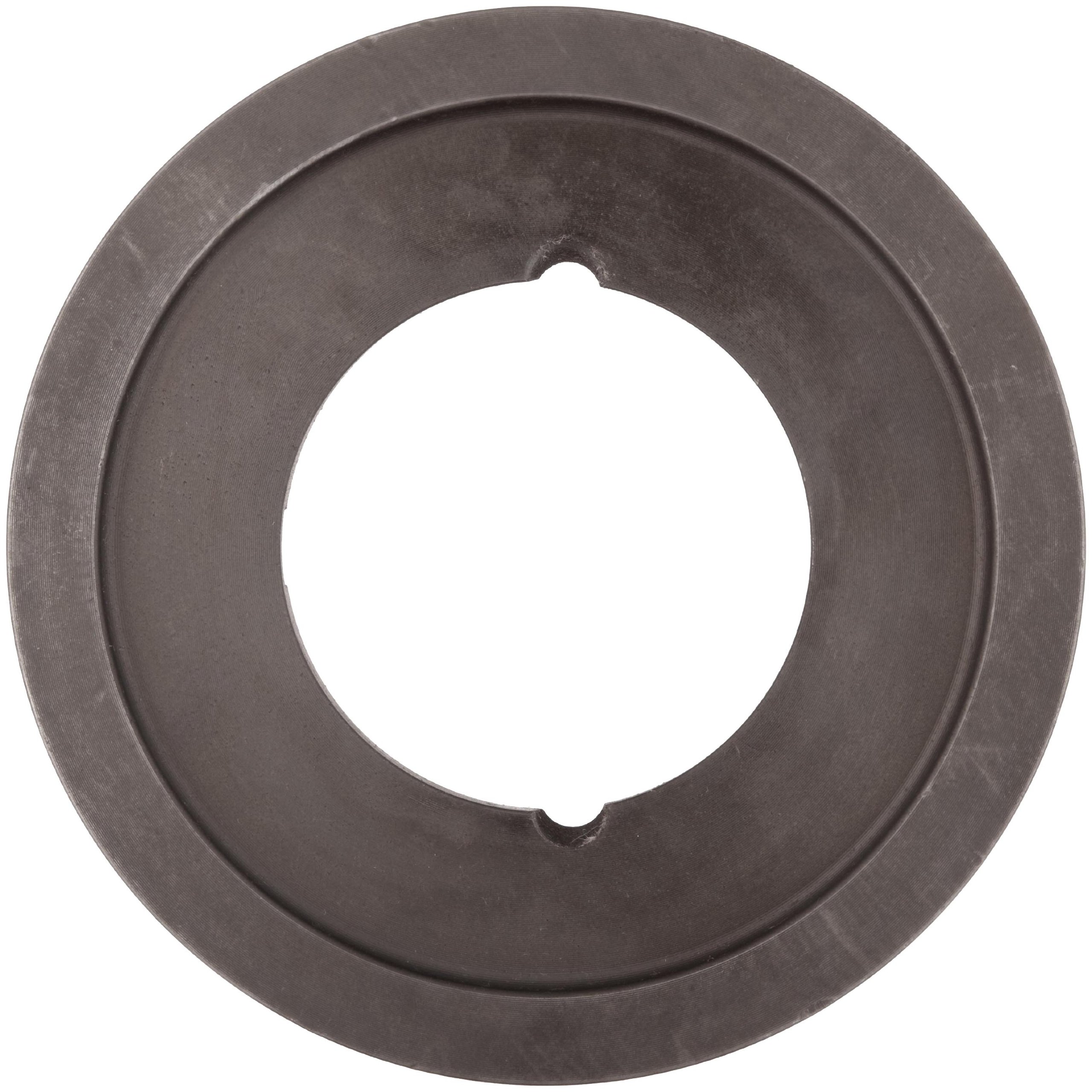

Martin Narrow V-Belt Drive Sheave, 3V Belt Section, 10 Grooves, Class 30 Gray Cast Iron

Be the first to review this item

Product Specifications
UNSPSC Code
24101613
Brand Name
Martin

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Oct 28? Order in-stock items in the next 1 day 14 hrs 45 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 26 Next 6 »
Outside Diameter Bore Diameter Max Rotational Speed

Datum ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-20 of 26 Next 6 »
4.75" 2.50" 5223 max rpm 4.7" Pitch Diameter B004BKIG74 yes $154.77 Buy Options
4.75" 2.62" 5223 max rpm 4.7" Pitch Diameter B004BJ2CGQ Usually ships in 2 to 4 weeks $155.35 Buy Options
5" 2.50" 4962 max rpm 4.95" Pitch Diameter B004BKIG88 yes $157.00 Buy Options
5" 2.62" 4962 max rpm 4.95" Pitch Diameter B004BJ2CHK Usually ships in 2 to 4 weeks $157.81 Buy Options
5.3" 2.50" 4681 max rpm 5.25" Pitch Diameter B004BKIG92 Usually ships in 2 to 4 weeks $158.12 Buy Options
5.3" 2.63" 4681 max rpm 5.25" Pitch Diameter B004BJ2CIE yes $169.13 Buy Options
5.6" 2.50" 4430 max rpm 5.55" Pitch Diameter B004BKIG9W Usually ships in 2 to 4 weeks $158.79 Buy Options
5.6" 2.63" 4430 max rpm 5.55" Pitch Diameter B004BJ2CIY yes $162.74 Buy Options
6" 2.50" 4135 max rpm 5.95" Pitch Diameter B004BKIGCY Usually ships in 2 to 4 weeks $161.48 Buy Options
6" 2.63" 4135 max rpm 5.95" Pitch Diameter B004BJ2CKW yes $164.45 Buy Options
6.5" 2.50" 3817 max rpm 6.45" Pitch Diameter B004BKIGDI yes $167.43 Buy Options
6.5" 2.63" 3817 max rpm 6.45" Pitch Diameter B004BJ2COI yes $108.14 Buy Options
6.9" 2.50" 3596 max rpm 6.85" Pitch Diameter B004BKIGEC Usually ships in 2 to 4 weeks $171.23 Buy Options
6.9" 2.63" 3596 max rpm 6.85" Pitch Diameter B004BJ2CPC yes $179.17 Buy Options
8" 2.94" 3101 max rpm 7.95" Pitch Diameter B004BJ2CQ6 Usually ships in 2 to 4 weeks $236.97 Buy Options
8" 3.00" 3101 max rpm 7.95" Pitch Diameter B004BKIGF6 yes $226.87 Buy Options
10.6" 3.00" 2340 max rpm 10.55" Pitch Diameter B004BKIGG0 yes $274.52 Buy Options
10.6" 3.50" 2340 max rpm 11.55" Pitch Diameter B004BJ2CR0 Usually ships in 2 to 4 weeks $302.51 Buy Options
14" 3.50" 1772 max rpm 13.95" Pitch Diameter B004BKIGGU yes $361.46 Buy Options
14" 3.50" 1772 max rpm 13.95" Pitch Diameter B004BJ2CRK Usually ships in 2 to 4 weeks $397.41 Buy Options

Key Features

  • Narrow V-belt sheave fits narrow profile V-belts for increased drive efficiency over classical V-belts
  • Class 30 gray cast iron for resistance to wear and galling
  • 3V belt or cross section
  • 10 grooves for multiple or banded belt use

Product Description

This Martin narrow V-belt drive sheave with a 3V belt section is made of 30 gray cast iron and comes with 10 grooves. It is a narrow V-belt sheave that fits narrow profile V-belts , allowing the use of smaller or fewer belts than classical V-belts to transmit an equivalent load, maximizing power transmission efficiency by reducing drive weight and size. This pulley is made of class 30 gray cast iron for resistance to wear, corrosion, and galling. It has a 3V cross section and 10 grooves for use with multiple or banded belts. V-belt pulleys (sheaves) are used in a wide range of mechanical and electronic drives, including HVAC units, farm machinery, food processing equipment, and home appliances, among others.

V-belt pulleys (sheaves) are the component in a power transmission drive that transmits power to the belt. Typically made of cast iron, the pulleys and the V-belts that loop around them match in form – wide (classical) or narrow, single or multi-grooved. V-belt pulleys are found in drive designs in the agriculture, textile, printing, mining, and office equipment industries.

Martin Sprocket & Gear manufactures power transmission and conveying products. The company, founded in 1951 and headquartered in Arlington, TX, provides tools that meet American National Standards Institute (ANSI), National Aerospace Standard (NAS), and Deutsches Institut für Normung (DIN) standards.
