Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

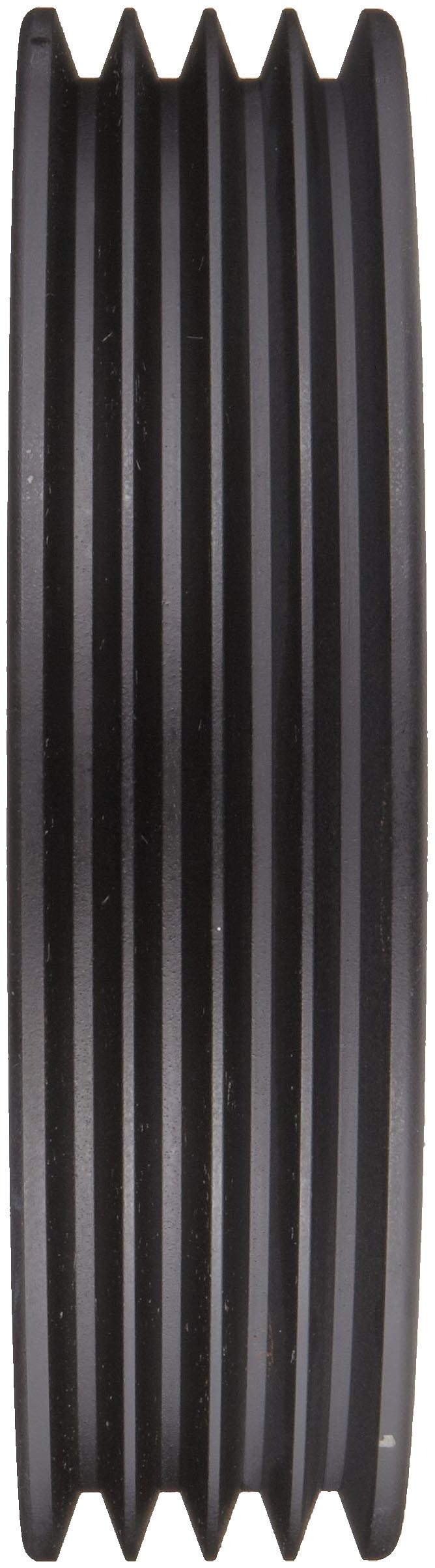

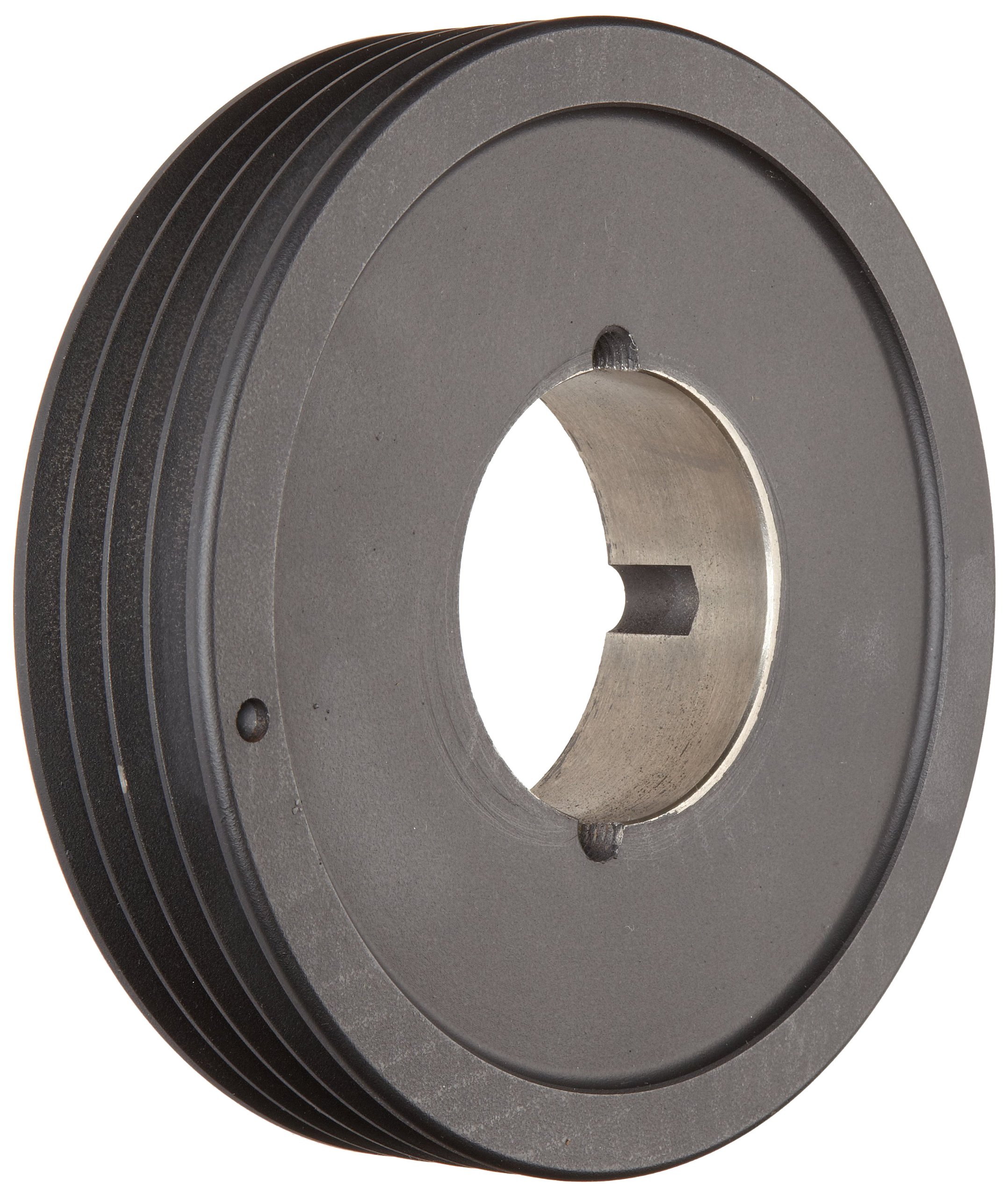

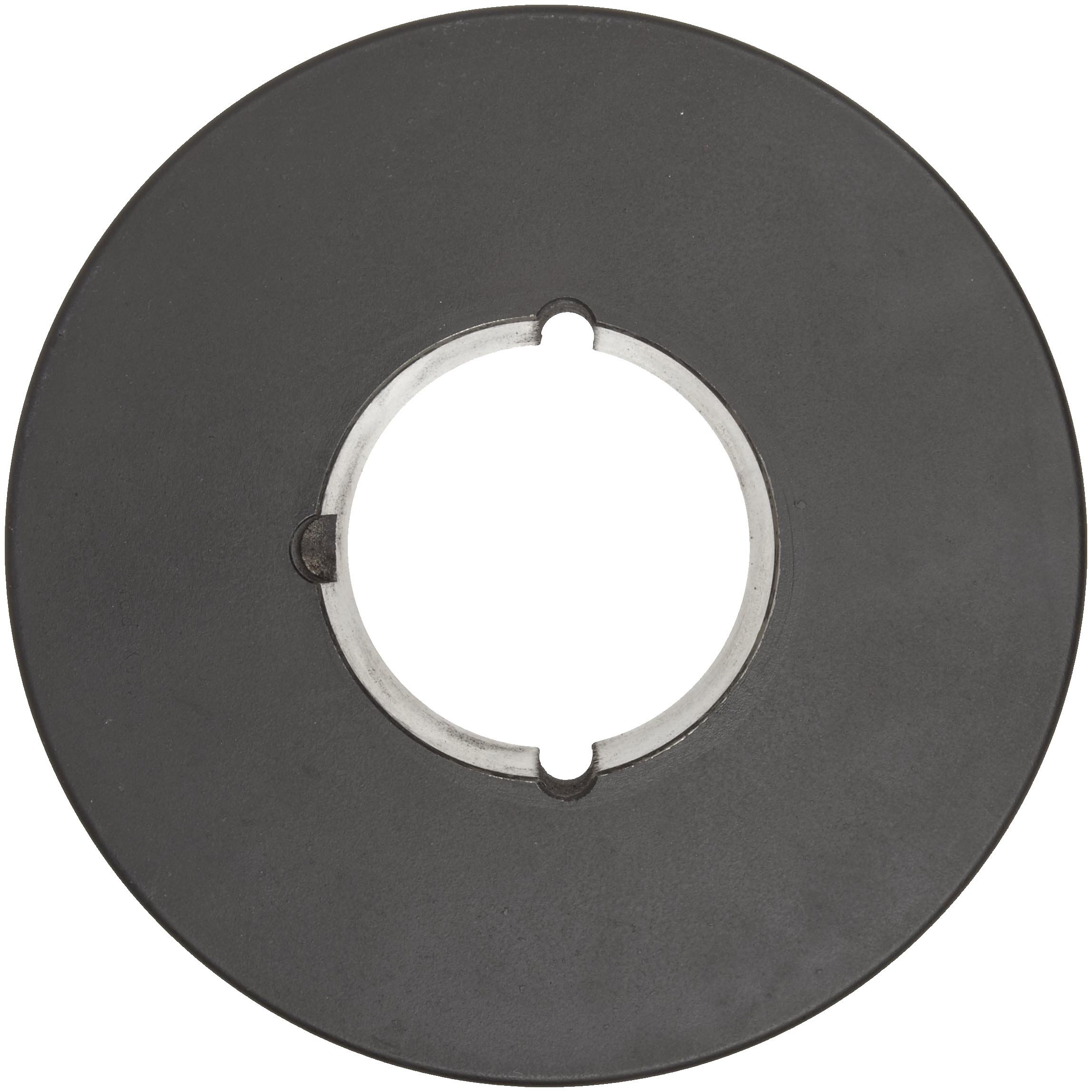

Martin Hi-Cap TB Sheave, 3V Belt Section, 4 Grooves, Class 30 Gray Cast Iron

Be the first to review this item

Product Specifications
Brand Name

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Nov 28? Order in-stock items in the next 1 hr 33 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-19 of 19
Outside Diameter Bore Diameter Max Rotational Speed

Datum ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

All All All All
Currently showing 1-19 of 19
2.65" 1.13" 9362 max rpm 2.6" Pitch Diameter B004BKIDYU yes $50.49 Buy Options
2.8" 1.13" 8860 max rpm 2.75" Pitch Diameter B004BKIDZE yes $57.46 Buy Options
3" 1.25" 8270 max rpm 2.95" Pitch Diameter B004BKIE08 yes $57.73 Buy Options
3.15" 1.25" 7876 max rpm 3.1" Pitch Diameter B004BKIE2Q yes $52.11 Buy Options
3.35" 1.63" 7406 max rpm 3.3" Pitch Diameter B004BKIE30 yes $60.60 Buy Options
4.12" 1.63" 6022 max rpm 4.07" Pitch Diameter B004BKIE5I yes $66.08 Buy Options
4.5" 1.63" 5513 max rpm 4.45" Pitch Diameter B004BKIE62 yes $68.70 Buy Options
4.75" 1.63" 5223 max rpm 4.7" Pitch Diameter B004BKIE6W yes $66.32 Buy Options
5" 1.63" 4962 max rpm 4.95" Pitch Diameter B004BKIE7Q yes $78.36 Buy Options
5.3" 1.63" 4681 max rpm 5.25" Pitch Diameter B004BKIE8U yes $73.84 Buy Options
5.6" 1.63" 4430 max rpm 5.55" Pitch Diameter B004BKIEA8 yes $86.20 Buy Options
6" 2.50" 4135 max rpm 5.95" Pitch Diameter B004BKIEBW yes $91.42 Buy Options
6.5" 2.50" 3817 max rpm 6.45" Pitch Diameter B004BKIEEO yes $83.84 Buy Options
6.9" 2.50" 3596 max rpm 6.85" Pitch Diameter B004BKIEF8 yes $96.86 Buy Options
8" 2.50" 3101 max rpm 7.95" Pitch Diameter B004BKIEGM yes $120.67 Buy Options
10.6" 2.50" 2340 max rpm 10.55" Pitch Diameter B004BKIEIK yes $92.04 Buy Options
14" 2.50" 1772 max rpm 13.95" Pitch Diameter B004BKIEJO Temporarily out of stock. Order now and we'll deliver when available. $255.98 Buy Options
19" 3.00" 1306 max rpm 18.95" Pitch Diameter B004BKIEN0 Temporarily out of stock. Order now and we'll deliver when available. $329.11 Buy Options
25" 3.00" 992 max rpm 24.95" Pitch Diameter B004BKIEQW Temporarily out of stock. Order now and we'll deliver when available. $462.22 Buy Options

Key Features

  • Narrow V-belt sheave fits narrow profile V-belts for increased drive efficiency over classical V-belts
  • Class 30 gray cast iron for resistance to wear and galling
  • 3V belt or cross section
  • Four grooves for multiple or banded belt use

Product Description

This Martin Hi-Cap TB sheave with a 3V belt section is made of 30 gray cast iron and comes with four grooves. It is a narrow V-belt sheave that fits narrow profile V-belts , allowing the use of smaller or fewer belts than classical V-belts to transmit an equivalent load, maximizing power transmission efficiency by reducing drive weight and size. This pulley is made of class 30 gray cast iron for resistance to wear, corrosion, and galling. It has a 3V cross section and four grooves for use with multiple or banded belts. V-belt pulleys (sheaves) are used in a wide range of mechanical and electronic drives, including HVAC units, farm machinery, food processing equipment, and home appliances, among others.

V-belt pulleys (sheaves) are the component in a power transmission drive that transmits power to the belt. Typically made of cast iron, the pulleys and the V-belts that loop around them match in form – wide (classical) or narrow, single or multi-grooved. V-belt pulleys are found in drive designs in the agriculture, textile, printing, mining, and office equipment industries.

Martin Sprocket & Gear manufactures power transmission and conveying products. The company, founded in 1951 and headquartered in Arlington, TX, provides tools that meet American National Standards Institute (ANSI), National Aerospace Standard (NAS), and Deutsches Institut für Normung (DIN) standards.
