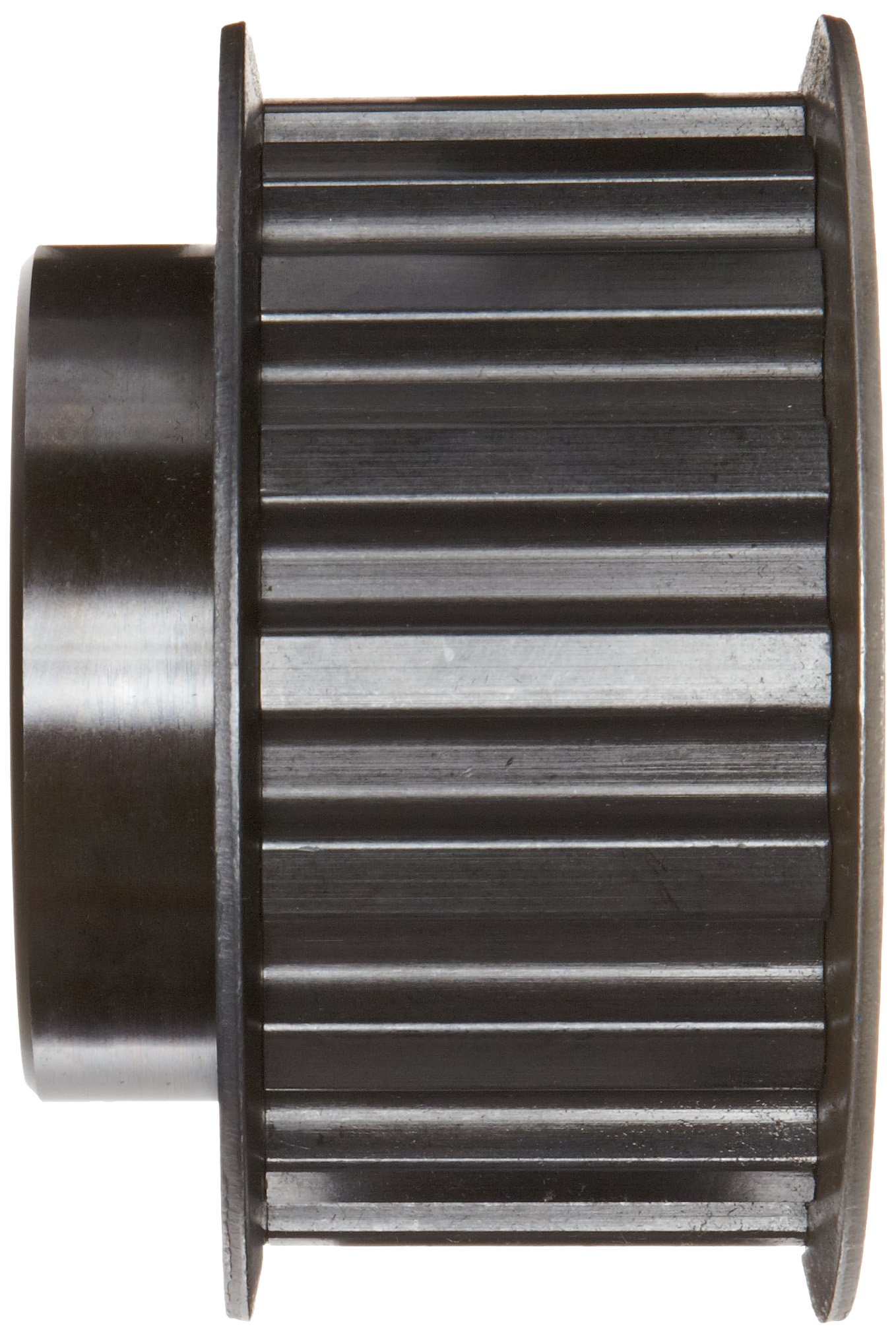

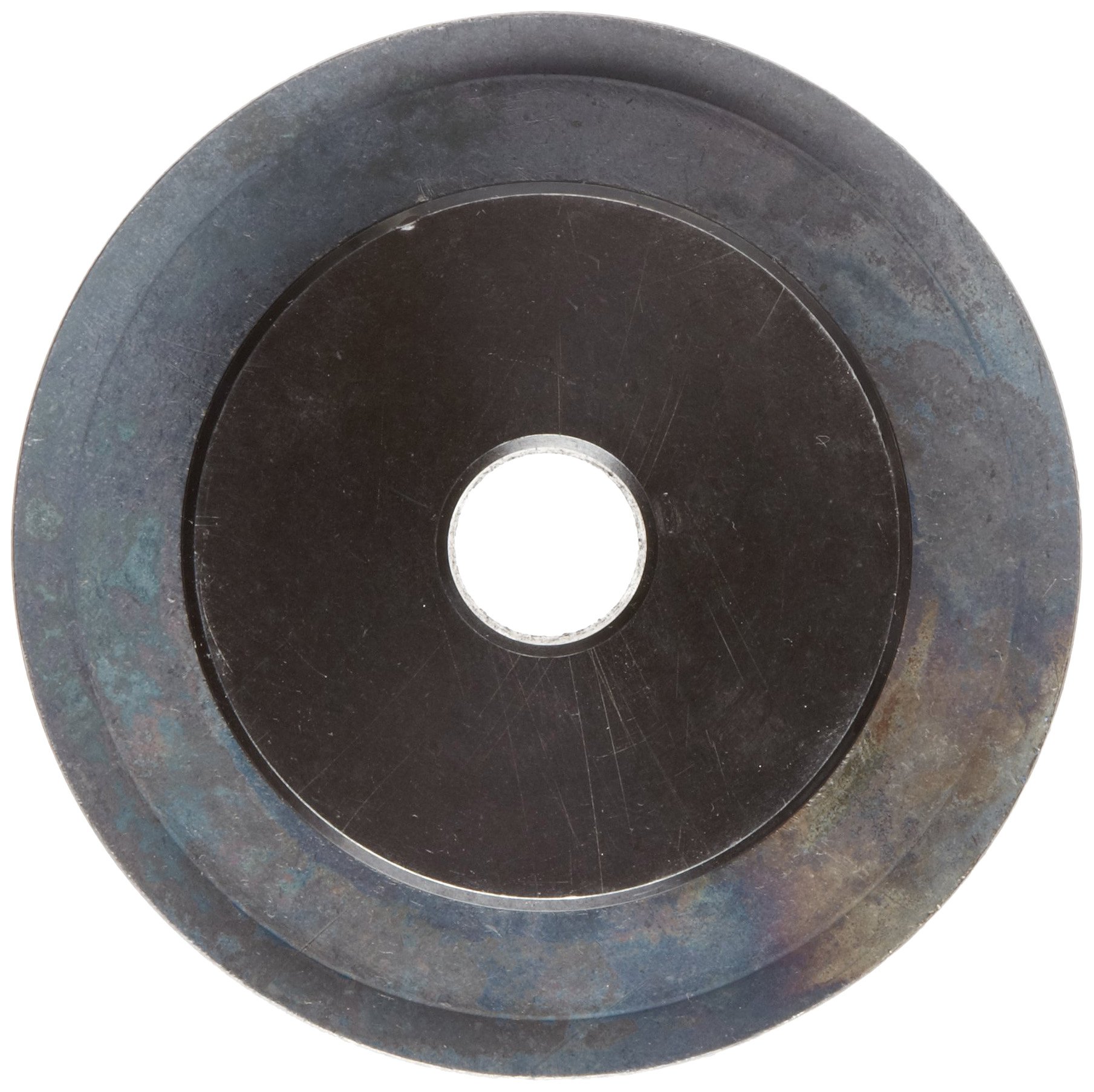

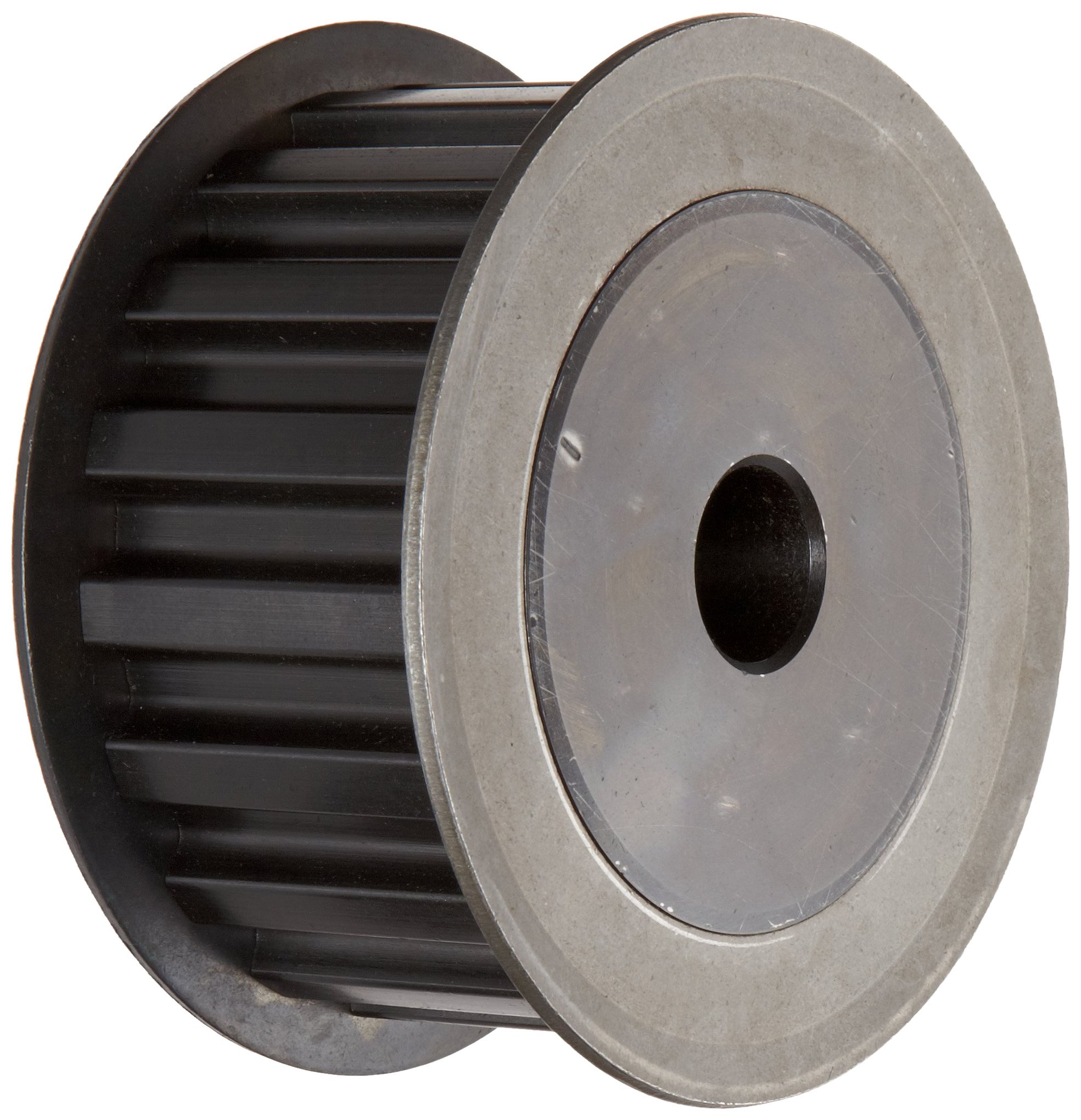

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Martin DF-1 Type Timing Pulley, Plain Bore, Double Flange

Be the first to review this item

Product Specifications
UNSPSC Code
26111807
Brand Name
Martin

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Jul 28? Order in-stock items in the next 23 hrs 24 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 21 Next 1 »
Outside Diameter Pitch Size Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-20 of 21 Next 1 »
1.7600" 0.375 Inch 1.76" OD, 1.25" Overall Length, 15 Grooves 15L050 B004BDO29M 2 $23.16 Buy Options
1.8800" 0.375 Inch 1.88" OD, 1.375" Overall Length, 16 Grooves 16L050 B004BDO2A6 2 $23.66 Buy Options
1.9990" 0.375 Inch 1.999" OD, 1.375" Overall Length, 17 Grooves 17L050 B004BDO2AQ 3 $24.83 Buy Options
2.1190" 0.375 Inch 2.119" OD, 1.375" Overall Length, 18 Grooves 18L050 B004BDO2BA 2 $24.33 Buy Options
2.1190" 0.375 Inch 2.238" OD, 1.875" Overall Length, 19 Grooves 19L100 B004BDO2QA 1 $28.20 Buy Options
2.2380" 0.375 Inch 2.238" OD, 1.375" Overall Length, 19 Grooves 19L050 B004BDO2C4 1 $30.30 Buy Options
2.357" 0.375 Inch 2.357" OD, 1.875" Overall Length, 20 Grooves 20L100 B004BDO2QU 3 $34.45 Buy Options
2.3570" 0.375 Inch 2.357" OD, 1.375" Overall Length, 20 Grooves 20L050 B004BDO2CO 2 $28.93 Buy Options
2.4770" 0.375 Inch 2.477" OD, 1.4375" Overall Length, 21 Grooves 21L050 B004BDO2D8 1 $29.62 Buy Options
2.5960" 0.375 Inch 1.88" OD, 1.625" Overall Length, 16 Grooves 16L075 B004BDO2I8 2 $25.70 Buy Options
2.5960" 0.375 Inch 2.596" OD, 1.5" Overall Length, 22 Grooves 22L050 B004BDO2DS 1 $28.49 Buy Options
2.8350" 0.375 Inch 2.119" OD, 1.625" Overall Length, 18 Grooves 18L075 B004BDO2IS 2 $30.01 Buy Options
2.8350" 0.375 Inch 2.835" OD, 1.5" Overall Length, 24 Grooves 24L050 B004BDO2EC 1 $33.11 Buy Options
3.074" 0.375 Inch 3.074" OD, 1.5" Overall Length, 26 Grooves 26L050 B004BDO2EW 2 $38.78 Buy Options
3.0740" 0.375 Inch 2.357" OD, 1.625" Overall Length, 20 Grooves 20L075 B004BDO2JC 2 $32.29 Buy Options
3.312" 0.375 Inch 3.312" OD, 1.5" Overall Length, 28 Grooves 28L050 B004BDO2F6 1 $40.47 Buy Options
3.551" 0.375 Inch 3.551" OD, 1.5" Overall Length, 30 Grooves 30L050 B004BDO2FQ 1 $43.09 Buy Options
3.79" 0.375 Inch 3.79" OD, 1.625" Overall Length, 32 Grooves 32L050 B004BDO2GA 1 $46.51 Buy Options
7.1320" 0.375 Inch 1.88" OD, 1.875" Overall Length, 16 Grooves 16L100 B004BDO2O2 1 $28.64 Buy Options
8.5640" 0.375 Inch 1.999" OD, 1.875" Overall Length, 17 Grooves 17L100 B004BDO2OW 2 $26.67 Buy Options

Key Features

  • Grooved design for applications requiring synchronous rotation
  • Steel for resistance to wear
  • For use with same-pitch trapezoidal tooth belts
  • Stock bore, does not require use of a bushing
  • Double flange to resist belt side thrust and maintain belt contact

Product Description

This Martin DF-1 type timing pulley is suitable for use with trapezoidal tooth belts in power transmission applications that require synchronous rotation. This pulley has a plain bore and mounts to a drive shaft using setscrews. Double flanges on the pulley resist side thrust and maintain belt contact, and the steel construction resists wear. Timing pulleys are a type of drive pulley and are used in a wide range of mechanical and electronic drives, including automotive and printing industries.

Pulley drive systems consist of two or more pulleys that connect with a belt to transmit mechanical power across greater distances than systems that use gears. Pulleys (sheaves) are available in different types: V-belt, timing, round, or flat. Pulleys must match the belts that connect them (timing pulleys with trapezoidal grooves require a belt with trapezoidal teeth) and engage either on the sides of the pulley flange (classical V-belts, narrow V-belts, or round belts), on the flat outer diameter of the pulley (flat belts), or in pulley grooves that match belt teeth (timing belts, synchronous belts, or curvilinear belts). Pulleys are made of various materials, including cast iron, steel, aluminum, polycarbonate resin thermoplastic, and nylon, and they can meet a broad range of requirements, including increased torque, resistance to wear, and light weight. Pulleys are used in drive designs in the automotive, appliance, agriculture, textile, printing, mining, and office equipment industries.

Martin Sprocket & Gear manufactures power transmission products, material handling components, and industrial hand tools. The company, founded in 1951 and headquartered in Arlington, TX, meets International Organization for Standardization (ISO) standard 9001:2008.
