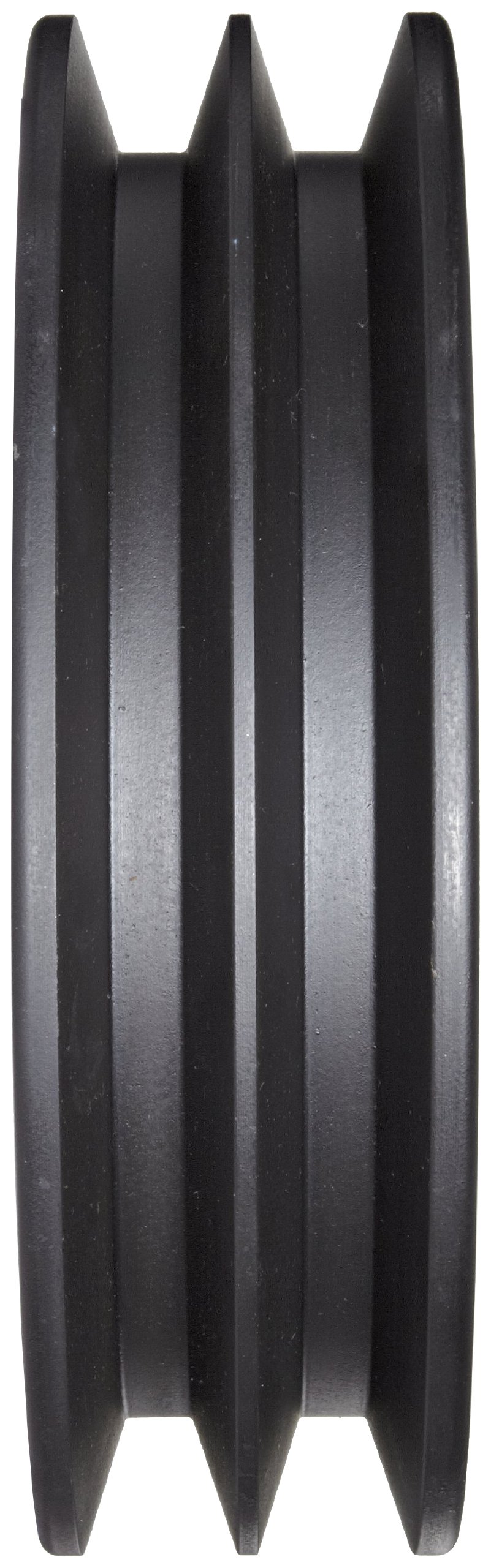

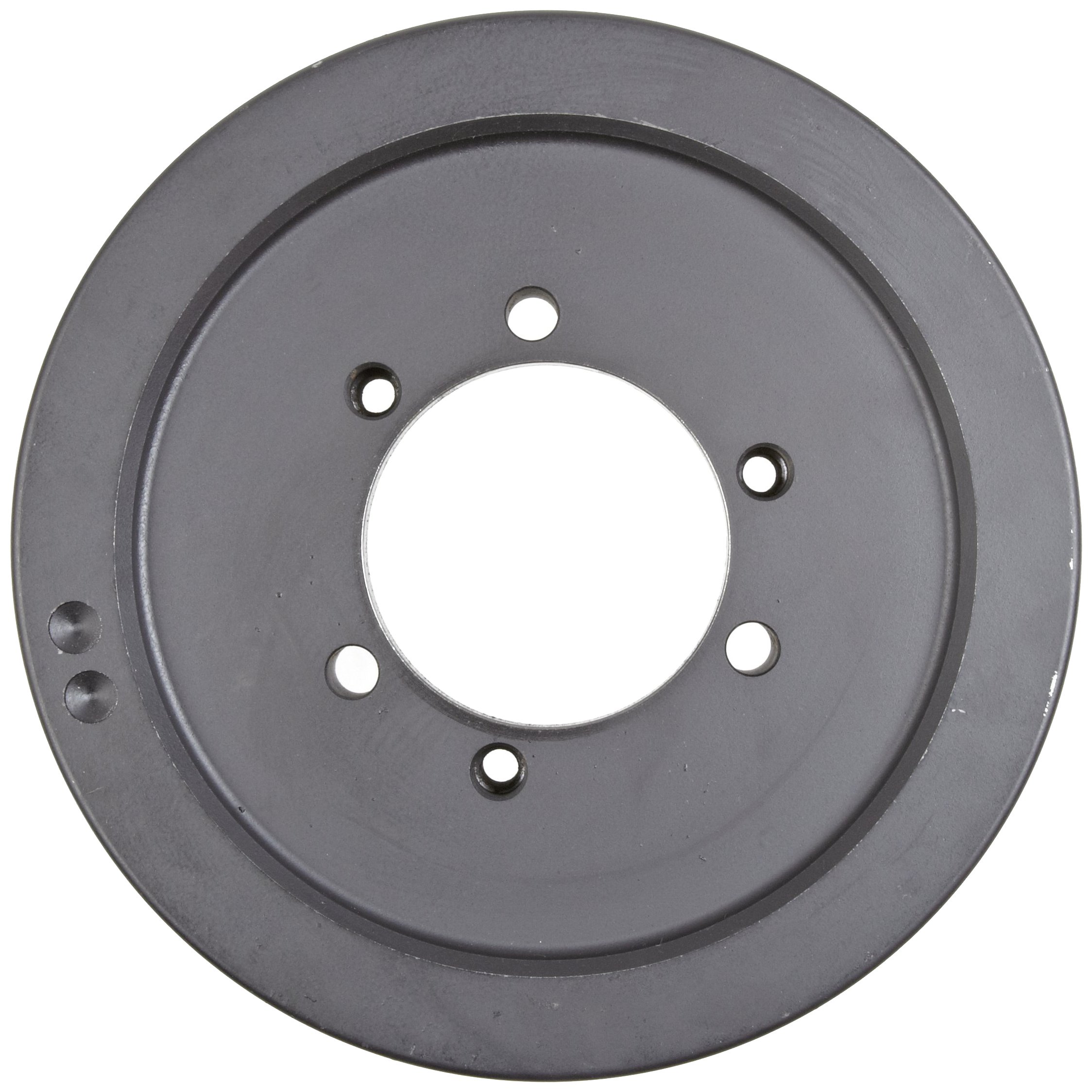

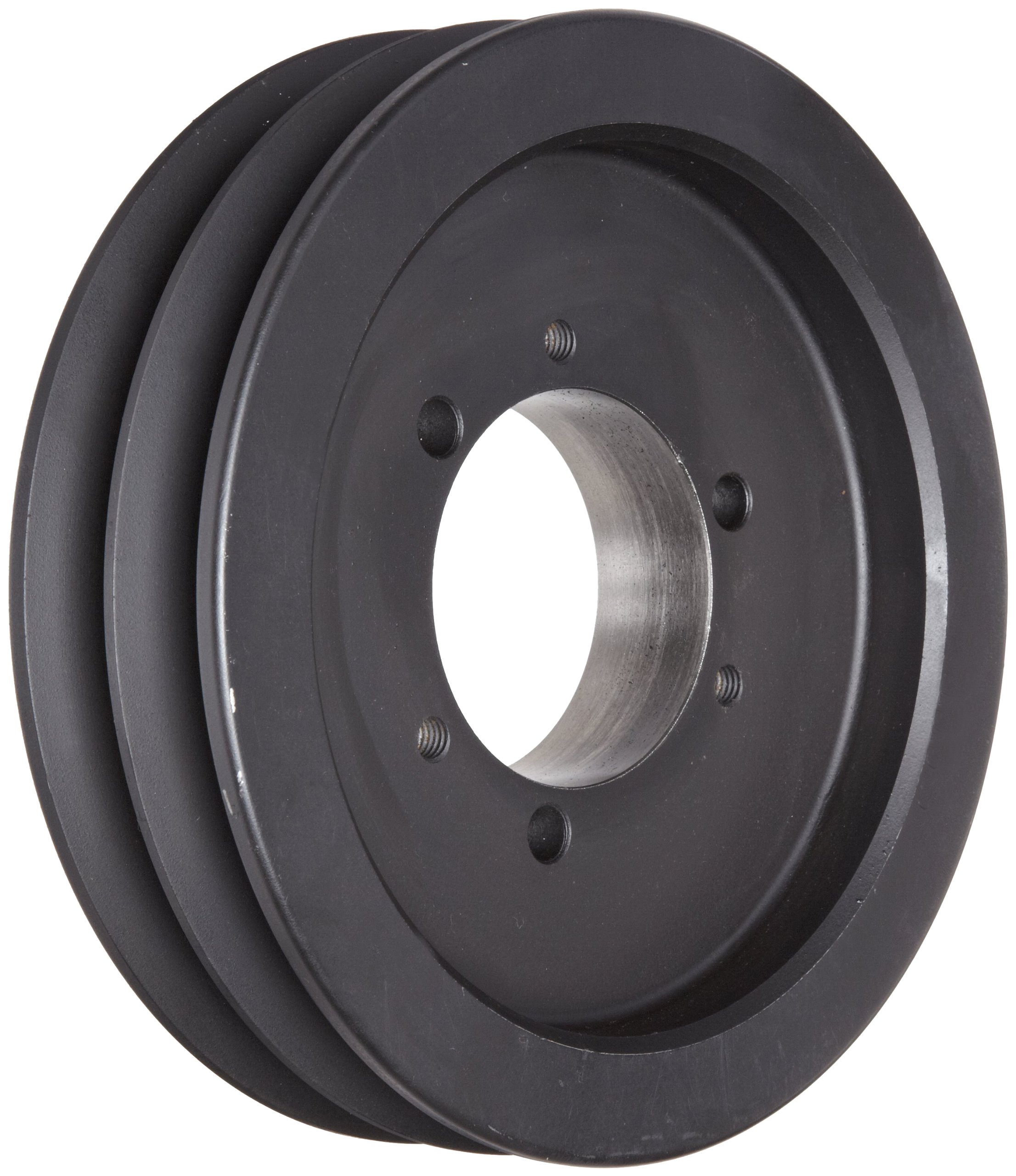

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Martin Conventional QD Sheave, A/B Belt Section, 2 Grooves, Class 30 Gray Cast Iron

Be the first to review this item

Product Specifications
Brand Name
Martin

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 21? Order in-stock items in the next 1 day 3 hrs 41 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 53 Next 20 »
Outside Diameter Bore Diameter Max Rotational Speed

Datum ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-20 of 53 Next 20 »
3.75" 1.69" 6616 max rpm A - 3/B - 3.4" Pitch Diameter B004BJ2J6E 2 $38.87 Buy Options
3.95" 1.69" 6281 max rpm A - 3.2/B - 3.6" Pitch Diameter B004BJ2J6O 1 $38.54 Buy Options
4.15" 1.69" 5978 max rpm A - 3.4/B - 3.8" Pitch Diameter B004BJ2J6Y 1 $41.15 Buy Options
4.35" 1.69" 5703 max rpm A - 3.6/B - 4" Pitch Diameter B004BJ2J8C 1 $40.93 Buy Options
4.55" 1.69" 5453 max rpm A - 3.8/B - 4.2" Pitch Diameter B004BKHZ58 1 $43.30 Buy Options
4.75" 1.69" 5223 max rpm A - 4/B - 4.4" Pitch Diameter B004BKHZ5I 1 $43.25 Buy Options
4.95" 2.00" 5012 max rpm A - 4.2/B - 4.6" Pitch Diameter B004BKHZ5S 1 $43.79 Buy Options
5.15" 2.00" 4817 max rpm A - 4.4/B - 4.8" Pitch Diameter B004BKHZ62 1 $49.55 Buy Options
5.35" 2.00" 4637 max rpm A - 4.6/B - 5" Pitch Diameter B004BKHZ6C 1 $47.13 Buy Options
5.55" 2.00" 4470 max rpm A - 4.8/B - 5.2" Pitch Diameter B004BKHZ6M 1 $46.63 Buy Options
5.75" 2.00" 4315 max rpm A - 5/B - 5.4" Pitch Diameter B004BKHZ6W Usually ships in 3 to 5 weeks $56.03 Buy Options
5.95" 2.00" 4170 max rpm A - 5.2/B - 5.6" Pitch Diameter B004BKHZ76 1 $59.78 Buy Options
6.15" 2.00" 4034 max rpm A - 5.4/B - 5.8" Pitch Diameter B004BKHZ7G 1 $68.56 Buy Options
6.35" 2.00" 3907 max rpm A - 5.6/B - 6" Pitch Diameter B004BKHZ8K 1 $65.82 Buy Options
6.4" 2.94" 3876 max rpm 6" Pitch Diameter B004BKI4PI Usually ships in 3 to 5 weeks $131.60 Buy Options
6.55" 2.00" 3788 max rpm A - 5.8/B - 6.2" Pitch Diameter B004BKHZAS 1 $60.90 Buy Options
6.75" 2.00" 3675 max rpm A - 6/B - 6.4" Pitch Diameter B004BKHZB2 1 $62.76 Buy Options
6.95" 2.00" 3570 max rpm A - 6.2/B - 6.6" Pitch Diameter B004BKHZBC 2 $76.59 Buy Options
7.15" 2.00" 3470 max rpm A - 6.4/B - 6.8" Pitch Diameter B004BKHZBM 2 $72.00 Buy Options
7.35" 2.63" 3375 max rpm A - 6.6/B - 7" Pitch Diameter B004BKHZBW 1 $59.90 Buy Options

Key Features

  • Classical V-belt sheave fits widely available, classical profile V-belts suitable for use in many existing drive designs
  • Class 30 gray cast iron for resistance to wear and galling
  • A/B belt or cross section
  • Two grooves for multiple or banded belt use

Product Description

This Martin conventional QD sheave with an A/B belt section is made of 30 gray cast iron and comes with two grooves. It is a classical V-belt sheave that fits a variety of widely available, classical profile V-belts suitable for use in many existing power transmission drives. This pulley is made of class 30 gray cast iron for resistance to wear, corrosion, and galling. It has an A/B cross section and two grooves for use with multiple or banded belts. V-belt pulleys (sheaves) are used in a wide range of mechanical and electronic drives, including HVAC units, farm machinery, food processing equipment, and home appliances, among others.

V-belt pulleys (sheaves) are the component in a power transmission drive that transmits power to the belt. Typically made of cast iron, the pulleys and the V-belts that loop around them match in form – wide (classical) or narrow, single or multi-grooved. V-belt pulleys are found in drive designs in the agriculture, textile, printing, mining, and office equipment industries.

Martin Sprocket & Gear manufactures power transmission and conveying products. The company, founded in 1951 and headquartered in Arlington, TX, provides tools that meet American National Standards Institute (ANSI), National Aerospace Standard (NAS), and Deutsches Institut für Normung (DIN) standards.
