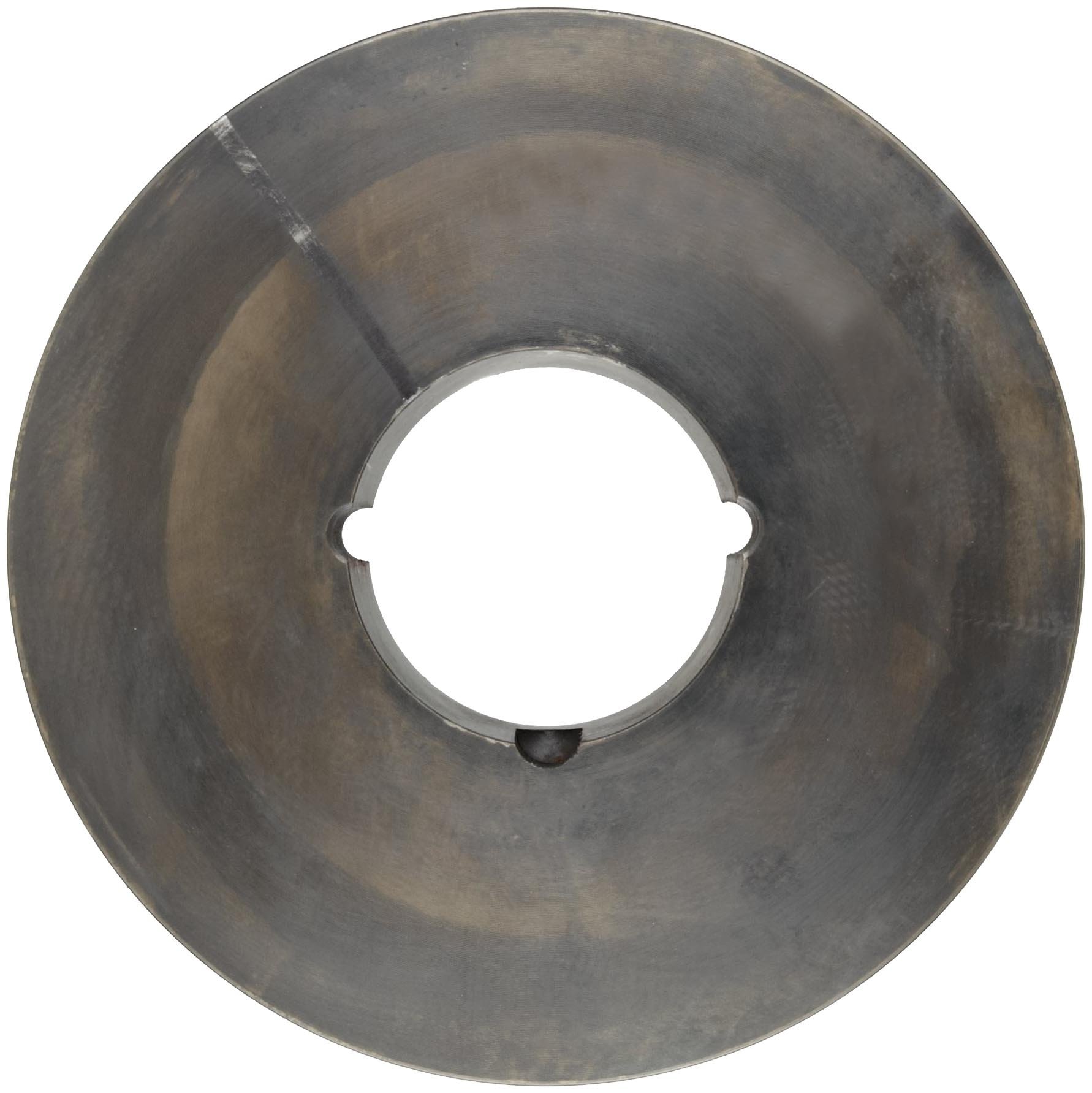

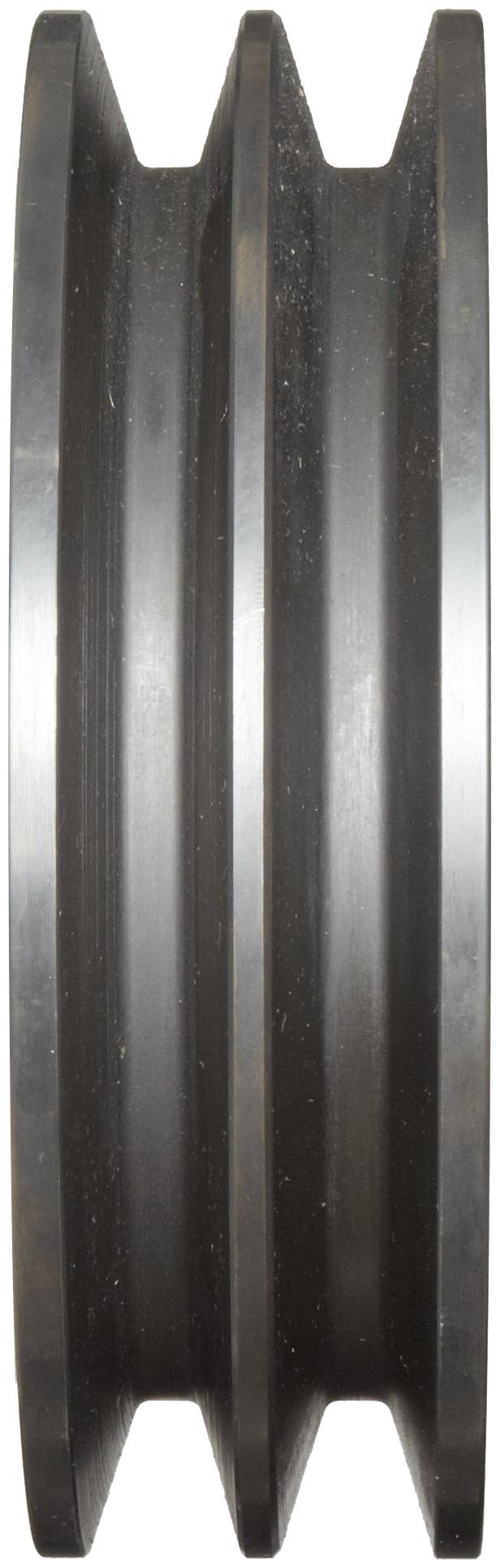

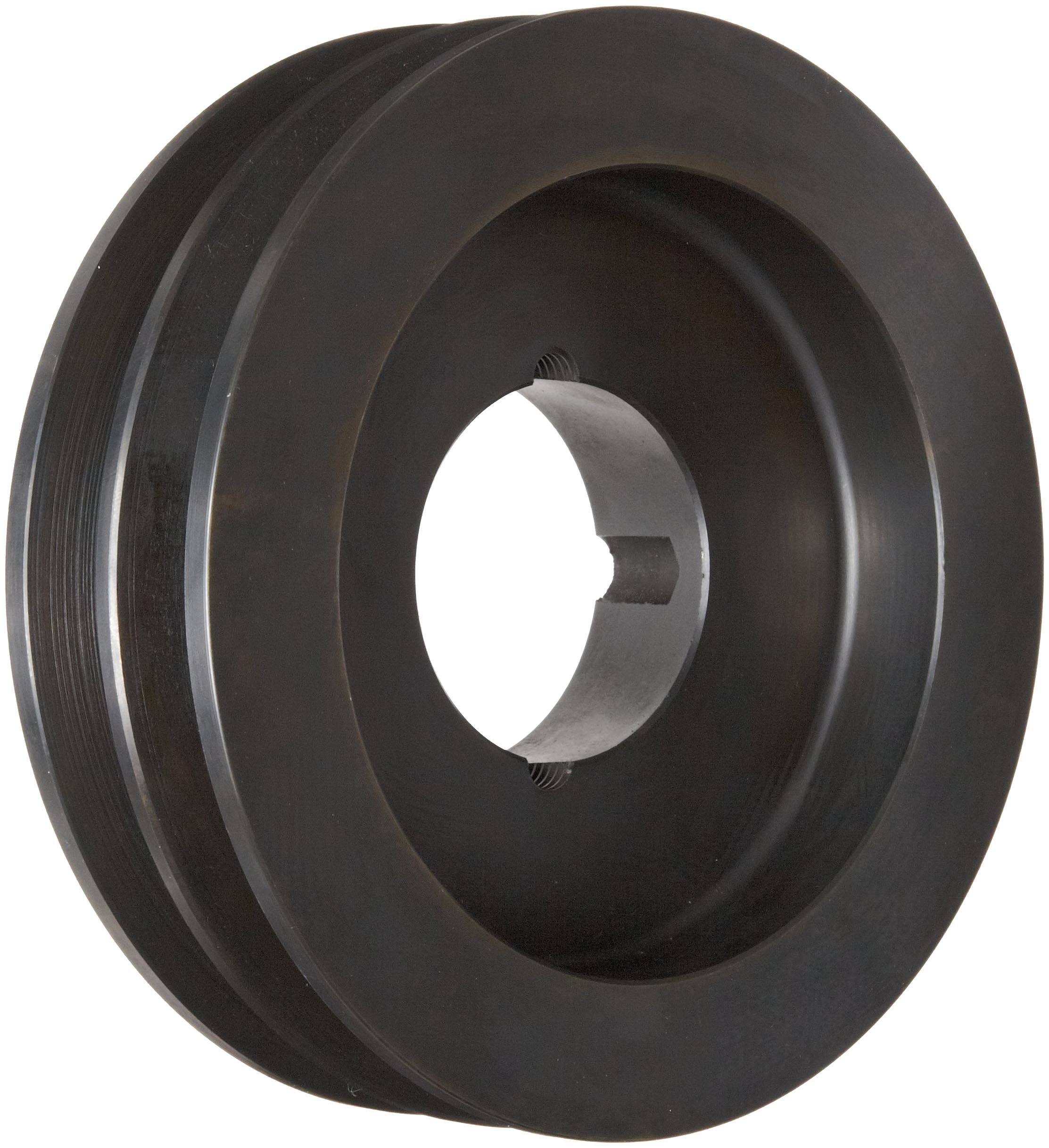

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Martin Conventional Taper Bushed Sheave, A/B Belt Section, 2 Grooves, Class 30 Gray Cast Iron

Be the first to review this item

Product Specifications
UNSPSC Code
24101613
Brand Name
Martin

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 3? Order in-stock items in the next 1 day 8 hrs 43 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 29 Next 9 »
Outside Diameter Bore Diameter Max Rotational Speed

Datum ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-20 of 29 Next 9 »
1.5" 1.63" 16539 max rpm A - 3.4/B - 3.8" Pitch Diameter B004BKIMUU yes $49.54 Buy Options
1.5" 1.25" 16539 max rpm A - 3/B - 3.4" Pitch Diameter B004BKIMSC yes $37.44 Buy Options
1.7" 1.25" 14594 max rpm A - 3.2/B - 3.6" Pitch Diameter B004BKIMTQ yes $47.18 Buy Options
1.9" 1.63" 13057 max rpm A - 3.6/B - 4" Pitch Diameter B004BKIMV4 yes $51.18 Buy Options
2.2" 1.63" 11277 max rpm A - 3.8/B - 4.2" Pitch Diameter B004BKIMVO yes $53.50 Buy Options
2.5" 1.63" 9924 max rpm A - 4/B - 4.4" Pitch Diameter B004BKIMXC yes $55.83 Buy Options
2.9" 1.63" 8555 max rpm A - 4.2/B - 4.6" Pitch Diameter B004BKIMZ0 yes $58.15 Buy Options
3.3" 1.63" 7518 max rpm A - 4.4/B - 4.8" Pitch Diameter B004BKIMZK yes $60.20 Buy Options
3.6" 1.63" 6891 max rpm A - 4.6/B - 5" Pitch Diameter B004BKIN2M yes $62.53 Buy Options
4.1" 1.63" 6051 max rpm A - 4.8/B - 5.2" Pitch Diameter B004BKIN36 yes $64.84 Buy Options
4.5" 1.63" 5513 max rpm A - 5/B - 5.4" Pitch Diameter B004BKIN4K yes $67.16 Buy Options
4.9" 1.63" 5063 max rpm A - 5.2/B - 5.6" Pitch Diameter B004BKIN54 yes $69.24 Buy Options
5.3" 1.63" 4681 max rpm A - 5.4/B - 5.8" Pitch Diameter B004BKIN5O yes $71.46 Buy Options
5.8" 1.63" 4277 max rpm A - 5.6/B - 6" Pitch Diameter B004BKIN68 yes $46.58 Buy Options
6.3" 1.63" 3938 max rpm A - 5.8/B - 6.2" Pitch Diameter B004BKIN7M yes $75.73 Buy Options
6.8" 1.63" 3648 max rpm A - 6/B - 6.4" Pitch Diameter B004BKIN86 yes $78.04 Buy Options
7.5" 1.63" 3308 max rpm A - 6.2/B - 6.6" Pitch Diameter B004BKIN8Q yes $79.19 Buy Options
7.8" 1.63" 3181 max rpm A - 6.4/B - 6.8" Pitch Diameter B004BKINA4 yes $80.32 Buy Options
9.4" 2.50" 2639 max rpm A - 7/B - 7.4" Pitch Diameter B004BKINAO yes $83.78 Buy Options
12.1" 2.50" 2050 max rpm A - 8.2/B - 8.6" Pitch Diameter B004BKINC2 yes $88.41 Buy Options

Key Features

  • Classical V-belt sheave fits widely available, classical profile V-belts suitable for use in many existing drive designs
  • Class 30 gray cast iron for resistance to wear and galling
  • A/B belt or cross section
  • Two grooves for multiple or banded belt use

Product Description

This Martin conventional taper bushed sheave with an A/B belt section is made of 30 gray cast iron and comes with two grooves. It is a classical V-belt sheave that fits a variety of widely available, classical profile V-belts suitable for use in many existing power transmission drives. This pulley is made of class 30 gray cast iron for resistance to wear, corrosion, and galling. It has an A/B cross section and two grooves for use with multiple or banded belts. V-belt pulleys (sheaves) are used in a wide range of mechanical and electronic drives, including HVAC units, farm machinery, food processing equipment, and home appliances, among others.

V-belt pulleys (sheaves) are the component in a power transmission drive that transmits power to the belt. Typically made of cast iron, the pulleys and the V-belts that loop around them match in form – wide (classical) or narrow, single or multi-grooved. V-belt pulleys are found in drive designs in the agriculture, textile, printing, mining, and office equipment industries.

Martin Sprocket & Gear manufactures power transmission and conveying products. The company, founded in 1951 and headquartered in Arlington, TX, provides tools that meet American National Standards Institute (ANSI), National Aerospace Standard (NAS), and Deutsches Institut für Normung (DIN) standards.
