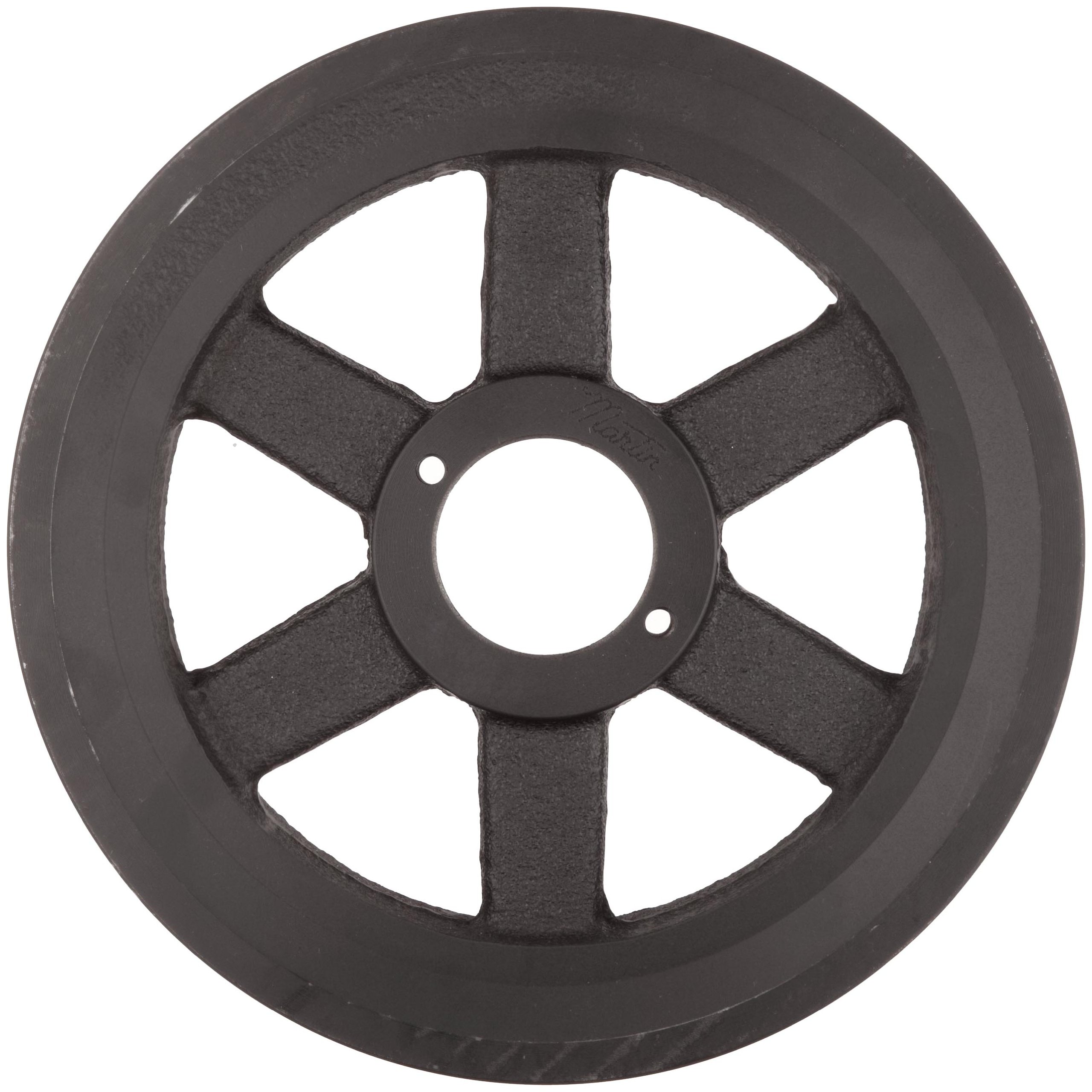

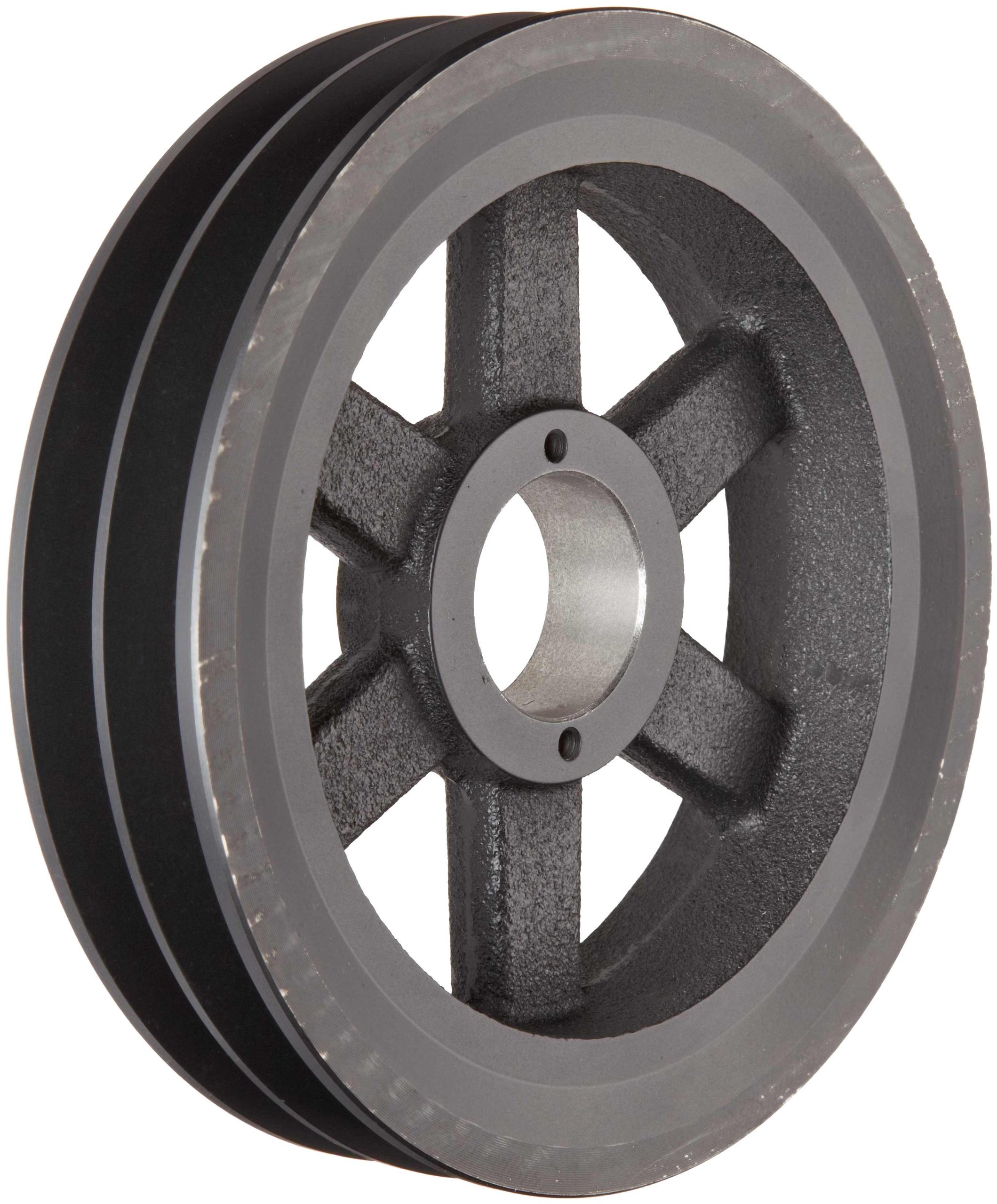

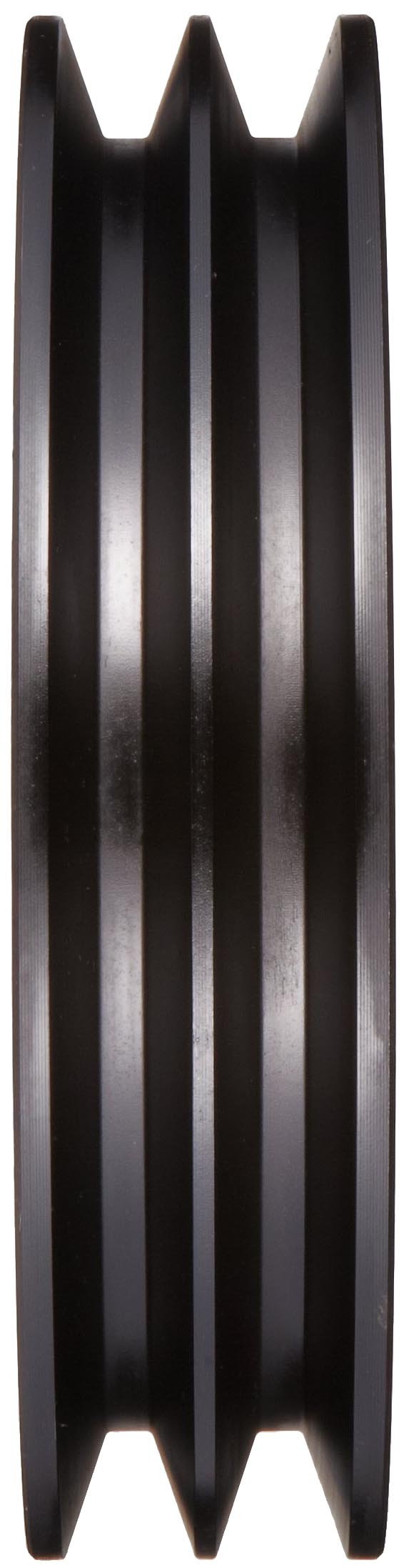

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Martin FHP Sheave, MST Bushed, 4L/5L or B Belt Section, 2 Grooves, Class 30 Gray Cast Iron

Be the first to review this item

Product Specifications
Bore Diameter
1.63  inches
Brand Name

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Nov 25? Order in-stock items in the next 16 hrs 27 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 25 Next 5 »
Outside Diameter Max Rotational Speed

Datum ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

All All All
Currently showing 1-20 of 25 Next 5 »
3.35" 7406 max rpm 2.6 Datum/3 Datum B004BKJKVA yes $51.69 Buy Options
3.55" 6988 max rpm 2.8 Datum/3.2 Datum B004BKJKW4 yes $52.09 Buy Options
3.75" 6616 max rpm 3 Datum/3.4 Datum B004BKJKWO yes $53.14 Buy Options
3.95" 6281 max rpm 3.2 Datum/3.6 Datum B004BKJKYM Usually ships in 4 to 7 weeks $53.61 Buy Options
4.25" 5837 max rpm 3.5 Datum/3.9 Datum B004BKJKZ6 yes $55.00 Buy Options
4.45" 5575 max rpm 3.7 Datum/4.1 Datum B004BKJKZG yes $60.61 Buy Options
4.75" 5223 max rpm 4 Datum/4.4 Datum B004BKJL1E yes $61.74 Buy Options
4.95" 5012 max rpm 4.2 Datum/4.6 Datum B004BKJL1Y yes $63.32 Buy Options
5.25" 4726 max rpm 4.5 Datum/4.9 Datum B004BKJL2I yes $68.55 Buy Options
5.45" 4552 max rpm 4.7 Datum/5.1 Datum B004BKJL46 yes $69.67 Buy Options
5.75" 4315 max rpm 5 Datum/5.4 Datum B004BKJL4Q yes $71.26 Buy Options
5.95" 4170 max rpm 5.2 Datum/5.6 Datum B004BKJL5A yes $72.18 Buy Options
6.25" 3969 max rpm 5.5 Datum/5.9 Datum B004BKJL5U yes $77.87 Buy Options
6.45" 3846 max rpm 5.7 Datum/6.1 Datum B004BKJL7S yes $79.19 Buy Options
6.75" 3675 max rpm 6 Datum/6.4 Datum B004BKJL8M yes $81.37 Buy Options
6.95" 3570 max rpm 6.2 Datum/6.6 Datum B004BKJL96 yes $83.29 Buy Options
7.75" 3201 max rpm 7 Datum/7.4 Datum B004BKJLAA yes $24.70 Buy Options
8.75" 2835 max rpm 8 Datum/8.4 Datum B004BKJLBE yes $22.70 Buy Options
9.75" 2545 max rpm 9 Datum/9.4 Datum B004BKJLD2 yes $111.71 Buy Options
10.75" 2308 max rpm 10 Datum/10.4 Datum B004BKJLDM yes $121.03 Buy Options

Key Features

  • Classical V-belt sheave fits widely available, classical profile V-belts suitable for use in many existing drive designs
  • Class 30 gray cast iron for resistance to wear and galling
  • 4L/5L or B belt or cross section
  • Two grooves for multiple or banded belt use

Product Description

This Martin FHP sheave with a 4L/5L or B belt section is made of 30 gray cast iron and comes with two grooves. It is a classical V-belt sheave that fits a variety of widely available, classical profile V-belts suitable for use in many existing power transmission drives. This pulley is made of class 30 gray cast iron for resistance to wear, corrosion, and galling. It has a 4L/5L or B cross section and two grooves for use with multiple or banded belts. V-belt pulleys (sheaves) are used in a wide range of mechanical and electronic drives, including HVAC units, farm machinery, food processing equipment, and home appliances, among others.

V-belt pulleys (sheaves) are the component in a power transmission drive that transmits power to the belt. Typically made of cast iron, the pulleys and the V-belts that loop around them match in form – wide (classical) or narrow, single or multi-grooved. V-belt pulleys are found in drive designs in the agriculture, textile, printing, mining, and office equipment industries.

Martin Sprocket & Gear manufactures power transmission and conveying products. The company, founded in 1951 and headquartered in Arlington, TX, provides tools that meet American National Standards Institute (ANSI), National Aerospace Standard (NAS), and Deutsches Institut für Normung (DIN) standards.
