Martin 26L100 SH EF-1 Style, 3/8" Pitch, Light, 1" Wide Belts, SH QD Bushing Timing Pulley QD

Be the first to review this item

ASIN B004BDPEBM

Specifications for this item
Pitch
0.375  inches
Overall Width
1.25  inches
Part Number
26L100 SH
Number of Teeth
26
Brand Name
Martin
Number of Items
1
Material Type
High Carbon Steel
Outside Diameter
8.5640  inches
UPC
697950151755
Outside Diameter
8.5640  inches
Size Name
3/8" Pitch, for Light 1" Wide Belts, SH Bushing required
EAN
0697950151755
Outside Diameter Tolerance
+ .006 - .000  inches
UNSPSC Code
26111807
System of Measurement
Inch
Overall Length
1.3125  inches

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 9 hrs 1 min and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Grooved design for applications requiring synchronous rotation
  • High carbon steel for resistance to wear
  • Light (L) pitch profile for use with same-pitch trapezoidal tooth 1" wide belts
  • For use with SH quick disconnect (QD) bushing (sold separately)
  • Double flange to resist belt side thrust and maintain belt contact

Package Details

Shipping Weight: 1.6 pounds
Package Size: 3.9 x 3.4 x 1.5 inches

Product Description

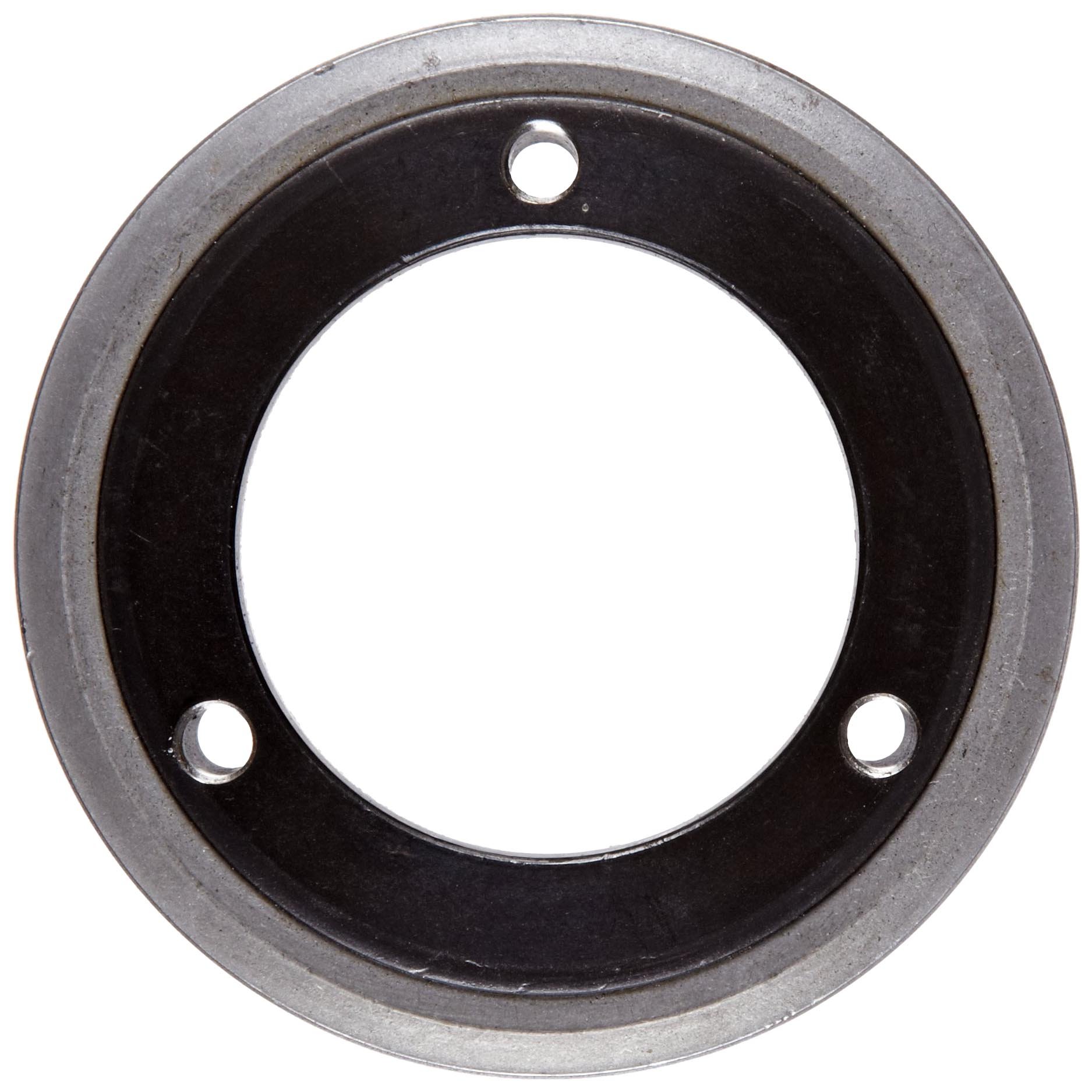

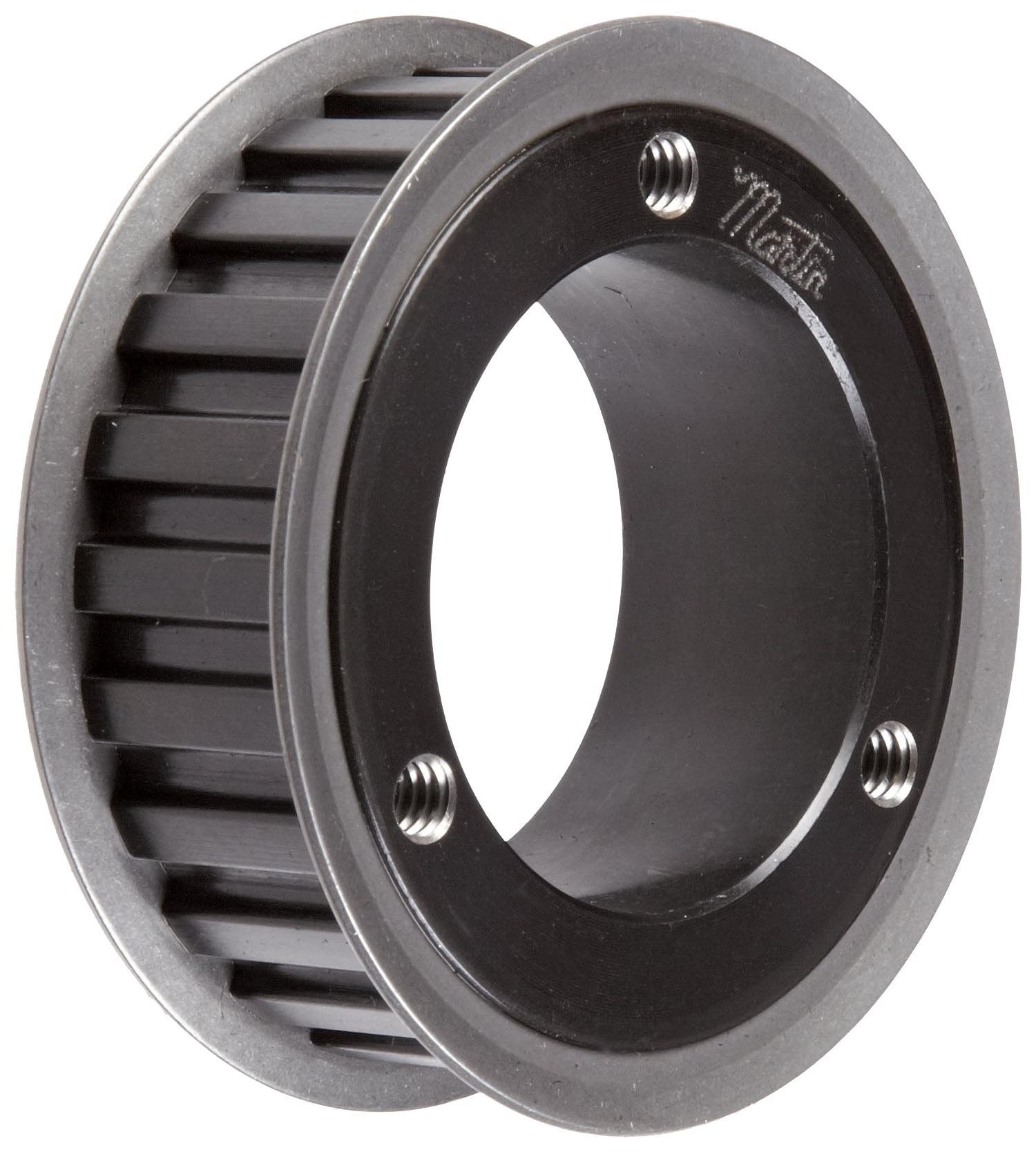

This Martin EF-1 type timing pulley is made of high carbon steel, has a 3/8" pitch, and is suitable for use with 1" wide Light (L) pitch profile trapezoidal tooth belts in power transmission applications that require synchronous rotation. This pulley mounts to a drive shaft using an SH type quick disconnect (QD) bushing (sold separately). Double flanges on the pulley resist side thrust and maintain belt contact, and the high carbon steel construction resists wear. This timing pulley has a bore range of 1/2 to 1-11/16". Timing pulleys are a type of drive pulley and are used in a wide range of mechanical and electronic drives, including automotive and printing industries.

Pulley drive systems consist of two or more pulleys that connect with a belt to transmit mechanical power across greater distances than systems that use gears. Pulleys (sheaves) are available in different types: V-belt, timing, round, or flat. Pulleys must match the belts that connect them (timing pulleys with trapezoidal grooves require a belt with trapezoidal teeth) and engage either on the sides of the pulley flange (classical V-belts, narrow V-belts, or round belts), on the flat outer diameter of the pulley (flat belts), or in pulley grooves that match belt teeth (timing belts, synchronous belts, or curvilinear belts). Pulleys are made of various materials, including cast iron, steel, aluminum, polycarbonate resin thermoplastic, and nylon, and they can meet a broad range of requirements, including increased torque, resistance to wear, and light weight. Pulleys are used in drive designs in the automotive, appliance, agriculture, textile, printing, mining, and office equipment industries.

Martin Sprocket & Gear manufactures power transmission products, material handling components, and industrial hand tools. The company, founded in 1951 and headquartered in Arlington, TX, meets International Organization for Standardization (ISO) standard 9001:2008.
