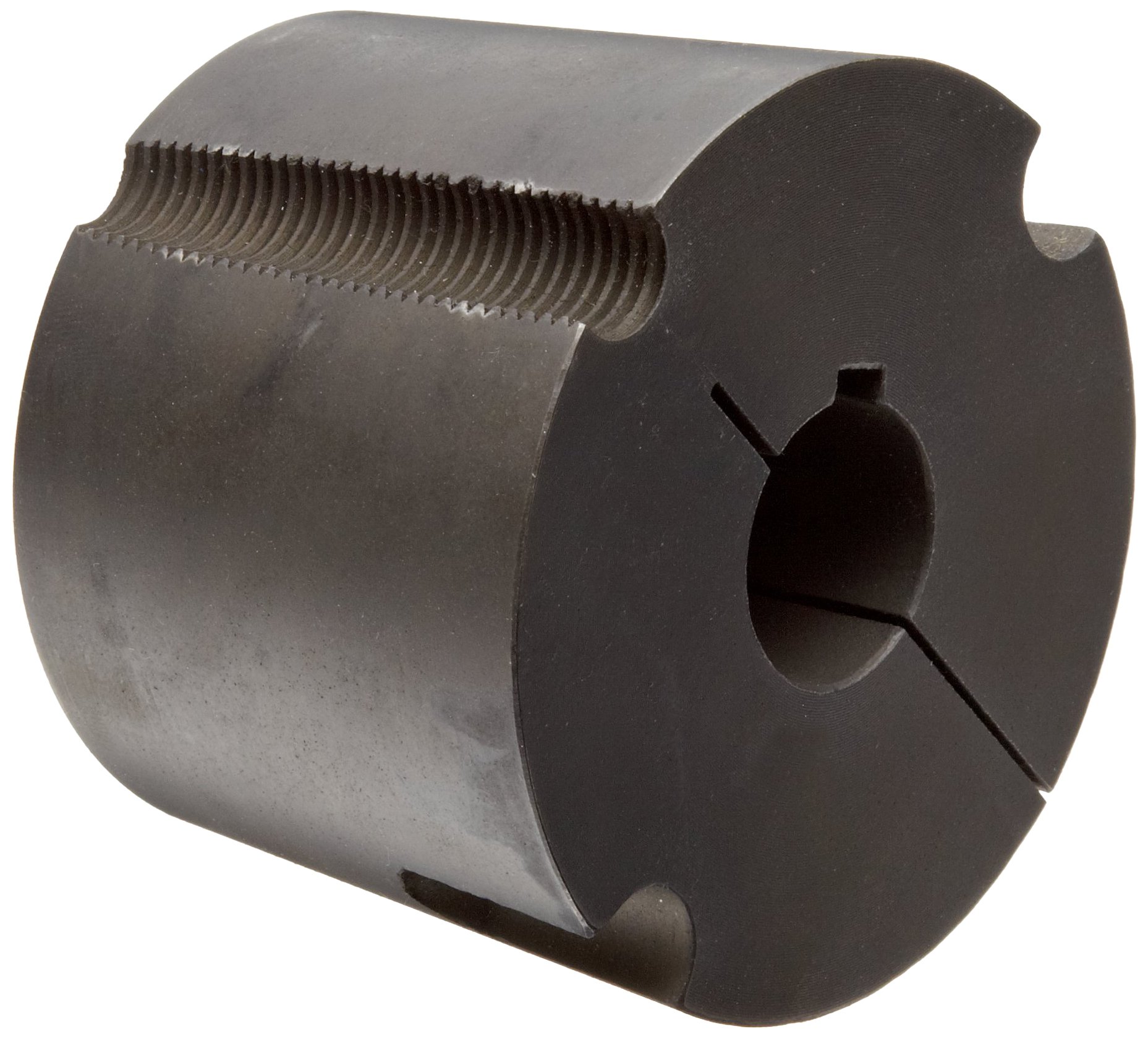

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Martin 2525 Taper Bushing, Class 30 Gray Cast Iron, Inch

Be the first to review this item

Product Specifications
Material Type
Cast Iron
UNSPSC Code
31170000
Brand Name
Martin
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Jul 24? Order in-stock items in the next 19 hrs 2 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 29 Next 9 »
Bore Diameter Outside Diameter Length ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-20 of 29 Next 9 »
3/4" 3.375" 2-1/2" B004BKIUMK 1 $33.09 Buy Options
13/16" 3.375" 2-1/2" B004BKIUN4 1 $34.30 Buy Options
7/8" 3.375" 2-1/2" B004BKIUOI 2 $35.38 Buy Options
15/16" 3.375" 2-1/2" B004BKIUPM 1 $34.30 Buy Options
1" 3.375" 2-1/2" B004BKIU1G 2 $35.85 Buy Options
1-1/16" 3.375" 2-1/2" B004BKIU20 1 $34.30 Buy Options
1-1/8" 3.375" 2-1/2" B004BKIU4I 1 $34.16 Buy Options
1-3/16" 3.375" 2-1/2" B004BKIU7U 1 $34.14 Buy Options
1-1/4" 3.375" 2-1/2" B004BKIU3Y 2 $34.29 Buy Options
1-5/16" 3.375" 2-1/2" B004BKIUAM 1 $34.14 Buy Options
1-3/8" 3.375" 2-1/2" B004BKIUA2 1 $34.66 Buy Options
1-7/16" 3.375" 2-1/2" B004BKIUBQ 1 $34.14 Buy Options
1-1/2" 3.375" 2-1/2" B004BKIU3E 3 $36.93 Buy Options
1-9/16" 3.375" 2-1/2" B004BKIUCK 1 $36.20 Buy Options
1-5/8" 3.375" 2-1/2" B004BKIUB6 1 $34.31 Buy Options
1-11/16" 3.375" 2-1/2" B004BKIU4S 1 $34.14 Buy Options
1-3/4" 3.375" 2-1/2" B004BKIU8O 1 $34.00 Buy Options
1-13/16" 3.375" 2-1/2" B004BKIU5M 1 $34.13 Buy Options
1-7/8" 3.375" 2-1/2" B004BKIUCA 1 $34.14 Buy Options
1-15/16" 3.375" 2-1/2" B004BKIU6G 1 $34.26 Buy Options

Key Features

  • Taper bushing for mounting a pulley, sheave, or sprocket on a drive shaft
  • Flush-mounted bushing with a split taper for reduced mounting width and a tight clamp to shafts
  • Class 30 gray cast iron for resistance to wear, galling, and corrosion
  • Keyed to the shaft to prevent the shaft from rotating in the bushing
  • Interchangeable with taper bushings from various manufacturers

Product Description

This Martin 2525 taper bushing is made of class 30 gray cast iron and is used for mounting a taper bushed pulley, sheave, or sprocket on a drive shaft. It is flush mounted for reduced mounting width and has a split taper for a tight clamp to shafts. The bushing is made of class 30 gray cast iron for resistance to wear, galling, and corrosion. It is keyed to the shaft to prevent the shaft from rotating in the bushing, and it is interchangeable with taper bushings from various manufacturers. This taper bushing is used in automobiles, construction equipment, agricultural machinery, and home appliances, among others.

Bushings are cylindrical parts used to mount pulleys, sheaves, sprockets, or other components to drive shafts for the transmission of mechanical power. Most bushings are split and have a tapered outside surface so they will clamp to the shaft when tightened against the tapered bore of the driven component. They are made of durable metals such as cast iron and steel. Bushings are used in automobiles, construction equipment, and machine tools, among others.

Martin Sprocket & Gear manufactures power transmission and conveying products. The company, founded in 1951 and headquartered in Arlington, TX, provides tools that meet American National Standards Institute (ANSI), National Aerospace Standard (NAS), and Deutsches Institut für Normung (DIN) standards.
