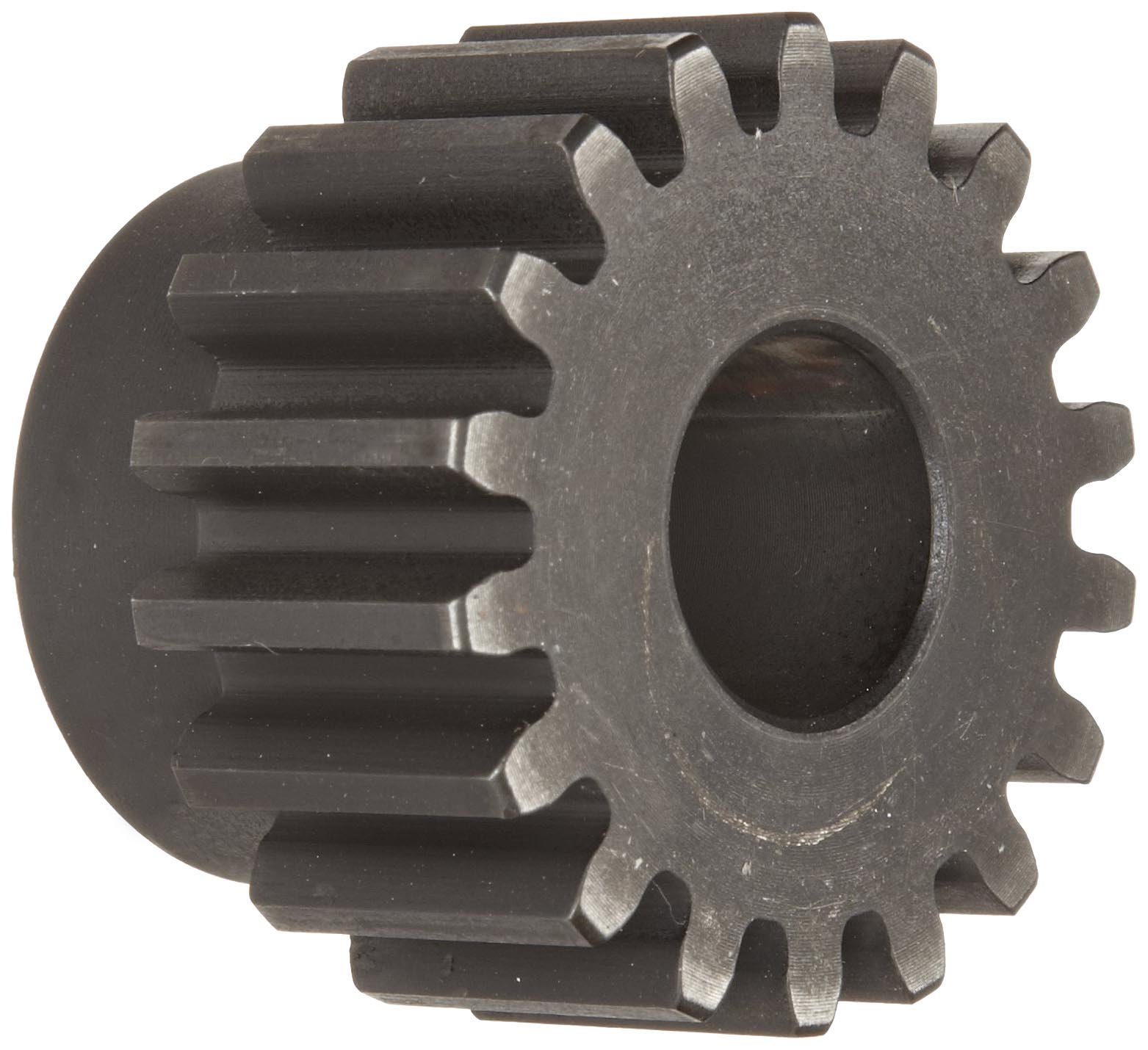

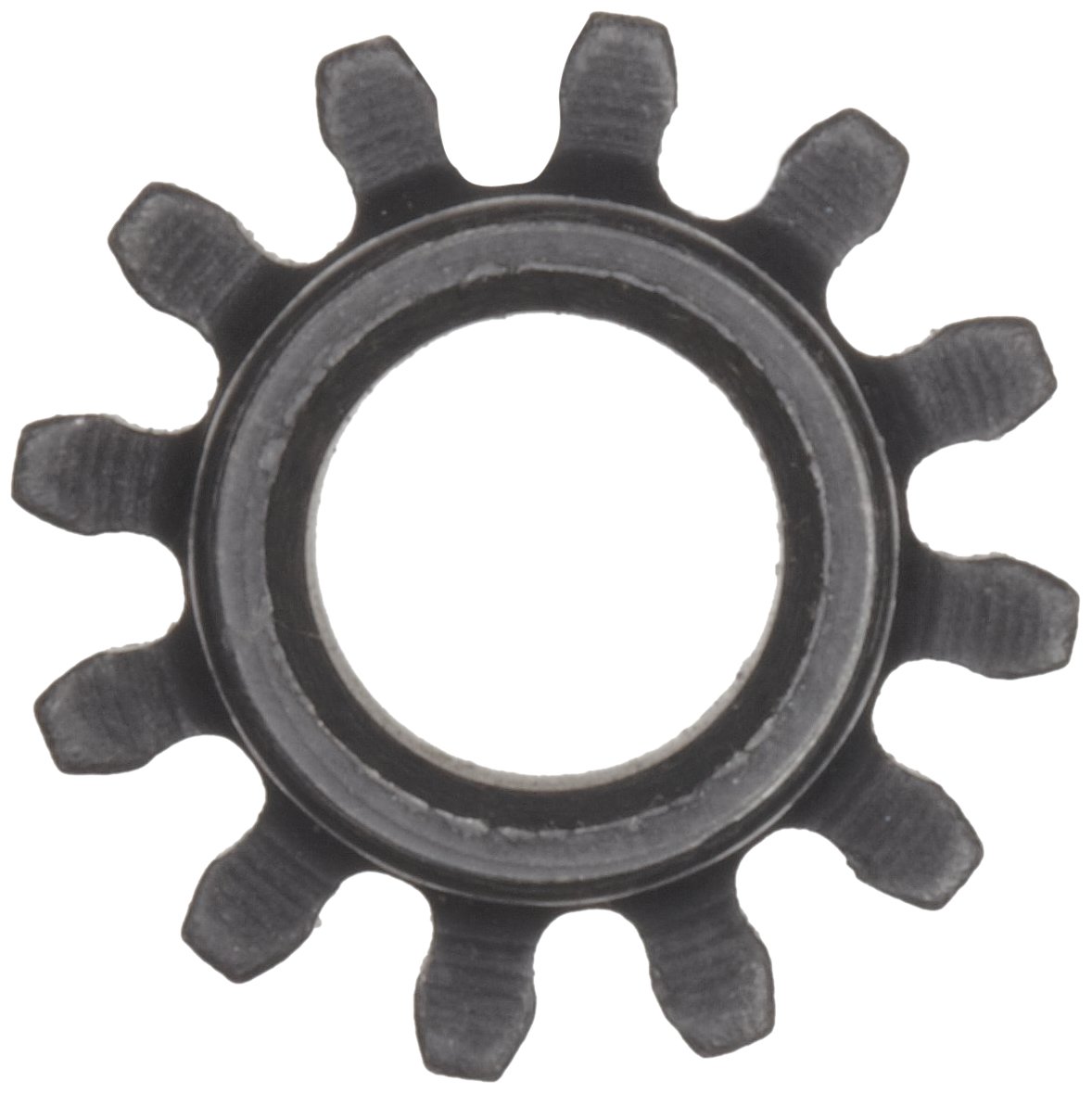

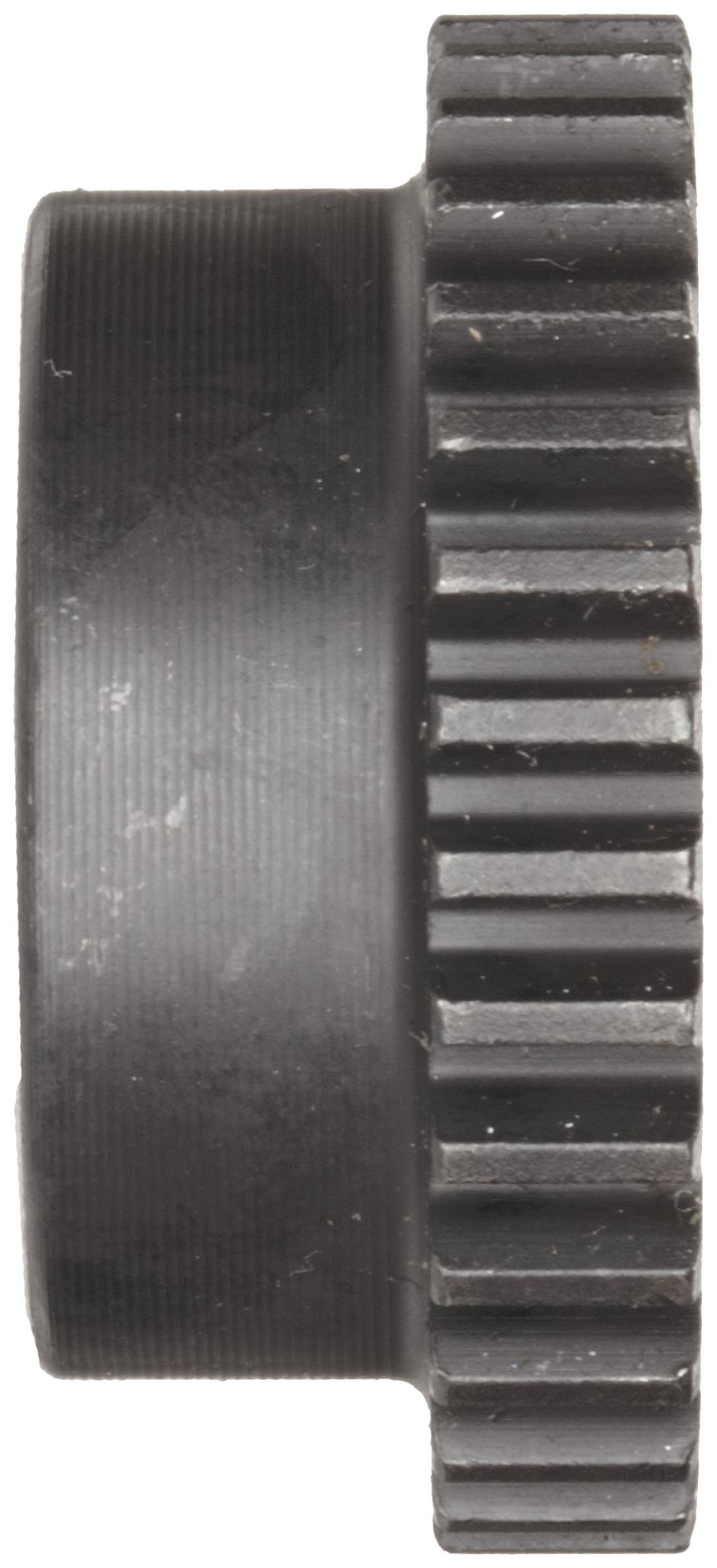

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Martin Spur Gear, 14.5° Pressure Angle, High Carbon Steel, Inch, 4 Pitch

Be the first to review this item

Product Specifications
Pitch
4
Bore Diameter Tolerance
+ 0.001 - 0.000  inches
Material Type
High Carbon Steel
UNSPSC Code
31171707
Brand Name
Martin
Face Width
2.000  inches

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Dec 19? Order in-stock items in the next 8 hrs 44 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 33 Next 13 »
Diameter Bore Diameter Number of Teeth ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-20 of 33 Next 13 »
5.25" 1-1/8" 19 B004BDNY50 yes $127.17 Buy Options
10.5" 1-1/4" 40 B004BDNY8M Temporarily out of stock. Order now and we'll deliver when available. $653.11 Buy Options
11" 1-1/4" 42 B004BDNY96 Temporarily out of stock. Order now and we'll deliver when available. $693.07 Buy Options
11.5" 1-1/4" 44 B004BDNY9Q Temporarily out of stock. Order now and we'll deliver when available. $679.95 Buy Options
12.5" 1-1/4" 48 B004BDNYA0 Temporarily out of stock. Order now and we'll deliver when available. $812.64 Buy Options
14" 1-1/4" 54 B004BDNYAA Temporarily out of stock. Order now and we'll deliver when available. $987.16 Buy Options
14.5" 1-1/4" 56 B004BDNYAU Temporarily out of stock. Order now and we'll deliver when available. $977.56 Buy Options
15.5" 1-1/4" 60 B004BDNYB4 Temporarily out of stock. Order now and we'll deliver when available. $1,176.56 Buy Options
16.5" 1-1/4" 64 B004BDNYBO Temporarily out of stock. Order now and we'll deliver when available. $1,271.36 Buy Options
18.5" 1-1/4" 72 B004BDNYBY Temporarily out of stock. Order now and we'll deliver when available. $1,475.74 Buy Options
20.5" 1-3/8" 80 B004BDNYCI Temporarily out of stock. Order now and we'll deliver when available. $1,664.77 Buy Options
21.5" 1-3/8" 84 B004BDNYCS Temporarily out of stock. Order now and we'll deliver when available. $1,914.49 Buy Options
22.5" 1-3/8" 88 B004BDNYD2 Temporarily out of stock. Order now and we'll deliver when available. $1,949.62 Buy Options
24.5" 1-3/8" 96 B004BDNYDM Temporarily out of stock. Order now and we'll deliver when available. $2,153.11 Buy Options
3.5" 1-1/8" 11 B004BDNY14 yes $125.84 Buy Options
3.5" 1-1/8" 12 B004BDNY28 yes $125.84 Buy Options
3.75" 1-1/8" 13 B004BDNY2I yes $135.66 Buy Options
30.5" 1-3/8" 120 B004BDNYDW Temporarily out of stock. Order now and we'll deliver when available. $3,041.30 Buy Options
36.5" 1-3/8" 144 B004BDNYEG Temporarily out of stock. Order now and we'll deliver when available. $3,517.58 Buy Options
4" 1-1/8" 14 B004BDNY32 yes $49.35 Buy Options

Key Features

  • Transmits torque between parallel shafts to provide rotational power to another part of a motorized system
  • Pressure angle of 14.5 degrees for a higher contact ratio between gears, resulting in quieter operation than larger pressure angles
  • Diametral pitch of 4 for applications where transferring torque is more important than controlling changes in speed and direction of rotation with precision
  • High carbon steel for tensile strength and hardness

Product Description

The Martin high carbon steel gear with 14.5-degree pressure angle (PA) and a diametral pitch (DP) of 4 transmits torque between parallel shafts to provide rotational power to another part of a motorized system. It has a 14.5-degree pressure angle for a higher contact ratio between gears than larger pressure angles, resulting in quieter operation, and a 4-diametral pitch for applications where transferring torque is more important than having precise control over motion, such as starting, stopping, and changing speed or rotational direction. This spur gear, which can mesh only with spur gears that have the same pressure angle and diametral pitch, is made of high carbon steel for tensile strength and hardness. This Martin spur gear is suitable for use in a variety of commercial and industrial applications, such as construction equipment, aeronautics, conveyors, and manufacturing equipment, among others.

Spur gears, the most common gear type, have a circular or cylindrical shape with teeth bordering the outer perimeter and are used for transmitting rotational torque and motion between parallel rotating shafts. A spur gear's pressure angle (PA), diametral pitch (also called DP or pitch), and its material are important factors to consider when purchasing. Gears come in several types for use in different power transmission configurations and for different applications, including bevel and miter gears (for rotating shafts perpendicular to each other), change gears (to increase or decrease torque and speed), helical gears (for high rates of rotational speed), internal gears (where one gear is nested inside the other), rack and pinion gears (for turning rotational motion into linear motion), and worm gears (for perpendicular shafts in tight spaces and quiet operation). Gears are suitable for use in the agriculture, automotive, construction, mining, and packaging industries, and can be found in a variety of machines, including bicycles, automobiles, and elevators, among others.

Martin Sprocket & Gear manufactures power transmission and conveying products. The company was founded in 1951 and is headquartered in Arlington, TX. Martin provides tools that meet American National Standards Institute (ANSI), National Aerospace Standard (NAS), and Deutsches Institut für Normung (DIN) standards.
