Makita HR2475 1-Inch D-Handle SDS-Plus Rotary Hammer

Be the first to review this item

ASIN B002SSUR28

Specifications for this item
Part Number
HR2475
Item Weight
11.99 pounds
UPC
088381603508
Brand Name
Makita
EAN
0088381603508
Voltage
120.00  Volts
Power Source Type
corded-electric
Warranty
1 year
UNSPSC Code
20111603

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Powerful 7 AMP motor; 0-1,100 RPM & 0-4,500 BPM for demanding applications
  • 3-mode operation: "rotation only", "hammering with rotation" and "hammering only" for multiple applications
  • Ergonomic D-shaped handle with rubberized soft grip for increased comfort and control
  • One-touch sliding chuck allows for quick bit changes
  • Built-in Torque Limiter ensures stable torque control
  • Powerful 7.0 AMP motor delivers 0-1,100 RPM & 0-4,500 BPM for the most demanding applications
  • Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears if the bit binds
  • Sequential impact timing delivers timed hammering during rotation to minimize overlapping bit impacts resulting in up to 50% faster drilling
  • Makita Motor Advantage engineered with field core interlocking steel laminations, dual ball bearing armature and more copper commutator bars, increasing energy transfer efficiency for more power and longer tool life
  • Extended life brushes are longer for more work between service intervals and less downtime
  • 40 bit angle settings allow the bit to be set at different positions for operating convenience
  • 3-mode operation for ""Rotation Only"", ""Hammering with Rotation"" or ""Hammering Only"" for multiple applications
  • One-touch sliding chuck for quick bit changes
  • ""No hammering when idling"" function helps increase tool life
  • Recessed lock-on button for continuous use
  • Accepts SDS-PLUS bits
  • Side Handle (158057-6)
  • Depth Gauge (324219-0)
  • Tool Case
  • HR4013C
  • HR2621
  • HR2611F
  • HR2811FX
  • HR2475X2
  • HR4510C
  • HR3210C
  • HR2811F
  • HR2470F
  • HR4002
  • HR5210C
  • HR4041C
  • HR1830F
  • HR4001C
  • HR4010C
  • HR2432
  • HR5000

Package Details

Shipping Weight: 10.7 pounds
Package Size: 19.5 x 13.7 x 10.4 inches

Product Description

Amazon.com

Makita's versatile HR2475 1-inch Rotary Hammer (Accepts SDS-PLUS) delivers more efficient hitting in a compact size for faster, more productive work.

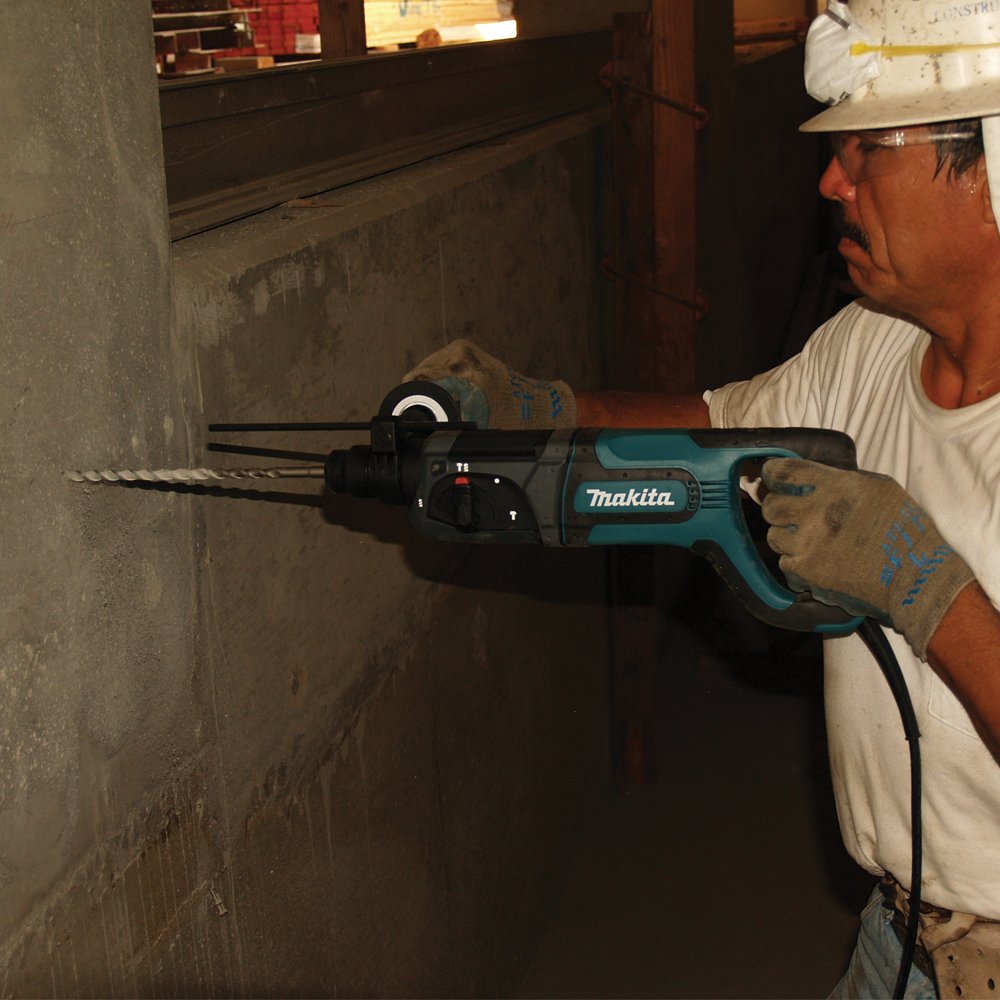

Key Action Shot
View larger
Feature 1Feature 2
Feature 3Feature 4
HR2475 Features
POWER - 7 amp motor delivers 0-4,500 bpm and 2.7 joules of impact energy

EFFICIENCY - Sequential impact timing delivers timed hammering during rotation to minimize overlapping bit impacts resulting in up to 50 percent faster drilling

CONVENIENCE - 40 bit angle settings allow the bit to be set at different positions for operating convenience

PERFORMANCE - Three-mode operation for "Rotation Only", "Hammering with Rotation," or "Hammering Only" for multiple applications

INCLUDES - Side handle, depth gauge, and tool case

Tool Specifications
Tool Spec
Capacity   Concrete1"
Capacity   Steel1/2"
Capacity   Wood1-1/4"
No Load Speed0-1,100 rpm
Blows per Minute0-4,500 bpm
Impact Energy2.7 joules
 2.0 ft.lbs.
AMPS (120V)7.0
Bit TypeAccepts
SDS-PLUS bits
Overall Length16-7/8"
Net Weight6.6 lbs.
7 AMP Motor Delivers 4,500 BPM
The HR2475 is powered by a 7 amp motor that delivers a no load speed of 0-1,100 rpm, with 0-4,500 BPM and 2.7 joules of impact energy. Three-mode operation includes "Rotation Only," "Hammering with Rotation," and "Hammering Only" for multiple applications.

Makita Motor Advantage
Consistent with the rest of Makita's rotary hammer line-up, the HR2475 is engineered with the Makita Motor Advantage. This includes field core interlocking steel laminations, dual ball bearing armature, and more copper commutator bars. These features deliver the most efficient transfer of energy for more power and longer tool life.

More Efficient Work
Additional performance features include a torque limiting clutch engineered to prevent gear damage by automatically disengaging gears if the bit binds. The sequential impact timing feature delivers timed hammering during rotation to minimize overlapping bit impacts, resulting in up to 50 percent faster drilling.

Comfort and Ease of Use
Comfort and ease-of-use features include an ergonomic and well-balanced design with a rubberized D-handle comfort grip and a soft grip side handle. Additional features include a one-touch sliding chuck for easy bit changes, a recessed lock-on button for continuous use, and a large trigger switch. The multiple chisel positioning allows the bit to be set at 40 different positions to align with the application. The extended life brushes are longer for less downtime and more work between service intervals.

Versatile Design for a Range of Applications
The HR2475 is a versatile and hard-hitting rotary hammer for masons, remodelers, electricians, maintenance crews, and general contractors seeking a best-in-class 1-inch rotary hammer. The HR2475 is just another example of Makita's commitment to innovative technology and best-in-class engineering.

About Makita Rotary Hammers
Makita's concrete rotary hammers deliver hard-hitting performance and more productivity with less vibration. Makita rotary hammers are engineered with the Makita Motor Advantage, which includes field core interlocking steel laminations, dual ball bearing armature, and more copper commutator bars, increasing energy transfer efficiency for more power and longer tool life. Additional performance features include a torque limiting clutch engineered to prevent gear damage by automatically disengaging gears if the bit binds. Sequential impact timing delivers timed hammering during rotation to minimize overlapping bit impacts, resulting in up to 50 percent faster drilling. The constant speed control automatically applies additional power to the motor to maintain speed under load to complete the most challenging jobs.

Makita LogoAbout Makita
Makita is a worldwide manufacturer of industrial quality power tools and offers a wide range of industrial accessories. Makita applies leading-edge innovation to engineer power tools that are more compact and energy efficient, yet deliver industrial strength power and results. Makita U.S.A., Inc. is located in La Mirada, California, and operates an extensive distribution network located throughout the U.S. For more information, please call 800/4-MAKITA (800/462-5482) or visit makitatools.com. Makita is Best in Class Engineering.

Warranty
Every Makita tool is thoroughly inspected and tested before leaving the factory. If you are not satisfied with any Makita tool within 30 days of purchase, return it and Makita will provide a replacement or refund. Each Makita tool is warranted to be free of defects from workmanship and materials for the period of ONE YEAR from the date of original purchase. Should any trouble develop during this one-year period, return the COMPLETE tool, freight prepaid, to one of Makita's Factory or Authorized Service Centers. Please see makitatools.com for complete details.

What's in the Box
Makita HR2475 1-Inch D-Handle Rotary Hammer includes: side handle, depth gauge, and tool case.


From the Manufacturer

Makita's new 1 inch rotary Hammer has a powerful 7amp motor 0-1100rpm& 0-4,500 rpm for demanding applications. It has a three mode operation: rotation only, hammering with rotation or hammering only. A one touch sliding chuck allows for quick bit changes. This Makita Hammer has 40 different angle settings for increased convenience.
